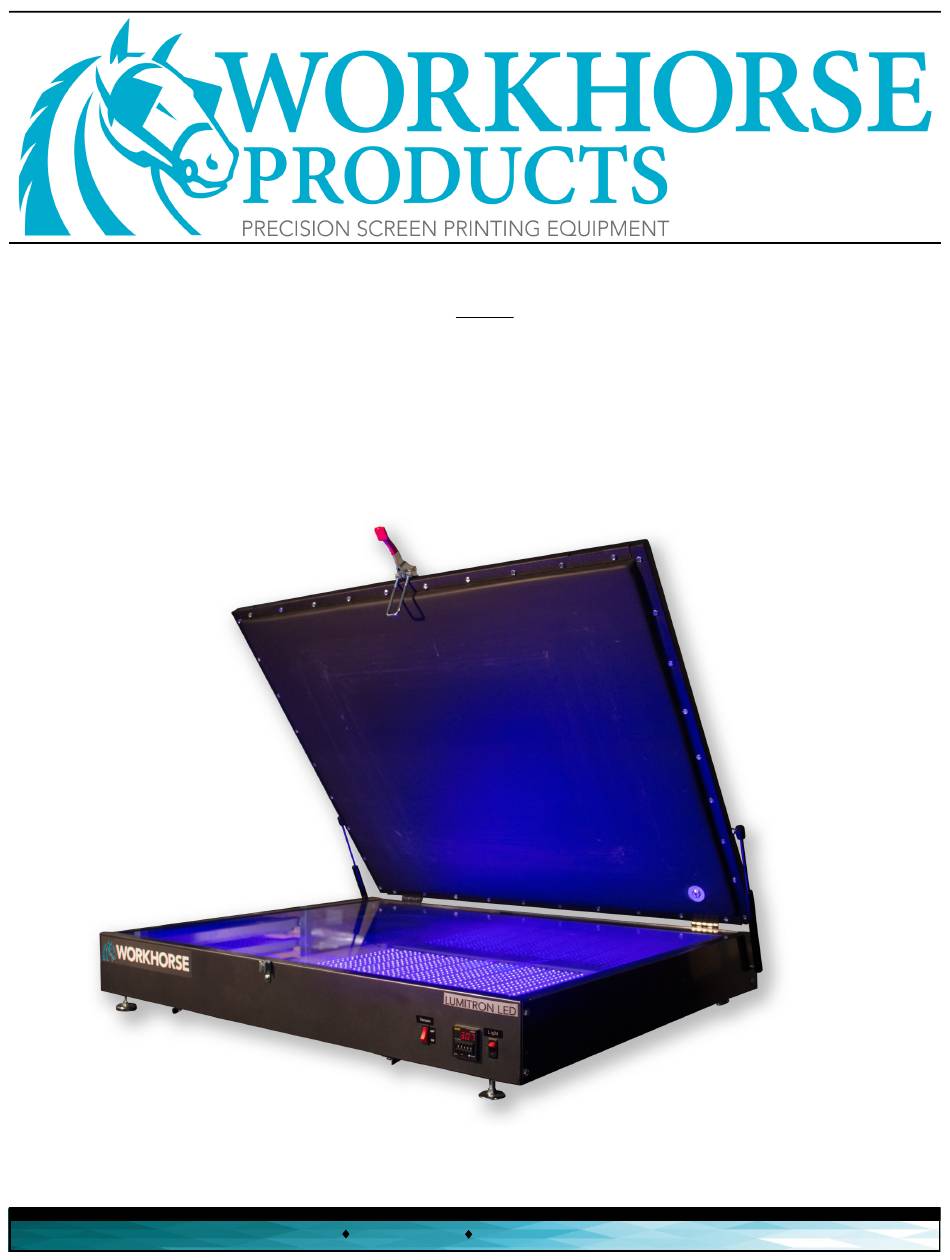

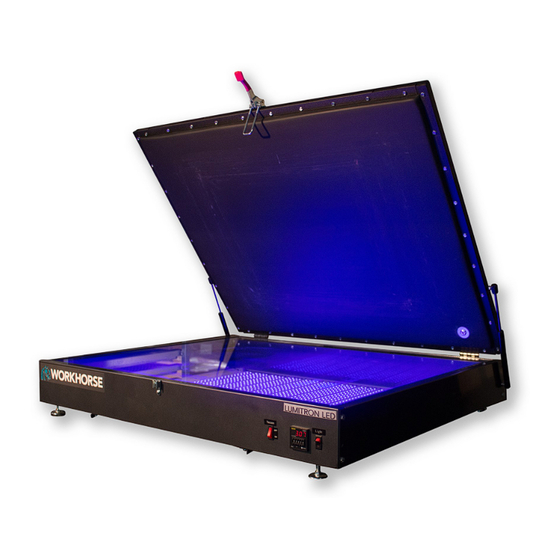

- Page 1 Owner’s Manual Lumitron LED 67-1580 REV L16 3730 E. Southern Avenue, Phoenix, AZ 85040 USA 800-778-8779 Workhorseproducts.com...
-
Page 2: Table Of Contents
Table of Contents I. Introduction …………..…………………………...………………….…...………….………. 3 II. Specifications …..……………..………………………...………….……...….…..…….…. 4 III. Safety Procedures …..……………..……………………….……………….…….………. 5 IV. Assembly Step 1: Uncrating ……………………………………………………...……...…….……… 6 V. Exposing a Screen …………………………………………………….………….….………. 7 VI. Exposure Timer …………………………………………………………..……….……...… 11 VII. Parts List ………..………………………………………...……….……………………….… 12 VIII. Wiring Diagram ……………………………………………..………………………..… 15 IX. -
Page 3: Introduction
We will not be responsible for damages that occur during transportation. If there are damages immediately notify the driver, file a claim with the carrier and call Workhorse Products. The Importance of the Owner’s Manual: The purpose of the Owner’s Manual is to familiarize you with the parts and operations of the Lumitron LED. -
Page 4: Specifications
Specifications LGLUM-LED SMLUM-LED MDLUM-LED Max Screen Size: 20” x 24” Max Screen Size: 34” x 50” Max Screen Size: 25” x 36” Electric: 120V, 60Hz, 5 amps Electric: 115V, 60Hz, 5 amps Electric: 115V, 60Hz, 5 amps Size: 37” x 37” x 6” Size: 41”... -
Page 5: Safety Procedures
Safety Procedures WARNING! RISK OF ELECTRICAL SHOCK! Turn ALL power to unit OFF before service. All service should be done by or under the supervision of a trained technician. To ensure safe and reliable operation of your exposure unit, all personnel should be thoroughly trained on the following procedures: 1. -
Page 6: Assembly
Assembly Step 1: Uncrating 1. The picture on the right is how the Lumitron LED is delivered. The first step is to remove the top of the crate. 2. After the top is removed, remove the front panel of the crate. The front panel is the side opposite of the vacuum motor. -
Page 7: Exposing A Screen
Exposing a Screen There are many variables that influence how a screen is to be exposed. Some of these variables are: emulsion brand, emulsion type, coating technique, mesh count, humidity, atmospheric temperature, and even the light source itself. The Lumitron LED works best with pure photopolymer emulsion or film. The LED does work with duel cure emulations and other diazo based products, but exposure times will be longer compared to using pure photopolymer. - Page 8 However, areas that have moisture in the air will take exceedingly longer. A Workhorse SD-10 drying cabinet will drastically speed up the drying process and eliminate the danger of dust, which will guarantee high quality screens and increase production speed.
- Page 9 Exposing a Screen Step 5: Release the red latch and lift the hold down blanket to expose the glass. Inspect the glass to make sure that it’s clean. Clean glass makes a better quality screen. Step 6: Attach the film positive to the print side. The positive should be positioned so that from the squeegee side, the positive is read left to right.
- Page 10 Exposing a Screen Step 9: When the exposure time ends turn the vacuum switch to the off position. Release the latch handle and very slowly lift the lid to release the air. Opening the lid slowly is very critical, because the screen could potentially be pressurized to the top of the lid and if lifted too quickly it could fall and break the glass.
-
Page 11: Exposure Timer
Exposure Timer There are five setting displays on the timer face: The center character is a letter: S for seconds, M for minutes and H for hours. The two digits to the left of the letters are for whole units. ... -
Page 12: Parts List
40-75015 BALL STUD 391049 HARNESS, DC POWER For more extensive parts and trouble shooting help with ANY Workhorse Product please visit our on-line Parts store and Support Center at: http://support.workhorseproducts.com/store/ 3730 E. Southern Avenue, Phoenix, AZ 85040 USA 800-778-8779 Workhorseproducts.com... - Page 13 40-75015 BALL STUD 391049 HARNESS, DC POWER For more extensive parts and trouble shooting help with ANY Workhorse Product please visit our on-line Parts store and Support Center at: http://support.workhorseproducts.com/store/ 3730 E. Southern Avenue, Phoenix, AZ 85040 USA 800-778-8779 Workhorseproducts.com...
- Page 14 40-75015 BALL STUD 391049 HARNESS, DC POWER For more extensive parts and trouble shooting help with ANY Workhorse Product please visit our on-line Parts store and Support Center at: http://support.workhorseproducts.com/store/ 3730 E. Southern Avenue, Phoenix, AZ 85040 USA 800-778-8779 Workhorseproducts.com...
-
Page 15: Wiring Diagram
Wiring Diagram 3730 E. Southern Avenue, Phoenix, AZ 85040 USA 800-778-8779 Workhorseproducts.com... -
Page 16: Limited Warranty
Equipment manufactured or sold by Workhorse Products is warranted against defects in workmanship and materials for a period of one year from receipt by cus- tomer. All warranties initiate from date of shipment to original customer. Replacement parts are covered for the term of the equipment warranty period.
