INSTALLATION

Insert the larger plug into the jack marked "headphone" or "phone".
• Insert the smaller plug into the jack marked "microphone" or "mic".
• Set the stereo/mono switch on the cable splitter box to the "M" position.
If connecting to a stereo intercom, set the switch to the "S" position.
• Adjust headband slider and mic boom for proper fit and comfort.
• Place the microphone no more than 1/8" from lips, at the corner of the mouth.
This is critical to the performance of the noise canceling electret microphone.
• Two independent volume controls are provided, one on each ear dome, to adjust
the level of audio. (Single volume on V30SP)
If the aircraft does not have a built-in push-to-talk (PTT) switch, a portable PTT
switch must be installed in order to use the radio. The master gain control located
in the aircraft radio should be optimized by an avionics technician whenever adding
a new model microphone to the system.

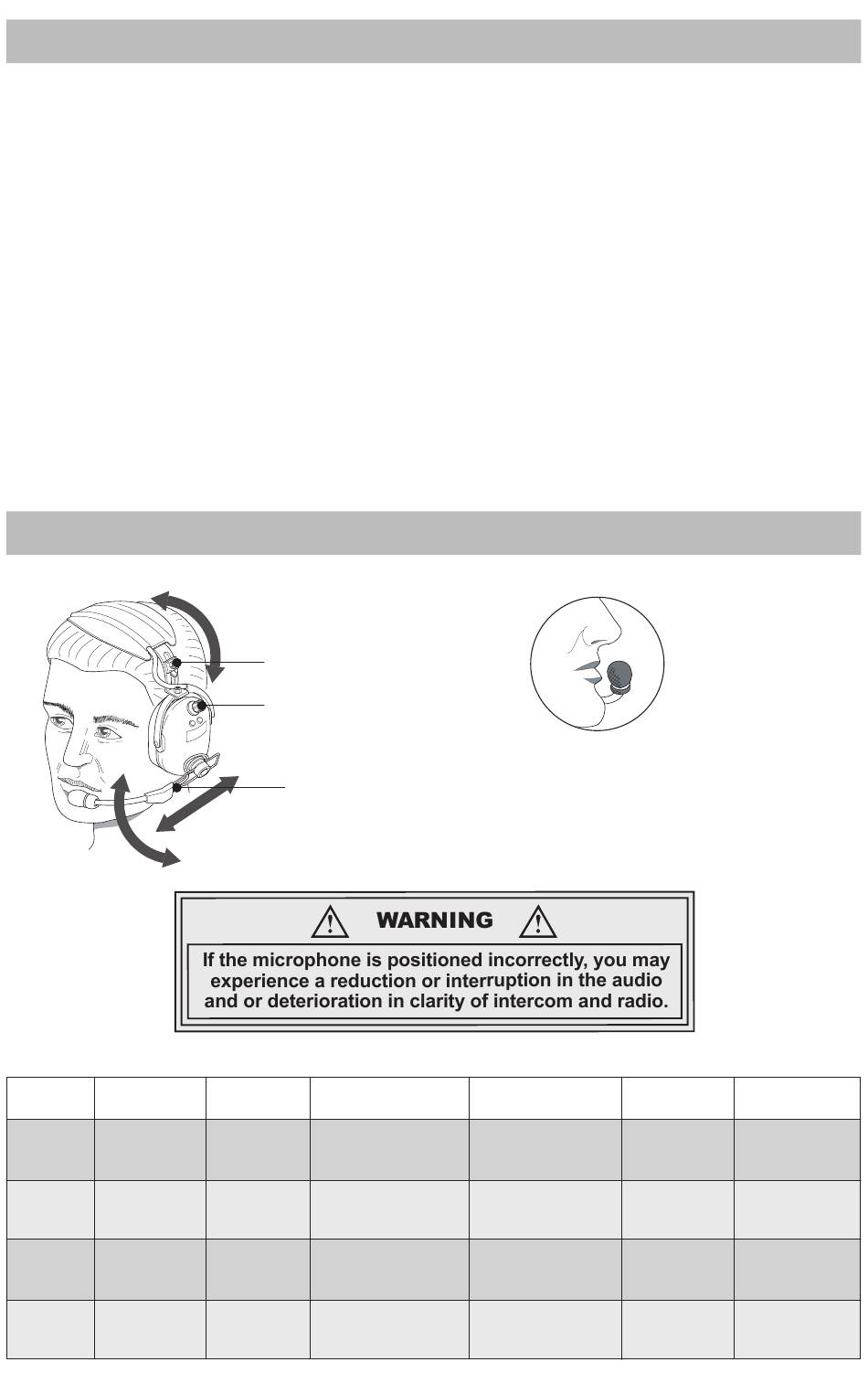

HEADSET ADJUSTMENTS

Model Domes
V90SP Carbon Fiber ComLeather
V90MPH
1
V70SP Carbon Fiber ComLeather
V50SP Glossy Black PVC Open
V50MPH
1
V30SP Black
Helicopter headset: uses U174 plug
1
Adjustable
headband
Volume control
Adjustable
Boom
Ear Seals Head Band Pad
Wide
Thick w/polar fleece
Low-profile
w/polar fleece
Air pillow
Cell Foam
PVC Open Ventilated
Cell Foam Low-profile
Mic Placement
Place mic no more than 1/8"
from lips. Placement of mic is
critical for proper operation.
Head Band Color
Chrome Precision Flex Heavy Fabric
Black Precision Flex
Black Precision Flex
Black Precision Flex
Boom Headset Bag
Fabric
Vinyl
None
