HEADSET FEATURES

• Passive Noise Reduction by 24dB
• Stereo/Mono switchable
• Noise-canceling electret microphone
• Adjustable Headband
• Flexible mic boom with slide adjustment for accurate mic positioning

SPECIFICATIONS

TECHNICAL SPEC
- Weight ...............................................17.1oz Avg. (w/o Comm Cable)
- Noise Reduction Rating .........................................................24dB
MICROPHONE
- DC Bias Supply ..................................8 to 16 volts, not polarity sensitive
- Source Resistance ................................................220 to 2200 ohms
MIL SPEC
- Humidity & Temperature per MIL-STD 810F and 810G
- Chemical Exposure per MIL-STD 810F and 810G
SAE
- Salt Spray per J1455, Sec. 4.3

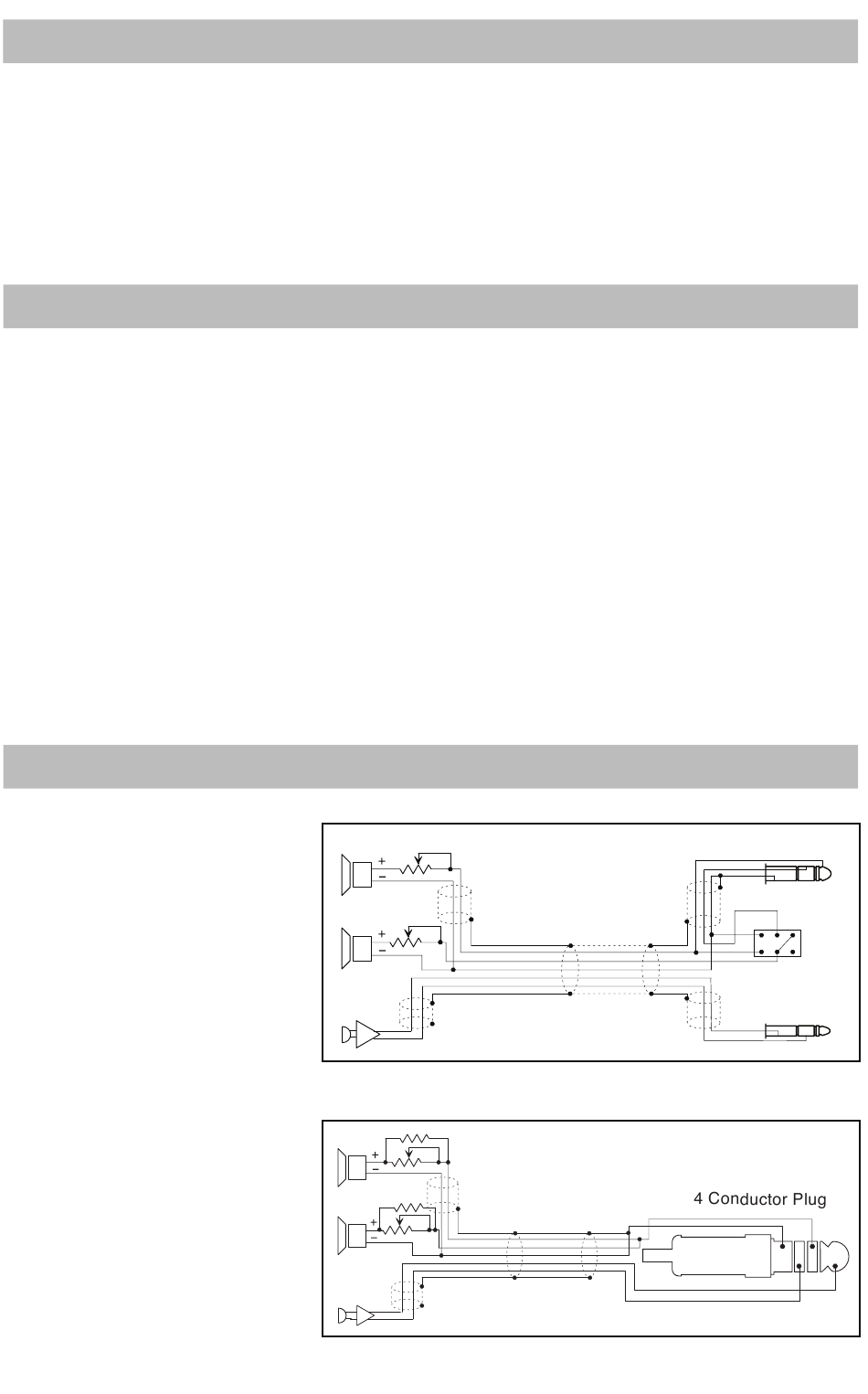

WIRING DIAGRAM
Caution:
Bias voltage supplied to the
microphone must come
from voltage and resistance
ranges specified above.
Voltages supplied in excess
of those stated in the
specifications can cause
microphone failure and void
warranty. The mic audio
signal is present between
the ring and barrel of the
mic plug; tip is reserved for
transmit keyline.
Right
Speakers
Left
Mic.
(Single volume on V30SP)
Right
Speakers
Left
Mic.
Helicopter
6.3 mm Plug
M
S
5.2 mm Plug
