Flightcom DENALI D50ANR Operation Manual

General Aviation Denali 600-3033-20 manual:Layout 1 2/9/12 1:58 PM Page 1

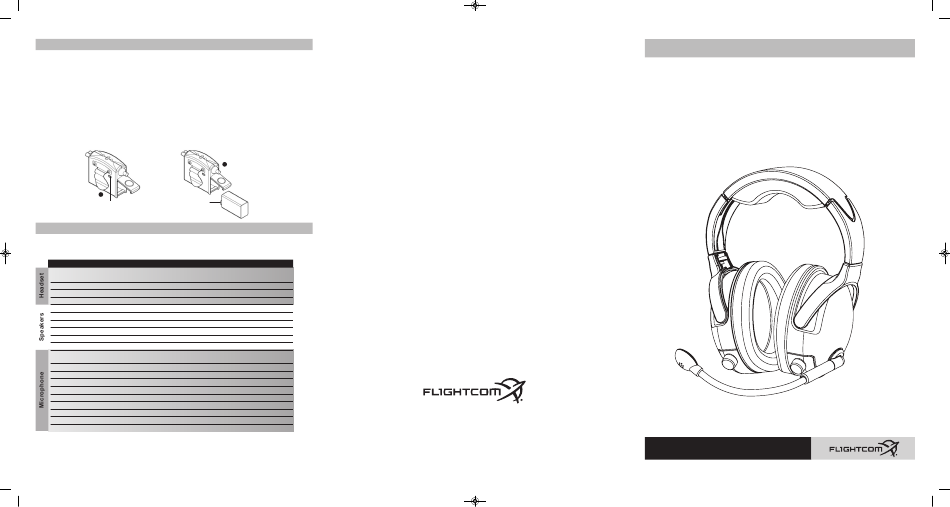

RePlACINg THe BATTeRy
To install or replace the ANR battery, open the battery door by sliding the door in a downward
motion until it unlatches and lift up as shown in diagram A.
Slide the 9-volt battery in with the larger battery contact on the bottom. If you put the battery in
upside down, it will not activate. See diagram B.
Battery life is dependent on the ambient noise in the aircraft, but should provide a minimum of
20 hours of continuous use.
CAUTION: Bias voltage supplied to the microphone must come from voltage and resistance
ranges specified below. Voltages supplied in excess of those stated in the specifications can
cause microphone failure and void the warranty. The mic audio signal is present between the
ring and barrel of the mic plug; tip is reserved for transmit keyline.
A
Large Contact on Bottom
Stereo/Mono Switch
SPeCIfICATIONS
D50ANR - Stereo, Active Noise Reduction
D30SP - Stereo, Passive
D30MPH - Mono, Passive Helicopter w/U174 plug
Denali Passive
Shielding Full floating
w/independent ground
Weight 11.0 ounces
Temperature Sensitivity Not to exceed 156°F
Battery Life Not applicable
Sensitivity(@1mW in dBspl) 104dB
Frequency Response 90Hz—20kHz
Impedance 300 ohms stereo/ch.—150 ohms mono
Total Harmonic Distortion (@1kHz) <.15%
Maximum Power Input 250 mW
Noise Reduction Rating 21dB
Type Noise canceling electret condenser
w/constant-gain preamp
DC Bias Voltage 8-16 volts
Supply Source Resistance 220-2200 ohms
Frequency Response (±6dB) 420Hz-6.4kHz
Sensitivity (@ 114dBspl*) 1.3V
Noise Rejection Ratio (@1kHz) -46dB
Total Harmonic Distortion (@ 1kHz) <0.3%
Impedance 500 ohms
Maximum Speech Level 112 dBspl*
Maximum Ambient Noise Level 132 dBspl*
*Sensitivity measurements referred to 0.0002 ubar (dynes/cm2) @ 1kHz. Microphone
measurements made with 10-volt supply with a 1000 ohm resistor.
Contact Flightcom for the most current ANR specifications.
To Order flightcom Accessories: Call: 1-800-432-4342
B
Denali ANR
Full floating
w/independent ground
12.9 ounces
Not to exceed 156°F
20 hours of continuous use
www.flightcom.net • e-mail: sales@flightcom.net • 800-432-4342 or 503-684-8229
Specifications subject to change without notice. ©2012 Flightcom Corporation.
flightcom Corporation
7340 SW Durham Road, Portland, OR 97224 USA
Flightcom is a registered trademark of Flightcom Corporation.
P/N: 600-0033-20 Rev. D
FLIGHTCOM
FLIGHTCOM

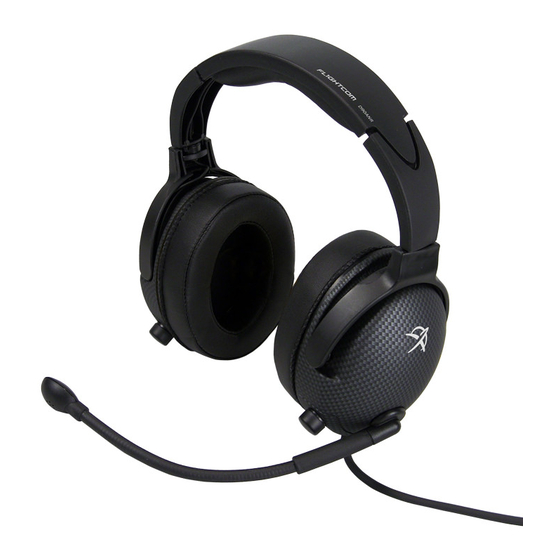

DeNAlI Aviation Headset
®
Passive & Active Noise Canceling Models
D50ANR D30SP D30MPH
Operation Manual
