1. Manuals
  2. Brands
  3. Tekelec Manuals
  4. Industrial Equipment
  5. EAGLE 5
  6. Commands error recovery manual

Tekelec Eagle 5 Commands Error Recovery Manual

Integrated signaling system
Hide thumbs Also See for Eagle 5:
1
2
Table Of Contents
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
457
458
459
460
461
462
463
464
465
466
467
468
469
470
471
472
473
474
475
476
477
478
479
480
481
482
483
484
485
486
487
488
489
490
491
492
493
494
495
496
497
498
499
500
501
502
503
504
505
506
507
508
509
510
511
512
513
514
515
516
517
518
519
520
521
522
523
524
525
526
527
528
529
530
531
532
533
534
535
536
537
538
539
540
541
542
543
544
545
546
547
548
549
550
551
552
553
554
555
556
557
558
559
560
561
562
563
564
565
566
567
568
569
570
571
572
573
574
575
576
577
578
579
580
581
582
583
584
585
586
587
588
589
590
591
592
593
594
595
596
597
598
599
600
601
602
603
604
605
606
607
608
609
610
611
612
613
614
615
616
617
618
619
620
621
622
623
624
625
626
627
628
629
630
631
632
633
634
635
636
637
638
639
640
641
642
643
644
645
646
647
648
649
650
651
652
653
654
655
656
657
658
659
660
661
662
663
664
665
666
667
668
669
670
671
672
673
674
675
676
677
678
679
680
681
682
683
684
685
686
687
688
689
690
691
692
693
694
695
696
697
698
699
700
701
702
703
704
705
706
707
708
709
710
711
712
713
714
715
716
717
718
719
720
721
722
723
724
725
726
727
728
729
730
731
732
733
734
735
736
737
738
739
740
741
742
743
744
745
746
747
748
749
750
751
752
753
754
755
756
757
758
759
760
761
762
763
764
765
766
767
768
769
770
771
772
773
774
775
776
777
778
779
780
781
782
783
784
785
786
787
788
789
790
791
792
793
794
795
796
797
798
799
800
801
802
803
804
805
806
807
808
809
810
Table of Contents

Advertisement

Quick Links

See also: Feature Manual , Commands Error Recovery Manual
®

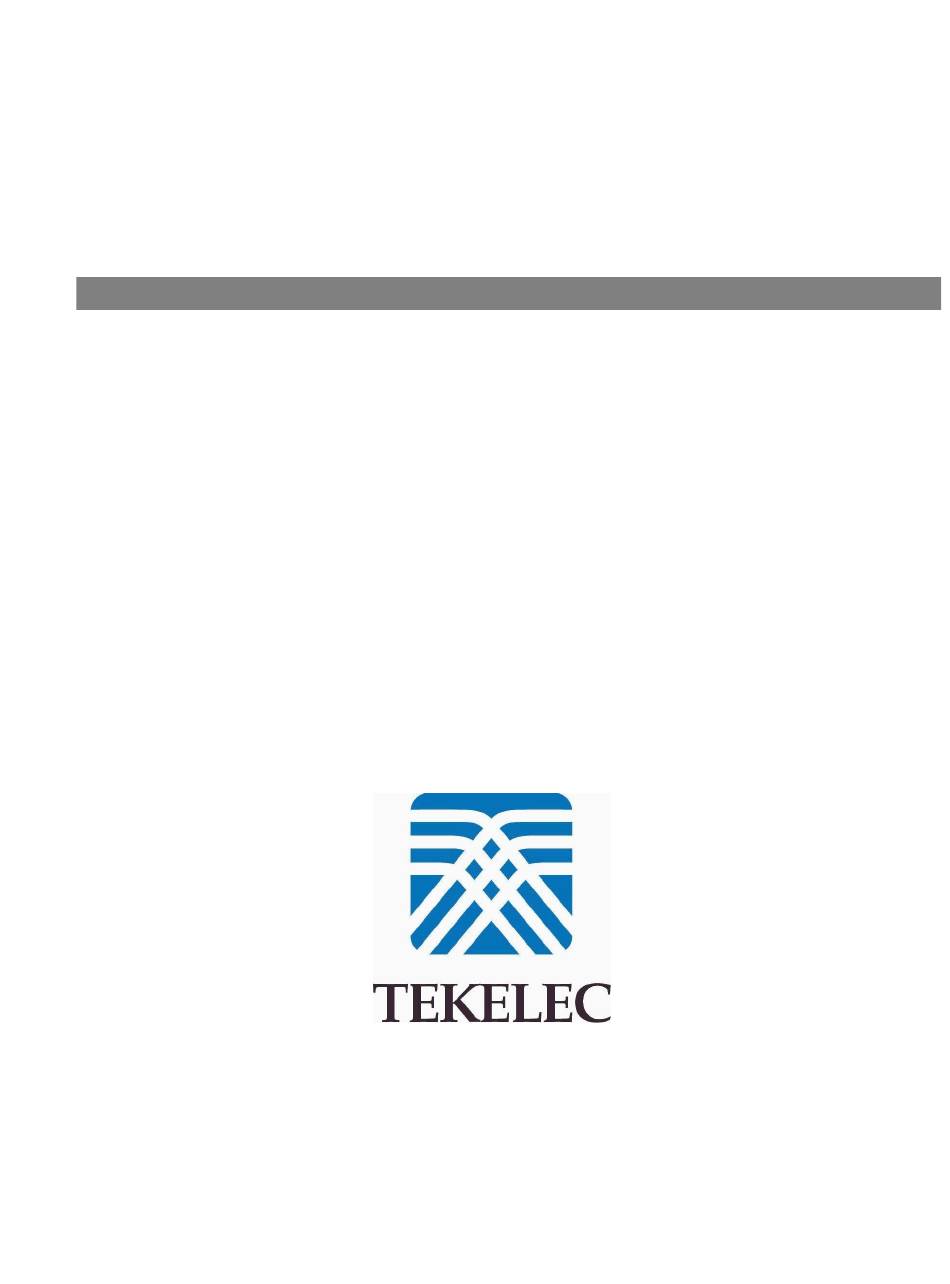

Tekelec EAGLE
5
Integrated Signaling System
Release 38.0
Commands Error Recovery Manual
910-5254-001 Revision C
July 2008

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Eagle 5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tekelec Eagle 5

Summary of Contents for Tekelec Eagle 5

  • Page 1 ® Tekelec EAGLE Integrated Signaling System Release 38.0 Commands Error Recovery Manual 910-5254-001 Revision C July 2008...
  • Page 2 Information in this documentation is subject to change without notice. Unauthorized use, copying, or translation of this documentation can result in civil or criminal penalties. Any export of Tekelec products is subject to the export controls of the United States and the other countries where Tekelec has operations.

  • Page 3: Table Of Contents

    Table of Contents Chapter 1. Introduction ..................... 1-1 Overview............................1-1 Scope and Audience........................1-2 Related Publications........................1-2 Documentation Availability, Packaging, and Updates..............1-2 Documentation Admonishments....................1-3 Customer Care Center........................1-3 Emergency Response........................1-4 Locate Product Documentation on the Customer Support Site............1-4 Chapter 2. Command Rejected Messages ................ 2-1 Glossary ........................
  • Page 4 Table of Contents Commands Error Recovery Manual 910-5254-001 Revision C, July 2008...
  • Page 5 List of Tables Table 2-1. Valid Values for the bps Parameter..............2-45 Table 2-2. Invalid Parameter Combinations that Generate an E2155 Error Message...2-49 Table 2-3. Conditions that Generate an E2165 Error Message..........2-53 Table 2-4. Conditions that Generate an E2257 Error Message..........2-84 Table 2-5.
  • Page 6 Table 2-36. Valid Frame ID Parameter Values..............2-722 Table 2-37. EAGLE 5 ISS Link Cards Not Supported............2-734 Table 2-38. EAGLE 5 ISS LInk Cards not supporing RSET feature........2-735 Table 2-39. Default Buffer Configuration Sizes..............2-740 Table 2-40. EPAP-based ITU NP Controlled Features............2-787...

  • Page 7: Chapter 1. Introduction

    Locate Product Documentation on the Customer Support Site................1-4 Overview The Commands Error Recovery Manual provides a description of the error messages used in the EAGLE 5 Integrated Signaling System (ISS). Commands are entered at a terminal to perform system operations such as displaying the system status, administering system security, and maintaining the database.

  • Page 8: Scope And Audience

    Availability (LA) releases, Tekelec may publish a documentation subset tailored to specific feature content or hardware requirements. Documentation Bulletins announce a new or updated release. The Tekelec EAGLE 5 ISS documentation set is released on an optical disc. This format allows for easy searches through all parts of the documentation set.

  • Page 9: Documentation Admonishments

    The Tekelec Customer Care Center offers a point of contact for product and service support through highly trained engineers or service personnel. The Tekelec Customer Care Center is available 24 hours a day, 7 days a week at the following locations: •...

  • Page 10: Emergency Response

    A critical situation is defined as a problem with an EAGLE 5 ISS that severely affects service, traffic, or maintenance capabilities, and requires immediate corrective action. Critical problems affect service and/or system operation resulting in: •...

  • Page 11: Chapter 2. Command Rejected Messages

    Command Rejected Messages Introduction This chapter contains the command rejected error messages generated by the commands used on the EAGLE 5 ISS. The following items make up each description of the error message: • The error message generated by the EAGLE 5 ISS.
  • Page 12 Commands Used: all commands You cannot enter a command at a system terminal if you have not logged on to the EAGLE 5 ISS, or if your user ID does not have the authorization to access the command class for the command you tried to enter.
  • Page 13 Commands Error Recovery Manual E2006 Cmd Rej: Missing parameter block separator Recovery Re-enter the command specifying the correct format and parameters. Refer to the Commands Manual for additional information regarding the command format, parameters, and syntax. Call your Customer Care Center if this error message appears again. See the "Customer Care Center" section in Chapter 1 of this manual.
  • Page 14 Refer to the Commands Manual for additional information regarding command syntax. E2010 Cmd Rej: Unrecognized command Commands Used: All commands You entered a command that the EAGLE 5 ISS does not recognize. Recovery Verify that you have typed the command correctly.
  • Page 15 Make any necessary corrections and re-enter the command. E2015 Cmd Rej: Missing parameter identifier Commands Used: All commands that have parameters You specified a parameter without an identifier that the EAGLE 5 ISS requires. Recovery Verify that you have entered all parameters correctly.
  • Page 16 E2017 Cmd Rej: <parm_desc> is out of range, Commands Error Recovery Manual <min>...<max> - <parm> Refer to the Commands Manual for additional information regarding the range of values and characters that are valid for the specified command parameter. Call your Customer Care Center if this error message appears again. See the "Customer Care Center" section in Chapter 1 of this manual.
  • Page 17 Commands Error Recovery Manual E2020 Cmd Rej: Table copy command already in process Refer to the Commands Manual for additional information regarding the range of values and characters that are valid for the specified command parameter. Call your Customer Care Center if this error message appears again. See the "Customer Care Center" section in Chapter 1 of this manual.
  • Page 18 E2024 Cmd Rej: Invalid system Commands Error Recovery Manual Re-enter the command that generated this error message specifying the correct syntax for the OAM drive. Call your Customer Care Center if this error message appears again. See the "Customer Care Center" section in Chapter 1 of this manual.
  • Page 19 Commands Error Recovery Manual E2027 Cmd Rej: IP Address requires 4 octets in the range 1 . . . 254 - <parm> Enter the rtrv-user command. Display the users logged on the system. Enter the rept-stat-user command. Re-enter the command specifying a user ID that is shown in the output of step 1 and not shown in the output of step 2.
  • Page 20 E2031 Cmd Rej: Octet 4 is out of range, 1 . . . 254 - Commands Error Recovery Manual <parm> You have entered an invalid value in octet 3 of the specified command parameter. The value for the octet must be in the range of 1 through 254.
  • Page 21 Commands Error Recovery Manual E2035 Cmd Rej: Octet 4 missing - <parm> Recovery Re-enter the command parameter specifying a valid IP address that contains the missing third octet. Call your Customer Care Center if this error message appears again. See the "Customer Care Center" section in Chapter 1 of this manual.
  • Page 22 E2038 Cmd Rej: <parm_desc> too short, min <min>, Commands Error Recovery Manual max <max>, - <parm> E2038 Cmd Rej: <parm_desc> too short, min <min>, max <max>, - <parm> Commands Used: all commands You entered a string that is too short and does not contain the minimum number of characters required for this command parameter.
  • Page 23 Commands Error Recovery Manual E2041 Cmd Rej: String pattern nonconformance, alphabetic - <parm> Re-enter the command specifying a pattern that conforms to the alphanumeric content required for the specified command parameter. Refer to the Commands Manual for detailed information about the use of the command. Call your Customer Care Center if this error message appears again.
  • Page 24 E2044 Cmd Rej: <parm_desc> value is undefined - Commands Error Recovery Manual <parm> Call your Customer Care Center. See the "Customer Care Center" section in Chapter 1 of this manual. E2044 Cmd Rej: <parm_desc> value is undefined - <parm> Commands Used: all commands You failed to specify a required parameter value for the entered command.
  • Page 25 Commands Error Recovery Manual E2048 Cmd Rej: Unneeded information found Refer to the Commands Manual for additional information regarding the valid command syntax that defines the information units and their separators. Call your Customer Care Center if this error message appears again. See the "Customer Care Center" section in Chapter 1 of this manual.
  • Page 26 E2051 Cmd Rej: Incorrect information unit, expecting Commands Error Recovery Manual number - <parm> Call your Customer Care Center if this error message appears again. See the "Customer Care Center" section in Chapter 1 of this manual. E2051 Cmd Rej: Incorrect information unit, expecting number - <parm>...
  • Page 27 Commands Error Recovery Manual E2054 Cmd Rej: Incorrect information unit, expecting mnemonic - <parm> E2054 Cmd Rej: Incorrect information unit, expecting mnemonic - <parm> Commands Used: all commands You supplied an invalid mnemonic for a parameter value. The value represented by <parm> varies according to the specific command entered.
  • Page 28 E2057 Cmd Rej: Incorrect information unit, translation Commands Error Recovery Manual type - <parm> E2057 Cmd Rej: Incorrect information unit, translation type - <parm> Commands Used: all commands You supplied an incorrect information unit for the translation type. The translation type from <parm> varies according to the specific command entered.
  • Page 29 Commands Error Recovery Manual E2060 Cmd Rej: Lower bound exceeds upper bound of range - <parm> E2060 Cmd Rej: Lower bound exceeds upper bound of range - <parm> Commands Used: all commands You specified an invalid range because the lower bound value is greater than the upper bound for a range in the cited command parameter.
  • Page 30 E2065 Cmd Rej: CMD parameter is not a valid Eagle command Commands Used: chg-cmd, rtrv-cmd You entered a cmd parameter containing an invalid EAGLE 5 ISS command specified. The cmd parameter value must be a valid system command. Recovery Re-enter the cmd parameter with the correct EAGLE 5 ISS command parameter.
  • Page 31 Commands Error Recovery Manual E2069 Cmd Rej: Feature not compatible with ICNP feature Recovery Call your Customer Care Center. See the "Customer Care Center" section in Chapter 1 of this manual. E2069 Cmd Rej: Feature not compatible with ICNP feature Commands Used: all commands You cannot turn on the specified feature with the ICNP feature on.
  • Page 32 E2075 Cmd Rej: Incorrect information unit, expecting Commands Error Recovery Manual num,new or dflt - %s Recovery Re-enter the command specifying a valid Host Number. Refer to the Commands Manual for additional information regarding the correct information units required for the command parameter.
  • Page 33 Commands Error Recovery Manual E2078 Cmd Rej: Incorrect information unit, expecting new or dflt E2078 Cmd Rej: Incorrect information unit, expecting new or dflt Commands Used: ent-map The values specified for the mapset id parameter (mapset) must be either new or dflt. Recovery Re-enter the ent-map command specifying either new or dflt for the mapset parameter.
  • Page 34 E2085 Cmd Rej: A-Port, GPort, or IGM must be ON Commands Error Recovery Manual Call your Customer Care Center if this error message appears again. See the "Customer Care Center" section in Chapter 1 of this manual. E2085 Cmd Rej: A-Port, GPort, or IGM must be ON Commands Used: enable-ctrl-feat The A-Port, G-Port, or IGM must be on before the MNPCircular Route Prevention feature can be activated.
  • Page 35 Commands Error Recovery Manual E2088 Cmd Rej: GTT must be turned on for IGM E2088 Cmd Rej: GTT must be turned on for IGM Commands Used: enable-ctrl-feat The GTT feature must be turned on before the IS41-GSM Migration (IGM) feature can be enabled. Recovery Display the status of the GTT feature.
  • Page 36 E2091 Cmd Rej: LNP cannot be enabled if A-Port is Commands Error Recovery Manual turned on Verify the status of the 4GBDSM-VSCCP card. Enter the command: rept-stat-sccp:loc=xxxx Where xxxx is the location of the 4 GBDSM-VSCCP card. Refer to the procedure in the FeatureManual–Migration to enable the IGM feature. Call your Customer Care Center if this error message appears again.
  • Page 37 Commands Error Recovery Manual E2094 Cmd Rej: LNP cannot be enabled if MTP Msgs for SCCP apps enabled Refer to the LNPFeature Activation Guide and the Feature Manual - Migration for information about using LNP and IGM. Call your Customer Care Center if this error message appears again. See the "Customer Care Center" section in Chapter 1 of this manual.
  • Page 38 E2100 Cmd Rej: Card location already equipped Commands Error Recovery Manual Recovery Display the status of the controlled features in the system. Enter the rtrv-ctrl-feat command. If the IGM feature appears in the output from step 1, you cannot provision a TSM card to run the sccp application in the system.
  • Page 39 Commands Error Recovery Manual E2102 Cmd Rej: Failed reading the IMT table E2102 Cmd Rej: Failed reading the IMT table Commands Used: chg-e1, chg-t1, chg-x25-slk, dlt-card, dlt-e1, dlt-ip-node, dlt-t1, ent-card, ent-dlk, ent-e1, ent-ip-node, ent-slk, ent-t1, ent-x25- rte, rtrv-e1, rtrv-ip-node, rtrv-slk, rtrv-stp, rtrv-t1, rtrv-x25-slk The IMT table is corrupt or cannot be found by the system.
  • Page 40 For the act-upgrade command, replace the unsupported or obsolete card type was found with a TSM card or better. NOTE: For EAGLE 5 ISS 31.6 and later, replace all ASM cards with TSM cards. For the ent-card command, re-enter the ent-card command specifying the correct card type and appl combination.
  • Page 41 Commands Error Recovery Manual E2108 Cmd Rej: Shelf location not equipped Enter the rtrv-dlk command. Display the TCP/IP nodes in the database. Enter the rtrv-ip-node command. From the outputs from steps 1 and 2, determine if the card location specified has a TCP/IP node and TCP/ IP data link assigned to it.
  • Page 42 E2110 Cmd Rej: Unable to access DB level Commands Error Recovery Manual Determine the status of the database. Enter the rept-stat-db command. If the status of the database is corrupt, determine which subset is corrupt. Enter the aud-data:display=all command. If the database is either incoherent or corrupt, find the conditions shown in the output of step 1 in the following list, and execute the appropriate command.
  • Page 43 Commands Error Recovery Manual E2111 Cmd Rej: Database consistency violation - maintenance required E2111 Cmd Rej: Database consistency violation - maintenance required Commands Used: rtrv-rte A database inconsistency has been detected. Recovery Call your Customer Care Center if this error message appears again. See the "Customer Care Center" section in Chapter 1 of this manual.
  • Page 44 E2115 Cmd Rej: NDIGITS parameter mandatory with Commands Error Recovery Manual PREFIX parameter Call your Customer Care Center if this error message appears again. See the "Customer Care Center" section in Chapter 1 of this manual. E2115 Cmd Rej: NDIGITS parameter mandatory with PREFIX parameter You cannot specify the prefix parameter without specifying the ndigits parameter.
  • Page 45 Commands Error Recovery Manual E2119 Cmd Rej: BPS must be 56000 or 64000 Verify the transmission rate of the links in the linkset. Enter the command rtrv-ls:lsn=(the linkset the link is being added to). The transmission rate of the link is shown in the BPS field of the output.
  • Page 46 E2121 Cmd Rej: PCRN1 and PCRN2 parameters are Commands Error Recovery Manual invalid if ECM=BASIC Call your Customer Care Center if this error message appears again. See the "Customer Care Center" section in Chapter 1 of this manual. E2121 Cmd Rej: PCRN1 and PCRN2 parameters are invalid if ECM=BASIC Commands Used: ent-slk The pcrn1 and pcrn2 parameters cannot be specified if the ecm parameter is specified as basic (ecm=basic).
  • Page 47 Commands Error Recovery Manual E2125 Cmd Rej: Links on specified linkset are in-service Enter the rtrv-ls:lsn= command specifying the linkset name that generated this error message. The error correction method of the signaling links is shown in the ECM field of the output. Re-enter the ent-slk command that generated this error message specifying a value for the ecm parameter that is the same as the error correction method shown in the ECM field of the rtrv-ls command output in step 1.
  • Page 48 E2127 Cmd Rej: l2tset must be 1-10 for ANSI links, Commands Error Recovery Manual 11-20 for ITU If the card location has an application of ss7ansi or ccs7itu, then the APC of the linkset must be in the SS7 domain. If the card location has an application of ss7gx25, the APC of the linkset must be in the X.25 domain.
  • Page 49 Commands Error Recovery Manual E2129 Cmd Rej: CDPNPFX must be specified E2129 Cmd Rej: CDPNPFX must be specified Commands Used: chg-inpopts You entered a value for the ncdpnpfx or dltpfx parameter (or both), and did not specify the cdpnpfx parameter. Recovery To change a Called Party Number Prefix, re-enter the chg-inopts command specifying the existing prefix in the cdpnpfx parameter and the new prefix in the ncdpnpfx parameter.
  • Page 50 NOTE: The link parameter has been added as a synonym for the port parameter. The port and link parameters can be used synonymously for a few more EAGLE 5 ISS releases; then the port parameter will be removed.
  • Page 51 Commands Error Recovery Manual E2136 Cmd Rej: At least one optional parameter is required • Re-enter the ent-slk command without specifying the tset parameter. E2136 Cmd Rej: At least one optional parameter is required Commands Used: chg-acg-noc, chg-appflt, chg-assoc, chg-atm-lps, chg- atinpqopts, chg-attr-seculog, chg-cmd, chg-cmdclass, chg-dstn, chg-ctrl- feat, chg-e1, chg-eisopts, chg-feat, chg-ftp-serv, chg-gta, chg-gttset, chg- gpl, chg-rs, chg-gsmmap-scrn, chg-gsmopts, chg-gsmsmsopts, chg-gws-actset,...
  • Page 52 E2138 Cmd Rej: Failed reading terminal table Commands Error Recovery Manual E2138 Cmd Rej: Failed reading terminal table Commands Used: chg-trm The Terminal table is corrupt or cannot be found by the system. The Terminal table contains the terminal attribute information.
  • Page 53 Commands Error Recovery Manual E2142 Cmd Rej: TYPE = VT320 and PRTY=NONE combination not allowed E2142 Cmd Rej: TYPE = VT320 and PRTY=NONE combination not allowed Commands Used: chg-trm The command attempted to set the type= vt320 and the prty=none. A VT320 terminal does not support seven- bit data bytes and no parity.
  • Page 54 E2144 Cmd Rej: Location invalid for hardware Commands Error Recovery Manual configuration • An E1/T1 MIM or HC MIM card running the ss7ansi or ccs7itu application • An E1 ATM card running the atmitu application You cannot specify the even-numbered card location n+1 if a dual slot card occupies the adjacent odd-numbered card location n.

  • Page 55: Table 2-1. Valid Values For The Bps Parameter

    Commands Error Recovery Manual E2145 Cmd Rej: Failed reading MAS configuration table Display the cards in the database. Enter the rtrv-card command. This command requires a LIM running the ss7gx25 application. Refer to the terms limds0, limocu, or limv35 in the TYPE field and ss7gx25 in the APPL field of the rtrv-card command output.
  • Page 56 E2147 Cmd Rej: X-LIST DPC is not allowed Commands Error Recovery Manual SS7 or CCS7ITU signaling links 56000 or 64000 T1ATM high-speed links 1544000 X.25 signaling links 4800, 9600, 19200, 56000 or 64000 Recovery Verify that the command was entered correctly. Re-enter the ent-slk command.
  • Page 57 Commands Error Recovery Manual E2150 Cmd Rej: Frame ID out of range Recovery Re-enter the chg-trm command specifying a different value for either the type or the prty parameter. E2150 Cmd Rej: Frame ID out of range Commands Used: rept-stat-db The value you assigned to the Frame ID parameter was too large.
  • Page 58 E2153 Cmd Rej: Card slot location out of range Commands Error Recovery Manual E2153 Cmd Rej: Card slot location out of range Commands Used: act-dlk, canc-dlk, chg-x25-slk, dlt-card, dlt-dlk, dlt-ip- node, dlt-slk, ent-card, ent-dlk, ent-ip-node, ent-slk, ent-x25-rte, rept- stat-db, rept-stat-dlk, rept-x25-meas, rtrv-card, rtrv-dlk, rtrv-ip-node, rtrv-slk, rtrv-x25-rte, rtrv-x25-slk, tst-dlk The value specified for the loc parameter is physically invalid.

  • Page 59: Table 2-2. Invalid Parameter Combinations That Generate An E2155 Error Message

    Commands Error Recovery Manual E2155 Cmd Rej: Invalid parameter combination specified ent-csl. ent-gta, ent-trace, init-flash, rept-meas, rept-stat-cluster, rept-stat-dstn, rept-stat-db, rept-stat-gpl, rept-stat-ls, rept-stat-rs, rept-stat-rte, rept-stat-rtx, rept-stat-slk, rtrv-csl, rtrv-dstn, rtrv-gta, rtrv-ls, rtrv-rte, rtrv-rtx, rtrv-rs, rtrv-sid, rtrv-stp, rtrv-isupvar- attrib, tst-rs, tst-slk Only one of the following parameters can be specified in a single MSU trace request: lrn, tn, dn, entityid, imsi, imei and error.
  • Page 60 E2155 Cmd Rej: Invalid parameter combination Commands Error Recovery Manual specified Command Invalid Parameter Combination Entered nsdd and nsds are mutually exclusive of the npdd and npds parameters. The four values can be added or changed (but not at the same time). However, to specify or delete existing values or to change between suffix and prefix manipulations, RDMOD must be used to reset the current values.
  • Page 61 Commands Error Recovery Manual E2156 Cmd Rej: Cannot allow terminal configured as type=none Command Invalid Parameter Combination Entered You cannot specify the pctype or pcst parameters along with any of the following parameters: aliasa/aliasi/alisan/alisa24, apc, dpc/dpca/dpci/dpcn/dpcn24, clli, ncai, ppc, spc/spca/spci/ spcn/spcn24 in this command.
  • Page 62 E2161 Cmd Rej: Removable cartridge contains Eagle data (use FORCE=YES) Commands Used: format-disk The removable cartridge to be formatted contains EAGLE 5 ISS data. To format a cartridge already containing EAGLE 5 ISS data, force=yes must be specified. Recovery Make sure that the removable cartridge is in the correct location and the command has been specified correctly.

  • Page 63: Table 2-3. Conditions That Generate An E2165 Error Message

    The media to be formatted contains EAGLE 5 ISS data. Recovery Ensure that you really want to copy over the EAGLE 5 ISS data on the target disk, and that you have entered the copy-disk command correctly. Re-enter the copy-disk command specifying the force=yes parameter.
  • Page 64 E2166 Cmd Rej: Partial point codes are not allowed Commands Error Recovery Manual For the act-upgrade command, make sure the removable cartridge contains the required software for the upgrade. Reseat the MDAL. Re-enter the command. Call your Customer Care Center if this error message appears again. See the "Customer Care Center" section in Chapter 1 of this manual.
  • Page 65 Alias point codes entered with the ent-dstn,ent-ls, or chg-ls command cannot match the capability point codes of the EAGLE 5 ISS, the site point codes of the EAGLE 5 ISS, or any existing destination point codes and alias point codes.
  • Page 66 Commands Error Recovery Manual Display site point codes in the EAGLE 5 ISS. Enter the rtrv-sid command. The site point codes are in the PCA, PCI, PCN, and PCN24 fields of the rtrv-sid command output. The capability point codes of the EAGLE 5 ISS are shown in the CPCA, CPCI, CPCN, and CPCN24 fields of the rtrv-sid command output.
  • Page 67 Commands Error Recovery Manual E2172 Cmd Rej: Command action is out of phase with expected procedure E2172 Cmd Rej: Command action is out of phase with expected procedure Commands Used: act-flash, act-upgrade, init-flash The act-upgrade command was not entered at the proper time during the upgrade process. You entered an act-flash command to activate a flash GPL, and the GPL running on the card is not inactive.
  • Page 68 E2173 Cmd Rej: Failed reading level 3 timer set table Commands Error Recovery Manual E2173 Cmd Rej: Failed reading level 3 timer set table Commands Used: chg-l3t The Level 3 Timer Set table is corrupt or cannot be found by the system. The Level 3 Timer Set table contains the level 3 timer set information.
  • Page 69 Commands Error Recovery Manual E2179 Cmd Rej: Current actv OAM db is not supported for this upgrade The command was entered specifying the source (src) parameter, and the action=restore parameter was not specified. If you specify the src parameter, the action=restore parameter must be specified. Recovery Re-enter the chg-db command specifying both the src and the action=restore parameters.
  • Page 70 E2182 Cmd Rej: Only one of NCPC/A, NCPCI, or Commands Error Recovery Manual NCPCN/N24 may be specified The ANSI adjacent point codes are shown in the APCA field of the output. Re-enter the chg-sid command specifying a point code that does not match the capability point code, and does not match any point codes in the destination point codes or adjacent point codes.
  • Page 71 DPC. The capability point code (cpc) parameter cannot be already assigned as a route destination point code. Recovery Display the route DPCs for this EAGLE 5 ISS. Enter the rtrv-dstn command. Re-enter the chg-sid command, specifying a value for the cpc parameter that differs from all of the DPCs displayed in step 1.
  • Page 72 STP point code to be deleted. The EAGLE 5 ISS requires that, if destination point codes of a particular point code type are to be used, the EAGLE 5 ISS’s self ID must be defined with a point code of the same point code type.
  • Page 73 Commands Error Recovery Manual E2191 Cmd Rej: Failed reading SLTM table Display the self ID of the EAGLE 5 ISS. Enter the rtrv-sid command. Display the DPCs in the database. Enter the rtrv-dstn command. Re-enter the chg-sid command that generated the error message specifying a point code parameter whose point code type is not being used by the Destination Point Code table as shown in the output from step 2.
  • Page 74 E2194 Cmd Rej: SLTSET and ENABLED cannot be Commands Error Recovery Manual specified together E2194 Cmd Rej: SLTSET and ENABLED cannot be specified together Commands Used: rtrv-slt The command was entered with both the sltset and enabled parameters. This parameter combination is not allowed by this command.
  • Page 75 Commands Error Recovery Manual E2198 Cmd Rej: The maximum number of users is already defined The command entered specified a user identification (nuid for the chg-user command, uid for the ent- user command) that already exists in the database. The values specified for the uid parameter (ent-user command) or nuid (chg-user command) cannot be in the database.
  • Page 76 E2200 Cmd Rej: Database maint. in progress - retry Commands Error Recovery Manual later Re-enter the command that generated this error message with a value for the uid parameter that is shown in the output of step 1. E2200 Cmd Rej: Database maint. in progress - retry later Commands Used: chg-dstn, chg-ls, chg-rte, chg-x25-dstn, chg-x25-rte, chg- x25-slk, dlt-card, dlt-dlk, dlt-dstn, dlt-ip-node, dlt-ls, dlt-rte, dlt-slk, dlt-x25-dstn, dlt-x25-rte, ent-card, ent-dlk, ent-dstn, ent-ip-node, ent-...
  • Page 77 Commands Error Recovery Manual E2203 Cmd Rej: All cards on shelf must be unequipped E2203 Cmd Rej: All cards on shelf must be unequipped Commands Used: dlt-shlf You cannot remove a shelf that has cards assigned to it. Before a shelf can be removed from the database: •...
  • Page 78 E2206 Cmd Rej: Invalid originating application ID Commands Error Recovery Manual Call your Customer Care Center if this error message appears again. See the "Customer Care Center" section in Chapter 1 of this manual. E2206 Cmd Rej: Invalid originating application ID Commands Used: send-msg You specified an invalid oa parameter value.
  • Page 79 Commands Error Recovery Manual E2210 Cmd Rej: BYTE, WORD or DWORD must be entered Recovery Perform one of the following actions: • Re-enter the ent-bp command that generated this error message specifying only the dr parameter. • Re-enter the ent-bp command that generated this error message specifying only the da parameter. Refer to the Commands Manual for further assistance if necessary.
  • Page 80 E2212 Cmd Rej: Invalid card type for this command Commands Error Recovery Manual Display the card’s configuration. Enter the rtrv-card command specifying the card location that generated this error message. The card’s type is shown in the TYPE field of the output. Re-enter the command.
  • Page 81 Commands Error Recovery Manual E2212 Cmd Rej: Invalid card type for this command For the ent-card command, the valid card types (type) parameter are: acmenet, dcm, dsm, ipsm, limatm, limch, limds0, lime1, lime1atm, limocu, limt1, limv35, mcpm, stc, tsm., enet Re-enter the ent-card command specifying a valid card type (type) parameter.
  • Page 82 E2212 Cmd Rej: Invalid card type for this command Commands Error Recovery Manual This command requires an allowed DSM or IPSM card. Display the card’s configuration. Enter the rtrv-card command specifying the card location that generated this error message. The card’s type is shown in the TYPE field of the output. If the card in the specified location is a DSM or IPSM, re-enter the command.
  • Page 83 Commands Error Recovery Manual E2213 Cmd Rej: Missing parameter - BC Either there is no BIP at this location (TDM at locations 1114 or 1116, HMUX or HIPR at locations 9 and 10 on each extension shelf), or the type is not supported (e.g. type=dbd was specified for an OAM, ATM, TSM, or E1 card).
  • Page 84 E2216 Cmd Rej: CDPNPFX must not be NONE Commands Error Recovery Manual • Re-enter the ent-bp command that generated this error message specifying the correct dr parameter value. • Re-enter the ent-bp command that generated this error message specifying the correct da parameter value. Call your Customer Care Center if this error message appears again.
  • Page 85 E2221 Cmd Rej: File transfer in progress Commands Used: act-file-trns, copy-fta, copy-seculog, disp-fta-dir, dlt-fta You entered the command while another command is already in progress. The EAGLE 5 ISS does not allow this action. Only one file transfer may be active at one time.
  • Page 86 E2223 Cmd Rej: Invalid drive specified Commands Error Recovery Manual • If the value you entered does not appear in the output, you cannot change or delete the specified cdpnpfx value. Call your Customer Care Center if this error message appears again. See the "Customer Care Center" section in Chapter 1 of this manual.
  • Page 87 Commands Error Recovery Manual E2227 Cmd Rej: Maximum Number of CDPNNAIs already provisioned Recovery Enter the rtrv-inpopts command. The CDPNNAI field in the output shows a list of valid values. If the cdpnnai value you entered appears in the output, re-enter the command. Call your Customer Care Center if this error message appears again.
  • Page 88 E2231 Cmd Rej: Use SFILE when specifying DTBL Commands Error Recovery Manual Recovery Re-enter the copy-fta command that generated this error message specifying both the (dtbl) and (sfile) parameters. Call your Customer Care Center if this error message appears again. See the "Customer Care Center" section in Chapter 1 of this manual.
  • Page 89 Commands Error Recovery Manual E2234 Cmd Rej: Must specify ALL=YES to delete all files Call your Customer Care Center if this error message appears again. See the "Customer Care Center" section in Chapter 1 of this manual. E2234 Cmd Rej: Must specify ALL=YES to delete all files Commands Used: dlt-fta The all=yes parameter must be specified when a specific filename is not supplied.
  • Page 90 E2237 Cmd Rej: Card location must be 1114 or 1116 Commands Error Recovery Manual For the chg-gpl command, if either of the appl or ver parameters are specified, then both of these parameters must be specified. The one exception to this rule is that the ver parameter is not required if appl=emap or appl=oap.
  • Page 91 Commands Error Recovery Manual E2241 Cmd Rej: No File Transfer Area on removable cartridge E2241 Cmd Rej: No File Transfer Area on removable cartridge Commands Used: copy-fta, dlt-fta The command was entered with the card location of the source (sloc) or the card location of the destination (dloc) equal to the removable cartridge disk location, and using a default value for the FTA to be copied (sfile) or for the name of the file to be copied into the FTA (dfile).
  • Page 92 E2246 Cmd Rej: Command Class Management feature Commands Error Recovery Manual must be enabled Recovery Re-enter the chg-inopts command specifying both the cdpnnai and snai parameters. E2246 Cmd Rej: Command Class Management feature must be enabled Commands Used: chg-cmd, chg-cmdclass, chg-secu-trm, chg-user, ent-user, rtrv-cmd, rtrv-cmdclass These commands or a configurable command class name are not allowed until the Command Class Management feature has been enabled.
  • Page 93 Commands Error Recovery Manual E2253 Cmd Rej: Echo is not set for this terminal You specified an invalid range value for the day component. The day component must be in the range 01–31. The day component must accurately reflect the number of days in the month indicated. For example, sdate=060631 is an invalid parameter value because June has only 30 days.

  • Page 94: Table 2-4. Conditions That Generate An E2257 Error Message

    E2257 Cmd Rej: Terminal is currently out of service Commands Error Recovery Manual Activate the inhibited terminal. Enter the rst-trm or the alw-trm command specifying the number of the inhibited terminal. Re-enter the act-echo command. E2257 Cmd Rej: Terminal is currently out of service Commands Used: act-echo, inh-trm, rmv-trm This Table lists by command the conditions that may have generated the error message.
  • Page 95 Commands Error Recovery Manual E2260 Cmd Rej: Disk access error - fixed disk No action is necessary since the terminal’s output is being echoed to the specified terminal. E2260 Cmd Rej: Disk access error - fixed disk Commands Used: act-user, dact-user, login, logout The command was entered and both TDM cards could not be found.
  • Page 96 E2263 Cmd Rej: Password does not contain enough Commands Error Recovery Manual characters punc = minimum number of punctuation characters required. Re-enter the command specifying a password that contains from five to twelve alphanumeric characters. E2263 Cmd Rej: Password does not contain enough characters Commands Used: act-user, chg-pid, chg-user, ent-user, login The command was entered with a password that contained less than five alphanumeric characters.
  • Page 97 Commands Error Recovery Manual E2266 Cmd Rej: Class name is not an existing configurable command class E2266 Cmd Rej: Class name is not an existing configurable command class Commands Used: chg-cmd, chg-secu-trm, chg-user, ent-user The arguments specified by the Configurable Command Class names (parameters CC1 to CC8) must be set to default or provisioned to configurable command class names.
  • Page 98 E2271 Cmd Rej: Either LOC or APPL (not both) must Commands Error Recovery Manual be specified The card specified by the loc parameter cannot be found in the database or is not allowed by this command. All cards except HMUX, TDM, and the MDAL can be initialized by this command. Recovery Display the cards in the database.
  • Page 99 Commands Error Recovery Manual E2274 Cmd Rej: TT must be specified when enttype=tt Re-enter the command specifying the value for the seconds from 00-59. E2274 Cmd Rej: TT must be specified when enttype=tt Commands Used: rept-meas You specified the enttype=tt parameter without specifying the tt parameter, as required. The value for the tt parameter, which specifies the specific translation type to be reported, must be a numeric value from 0 to 255.
  • Page 100 E2278 Cmd Rej: 30-minute measurement collection in Commands Error Recovery Manual progress Re-enter the command specifying either the (type=avld or type=mtcd) parameter after routine collection is complete. E2278 Cmd Rej: 30-minute measurement collection in progress Commands Used: chg-ctrl-feat, chg-measopts, rept-ftp-meas, rept-meas Half-hourly collection and report processing cannot be in progress when report type comp, systot, avl, or gtwy is specified.
  • Page 101 Commands Error Recovery Manual E2281 Cmd Rej: Invalid ENTTYPE for this TYPE Recovery Refer to the descsriptions of the rept-meas command and the rept-ftp-meas command in the Commands Manual for valid parameter combinations for the command. Re-enter the command, specifying compatible type and period parameters. E2281 Cmd Rej: Invalid ENTTYPE for this TYPE Commands Used: rept-ftp-meas, rept-meas When enttype=lnp, only mtcd and mtch can be specified for the type parameter.
  • Page 102 E2285 Cmd Rej: QH, HH, or DAY cannot be specified Commands Error Recovery Manual when PERIOD=ALL • Re-enter the command specifying the period parameter with values last, active, or all, without specifying the hh, qh, or the day parameter. • Re-enter the command specifying the period=specific and the hh, qh, or the day parameters.
  • Page 103 Commands Error Recovery Manual E2288 Cmd Rej: Either LSN or LOC and LINK must be specified • Re-enter the rept-meas command specifying either last or specific for the period parameter. E2288 Cmd Rej: Either LSN or LOC and LINK must be specified Commands Used: rept-meas You specified the link entity type, and the lsn parameter or the loc and port/link parameters were not specified.
  • Page 104 E2292 Cmd Rej: Card does not exist or is not a LIM Commands Error Recovery Manual (LOC) You set the period parameter to specific, and either the hh parameter with final two digits of 30 or the qh parameter with final two digits of 15, 30, or 45. The type of report you selected, however, requires that you set the final two digits of the hh or qh parameter to 00.
  • Page 105 Commands Error Recovery Manual E2294 Cmd Rej: RSN, LSN and LOC parms are mutually exclusive E2294 Cmd Rej: RSN, LSN and LOC parms are mutually exclusive Commands Used: rept-meas The lsn, rsn, and loc parameters cannot be specified together in the command. Recovery Re-enter the rept-meas command specifying either the lsn or rsn or loc, or the loc and port parameters, but not both.
  • Page 106 E2298 Cmd Rej: LOC parameter not valid for this Commands Error Recovery Manual ENTTYPE The enttype=tt parameter must be specified before the tt parameter can be specified. Recovery Re-enter the rept-meas command as follows: rept-meas:type=systot:enttype=tt:tt=<0-255> where <0-255> is the specific translation type to be reported. E2298 Cmd Rej: LOC parameter not valid for this ENTTYPE Commands Used: rept-meas You specified the loc parameter, but the enttype specified was not valid.
  • Page 107 Commands Error Recovery Manual E2301 Cmd Rej: LSN parameter not valid for type- enttype combination For the dlt-rtx command, you must specify the lsn or rsn parameter if the all parameter is not specified. See the Commands Manual for assistance in identifying the valid parameter combinations for the type parameter. Recovery Re-enter the command specifying the lsn parameter.
  • Page 108 E2304 Cmd Rej: Invalid TYPE Commands Error Recovery Manual Wait until the in progress on-demand measurements report is finished printing. Re-enter the command that generated this message. E2304 Cmd Rej: Invalid TYPE Commands Used: rept-meas, rept-stat-lnp The following Recovery procedures list the appropriate remedial action to take for each command that generates this error message.
  • Page 109 Commands Error Recovery Manual E2307 Cmd Rej: QH or HH is not valid for this TYPE Perform one of the following actions: • Re-enter the command specifying the report types avl, avld, or avldth and the nzo parameter. • Re-enter the command specifying any of the following the report types: systot, comp, mtcd, mtcdth, mtch, mtcs, nm, gtwy, or rbase, without specifying the nzo parameter.
  • Page 110 E2312 Cmd Rej: Invalid SCSI device syntax Commands Error Recovery Manual E2312 Cmd Rej: Invalid SCSI device syntax Commands Used: disp-disk You either entered the wrong SCSI syntax, or had a hardware failure. Recovery Re-enter the disp-disk command that generated this error message specifying the correct SCSI syntax. Call your Customer Care Center if this error message appears again.
  • Page 111 Commands Error Recovery Manual E2318 Cmd Rej: Invalid file length Call your Customer Care Center if this error message appears again. See the "Customer Care Center" section in Chapter 1 of this manual. E2318 Cmd Rej: Invalid file length Commands Used: chg-tbl You entered an invalid value for the filelength parameter.
  • Page 112 E2321 Cmd Rej: Communication Settings are not Commands Error Recovery Manual allowed on TELNET terminals E2321 Cmd Rej: Communication Settings are not allowed on TELNET terminals Commands Used: chg-trm Communications parameters are not valid for non-serial terminals, which are any terminal number 17 or above. Communications settings are not applicable when type=telnet.
  • Page 113 Commands Error Recovery Manual E2324 Cmd Rej: Alias not defined Re-enter the chg-trm command for the appropriate parameter combination. If the terminal type must be telnet, you must specify a terminal ID number 17 or above. If you are using terminal IDs1 to 16, the type cannot be telnet.
  • Page 114 E2326 Cmd Rej: APC not defined as destination point Commands Error Recovery Manual code E2326 Cmd Rej: APC not defined as destination point code Commands Used: chg-ls, ent-ls The specified adjacent point code could not be found in the Destination Point Code table. For an adjacent point code to be assigned to a linkset, it must be defined in the Destination Point Code table.
  • Page 115 Display all destination point codes in the database. Enter the rtrv-dstn command. Display the point code of this EAGLE 5 ISS and its capability point code. Enter the rtrv-sid command. Re-enter the ent-dstn command specifying a point code that is not shown in the outputs of steps 1 and...
  • Page 116 E2335 Cmd Rej: CLLI is not identical to that of Commands Error Recovery Manual matching Destination Enter the rtrv-ls to display all linkset adjacent point codes in the database and to verify the specified point code is a linkset adjacent point code. Enter the dlt-ls command specifying the point code that generated this error message.
  • Page 117 Display the Capability Point Code table. Enter the rtrv-sid command specifying no parameters. Re-enter the chg-sid command specifying a valid point code that is in the Capability Point Code table and, does not match the EAGLE 5 ISS point code and destination point code. Recovery - dlt-dstn Display the point codes in the Destination Point Code table.
  • Page 118 Display the destination point codes in the Destination Point Code table. Enter the rtrv-dstn command specifying no parameters. Display the point code and the capability point code of the EAGLE 5 ISS. Enter the rtrv-sid command. Re-enter the ent-dstn command specifying a point code that is not listed in either of the outputs of Step 1 and Step 2..
  • Page 119 Commands Error Recovery Manual E2343 Cmd Rej: Linkset APC/SAPC is already being used If the IPSG linkset contains links, then the adapter parameter cannot be specified. The linkset can be deleted only after all links associated with the linkset have been deleted. Recovery Display the current linkset configuration.
  • Page 120 E2347 Cmd Rej: Linkset table full Commands Error Recovery Manual For the chg-rte command, if a link set name (lsn) or new link set name (nlsn) is specified in the command, that the link set names specified must exist in the LINKSET table. For the chg/dlt/ent/rtrv-rtx commands, the specified lsn/ilsn must exist in the Route table.
  • Page 121 Commands Error Recovery Manual E2350 Cmd Rej: At most two linksets can be assigned same cost For the chg-dstn command, The rsn parameter cannot be specified if the routeset has routes over A or E linksets and is associated with a cluster or network destination point code. For the ent-rte command, If the specified destination address is a network address (ni-*-*), or network cluster address (ni-nc-*), the linkset type (see the chg-ls command) used in the route must be b, c, or d.
  • Page 122 E2353 Cmd Rej: Routeset is full Commands Error Recovery Manual The specified terminal is already in use. The telnet port cannot be removed from service (rmv-trm) when the type, baud, prty, sb, and fc parameters are being changed. Recovery Re-enter chg-trm command specifiying a different telnet port. Ensure that the type, baud, prty, sb, and fc parameters are not being changed before you attempt to modify the terminal.
  • Page 123 Commands Error Recovery Manual E2356 Cmd Rej: Last route to DPC in use by GTT Display the linksets in the route. Enter the rtrv-rte command specifying the specified route. Display the linksets in the database. Enter the rtrv-ls command. Using the outputs of steps 1 and 2, re-renter the ent-rte command specifying a linkset that is in the database but is not assigned to the specified route.
  • Page 124 E2359 Cmd Rej: Route table is full Commands Error Recovery Manual Display the routes in the database. Enter the rtrv-dstn command. Re-enter the dlt-rte command specifying a destination point code(DPCA,DPCI, DPCN, or DPCN24 fields) shown in the output of step 1 that has routes assigned to it, along with the all=yes parameter. E2359 Cmd Rej: Route table is full Commands Used: ent-dstn, chg-dstn The Destination Point Code table is full.
  • Page 125 NOTE: If you do not have the controlled feature part number or the feature access key for the controlled feature you wish to enable, contact your Tekelec sales representative or account representative. The feature access key determines if the controlled feature is permenantly or temporarily enabled.
  • Page 126 E2366 Cmd Rej: LOC must be specified Commands Error Recovery Manual Refer to the procedure “Activating Controlled Features“ in the Database Administration Manual–System Management for additional information. Call your Customer Care Center if this error message appears again. See the "Customer Care Center" section in Chapter 1 of this manual.
  • Page 127 Commands Error Recovery Manual E2368 Cmd Rej: System busy - try again later Re-enter the rept-stat-card command specifying either the loc or stat parameters, but not both. E2368 Cmd Rej: System busy - try again later Commands Used: act-flash, alw-card, alw-map-ss, alw-trm, blk-slk, canc-cmd clr-imt-stats, dact-slk, init-flash, inh-alm, inh-card, inh-map-ss, init- imt-gpl, init-mux, rept-imt-info, rept-imt-lvl1, rept-imt-lvl2, rept-stat- alm, rept-stat-card, rept-stat-clk, rept-stat-eroute, rept-stat-imt, rept-...

  • Page 128: Table 2-5. Operations Requiring Force=Yes Parameter

    NOTE: The partition=disk parameter is accepted in this situation, as this tests the entire disk and does not care about individual partitions. The partition=disk parameter is used only by Tekelec for debug purposes. Recovery Re-enter the tst-disk command specifying a valid partition parameter value for the disk being tested.
  • Page 129 Commands Error Recovery Manual E2372 Cmd Rej: Terminal is not equipped Command You must specify the force=yes parameter if you are... inh-trm Trying to inhibit the last OAP port. init-network Trying to reset all network cards and override the required four card SS7ANSI or CCS7ITU configuration.
  • Page 130 E2375 Cmd Rej: Unknown command Commands Error Recovery Manual Display the cards in the system. Enter the rtrv-card command. SCCP cards are shown by the entries TSM in the TYPE field and SCCP in the APPL field. VSCCP cards are shown by the entries DSM in the TYPE field and VSCCP in the APPL field.
  • Page 131 Commands Error Recovery Manual E2378 Cmd Rej: The specified card cannot be inhibited Recovery Allow time for the other action command to complete and then re-enter the tst-slk command. Verify the card in the specified location is a LIM card. Display the cards in the database.
  • Page 132 E2381 Cmd Rej: Combined total baud rate for all ports Commands Error Recovery Manual cannot exceed 168K For the ent-slk command; When a card location is specified in the loc parameter for an E1 card, a T1 card, or a Channel card (card type lime1, limt1, or limch), a timeslot (ts) must be specified for the link.
  • Page 133 Commands Error Recovery Manual E2382 Cmd Rej: Only 4 ports with sys maint. output group ON are allowed Re-enter the rept-stat-trm command and verify that the combined total line speed for all ports no longer exceeds 168,000 bps. Re-enter the chg-trm command. E2382 Cmd Rej: Only 4 ports with sys maint.
  • Page 134 E2384 Cmd Rej: Link set is not equipped Commands Error Recovery Manual When at least one MCPM card is in the IS-ANR Restrict state, re-enter the command the Measurements Platform collection function. E2384 Cmd Rej: Link set is not equipped Commands Used: dact-rstst, dlt--ls, inh-alm, rtrv-rte, rept-stat-ls, unhb- The linkset specified by the lsn parameter must be equipped in the database.
  • Page 135 Commands Error Recovery Manual E2387 Cmd Rej: Card is not in service enter the command specifying a provisioned cluster member DPC, the report shows status information for the specified DPC plus route information. The destination point code must be in the database. Enter the rtrv-dstn command to display all the destination point codes in the database.
  • Page 136 E2389 Cmd Rej: No troubles to Display Commands Error Recovery Manual E2389 Cmd Rej: No troubles to Display Commands Used: rtrv-trbl The command was entered to display an entry from the trouble log, and no troubles were found. Recovery No action is necessary since there are no troubles to display. E2390 Cmd Rej: No obits to display Commands Used: rtrv-obit The command was entered to display an entry from the obituary log, and none were found.
  • Page 137 Commands Error Recovery Manual E2393 Cmd Rej: Terminal is not equipped E2393 Cmd Rej: Terminal is not equipped Commands Used: rtrv-trm You specified a terminal in the command (rtrv-trm:trm=x), the specified terminal must be equipped. Recovery Display all terminals. Enter the rtrv-trm command. Re-enter the rtrv-trm command with the trm parameter for an equipped terminal, or equip the specified terminal for use and re-enter the rtrv-trm command for that terminal.
  • Page 138 E2402 Cmd Rej: GTA range does not exist Commands Error Recovery Manual match is not required, an overlap with another range cannot be specified. If the range overlaps, an error is generated that displays a list of overlapped global title addresses. An example follows that shows what happens when the user attempts to enter a range (such as 8005550000 to 8005559999) that overlaps an existing range.
  • Page 139 Commands Error Recovery Manual E2403 Cmd Rej: Length of EGTA must be equal to length of GTA 8005552000 8005553999 8005554000 8005555999 CHG-GTT: MASP A - Command Aborted E2403 Cmd Rej: Length of EGTA must be equal to length of Commands Used: chg-gta, chg-gtt, dlt-gta, dlt-gtt, ent-gta, ent-gtt, rtrv- gta, rtrv-gtt If the egta parameter is specified, the gta parameter must be specified.
  • Page 140 E2406 Cmd Rej: ADJ required if MPC/MSSN is given Commands Error Recovery Manual or MULT=DOM or SHR • Enter the rtrv-gtt command without specifying any parameters, or enter the rtrv-gta command specifying only the mandatory gttsn parameter. E2406 Cmd Rej: ADJ required if MPC/MSSN is given or MULT=DOM or SHR Commands Used: chg-map, ent-map You entered the command without specifying the adj parameter and with the mated point code (mpc, mpca,...
  • Page 141 Commands Error Recovery Manual E2410 Cmd Rej: CSPC broadcast group table is full Re-enter the command that generated this error message specifying both the egta and gta parameters. Call your Customer Care Center if this error message appears again. See the "Customer Care Center" section in Chapter 1 of this manual.
  • Page 142 E2412 Cmd Rej: Command already in progress Commands Error Recovery Manual E2412 Cmd Rej: Command already in progress Commands Used:act-gpl, chg-gpl, copy-gpl, rtrv-gpl, rept-stat-gpl, tst-rs The command was entered while the system was still executing one of these previously entered commands: act- gpl, chg-gpl, copy-gpl, rept-stat-gpl, or rtrv-gpl.
  • Page 143 Commands Error Recovery Manual E2416 Cmd Rej: Unable to access database. Severe database failure Enter the rtrv-cspc command specifying the name of the affected CSPC group. Example: rtrv- cspc:grp=grp01 Select and delete an exisiting point code from the CSPC group. Enter the dlt-cspc command.
  • Page 144 E2418 Cmd Rej: Mate PC/SSN cannot be given when Commands Error Recovery Manual MULT=SOL Verify your point code now exists as a destination in the Route table. Enter the rtrv-rte:pc=xxx command to display the point codes in the Route table. Re-enter the command specifying one of the point codes displayed in the output from step 3.
  • Page 145 Commands Error Recovery Manual E2420 Cmd Rej: EGTA must be greater than or equal to GTA Re-enter the command specifying a point code (pc/pca/pci/pcn/pcn24) parameter that exists in the MAP table. OR For the chg-gta, ent-gta, and ent-gtt commands, if the specified point code is not in the MAP table, re-enter the command specifying the force=yes parameter.
  • Page 146 E2424 Cmd Rej: SRM=YES cannot be entered with ITU Commands Error Recovery Manual point code types Recovery Perform one of the following: • To display more than 1000 entries, re-enter the command specifying force=yes and a value greater than 1000 for the num parameter. NOTE: The range of values for the num parameter is from 1 to 65535.
  • Page 147 Commands Error Recovery Manual E2426 Cmd Rej: Mnemonic argument is undefined E2426 Cmd Rej: Mnemonic argument is undefined Commands Used: chg-gta, chg-gtt, ent-gta, ent-gtt You cannot specify a value other than gt or ssn for the ri parameter. You cannot specify ri=dpc. Recovery Re-enter the command specifying a value of ri=gt or ri=ssn.
  • Page 148 E2430 Cmd Rej: Subsystem table for MPC is full Commands Error Recovery Manual • For an ANSI point code (pc or pca), the specified mated point code must also be for an ANSI point code (mpc or mpca), respectively. • For an ITU-I point code (pci, pcn, pcn24), the specified mated point code must also be for an ITU-I point code (mpci, mpcn, or mpcn24), respectively.
  • Page 149 Commands Error Recovery Manual E2434 Cmd Rej: SRM, MRC cannot be entered if MULT is SOL or SHR You specified the mate subsystem number or relative cost, but you did not specify a mate point code. If you specify the mate subsystem number (mssn) or relative cost (rc) parameters, you must also specify the mate point code (mpc) parameter.
  • Page 150 E2437 Cmd Rej: New/existing RI must be GT for new/ Commands Error Recovery Manual existing XLAT=DPCNGT If the new or existing xlat parameter value is dpc, the new or existing ri parameter value is ssn, and the pc/pca/ pci/pcn parameter is not specified, a point code must exist in the Remote Point Code/MAP table. For the chg- gta command, you can override this rule by issuing the force=yes parameter.
  • Page 151 Commands Error Recovery Manual E2439 Cmd Rej: New PC does not exist in the routing table Re-enter the chg-map command specifying the mated point code (mpc, mpca, mpci, mpcn, mpcn24), mssn, and the mult=dom or mult=shr parameter. E2439 Cmd Rej: New PC does not exist in the routing table Commands Used: chg-gtt To change the point code to the new point code specified in the command, the new point code must be in the routing table.
  • Page 152 E2443 Cmd Rej: NGT can only be specified when Commands Error Recovery Manual XLAT=DPCNGT Re-enter the command specifying the xlat=dpcssn and ssn parameters. E2443 Cmd Rej: NGT can only be specified when XLAT=DPCNGT Commands Used: chg-gtt, ent-gtt You entered the new global title translation type (ngt), and you entered the translate indicator (xlat) with the value of dpc or dcpssn.
  • Page 153 Commands Error Recovery Manual E2447 Cmd Rej: NUM exceeds maximum table size Call your Customer Care Center if this error message appears again. See the "Customer Care Center" section in Chapter 1 of this manual. E2447 Cmd Rej: NUM exceeds maximum table size Commands Used: rtrv-gtt, rtrv-loopset You assigned an invalid value to the num parameter.
  • Page 154 E2451 Cmd Rej: Primary remote PC does not exist in Commands Error Recovery Manual routing table Re-enter the command specifying the CSPC group name (grp) parameter whose network type matches the network type of the specified point code. E2451 Cmd Rej: Primary remote PC does not exist in routing table Commands Used: ent-map The primary remote point code specified is not in the Route table.
  • Page 155 Commands Error Recovery Manual E2454 Cmd Rej: Remote point code table is full Display the data for this primary remote point code. Enter the rtrv-map command or or the rtrv-gtt command specifying point code parameter for the given primary remote point code. From the output of the rtrv-map command or rtrv-gtt command, select a subsystem number to be deleted.
  • Page 156 E2457 Cmd Rej: SSN can only be specified when Commands Error Recovery Manual XLAT=DPCSSN If the subsystem number was entered correctly and this error message appears again, enter the rtrv- map command specifying no parameters to display the mate applications information. Re-enter the command specifying one of the subsystem number values displayed in the rtrv-map command.
  • Page 157 Commands Error Recovery Manual E2461 Cmd Rej: Alias not assigned to translation name The specified alias is defined as a translation type. The alias cannot be specified if it is defined as a translation type. Recovery Display the translation types and aliases for these translations types. Enter the rtrv-tt command specifying no parameters.
  • Page 158 E2464 Cmd Rej: Translation TYPE already exists Commands Error Recovery Manual The association of the specified alias and specified translation type could not be found. Recovery Display the Translation Type table. Enter the rtrv-tt command. Re-enter the command specifying a translation type and alias combination shown in the output of step 1. E2464 Cmd Rej: Translation TYPE already exists Commands Used: ent-tt The translation type specified already exists in the translation type table.
  • Page 159 Commands Error Recovery Manual E2468 Cmd Rej: TTN specified does not exist The translation name specified is used by another translation type. Translation names must be unique. Recovery Display the Translation Type table. Enter the rtrv-tt command. Re-enter the ent-tt command specifying a different translation name. E2468 Cmd Rej: TTN specified does not exist Commands Used: chg-gtt, dlt-gtt, dlt-tt, ent-gtt, rtrv-gtt, rtrv-tt The translation type name specified must be in the Translation Type table.
  • Page 160 E2471 Cmd Rej: Translation TYPE has an alias Commands Error Recovery Manual If the translation type is an ITU-N translation type (typen or typen24), the point code type an ITU-N point code (pcn or pcn24). E2471 Cmd Rej: Translation TYPE has an alias Commands Used: chg-rtx, dlt-tt The specified translation type has an alias assigned to it.
  • Page 161 Commands Error Recovery Manual E2474 Cmd Rej: Translation TYPE must be specified Re-enter the command, with the translation type and/or translation name values displayed from the output of the rtrv-tt command. E2474 Cmd Rej: Translation TYPE must be specified Commands Used: dlt-tt, ent-tt The command specified an alias without a translation type.
  • Page 162 E2479 Cmd Rej: NGT must be specified when Commands Error Recovery Manual XLAT=DPCNGT NOTE: When a ‘wild card’ is used to specify a parameter value ‘*’ it indicates the full range of values. Do not confuse this usage with the parameter value '**', which SEAS uses for “all and every entry in the database including the value '*'”.
  • Page 163 Commands Error Recovery Manual E2485 Cmd Rej: All entered point code elements must be C if any are C • Re-enter the ent-scr-cdpa command specifying the nsfi=aftpc and the ssn=1 parameters. • Re-enter the ent-scr-cdpa command specifying the nsfi=stop parameter and the ssn=1-255. E2485 Cmd Rej: All entered point code elements must be C if any are C Commands Used: chg-scr-blkdpc, chg-scr-blkopc, dlt-scr-blkdpc, dlt-scr-...
  • Page 164 E2487 Cmd Rej: EPRI cannot be less than PRI Commands Error Recovery Manual E2487 Cmd Rej: EPRI cannot be less than PRI Commands Used: chg-scr-sio, ent-scr-sio The specified epri value must be greater than or equal to the pri parameter. Recovery Display the pri.
  • Page 165 Commands Error Recovery Manual E2491 Cmd Rej: NH0 and NH1 cannot be specified for NSI greater than 2 For service indicator values less than or equal to 2, re-enter the command specifying the h0 and h1 parameters. E2491 Cmd Rej: NH0 and NH1 cannot be specified for NSI greater than 2 Commands Used: chg-scr-sio You cannot specify the nh0 and nh1 parameters if the value of the new service indicator (nsi) is greater than 2.
  • Page 166 E2494 Cmd Rej: The NSFI is invalid for this screen type Commands Error Recovery Manual Recovery Perform one of the following actions: • Re-enter the command without specifying the h0 and h1 parameters. • Re-enter the command specifying wild-card (asterisk) values for both the h0 and h1 parameters. •...
  • Page 167 Commands Error Recovery Manual E2496 Cmd Rej: NI, ZONE, MSA or NPC cannot be C - more than one exists Re-enter the command with a valid combination of parameter values and correct use of the wild card value. E2496 Cmd Rej: NI, ZONE, MSA or NPC cannot be C - more than one exists Commands Used: dlt-scr-blkdpc, dlt-scr-blkopc An attempt was made to delete the point code c-c-c, or npc=c, from the screening reference, and the screening...
  • Page 168 You exceeded the available capacity for the screen set. If the screen set reaches 100% capacity (indicated by the “100% full” message), the EAGLE 5 ISS will allow subsequent entries. An error will occur, however, when downloading the screen set to the card. Screen sets should not exceed 100% capacity.
  • Page 169 Commands Error Recovery Manual E2500 Cmd Rej: Maximum number of screen sets exceeded Call your Customer Care Center if this error message appears again. See the "Customer Care Center" section in Chapter 1 of this manual. E2500 Cmd Rej: Maximum number of screen sets exceeded Commands Used: ent-scrset The system can contain up to 63 user-definable screen sets.
  • Page 170 E2502 Cmd Rej: NSR cannot be specified if COPY or Commands Error Recovery Manual REDIRECT are specified ANSI point code – ni, nc, ncm and for the enter and change commands — nni, nnc, nncm ITU-I point code – zone, area, id and for the enter and change commands — nzone, narea, nid ITU-N point code –...
  • Page 171 Commands Error Recovery Manual E2505 Cmd Rej: NH0 and NH1 must be specified for given NSI You entered the nsfi=aftpc parameter and the ssn parameter is not equal to 1. If you enter the nsfi=aftpc parameter, then ssn must be equal to 1. Recovery Perform one of the following: •...
  • Page 172 E2508 Cmd Rej: SCMGFID is invalid Commands Error Recovery Manual Recovery Perform one of the following: • Re-enter the chg-scr-sio command specifying a value for the si parameter greater than 2, without specifying the nh0 and nh1 parameters. • Re-enter the chg-scr-sio command specifying a value for the si parameter less than 2 and the nh0 and nh1 parameters.
  • Page 173 Commands Error Recovery Manual E2510 Cmd Rej: NI is invalid • Re-enter the command specifying the nh0 and nh1 parameters both assigned to wild-card (indicated by an asterisk) values. • Re-enter the command specifying both the nh0 and nh1 parameters assigned to specific values. Call your Customer Care Center if this error message appears again.
  • Page 174 E2512 Cmd Rej: NCM is invalid Commands Error Recovery Manual You entered a combination of the parameters ni, nc, and/or ncm that is not allowed. Use the following guidelines in determining what combinations of these parameters you need to enter: •...
  • Page 175 Commands Error Recovery Manual E2514 Cmd Rej: PC/SSN/RI/SCCPMT already exists in given SR E2514 Cmd Rej: PC/SSN/RI/SCCPMT already exists in given Commands Used: chg-scr-cgpa, ent-scr-cgpa While holding the value of the screening reference parameter sr constant, you attempted to change the value of one of the other parameters.
  • Page 176 E2517 Cmd Rej: PC/SSN/SCMGFID does not exist in Commands Error Recovery Manual given SR E2517 Cmd Rej: PC/SSN/SCMGFID does not exist in given Commands Used: chg-scr-cdpa, dlt-scr-cdpa, ent-scr-cdpa, rtrv-scr-cdpa, dlt- scr-cdpa, dlt-scr-cgpa, You entered this command specifying the pc, ssn, or scmgfid parameter set to a value that does not exist in the screening reference.
  • Page 177 Commands Error Recovery Manual E2520 Cmd Rej: ISUPMT/TUPMT does not exist in given SR E2520 Cmd Rej: ISUPMT/TUPMT does not exist in given SR Commands Used: chg-scr-isup, dlt-scr-isup You specified an allowed ISUP or TUP screening reference in a given sr for an ISUPMT (ISUP message type) or for an TUPMT (TUP message type) that does not exist in the database.
  • Page 178 E2526 Cmd Rej: All new PC parms must be null if NI, Commands Error Recovery Manual ZONE, MSA or NPC = C Recovery Re-enter the command specifying the point code c-c-c for an ANSI, ITU-I, or 24-bit ITU-N point code, or npc=c for an ITU-N point code.
  • Page 179 Commands Error Recovery Manual E2529 Cmd Rej: No match on EPRI parameter during retrieve E2529 Cmd Rej: No match on EPRI parameter during retrieve Commands Used: rtrv-scr-sio The ending priority (epri) was not found. Recovery Re-enter the rtrv-scr-sio command specifying the screening reference to show all ending priorities, as well as other values for the screening reference.
  • Page 180 E2533 Cmd Rej: No match on NC parameter during Commands Error Recovery Manual retrieve E2533 Cmd Rej: No match on NC parameter during retrieve Commands Used: rtrv-scr-aftpc, rtrv-scr-blkdpc, rtrv-scr-blkopc, rtrv-scr- cdpa, rtrv-scr-cgpa, rtrv-scr-destfld, rtrv-scr-dpc, rtrv-scr-opc No match for the network cluster (nc) parameter was found. Recovery Re-enter the command specifying the screening reference to show all network clusters, as well as other values for the screening reference.
  • Page 181 Commands Error Recovery Manual E2537 Cmd Rej: No match on NPC parameter during retrieve Enter the rtrv-scr-sio:all=yes command to show all nic values as well as other values for the screening reference. E2537 Cmd Rej: No match on NPC parameter during retrieve Commands Used: rtrv-scr-aftpc, rtrv-scr-blkdpc, rtrv-scr-blkopc, rtrv-scr- cdpa, rtrv-scr-cgpa, rtrv-scr-destfld, rtrv-scr-dpc, rtrv-scr-opc No match was found for the national point code (npc) parameter.
  • Page 182 E2541 Cmd Rej: No match on RI parameter during Commands Error Recovery Manual retrieve E2541 Cmd Rej: No match on RI parameter during retrieve Commands Used: rtrv-scr-cgpa No match was found for the routing indicator (ri) parameter. Recovery Re-enter the rtrv-scr-cgpa command specifying the screening reference to show all routing indicators, as well as other values for the screening reference.
  • Page 183 Commands Error Recovery Manual E2546 Cmd Rej: NSFI must be specified No match was found for the zone or msa parameter. Recovery Re-enter the command specifying the screening reference to show all zone values, as well as other values for the screening reference.
  • Page 184 E2550 Cmd Rej: NSFI / NSR cannot be specified Commands Error Recovery Manual You specified the point code not equal to c-c-c and the nsfi parameter not equal to fail. If the point code is not c- c-c, the nsfi must be fail. Recovery Re-enter the command specifying the nsfi parameter equal to fail.
  • Page 185 Commands Error Recovery Manual E2553 Cmd Rej: NSR must be specified for given NSFI rtrv-scr-cgpa, for the chg-scr-cgpa command and nsfi=cgpa parameter rtrv-scr-dpc, for the chg-scr-dpc command and nsfi=dpc parameter rtrv-scr-opc, for the chg-scr-opc command and nsfi=opc parameter rtrv-scrset, for the chg-scrset and ent-scrset commands rtrv-scr-sio, for the chg-scr-sio command and nsfi=sio parameter rtrv-scr-tt, for the chg-scr-tt command and nsfi=tt parameter Re-enter the command specifying the correct nsfi and nsr parameters displayed in step 2.
  • Page 186 E2556 Cmd Rej: A complete point code must be entered Commands Error Recovery Manual The point code defined by the ni, nc, and ncm parameters is not defined in the specified screening reference (NPC, the ITU-N standard, or zone area ID, the ITU-I standard). The point code must be in the given screening reference.
  • Page 187 Commands Error Recovery Manual E2557 Cmd Rej: GWS/GTT shared table is full Either a gateway screening screen set and all of its rules, or a global title translation type (and all global title translation data referencing that translation type) must be deleted from the database. Recovery - For a Gateway Screening Screen Set Display the gateway screening screen sets in the database.
  • Page 188 E2558 Cmd Rej: Point code already exists in given SR Commands Error Recovery Manual Delete the translation type. Enter the dlt-tt:type= command. Re-enter the command that generated this error message. Call your Customer Care Center if this error message appears again. See the "Customer Care Center" section in Chapter 1 of this manual.
  • Page 189 Commands Error Recovery Manual E2560 Cmd Rej: Inhibit rejected, target terminal is not equipped rtrv-scr-cgpa, for the chg-scr-cgpa and dlt-scr-cgpa commands Re-enter the command specifying the appropriate values for the new point code/subsystem number combination shown in step 1. E2560 Cmd Rej: Inhibit rejected, target terminal is not equipped Commands Used: alw-trm, inh-trm, rmv-trm, rst-trm You have attempted to inhibit a terminal number in the allowable range of numbers, but it has not been equipped.
  • Page 190 E2565 Cmd Rej: Gateway screening rules table is full Commands Error Recovery Manual Recovery Re-enter the command specifying the correct point code value. E2565 Cmd Rej: Gateway screening rules table is full Commands Used: ent-scr-aftpc, ent-scr-blkdpc, ent-scr-blkopc, ent-scr-cdpa, ent-scr-cgpa, ent-scr-destfld, ent-scr-dpc, ent-scr-isup, ent-scr-opc, ent- scr-sio The attempt was made to add a gateway screening entry, but the Gateway Screening Rules table is full.
  • Page 191 Commands Error Recovery Manual E2568 Cmd Rej: Screen set name is referenced by a link Recovery Display the screen set data. Enter the rtrv-scrset command specifying no parameters. Re-enter the ent-scrset command specifying a screen set name that does not match any of the screen set names displayed in step 1.
  • Page 192 E2572 Cmd Rej: NIC and SI must be specified for given Commands Error Recovery Manual H0 and H1 The specified service indicator (si) and screening reference (sr) combination could not be found in the database. These commands require that the specified screening reference and service indicator combination must be in the database.
  • Page 193 Commands Error Recovery Manual E2574 Cmd Rej: TYPE does not exist in given SR rtrv-scr-cgpa, for the chg-scr-cgpa and dlt-scr-cgpa commands rtrv-scr-destfld, for the chg-scr-destfld command rtrv-scr-dpc, for the chg-scr-dpc command rtrv-scr-isup, for the chg-scr-isup and dlt-scr-isup commands rtrv-scr-opc, for the chg-scr-opc command rtrv-scr-sio, for the chg-scr-sio and dlt-scr-sio commands rtrv-scr-tt, for the chg-scr-tt and dlt-scr-tt commands Re-enter the command specifying the screening reference from the output in step 1.

  • Page 194: Table 2-6. Conditions The Generate An E2581 Error Message

    E2579 Cmd Rej: GWS must be ON if LAN is ON Commands Error Recovery Manual E2579 Cmd Rej: GWS must be ON if LAN is ON Commands Used: chg-feat You specified the lan=on parameter to turn the STP LAN feature on, and the Gateway Screening feature is off. To use the STP LAN feature, the Gateway Screening feature must be turned on.
  • Page 195 Commands Error Recovery Manual E2582 Cmd Rej: Feature corresponding to APPL not Display the features in the database. Enter the rtrv-feat command. If the CRMD feature is turned on, re-enter the command. Call your Customer Care Center if this error message appears again. See the "Customer Care Center" section in Chapter 1 of this manual.
  • Page 196 E2584 Cmd Rej: GTT feature must be ON Commands Error Recovery Manual E2584 Cmd Rej: GTT feature must be ON Commands Used:chg-ctrl-feat, chg-feat, chg-loopset, dlt-loopset, chg-sccpopts, enable-ctrl-feat, ent-card, ent-loopset,rtrv-loopset The GTT feature must be turned on before the following features can be enabled: •...
  • Page 197 Commands Error Recovery Manual E2585 Cmd Rej: GWS feature must be ON Call your Customer Care Center if this error message appears again. See the "Customer Care Center" section in Chapter 1 of this manual. E2585 Cmd Rej: GWS feature must be ON Commands Used:enable-ctrl-feat, ent-card, ent-dlk The GWS feature must be turned on prior to issuing this command.

  • Page 198: Table 2-7. Valid Port And Application Type Combinations

    E2587 Cmd Rej: Card GPL of link does not match Commands Error Recovery Manual domain of linkset APC Table 2-7. Valid Port and Application Type Combinations Card Port Supported Application Two-port LIM All supported applications. The two-port LIM supports the DS0, OCU, V35, ATM, or E1 interface.
  • Page 199 Commands Error Recovery Manual E2589 Cmd Rej: L2TSET cannot be specified if card application is SS7GX25 Re-enter the dlt-slk command specifying the force=yes parameter. E2589 Cmd Rej: L2TSET cannot be specified if card application is SS7GX25 Commands Used: ent-slk You cannot specify the l2tset parameter for a card that is running the ss7gx25 application. If the card application is ss7gx25, the l2tset parameter cannot be specified.
  • Page 200 E2592 Cmd Rej: Warm Restart capable Feature must Commands Error Recovery Manual be enabled E2592 Cmd Rej: Warm Restart capable Feature must be enabled Commands Used:alw-card, init-card, init-sys The G-Flex, G-Port, INP, EIR, LNP ELAP Configuration, IDPR, A-Port, IS41 GSM Migration (IGM), or PPSMS, feature must be turned on before the data parameter can be specified.
  • Page 201 Commands Error Recovery Manual E2595 Cmd Rej: SS7 Destination assigned to non-SS7 linkset Display the destination point codes in the database. Enter the rtrv-dstn command. Display the linksets in the database. Enter the rtrv-ls command. Using the outputs from steps 1 and 2 as a guide, re-enter the ent-rte command specifying an X.25 DPC and an X.25 linkset.
  • Page 202 E2598 Cmd Rej: Cccnames table must be accessible Commands Error Recovery Manual The cccmmd table was not accessible to the command you entered. Recovery Re-enter carefully the command that generated this error message specifying correct parameter values. Call your Customer Care Center if this error message appears again. See the "Customer Care Center" section in Chapter 1 of this manual.
  • Page 203 If the backup and current partitions on the active TDM are coherent and the backup and current partitions on the standby TDM are not coherent, use the chg-db:action=repair command. Log into the EAGLE 5 ISS. Enter the login or act-user command.
  • Page 204 E2603 Cmd Rej: Card must be inhibited before Commands Error Recovery Manual executing this command Enter the rtrv-card command. The ACM cards are indicated by the term ACMENET in the TYPE field of the rtrv-card command output. Re-enter the command specifying a card type that is an ACMENET. E2603 Cmd Rej: Card must be inhibited before executing this command Commands Used: chg-bip-fld, chg-ip-card, chg-ip-lnk, dlt-dlk, dlt-ip-node,...
  • Page 205 Commands Error Recovery Manual E2606 Cmd Rej: Point code must exist within the group E2606 Cmd Rej: Point code must exist within the group Commands Used: chg-mrn The command was entered to change the relative costs specified for more than one point code. At least one of the point codes specified does not exist in the group in the Mated Relay Node (MRN) table that is indicated by the point code specified in the pc parameter.
  • Page 206 E2610 Cmd Rej: IPADDR assigned to a TCP/IP link Commands Error Recovery Manual You can enter these commands with only one optional parameter, with the exception of the ipaddr and ipport parameter combination for the rtrv-ip-node command. NOTE: The loc and ipaddr parameters may not be specifed together in the same command. Only one of the options can be specified at a time.
  • Page 207 Commands Error Recovery Manual E2612 Cmd Rej: IPPORT already assigned The value you assigned to the cap parameter, when added to the values that were assigned when IP addresses were defined, totaled more than 100. Recovery Enter the rtrv-ip-node command to acquire the present status of the IP node. Re-enter the ent-ip-node command that generated this error message, but set the cap parameter to not push the total capacity beyond 100%, when added to the existing capacity as seen in step 1.
  • Page 208 E2615 Cmd Rej: IPADDR w/o IPRTE must match first Commands Error Recovery Manual 2 octets of TCP/IP link Enter the rtrv-dlk command. Display the IP addresses of the TCP/IP nodes. Enter the rtrv-ip-node command. Re-enter the ent-ip-node command specifying a Class A IP address not shown in the output of step 2, and whose network portion of the address matches the network portion of the IP address assigned to the TCP/IP data link location specified in this command (shown in the output of step 1).
  • Page 209 Commands Error Recovery Manual E2617 Cmd Rej: IPAPPL already assigned to specified E2617 Cmd Rej: IPAPPL already assigned to specified LOC Commands Used: ent-ip-node The specified IP application (ipappl) was already assigned to the TCP/IP data link specified by the loc parameter. Only one IP node (ipaddr, ipappl, and loc parameter combination) can be assigned to a TCP/IP data link.
  • Page 210 E2622 Cmd Rej: IPADDR not assigned to specified Commands Error Recovery Manual Re-enter the dlt-ip-node command specifying the force=yes parameter, or with either the ipappl, ipport, or loc parameters to delete a specific application or port from the IP node. E2622 Cmd Rej: IPADDR not assigned to specified LOC Commands Used: dlt-ip-node, rtrv-ip-node The command was entered with the ipaddr and loc parameters, and the node specified by the ipaddr parameter...
  • Page 211 Commands Error Recovery Manual E2625 Cmd Rej: IPADDR not assigned to any TCP/IP link Re-enter the dlt-ip-node command command specifying an ipaddr/ipappl combination and the corresponding card location shown in the output of step 1. E2625 Cmd Rej: IPADDR not assigned to any TCP/IP link Commands Used: dlt-ip-node The node specified by the ipaddr parameter could not be found to be connected to any TCP/IP data link.
  • Page 212 E2629 Cmd Rej: Card has IP LNK with IP address Commands Error Recovery Manual assigned You specified a combination of the ipaddr, ipappl, iprte, or loc parameters. You can specify only one of these parameters with this command. Recovery Re-enter the rtrv-ip-node command specifying either the ipaddr, ipappl, iprte, or the loc parameters, but not a combination of these parameters.
  • Page 213 Commands Error Recovery Manual E2631 Cmd Rej: Link must be cancelled before executing this command E2631 Cmd Rej: Link must be cancelled before executing this command Commands Used: dlt-dlk, inh-card The following Recovery procedures list by command the remedial action to take for this error message. Recovery - dlt-dlk The specified TCP/IP data link was not OOS-MT-DSBLD (out of service - maintenance disabled).
  • Page 214 E2633 Cmd Rej: IPRTE address must use first octet of Commands Error Recovery Manual Class A TCP/IP Link Verify the TCP/IP data links in the database. Enter the rtrv-dlk command. Verify the TCP/IP router addresses in the database. Enter the rtrv-ip-node command. Re-enter the ent-ip-node command specifying a router IP address that is different from the address assigned to the TCP/IP link.
  • Page 215 Commands Error Recovery Manual E2635 Cmd Rej: IPRTE address must use first 3 octets of Class C TCP/IP Link E2635 Cmd Rej: IPRTE address must use first 3 octets of Class C TCP/IP Link Commands Used: ent-ip-node You specified a router IP address whose network portion does not match the network portion of the IP address assigned to the TCP/IP data link.
  • Page 216 E2639 Cmd Rej: Failed reading redirect table Commands Error Recovery Manual E2639 Cmd Rej: Failed reading redirect table Commands Used: chg-gws-redirect, chg-sid, dlt-rte, dlt-gws-redirect, ent- gws-redirect The Gateway Screening Redirect Function table is corrupt or cannot be found by the system. Recovery Re-enter the command that generated this error message.
  • Page 217 Commands Error Recovery Manual E2643 Cmd Rej: Cannot delete last route to DPC ref. in MAP table The command was entered with a value for the destination point code (DPC) parameter that has no route assigned to it. These commands require that the DPC have at least one route assigned to it. Recovery Display the routes in the database.
  • Page 218 E2645 Cmd Rej: Cannot delete last route to DPC ref. by Commands Error Recovery Manual redirect func E2645 Cmd Rej: Cannot delete last route to DPC ref. by redirect func Commands Used: dlt-rte, chg-dstn, The last route to a destination referenced by the redirect function destination parameter cannot be deleted. If the specified destination point code is referenced by the redirect function, and all routes are assigned to the destination point code through the routeset, then the rsn=none parameter cannot be specified.
  • Page 219 Commands Error Recovery Manual E2647 Cmd Rej: Only one of PCN or PCN24 may be specified Also, ensure that the point code has an X.25 address (from step 2) that does not have an X.25 route with the logical channel to network management mapping function on (“no” is displayed in the LC2NM field in step E2647 Cmd Rej: Only one of PCN or PCN24 may be specified Commands Used: chg-sid, ent-sid You cannot specify both the pcn and pcn24 parameters in the same command.
  • Page 220 E2654 Cmd Rej: Max Packet Size must be 128 when N1 Commands Error Recovery Manual is equal to 1080 The X.25 Route table is corrupt or cannot be found by the system. The X.25 Route table contains the shelf attribute information.
  • Page 221 Commands Error Recovery Manual E2657 Cmd Rej: Point code not defined Verify that the GTT feature is turned off. Enter the rtrv-feat command. Turn on the GTT feature. Enter the command: chg-feat:gtt=on Turn on the MGTT feature. Enter the command: chg-feat:mgtt=on E2657 Cmd Rej: Point code not defined Commands Used:chg-dstn, chg-gws-redirect, chg-ls, chg-rte, chg-x25-dstn, dlt-dstn, dlt-rmt-appl, dlt-rte, ent-gws-redirect, ent-ls, ent-rmt-appl,...
  • Page 222 E2658 Cmd Rej: X.25 address already exists in X.25 Commands Error Recovery Manual destination table Re-enter the command specifying an existing internal point code defined in the Destination table. Recovery - chg-rte, dlt-rte Verify that the command was entered correctly and re-enter the command. Display the Route table.

  • Page 223: Table 2-8. Action If X.25 Route Table Is Full

    Commands Error Recovery Manual E2661 Cmd Rej: X.25 destination table is full Display the X.25 destinations in the database. Enter the rtrv-x25-dstn command. Re-enter the command specifying an X.25 address that is shown in the output of step 1. E2661 Cmd Rej: X.25 destination table is full Commands Used: ent-x25-dstn The X.25 Destination table already contains the maximum number of destinations, and you attempted to add another X.25 destination.
  • Page 224 E2663 Cmd Rej: Combination of X.25 addresses not in Commands Error Recovery Manual X.25 route table Display the maximum number of SVCs allowed for the signaling link. Enter the rtrv-x25-slk command specifying the card location and port of the signaling link. The maximum number of SVCs defined for the X.25 signaling link is shown in the SVC field of the output.
  • Page 225 Commands Error Recovery Manual E2666 Cmd Rej: LOC must be specified when TYPE=PVC or SVCA Perform one of the following: • Re-enter the command specifying the lc and type=pvc parameters, or • Re-enter the command specifying either the type=svca or type=svcr parameters, and without the lc parameter.
  • Page 226 E2669 Cmd Rej: SS7 address does not exist in X.25 Commands Error Recovery Manual destination table The port parameter can be specified only with the loc parameter. Neither the loc nor the port parameters cannot be specified with the type=svcr parameter. Recovery Re-enter the command specifying the type=svcr parameter without specifying the port parameter.
  • Page 227 Commands Error Recovery Manual E2672 Cmd Rej: DPC assigned to X.25 address has no SS7 routes You specified a value for the SS7 X.25 address (saddr) parameter whose destination point code is not in the SS7 domain. Recovery Display the destination point codes in the database. Enter the rtrv-dstn command.
  • Page 228 E2674 Cmd Rej: Combination of X.25 addresses exists Commands Error Recovery Manual in X.25 route table Enter the rtrv-rte command. Perform one of the following: Using the output from steps 1 and 2 as a guide, re-enter the ent-x25-rte command specifying an SS7 address whose DPC has at least one route assigned to it.

  • Page 229: Table 2-9. Action If X.25 Route Table Is Full

    Commands Error Recovery Manual E2676 Cmd Rej: X.25 route table is full If the X.25 addresses you wish to enter are not shown in the output of step 2, add the X.25 addresses to the X.25 Destination table using the ent-x25-dstn command, then re-enter the ent-x25-rte command specifying those X.25 addresses.
  • Page 230 E2678 Cmd Rej: Link not assigned to SS7-X.25 card Commands Error Recovery Manual Re-enter the ent-x25-rte command specifying an X.25 signaling link shown in the output of step 1. E2678 Cmd Rej: Link not assigned to SS7-X.25 card Commands Used: rept-x25-meas The card containing the signaling link, specified in this command by the loc and port parameters, is not a LIM using the ss7gx25 application.
  • Page 231 Commands Error Recovery Manual E2681 Cmd Rej: Cannot change if existing connection type is PVC E2681 Cmd Rej: Cannot change if existing connection type is Commands Used: chg-x25-rte The specified X.25 route has a connection type of PVC (permanent virtual circuit). An X.25 route that has a connection type of PVC cannot be changed with this command.
  • Page 232 E2685 Cmd Rej: MPS must be either 128 or 256 Commands Error Recovery Manual You specified a value for the n1 parameter that was not 1080 or 2104. The only values allowed for this parameter is 1080 or 2104. Recovery Re-enter the command specifying either 1080 or 2104 for the value for the n1 parameter.
  • Page 233 Commands Error Recovery Manual E2689 Cmd Rej: Cannot decrease SVC below number of SVCs already in use You specified a value for the pvc parameter that was less than the number of logical channels assigned to the X. 25 signaling link. The number of PVCs cannot be less than the number of logical channels for a particular X.25 signaling link.
  • Page 234 E2691 Cmd Rej: Card is not a SS7GX25 card Commands Error Recovery Manual Display the signaling links in the database. Enter the rtrv-x25-slk command. Re-enter the chg-x25-slk command specifying a card location that is an X.25 signaling link as shown in step 1.
  • Page 235 Commands Error Recovery Manual E2695 Cmd Rej: DPADDR cannot be entered with DR/ You can enter only one of the parameters addr or paddr. Recovery Re-enter the command that generated this error message specifying either the addr or paddr parameter, but not both.
  • Page 236 E2698 Cmd Rej: DUR=PERM can only be specified Commands Error Recovery Manual with a 486 processor E2698 Cmd Rej: DUR=PERM can only be specified with a 486 processor Commands Used: ent-bp You cannot enter the ent-bp command specifying the dur=perm parameter if the processor is not a 80486 CPU. Recovery Perform one of the following: •...
  • Page 237 E2702 Cmd Rej: At least one MCPM card must be configured in system Commands Used: rept-stat-meas At least one MCPM card must be configured in the EAGLE 5 ISS for the Measurements Platform feature, before you can enter the rept-stat-meas command. Recovery Enter the rept-stat-card command and verify that there is at least one MCPM card configured in the EAGLE 5 ISS for the Measurements Platform.
  • Page 238 E2704 Cmd Rej: Invalid IPADDR Commands Error Recovery Manual E2704 Cmd Rej: Invalid IPADDR Commands Used: chg-ftp-serv, chg-ip-card, chg-ip-lnk, dlt-ftp-serv, ent-ftp- serv, ent-ip-host, rtrv-ftp-serv, rtrv-ip-host, tst-dlk, ent-dlk You entered the command for an IP address (ipaddr parameter) that does not exist in the database, or you specified an ipaddr parameter value that does not conform to the value’s specified naming conventions.
  • Page 239 Commands Error Recovery Manual E2707 Cmd Rej: LOC is invalid for specified report TYPE Recovery Re-enter the command specifying the correct combination of parameters. Refer to the rept-meas command description in the Commands Manual for valid parameter combinations. Call your Customer Care Center if this error message appears again. See the "Customer Care Center" section in Chapter 1 of this manual.
  • Page 240 E2711 Cmd Rej: Invalid parameter Commands Error Recovery Manual type of lhost than the lhost type for the associations for the M3UA/SUA associations (adapter type) already assigned to the AS (ITU or ANSI). This is not allowed. Recovery - chg-assoc Display the IP address for the current and new association local hosts (lhost).
  • Page 241 Commands Error Recovery Manual E2712 Cmd Rej: RESETCHAR not valid with ACTION=CREATE Call your Customer Care Center if this error message appears again. See the "Customer Care Center" section in Chapter 1 of this manual. E2712 Cmd Rej: RESETCHAR not valid with ACTION=CREATE Commands Used: chg-tbl If action=create is requested, the following parameters must be entered: name, ext, filelength.
  • Page 242 E2716 Cmd Rej: RESETCHAR not valid with Commands Error Recovery Manual ACTION=RENAME If action=reset is requested, the id parameter must be entered. All other parameters (including ext) are ignored or defaulted. Recovery • Re-enter the command that generated this error message specifying only the valid parameters. Call your Customer Care Center if this error message appears again.
  • Page 243 Commands Error Recovery Manual E2719 Cmd Rej: REDIRECT can only be specified with ANSI point codes E2719 Cmd Rej: REDIRECT can only be specified with ANSI point codes Commands Used: chg-gws-redirect, ent-gws-redirect You specified a value for the destination point code (dpc) parameter that was not an ANSI point code (either an ITU-I or ITU-N point code).
  • Page 244 E2725 Cmd Rej: ANSI site id not defined Commands Used:act-oap-config, chg-dstn, ent-dstn, chg-ctrl-feat The EAGLE 5 ISS must have a configured ANSI point code (SID) before the MT-based IS41 SMS NP feature can be turned on. Recovery Display all site identification STP point codes and capability point codes.
  • Page 245 Commands Error Recovery Manual E2726 Cmd Rej: ITU-INTL site id not defined Call your Customer Care Center if this error message appears again. See the "Customer Care Center" section in Chapter 1 of this manual. E2726 Cmd Rej: ITU-INTL site id not defined Commands Used: chg-sid, ent-dstn You entered this command specifying the pci parameter, but the international ITU site ID had not already been provisioned.
  • Page 246 E2730 Cmd Rej: SEAS Subsystem has not been provisioned Commands Used: rept-stat-seas The SEAS subsystem has not been provisioned and is not part of the EAGLE 5 ISS maintenance system. Recovery Turn on the SEAS feature. Enter the command: chg-feat:seas=on NOTE: Once a feature that is controlled using a feature bit is turned on, it cannot be turned off.
  • Page 247 Commands Error Recovery Manual E2733 Cmd Rej: The T1PORT at the specified location is already equipped E2733 Cmd Rej: The T1PORT at the specified location is already equipped Commands Used: ent-t1 You attempted to add a T1 interface in the database using a port on the E1/T1 MIM card (t1port = 1 or 2) that already has a T1 interface on the card at the specified location (t1loc).
  • Page 248 E2737 Cmd Rej: The T1PORT at the specified location Commands Error Recovery Manual is not equipped Deactivate all signaling links with timeslots that are serviced by the specified T1 interface (for the chg- t1 command), or by each defined T1 interface (for the inh-card command). Enter the dact-slk command.
  • Page 249 Commands Error Recovery Manual E2740 Cmd Rej: The specified LOC only supports SLTC loopbacks Enter the rtrv-card command. Verify that the card you specified in the loc parameter is the correct E1/ T1 MIM card. If you specified the correct card in the loc parameter, re-enter the command. If the loc parameter value that you specified was incorrect for the card, re-enter the command specifying the correct loc parameter value.
  • Page 250 E2743 Cmd Rej: Card type of LIMCH does not support Commands Error Recovery Manual T1PORT = 2 E2743 Cmd Rej: Card type of LIMCH does not support T1PORT = 2 Commands Used: ent-slk You entered a command to assign a timeslot for a Channel card. You entered the t1port=2 parameter for the T1 interface on port 2 of the E1/T1 MIM card used as the T1 card that will service the timeslot.
  • Page 251 Commands Error Recovery Manual E2747 Cmd Rej: FORCE=YES is required when card is allowed You entered a command to assign a timeslot and signaling link to a T1 interface on an E1/T1 MIM card used as a T1 card. The timeslot that you specified in the command ts parameter is already assigned to a signaling link serviced by the T1 interface on the T1 card specified in the t1loc and t1port parameters.
  • Page 252 Commands Used: act-user, login Your attempt to login to the EAGLE 5 ISS has been denied because your user ID is already logged in, or is being logged in, to the EAGLE 5 ISS at another terminal. Recovery Look at the scroll area of the terminal screen you are using for login.
  • Page 253 Commands Error Recovery Manual E2753 Cmd Rej: Password does not contain enough alphabetic characters Re-enter the login command. E2753 Cmd Rej: Password does not contain enough alphabetic characters If you are the systems administrator: Commands Used: act-user, chg-pid, chg-user, ent-user, login The requirements for the password are given in the scroll area of the logon screen.
  • Page 254 E2755 Cmd Rej: Password does not contain enough Commands Error Recovery Manual punctuation characters Display the system wide, security-related defaults. Enter the rtrv-secu-dflt command. The minimum number of numeric characters allowed is displayed in the NUM field. Re-enter the command, and at the password prompt, type a new password containing the correct minimum number of numeric characters and that meets the other password complexity requirements for your site.
  • Page 255 Commands Used: act-user, login Your attempt to login to the EAGLE 5 ISS has been denied because of one of the following: you either entered a user ID or a password not in the EAGLE 5 ISS database, or you entered a user ID-password combination not in the database.
  • Page 256 Commands Used: act-user, login You tried to login to the EAGLE 5 ISS at a terminal that is disabled because the login failure threshold level was exceeded. For security reasons, the site administrator has configured the EAGLE 5 ISS to disable terminals for a specified amount of time, when login failures exceeds a specified number.
  • Page 257 Commands Error Recovery Manual E2765 Cmd Rej: Invalid password. Keyboard is locked. Enter UNLOCK command You entered a command to turn on the Time Slot Counter synchronization (TSC) feature. The feature requires that both OAM cards must be card type GPSM-II. Recovery Verify the card type of each OAM card.
  • Page 258 E2767 Cmd Rej: Keyboard is not locked Commands Error Recovery Manual E2767 Cmd Rej: Keyboard is not locked Commands Used: unlock You entered the unlock command at a terminal the keyboard is not locked, or you entered the unlock command at an OAP terminal.
  • Page 259 Commands Error Recovery Manual E2771 Cmd Rej: Both WRNLN and WRNTX must be specified Your terminal keyboard is locked and temporarily disabled because the number of failed unlock attemps exceeds the site-specified maximum. The port must not be in an unlock disabled state because of excessive successive unlock failures.
  • Page 260 You entered the command for a security administration terminal, and tried to change the access rights in such a way that only one terminal would remain configured for security administration. The EAGLE 5 ISS requires that at least two terminals be configured as security administration terminals in case one of them has a hardware failure.
  • Page 261 You entered the command for a security administration terminal, and tried to change the type parameter to a non- terminal value of printer or none. The EAGLE 5 ISS requires that at least two terminals be configured as security administration terminals in case one of them has a hardware failure.
  • Page 262 You entered a command to provision a GSM Map opcode and its default action. This command lets you provision the opcodes for which the EAGLE 5 ISS attempts to perform GSM screening. You can specify the point code and subsystem number parameters only if you also specify dfltact=forward, dfltact=duplicate, or dfltact=dupdisc.
  • Page 263 Commands Used: chg-dstn, ent-dstn You entered the command to define a 24-bit ITU-N point code destination. The EAGLE 5 ISS site ID is not a 24- bit ITU-N point code. Use the chg-sid command to replace the existing site ID with a 24-bit ITU-N point code site ID before you can enter the 24-bit ITU-N point code destination.
  • Page 264 E2786 Cmd Rej: One PC parameter required with ALL Commands Error Recovery Manual parameter E2786 Cmd Rej: One PC parameter required with ALL parameter Commands Used: dlt-mrn If the all=yes parameter is specified, the pc parameter must be specified and the pc1/pc2/pc3/pc4 parameters cannot be specified.
  • Page 265 Commands Error Recovery Manual E2789 Cmd Rej: NNP,NNAI,NPDD/S,NSDD/ S,NGTI,RMGTT invalid if AMGTT is OFF • Enter the tst-slk command for the payload or line loopback test for a card that is not an E1 ATM card. E2789 Cmd Rej: NNP,NNAI,NPDD/S,NSDD/ S,NGTI,RMGTT invalid if AMGTT is OFF Commands Used: chg-gta, chg-gtt, ent-gta, ent-gtt The AMGTT feature must be turned on before the rmgtt, nnp, nnai, ngti, nsdd, nsds, npdd, and npds parameters...
  • Page 266 E2793 Cmd Rej: Only parmCODE=0 (EOP) can have Commands Error Recovery Manual MINLEN=0 View the entries in the Application Filter (APPFLT) table. Enter the rtrv-appflt command. To add a new opc or lsn entry to the APPFLT table, you must either change or delete an existing entry. To change an existing opc or lsn entry in the APPFLT table, enter the chg-appflt command.
  • Page 267 Commands Used: chg-trm The EAGLE 5 ISS you are configuring has two terminals configured for OAP using the type=oap parameter, and you attempted to configure a third OAP terminal. You can configure only two OAP terminals on an EAGLE 5 ISS.
  • Page 268 E2811 Cmd Rej: Comm. attributes cannot be entered Commands Error Recovery Manual for OAP terminal Enter the rept-stat-trm command to verify that the terminal you are inhibiting is out of service (OOS- MT-DSBLD). Change the terminal characteristics for the terminal you are reconfiguring using the chg-trm command. For example, you might specify chg-trm:trm=4:type=oap:all=yes.
  • Page 269 Commands Error Recovery Manual E2813 Cmd Rej: FORCE=YES must be specified to initialize the last OAP Re-enter the chg-oap-config command that generated this error message. Refer to the Commands Manual for valid SEAS parameter combinations. Call your Customer Care Center if this error message appears again. See the "Customer Care Center" section in Chapter 1 of this manual.
  • Page 270 E2815 Cmd Rej: PC and RC must be entered as a pair Commands Error Recovery Manual Re-enter the chg-sidcommand without specifying the cpctype=gport parameter. E2815 Cmd Rej: PC and RC must be entered as a pair Commands Used: chg-mrn, chg-sccp-serv, ent-mrn Both the point code parameter and relative code parameter must be specified together in the command.
  • Page 271 Commands Error Recovery Manual E2818 Cmd Rej: A maximum of 8 PCs are allowed in a group E2818 Cmd Rej: A maximum of 8 PCs are allowed in a group Commands Used: chg-mrn, ent-mrn You entered a command to add one or more point codes to a group in the Mated Relay Node (MRN) table, and the point code group already contains 8 point codes.
  • Page 272 E2822 Cmd Rej: Destination location must specify the Commands Error Recovery Manual standby fixed disk Recovery Verify the removable cartridge contains the next release. Verify that the removable cartridge is inserted in the MDAL. WARNING: Leaving a removable cartridge (MO) in the MDAL for a prolonged period can damage the cartridge rendering it unreadable.
  • Page 273 Commands Error Recovery Manual E2825 Cmd Rej: Could not access removable disk Verify the status of the standby TDM. Enter the rept-stat-db command. If the status of the standby TDM shows noaccs, call your Customer Care Center. If the status of the standby TDM shows stdby, re-enter the command that generated this error message. Call your Customer Care Center if this error message appears again.
  • Page 274 E2830 Cmd Rej: Source drive not coherent Commands Error Recovery Manual Re-enter the command that generated this error message. Call your Customer Care Center if this error message appears again. See the "Customer Care Center" section in Chapter 1 of this manual. E2830 Cmd Rej: Source drive not coherent Commands Used: copy-disk, copy-gpl, format-disk You may have a hardware problem.
  • Page 275 Commands Error Recovery Manual E2833 Cmd Rej: MTPRSIT parameter is only valid if MTPRS feature is ON Turn on the ITUMTPRS feature. Enter the chg-feat:itumtprs=on command. Re-enter the chg-stpopts command. Re-enter the chg-stpopts command without specifying the mtprsi parameter. E2833 Cmd Rej: MTPRSIT parameter is only valid if MTPRS feature is ON Commands Used: chg-stpopts You cannot specify the mtprsit parameter, if the MTP Restart (MTPRS) feature is off.
  • Page 276 E2836 Cmd Rej: Too many nested cluster dstn entered Commands Error Recovery Manual E2836 Cmd Rej: Too many nested cluster dstn entered Commands Used: ent-dstn You cannot specify the ncai parameter, because you have already provisioned 500 nested clusters. If the ncai parameter is set to yes, the maximum number of provisioned nested clusters is 500.
  • Page 277 You specified the ncai=no parameter to change a provisioned nested cluster point code to a non-nested cluster point code. The EAGLE 5 ISS does not allow this action since the previously provisioned members of the cluster have a different route set.
  • Page 278 E2841 Cmd Rej: tt map table full for LSN specified Commands Error Recovery Manual Re-enter the command that generated this error message specifying correct ett and mtt parameter values. Call your Customer Care Center if this error message appears again. See the "Customer Care Center" section in Chapter 1 of this manual.
  • Page 279 Commands Error Recovery Manual E2844 Cmd Rej: ETT not defined for LSN and IO specified The lsn parameter you entered referenced a linkset that was not defined with an accessible Linkset table. Recovery Re-enter the command that generated this error message specifying a different lsn parameter value. Call your Customer Care Center if this error message appears again.
  • Page 280 E2847 Cmd Rej: IF IO or ETT specified, BOTH opt. Commands Error Recovery Manual parms must be specified E2847 Cmd Rej: IF IO or ETT specified, BOTH opt. parms must be specified Commands Used: dlt-ttmap If one of these two parameters is specified, the other must also be specified. Recovery Perform one of the following: •...

  • Page 281: Table 2-10. Routesets Feature With Maximum Values For Mtpdpcq And Mtpxlq Parameters

    Commands Error Recovery Manual E2850 Cmd Rej: MTPXLxx parameters are only valid if CRMD feature is ON E2850 Cmd Rej: MTPXLxx parameters are only valid if CRMD feature is ON Commands Used: chg-stpopts You specified the mtpxlq, mtpxlet, and mtpxlot parameters, but the Cluster Routing and Management Diversity (CRMD) feature is off.
  • Page 282 E2852 Cmd Rej: Failed reading STP options table Commands Error Recovery Manual Enter the rtrv-stpopts command. Display the DPCs. Enter the rtrv-dstn command. Calculate the maximum value for the mtplxq parameter, using the information from Table 2-16 and Steps 1 and 2. Re-enter the command specifying a value for the mtplxq parameter that does not exceed the command requirements as calculated in Step 3.
  • Page 283 Commands Error Recovery Manual E2855 Cmd Rej: Cluster DPCs are only valid if the CRMD feature is ON You cannot specify an alias point code (aliasa/aliasi/aliasn/aliasn24) parameter when you specify a cluster destination or a network destination for the (dpc/dpca/dpci/dpcn/dpcn24) parameter. Recovery Perform one of the following: Display the cluster DPCs.
  • Page 284 E2857 Cmd Rej: DPC is referenced by SCCP’s MAP Commands Error Recovery Manual table Display the features in the database. Enter the rtrv-feat command. If the CRMD feature is on, re-enter the command. Call your Customer Care Center if this error message appears again. See the "Customer Care Center" section in Chapter 1 of this manual.
  • Page 285 Commands Error Recovery Manual E2859 Cmd Rej: Destination address must be a full point code E2859 Cmd Rej: Destination address must be a full point code Commands Used: chg-dstn, chg-gta, chg-gtt, chg-ls, chg-x25-dstn, dlt-cspc, ent-cspc, ent-dstn, ent-gta, ent-gtt, ent-ls, ent-x25-dstn, rtrv-gta, rtrv- gtt, rtrv-x25-dstn You entered the command and specified a destination point code that is not a full point code.
  • Page 286 E2863 Cmd Rej: Destination’s alias PCs must be full Commands Error Recovery Manual Recovery Display the DPCs. Enter the rtrv-dstn command. Re-enter the ent-dstn command specifying the cluster dpc and the domain=ss7 parameter. OR Re-enter the command specifying the full dpc and the domain=x25 parameter. E2863 Cmd Rej: Destination’s alias PCs must be full PCs Commands Used: chg-dstn, ent-dstn, rtrv-dstn You cannot use an asterisk to designate the network indicator (ni), network cluster (nc), or network cluster member...
  • Page 287 Chapter 1 of this manual. E2868 Cmd Rej: Invalid NCAI parameter has been entered Commands Used: chg-dstn, ent-dstn You specified the ncai parameter for a destination address that is not a cluster destination. The EAGLE 5 ISS does not allow this action. Recovery Re-enter the command without specifying the ncai parameter.
  • Page 288 E2869 Cmd Rej: NCAI param is only valid if both feat Commands Error Recovery Manual CRMD and NCR are ON Enter the rept-stat-cluster command. The cluster DPCs are displayed in the DPCA field (for example, 7-7-* is a cluster destination). Re-enter the command specifying a destination address that is a cluster destination.
  • Page 289 Commands Error Recovery Manual E2872 Cmd Rej: CPCx has not been provisioned Re-enter the chg-sid command specifying the same capability point code type for both the cpc/cpca/cpci/cpcn/ cpcn24 parameter and the ncpc/ncpca/ncpci/ncpcn/ncpcn24 parameter. E2872 Cmd Rej: CPCx has not been provisioned Commands Used: chg-sid When an ncpc, ncpca, ncpci, ncpcn, or ncpcn24 parameter is specified, the specified corresponding cpc, cpca, cpci,cpcn, or cpcn24 parameter value must already exist in the database.
  • Page 290 E2875 Cmd Rej: Network/Cluster cannot have alias Commands Error Recovery Manual DPC members E2875 Cmd Rej: Network/Cluster cannot have alias DPC members Commands Used: ent-dstn Alias ANSI point codes cannot have the same network identifier (ni) and network cluster (nc) subfields as a cluster point code that is already defined.
  • Page 291 Commands Error Recovery Manual E2879 Cmd Rej: Ordered routes cannot be deleted from cluster members A route is already provisioned for ni-nc-xxx (where xxx is * or pc). You cannot enter a route on a linkset different than the one already provisioned, unless the specified destination addresses’s NCAI (nested cluster allowed indicator) is set to yes.

  • Page 292: Table 2-11. Routesets Feature With Maximum Values For Mtpdpcq And Mtpxlq Parameters

    E2880 Cmd Rej: MTPDPCQ cannot exceed available Commands Error Recovery Manual space in the dstn table Re-enter the dlt-rte command that generated this error message specifying a destination point code that is not a member of a provisioned cluster. Call your Customer Care Center if this error message appears again. See the "Customer Care Center" section in Chapter 1 of this manual.
  • Page 293 (cpc) that would have been the 97th entry in the database. You must first delete an existing CPC before you can add a new one. Recovery Display the CPCs currently configured in the EAGLE 5 ISS database. Enter the rtrv-sid command. Delete one of the existing CPCs.
  • Page 294 E2885 Cmd Rej: Ordered routes cannot be changed for Commands Error Recovery Manual cluster members Recovery Re-enter the chg-sid command specifying a different value for each of the pc/pca/pci/pcn/pcn24, npci/npcn, cpc/cpca/cpci/cpcn/cpcn24, and ncpc/ncpca/ncpci/ncpcn/ncpcn24 parameters. E2885 Cmd Rej: Ordered routes cannot be changed for cluster members Commands Used: chg-rte You specified a destination address that is a full point code address (ni-nc-ncm) and is a member of a provisioned...
  • Page 295 Commands Error Recovery Manual E2887 Cmd Rej: Failed accessing maintenance data You specified a point code in the format ni-nc-** or ni-nc-*** and the mode=full parameter. The mode=full parameter requests detailed status information for a single point code, and specifying point codes in the format ni-nc-** or ni-nc-*** requests summary status for a range of point codes;...
  • Page 296 The logout command cannot be issued from a SEAS terminal. Recovery These commands cannot be entered from a OAP terminal. You must be logged in to an EAGLE 5 ISS terminal to use these commands. E2890 Cmd Rej: DPC must be specified as wildcard when used...
  • Page 297 Commands Error Recovery Manual E2892 Cmd Rej: LOC is not LFS capable The link fault sectionalization table is corrupt or cannot be found by the system. Recovery Re-enter the command that generated this error message. Call your Customer Care Center if this error message appears again. See the "Customer Care Center" section in Chapter 1 of this manual.
  • Page 298 E2895 Cmd Rej: REP must be zero if link element to be Commands Error Recovery Manual tested is NEI You cannot configure a loopback point ID that was used in a previous configuration. The specified loopback point cannot have been previously defined. Recovery Display all the loopback points on the signaling links for this STP.
  • Page 299 Commands Error Recovery Manual E2897 Cmd Rej: REP is only valid if LFST is defined as E2897 Cmd Rej: REP is only valid if LFST is defined as LLT Commands Used: act-lbp, chg-lbp, ent-lbp You entered the command and specified the rep parameter, but you did not specify the lfst=llt parameter. You can specify the number of link elements to be tested only if you choose the latching loopback test.
  • Page 300 E2900 Cmd Rej: NEI LBP must be defined as the last Commands Error Recovery Manual link element are identified by NEI in the RLE field of the output. Refer to the output examples for the rtrv-lbp command in the Commands Manual. Re-enter the command you entered originally specifying a value other than nei for the rle parameter.

  • Page 301: Table 2-12. Conditions That Generate An E2903 Error Message

    100 milliseconds (0.10 seconds). Recovery Display the current values of the EAGLE 5 ISS’s node-level processing option indicators, maintained in the STP’s options table. Enter the rtrv-stpopts command. The TRATFRPR field displays the value you entered for the tfatfrpr parameter for the chg-stpopts command.
  • Page 302 E2905 Cmd Rej: LFS command in progress Commands Error Recovery Manual E2905 Cmd Rej: LFS command in progress Commands Used: act-lbp, dact-lbp, tst-slk A command is already in progress. The previously entered command for a link test must be accepted before another link test command can be entered.
  • Page 303 Commands Error Recovery Manual E2909 Cmd Rej: LFS data is only valid for OCTET and ALTERNATE patterns E2909 Cmd Rej: LFS data is only valid for OCTET and ALTERNATE patterns Commands Used: act-lbp You can specify the data parameter only if you specify the pattern=octet parameter or pattern=alternate parameter.
  • Page 304 For example, suppose the previously defined values for the rep parameter were 1 and 2. The EAGLE 5 ISS defaults to 2 because no integer exists between 1 and 2. The sequence of rep parameter values would now be 1, 2, 2 but the two same values cause the EAGLE 5 ISS to generate error message E2914.
  • Page 305 Commands Error Recovery Manual E2916 Cmd Rej: Link must not be active to execute command Re-enter the chg-stpopts command that generated this error message, and assign a valid value, acquired in step 1, to the mtp10alt parameter. E2916 Cmd Rej: Link must not be active to execute command Commands Used: act-cdl, act-lbp, dact-cdl, dact-lbp, tst-slk The signaling link that is used for LFS (Link Fault Sectionalization) testing cannot be active.
  • Page 306 E2920 Cmd Rej: Loopback in progress Commands Error Recovery Manual Re-enter the rept-stat-slk command specifying values for both the loc and port parameters. E2920 Cmd Rej: Loopback in progress Commands Used: act-lbp You entered this command while another act-lbp command was in progress. Only one loopback test can be performed at a time.
  • Page 307 Commands Error Recovery Manual E2923 Cmd Rej: Maximum number of link tests already in progress E2923 Cmd Rej: Maximum number of link tests already in progress Commands Used: act-lbp, dact-cdl, dact-lbp, tst-rs, tst-slk Maximum number of allowed duration based system tests are in progess. This command cannot be entered if the maximum number of LFS or link tests are already running in the system.
  • Page 308 E2927 Cmd Rej: The linkset is provisioned locally Commands Used:ent-slk OAP attempted to provision GWS on a linkset that has GWS on it already through an EAGLE 5 ISS terminal. Recovery Re-enter the ent-slk command that generated this error message specifying the correct slc parameter value.
  • Page 309 Commands Used: chg-ls You entered the command at an EAGLE 5 ISS terminal and tried to change a SEAS gateway linkset. Gateway linksets can be configured only from a OAP terminal and not from an EAGLE 5 ISS terminal.
  • Page 310 Commands Used: dlt-ls You entered the command at an EAGLE 5 ISS terminal and tried to delete a SEAS gateway linkset. Gateway linksets can be deleted only from an OAP terminal and not from an EAGLE 5 ISS terminal.
  • Page 311 Commands Used: rtrv-log You specified a combination of start date (sdate) and start time (stime) that is later than the current date-time combination. The EAGLE 5 ISS does not allow you to specify a time in the future to retrieve logs. Recovery Re-enter the command specifying values for the sdate and stime parameters that are before the current date and time.
  • Page 312 E2941 Cmd Rej: Invalid combination - EDATE with STIME Commands Used: rtrv-log You specified the stime parameter and the edate parameter. The EAGLE 5 ISS does not allow this combination. Recovery Re-enter the rtrv-log command specifying another valid combination of the time (stime/etime) and date (sdate/edate) parameters.
  • Page 313 Commands Error Recovery Manual E2944 Cmd Rej: Invalid INTRVL value specified You may have a hardware problem. Recovery Re-enter the command that generated this error message. Call your Customer Care Center if this error message appears again. See the "Customer Care Center" section in Chapter 1 of this manual.
  • Page 314 E2947 Cmd Rej: No match on SCCPMT parameter Commands Error Recovery Manual during retrieve Recovery Re-enter the rtrv-scr-sio command that generated this error message specifying a different destfld parameter value. Call your Customer Care Center if this error message appears again. See the "Customer Care Center" section in Chapter 1 of this manual.

  • Page 315: Table 2-13. Valid Dev/Port Parameter Combinations

    Commands Error Recovery Manual E2950 Cmd Rej: PORT parameter invalid for DEV selected When the dev=applsock parameter is specified, the sname parameter must be specified. Recovery Re-enter the command specifying the sname parameter value. E2950 Cmd Rej: PORT parameter invalid for DEV selected Commands Used: inh-alm, unhb-alm The port/link parameter value you entered was not valid for the device you configured with the dev parameter.
  • Page 316 E2953 Cmd Rej: ID must be specified Commands Error Recovery Manual a2 – EMAP A to NDC OS link b1 – EMDC B to EMAP B link b2 – EMAP B to NDC OS link Recovery Re-enter the command that generated this error message specifying the correct port parameter value. Call your Customer Care Center if this error message appears again.
  • Page 317 Commands Error Recovery Manual E2956 Cmd Rej: NCM must be * when using Network Routing Display the features in the database. Enter the rtrv-feat command. If the NRT feature is turned on (NRT=on), re-enter the command. Call your Customer Care Center if this error message appears again. See the "Customer Care Center" section in Chapter 1 of this manual.
  • Page 318 E2962 Cmd Rej: <device> is <condition> Commands Error Recovery Manual Call your Customer Care Center if this error message appears again. See the "Customer Care Center" section in Chapter 1 of this manual. E2962 Cmd Rej: <device> is <condition> Commands Used:chg-db, copy-disk, copy-meas, copy-gpl, format-disk The command cannot complete because it cannot write to the specified device (either a removable cartridge or fixed disk) for the reason described in the condition.
  • Page 319 (<database>, <disk>, <MASP status>) [or] Cmd Rej: Incorrect DB version (<database>, <disk>, <MASP status>) [or] Cmd Rej: DB status is UPG 1 (<database>, <disk>, <MASP status>) [or] Cmd Rej: DB is incoherent (<database>, <disk>, <MASP status>) Re-issue the copy-disk command. Recovery - Fixed disk is inaccessible (internal problem) Remove and re-install the MDAL and cartridge or a spare.
  • Page 320 Commands Used: act-upgrade One of the following two conditions exisits: • The specified EAGLE 5 ISS PVN network address matches the destination network address of an IP static route on the IPLIMx and IPGWx cards. • The specified EAGLE 5 ISS PVN network address matches the network address of an ethernet interface of the IPGWx and IPLIMx cards in the source data base.
  • Page 321 Commands Error Recovery Manual E2966 Cmd Rej: TRM must be specified E2966 Cmd Rej: TRM must be specified Commands Used: chg-secu-trm, chg-trm, rmv-trm, inh-alm, inh-trm, rst-trm, unhb-alm You entered the command without specifying the mandatory trm parameter. For inh-alm and unhb-alm specifically, it is the dev=trm parameter that requires that you also specify the trm parameter.
  • Page 322 E2969 Cmd Rej: Unable to determine current connect Commands Error Recovery Manual status of card <card> E2969 Cmd Rej: Unable to determine current connect status of card <card> Commands Used: all commands In response to a query, the connect status of the specified card cannot be determined. Recovery Verify that you typed the command correctly.
  • Page 323 A conflict between two action commands has occurred. If you enter an action command while another action command is in progress, your command cannot execute. An action command is a command that changes the state of entities within the EAGLE 5 ISS. For more information, refer to the Commands Manual.
  • Page 324 E2973 Cmd Rej: If specified, BPS must be 56000 for Commands Error Recovery Manual Multi Port LIM E2973 Cmd Rej: If specified, BPS must be 56000 for Multi Port Commands Used: ent-slk You entered a bps value that is not valid for a multi-port LIM or an E1/T1 MIM used as a T1 card. Multi-port LIMs and T1 cards support bps=56000 links only.
  • Page 325 Commands Error Recovery Manual E2977 Cmd Rej: Cannot leave a solitary PC in group Re-enter the command specifying a port that is valid for the card that is running. E2977 Cmd Rej: Cannot leave a solitary PC in group Commands Used: dlt-mrn You entered a command that would delete all but one point code in a MRNGROUP.
  • Page 326 Commands Used: init-network You entered the command and the EAGLE 5 ISS was not in Upgrade Phase 3 mode or Full Function mode. Upgrade Phase 3 mode means that the MASPs are running GPLs that match the major revision defined for the approved GPLs, but the other network processors are only prepared to be upgraded.
  • Page 327 Management. Recovery Verify the operational status of the EAGLE 5 ISS database. Enter the rept-stat-db command. If the current partition of the fixed disk is coherent and the back up partition of the fixed disk is incoherent, create a backup copy of the database on the fixed disk.
  • Page 328 E2986 Cmd Rej: Relative Cost (RC) is required for PC/ Commands Error Recovery Manual SSN and MPC/MSSN If a mate subsystem number (mssn) parameter or mate point code (mpc) parameter is specified, the mate relative cost (materc) parameter must be specified. Recovery Re-enter the ent-map command specifying the mpc, mssn, and materc parameters.
  • Page 329 Commands Error Recovery Manual E2989 Cmd Rej: RC must be specified for PC since MPC is specified E2989 Cmd Rej: RC must be specified for PC since MPC is specified Commands Used: ent-map If the mpc parameter is specified, the rc parameter must be specified. Recovery Re-enter the ent-map command specifying the mpc and rc parameters.
  • Page 330 E2993 Cmd Rej: True Point Code must remain primary Commands Error Recovery Manual entity E2993 Cmd Rej: True Point Code must remain primary entity Commands Used: chg-map The true point code in the MAPGROUP must be and remain the primary PC/SSN for that MAPGROUP. The RC value of the pc parameter cannot be changed nor can a new point code cannot be added to the MAPGROUP, that would result in the true point code no longer being the primary PC/SSN of the MAPGROUP.
  • Page 331 You entered a command to add or change a point code entry in the Mated Relay Node table, and the specified point code is the same as the EAGLE 5 ISS site identifier (SID). You cannot specify a point code that has the same value as the EAGLE 5 ISS SID.
  • Page 332 E2999 Cmd Rej: Failed reading the MRN table Commands Error Recovery Manual E2999 Cmd Rej: Failed reading the MRN table Commands Used: chg-gta, chg-gtt, chg-mrn, dlt-mrn, ent-gta, ent-gtt, ent- mrn, rtrv-mrn, chg-sccp-serv, dlt-sccp-serv, rtrv-sccp-serv The Mated Relay Node (MRN) table is corrupt or cannot be found by the system. The MRN table must be accessible.
  • Page 333 Commands Error Recovery Manual E3003 Cmd Rej: Modification of security log not allowed If both the start time (stime) and end time (etime) parameters are specified, the time you specify for the stime parameter must be earlier than or equal to the time specified for the etime parameter. Recovery Re-enter the rtrv-seculog command specifying a new time for the (stime) parameter (in the form hhmmss —hh=hours (00-23), mm=minutes (00-59), ss=seconds (00-59)) that is earlier than the time specified for the...
  • Page 334 E3006 Cmd Rej: Hex Digit Support for GTT feature Commands Error Recovery Manual must be ON E3006 Cmd Rej: Hex Digit Support for GTT feature must be Commands Used: chg-gta, chg-gtcnv, chg-gtt, chg-gsmopts, chg-gsmsmsopts The Hex Digit Support for GTT feature must be turned on before hexadecimal values can be specified for the gta, egta, npds,, mosmsgta or nsds parameters.
  • Page 335 Before the lnpbas parameter can be specified. • Change An EAGLE 5 ISS true PC and the LNP subsystem. If the all=yes parameter is specified, and the LNP feature has not been turned on, then the lnpbas parameter value defaults to no.
  • Page 336 E3014 Cmd Rej: Card location specified must be an Commands Error Recovery Manual SCCP card Enter the chg-ss-appl:appl=lnp:nstat=online command. Re-enter the alw-map-ss command that generated this error message. E3014 Cmd Rej: Card location specified must be an SCCP card Commands Used: rept-stat-mps, rept-stat-lnp, rept-stat-sccp The specified loc parameter is invalid for the card location.
  • Page 337 Commands Error Recovery Manual E3017 Cmd Rej: SCCP card must have at least 586 processor E3017 Cmd Rej: SCCP card must have at least 586 processor Commands Used: chg-ctrl-feat Before the Intermediate Global Title Translation Load Sharing (IGTTLS) feature can be turned on, all SCCP cards in the system must have at least a 586 processor.
  • Page 338 E3020 Cmd Rej: Remote Application not found Commands Error Recovery Manual E3020 Cmd Rej: Remote Application not found Commands Used: dlt-rmt-appl To delete a remote application entry, the ipc, si, and ssn...ssne parameter values must all match a values that are in the Destination table.
  • Page 339 Commands Error Recovery Manual E3042 Cmd Rej: Command Response Timeout, freeing up scroll area Re-enter the command specifying appropriate corrections. Refer to the Commands Manual for the correct command format for the entered command. Call your Customer Care Center if this error message appears again. See the "Customer Care Center" section in Chapter 1 of this manual.
  • Page 340 E3045 Cmd Rej: Alternate bus must be IS-NR Commands Error Recovery Manual • Re-enter the rept-imt-info command specifying the report=err parameter and either the mode, erronly, sbucket, and ebucket parameters. • Re-enter the rept-imt-info command specifying the report=util parameter without specifying the mode, erronly, sbucket, and ebucket parameters.
  • Page 341 Commands Error Recovery Manual E3048 Cmd Rej: Starting address/location must be specified Re-enter the command specifying either the s and e parameters or sloc and eloc parameters. Recovery chg-e1, ent-e1 If the linkclass=unchan parameter is specified: • chanbrdg=on or cas=on are not valid parameters. •...
  • Page 342 E3051 Cmd Rej: Source address/location must be Commands Error Recovery Manual specified E3051 Cmd Rej: Source address/location must be specified Commands Used: rept-imt-lvl2 The command was entered without specifying the source IMT address (l) parameter or the source card location (loc) parameter.
  • Page 343 Commands Error Recovery Manual E3055 Cmd Rej: Failed reading ACG MIC table Display a list of all currently defined overload levels. Enter the rtrv-acg-noc command. Re-enter the command specifying one of the overload levels from step 1. E3055 Cmd Rej: Failed reading ACG MIC table Commands Used: ent-acg-mic The Automatic Call Gapping (ACG) Manually Initiated Control (MIC) table is corrupt or cannot be found by the system.
  • Page 344 E3058 Cmd Rej: Parameters SERV and DGTS are Commands Error Recovery Manual required Perform one of the following actions: Re-enter the command specifying the type=all parameter, and the aintvl, intvl, and nd parameters. Re-enter the command without specifying the type=sd parameter, and the serv and dgts parameters. E3058 Cmd Rej: Parameters SERV and DGTS are required Commands Used: chg-acg-mic, dlt-acg-mic, ent-acg-mic If the manually initiated control applies to a specific query service and called party digits (type=sd), the serv and...
  • Page 345 Commands Error Recovery Manual E3061 Cmd Rej: Parameter INTVL is not allowed • Re-enter the ent-acg-mic command specifying the Intelligent Network query service (serv=in) parameter and the intvl parameter. E3061 Cmd Rej: Parameter INTVL is not allowed Commands Used: chg-acg-mic, ent-acg-mic If the query service specified is the Advanced Intelligent Network (serv=ain), you cannot specify the Intelligent Network interval index (intvl) parameter.
  • Page 346 E3064 Cmd Rej: DGTS parameter must be 3 or 6–10 Commands Error Recovery Manual • Re-enter the command specifying the serv=ain parameter and the aintvl parameter. E3064 Cmd Rej: DGTS parameter must be 3 or 6–10 Commands Used: chg-acg-mic, dlt-acg-mic, ent-acg-mic, rtrv-acg-mic You specified an invalid value for the digits of the global title address (dgts) parameter.
  • Page 347 Commands Error Recovery Manual E3068 Cmd Rej: Table full - a maximum of 256 TYPE=SD MICs are allowed Display the values of the current ACG control parameters. Enter the rtrv-acg-mic command. Re-enter the ent-acg-mic command that generated this error message with an MIC that is not shown in the output generated in step 1.
  • Page 348 E3071 Cmd Rej: Parameter DRTN or INTVL is Commands Error Recovery Manual required Perform one of the following actions: • Re-enter the chg-acg-mic command specifying the serv=ain parameter, specifying one of the optional parameters. • Re-enter the chg-acg-mic command without specifying the serv=ain parameter. E3071 Cmd Rej: Parameter DRTN or INTVL is required Commands Used: chg-acg-mic When you enter this command specifying the serv=in parameter, you must specify at least one of these optional...
  • Page 349 Commands Error Recovery Manual E3074 Cmd Rej: AND parameter must be 6 or 10 Enter the rtrv-acg-mic command. Re-enter the command that generated this error message specifying a MIC that is shown in the output generated in step 1. E3074 Cmd Rej: AND parameter must be 6 or 10 Commands Used: chg-acg-noc, ent-acg-noc You specified a value other than 6 or 10 for the AIN number of digits (and) parameter.
  • Page 350 E3077 Cmd Rej: TT must be specified if PC is specified Commands Error Recovery Manual Display a list of all currently defined overload levels. Enter the rtrv-acg-noc command without specifying parameters. Re-enter the ent-acg-noc command specifying an overload level other than those from step 1. OR Change one of the existing overload levels.
  • Page 351 Commands Error Recovery Manual E3080 Cmd Rej: ACTION must be specified as FORWARD, DUPLICATE, or DUPDISC No other action is required. E3080 Cmd Rej: ACTION must be specified as FORWARD, DUPLICATE, or DUPDISC Commands Used: ent-gsmmap-scrn You entered a command to provision a GSM MAP Screening entry that filters or allows TCAP messages for specific Map opcodes based on CgPA and CdPA addresses and forbidden parameters.
  • Page 352 E3083 Cmd Rej: NACTION must be specified Commands Error Recovery Manual (FORWARD, DUPLICATE, or DUPDISC) E3083 Cmd Rej: NACTION must be specified (FORWARD, DUPLICATE, or DUPDISC) Commands Used: chg-gsmmap-scrn You entered a command to change the attributes for a defined GSM MAP Screening entry. The attributes (nforbid and naction) filter or allow SCCP messages containing MAP opcodes, CgPA and CdPA addresses, np, nai, and forbidden parameters.
  • Page 353 Commands Error Recovery Manual E3087 Cmd Rej: Must enter at least one PC/RC pair You entered a command to add a new point code to the Mated Relay Node (MRN) table, and you did not specify both the new point code (pc) parameter value and the new relative cost (rc) parameter value for the point code. To add a new point code to the MRN Table, both the pc and rc parameters must be specified.
  • Page 354 E3089 Cmd Rej: FTP Server password must be 1 - 15 Commands Error Recovery Manual characters in length CAUTION: Once the Measurements Platform collection function has been turned on using the chg-measopts command, it cannot be disabled using the chg-measopts command. Though it is not recommended, measurements collection can be stopped and started by inhibiting and allowing all MCPM cards.
  • Page 355 Commands Error Recovery Manual E3091 Cmd Rej: PC/SSN must be given with Action FORWARD, DUPLICATE, DUPDISC E3091 Cmd Rej: PC/SSN must be given with Action FORWARD, DUPLICATE, DUPDISC Commands Used: chg-gsmmap-scrn, chg-gsms-opcode, ent-gsmmap-scrn, ent-gsms- opcode When you issue a command specifying the parameter dfltact, ndfltact, action, or naction set to the value forward, duplicate, or dupdisc, along with the point code and subsystem number parameters.
  • Page 356 E3095 Cmd Rej: LHOST/ALHOST location not found Commands Error Recovery Manual Verify the hardware baseline configuration requirements are met. Install the same type of OAM cards (both) in the system. Call your Customer Care Center if this error message appears again. See the "Customer Care Center" section in Chapter 1 of this manual.
  • Page 357 Commands Error Recovery Manual E3097 Cmd Rej: GPSM-II required to support more than 700 links Refer to the Commands Manual for information about socket/association ratios. E3097 Cmd Rej: GPSM-II required to support more than 700 links Commands Used: enable-ctrl-feat, ent-slk If you entered the enable-ctrl-feat command to enable the 6000 Routesets Controlled Feature.
  • Page 358 E3099 Cmd Rej: GTA must be specified when NGTA is Commands Error Recovery Manual specified E3099 Cmd Rej: GTA must be specified when NGTA is specified Commands Used:chg-gsmopts, chg-ppsopts For the chg-gsmopts command, you cannot specify the nppsmsgta parameter without specifying the ppsmsgta parameter.
  • Page 359 Commands Error Recovery Manual E3103 Cmd Rej: GTT must be ON before XGTT can be enabled Recovery Display the gta parameter values currently in the PPSOPTS table. Enter the rtrv-ppsopts command. Re-enter the chg-ppsopts command specifying a value for the ngta parameter that does not appear in the PPSOPTS table.
  • Page 360 E3106 Cmd Rej: XGTT with 1 million entries requires Commands Error Recovery Manual DSM cards for SCCP GPLs Recovery Verify each OAM card type. Enter the rtrv-card command. IIf both OAM cards are type GPSM-II, enable the XGTT feature. Refer to the procedure “Enabling the XGTT Table Expansion Feature”...
  • Page 361 Commands Error Recovery Manual E3108 Cmd Rej: XMAP requires both OAMs running on GPSMII cards E3108 Cmd Rej: XMAP requires both OAMs running on GPSMII cards Commands Used: chg-map, enable-ctrl-feat, ent-map Before the XMAP feature can be enabled, both OAM cards must be of type GPSM-II. Recovery Verify the type of OAM cards.
  • Page 362 E3110 Cmd Rej: Loading Mode unstable due to maint. Commands Error Recovery Manual baseline not established • ANSI-ITU-China SCCP Conversion • 15 Minute Measurements • MO-based GSM SMS NP Recovery Display the controlled features that are currently enabled. Enter the rtrv-ctrl-feat command. Verify that the part number and FAK are correct for the feature that you want to enable with a temporary FAK.
  • Page 363 Commands Error Recovery Manual E3112 Cmd Rej: Loading Mode unstable due to SCCP service is deficient Enter the inh-slk command to put every SLK whose state is not IS-NR or OOS-MT-DSBLD into an out- of-service disabled state. Enter the rept-stat-card command to display the state of the VSCCP, SCCP, and LIM cards in the database.
  • Page 364 E3118 Cmd Rej: Failed Reading GTT TT Table Commands Error Recovery Manual Enter the rtrv-card and rept-stat-card commands. Verify that the Measurements Platform feature is turned on. Enter the rtrv-measopts command. Re-enter the command. Call your Customer Care Center if this error message appears again. See the "Customer Care Center" section in Chapter 1 of this manual.
  • Page 365 Commands Error Recovery Manual E3122 Cmd Rej: SERV has not been assigned a true TT The domain you specified with the gti/gtia/gtii/gtin/gtin24=4 parameter does not match the domain of the translation type (tt). The domain is defined as gti and gtia=ansi, gtii=ITU international, gtin=ITU national, and gtin24=24-Bit ITU national.
  • Page 366 E3132 Cmd Rej: LNP SS Appl table is full Commands Error Recovery Manual E3132 Cmd Rej: LNP SS Appl table is full Commands Used: ent-ss-appl, chg-ss-appl You attempted to reserve an identifying number for an application’s subsystem, but the LNP SS Appl table that contains this information had already reached capacity.
  • Page 367 Commands Error Recovery Manual E3140 Cmd Rej: Service Type is already in LNP database Use the dlt-lnp-serv command to delete the service type, listed in step 1, that currently is matched to the translation type. Re-enter the command that generated this error message. E3140 Cmd Rej: Service Type is already in LNP database Commands Used: ent-lnp-serv You attempted to enter a service type that is already on record.
  • Page 368 E3146 Cmd Rej: Service type is not in LNP database Commands Error Recovery Manual Display a list of all LNP services. Enter the rtrv-lnp-serv command. Re-enter the chg-lnp-serv command specifying a nttn that is not listed in the output from step 1. E3146 Cmd Rej: Service type is not in LNP database Commands Used: chg-lnp-serv, dlt-lnp-serv You cannot change or delete a service type that is not in the LNP database.
  • Page 369 Commands Error Recovery Manual E3149 Cmd Rej: Maximum number of applications already assigned The specified LNP service was not entered or changed because the specified translation type name (ttn) does not exits in the LNP database. Recovery Display a list of valid translation types. Enter the rtrv-lnp-serv command.
  • Page 370 E3153 Cmd Rej: Subsystem must be inhibited before it Commands Error Recovery Manual can be OFFLINE Delete one of the existing subsystem applications listed in step 1. Enter the dlt-ss-appl command. Re-enter the ent-ss-appl command that generated this error message. E3153 Cmd Rej: Subsystem must be inhibited before it can be OFFLINE Commands Used: chg-ss-appl...
  • Page 371 Commands Error Recovery Manual E3172 Cmd Rej: Alias is not assigned to SERV Enter the dlt-ss-appl:appl=lnp command. E3172 Cmd Rej: Alias is not assigned to SERV Commands Used: dlt-lnp-serv The alias you entered must be associated with the LNP service you are trying to delete. Recovery Display a list of the LNP services and their associated aliases.
  • Page 372 E3198 Cmd Rej: Failed reading LNP Options table Commands Error Recovery Manual E3198 Cmd Rej: Failed reading LNP Options table Commands Used: chg-lnpopts, rtrv-lnpopts The LNP Options table is corrupt or cannot be found by the system. Recovery Re-enter the command that generated this error message. Call your Customer Care Center if this error message appears again.
  • Page 373 Commands Error Recovery Manual E3216 Cmd Rej: G-Port SRI Query for Prepaid feature is not enabled Call your Customer Care Center if this error message appears again. See the "Customer Care Center" section in Chapter 1 of this manual. E3216 Cmd Rej: G-Port SRI Query for Prepaid feature is not enabled Commands Used: dlt/ent/rtrv-gserv-data The G-Port SRI Query for Prepaid feature must be enabled before specifying these commands.
  • Page 374 E3225 Cmd Rej: NONE is a reserved name and cannot Commands Error Recovery Manual be used for a TTN Recovery Display the necessary information about the current self-identification. Enter the rtrv-sid command. Perform one of the following actions: If the output of step 1 indicates that the cpctype=stp, re-enter the chg-sid command that generated this error message specifying the correct cpctype parameter value.
  • Page 375 Commands Error Recovery Manual E3233 Cmd Rej: System serial number has not been locked E3233 Cmd Rej: System serial number has not been locked Commands Used: enable-ctrl-feat The system serial number must be locked in the database before you can enable the specified feature. NOTE: Contact your Customer Care Center and refer to the ent-serial-num command in the Commands Manual before you use the command to lock the Serial Number table.
  • Page 376 E3244 Cmd Rej: UIM number does not exist in UIM Commands Error Recovery Manual Threshold table E3244 Cmd Rej: UIM number does not exist in UIM Threshold table Commands Used: dlt-uim-acthresh You specified an invalid UIM number. The UIM number must exist in the UIM Threshold Table. Recovery Verify that you have typed the UIM number correctly.
  • Page 377 Commands Error Recovery Manual E3251 Cmd Rej: DV must be TCAP when SERV is WNP, AIN, PCS, IN or LNPQS You entered the command and specified one of the user-defined type values (udf1-udf6) for the serv parameter, but you did not specify a value of sccp for the digits valid (dv or ndv) parameter. If you specify a user-defined type value for the serv parameter, you must specify the dv/ndv=sccp parameter.

  • Page 378: Table 2-14. Valid Parameter Combinations For An E3269 Error Message

    E3269 Cmd Rej: Invalid H0/H1 or NH0/NH1 specified Commands Error Recovery Manual View a list of defined service types, and verify that six message relay or user-defined services have already been assigned. Enter the rtrv-lnp-serv command. E3269 Cmd Rej: Invalid H0/H1 or NH0/NH1 specified Commands Used: chg-scr-sio, dlt-scr-sio, ent-scr-sio You specified a valid combination of the h0 and h1 parameters and/or the nh0 and nh1 parameters.
  • Page 379 Commands Error Recovery Manual E3272 Cmd Rej: PC does not match existing entry in given SR Commands Valid Values chg-scr-blkopc, ent- stop, fail, dpc, blkdpc, sio, or cgpa scr-blkopc chg-scr-cdpa, ent-scr- stop or aftpc cdpa, rtrv-scr-cdpa chg-scr-cgpa, ent-scr- stop, cdpa, or tt cgpa chg-scr-destfld, ent- stop...
  • Page 380 E3273 Cmd Rej: NIC, SI, H0/H1,& PRI entry already Commands Error Recovery Manual exist in given SR E3273 Cmd Rej: NIC, SI, H0/H1,& PRI entry already exist in given SR Commands Used: chg-scr-sio, ent-scr-sio You entered this command specifying the h0/h1, nic, orpri, si parameter set to a value that matches an existing entry specified by the screening reference (sr) parameter.
  • Page 381 Commands Error Recovery Manual E3280 Cmd Rej: SLK IPLIML2 requires linkset MTPRSE setting to be no Recovery Re-enter the command specifying the cwmin value less than or equal to the value specified for the bufsize parameter. E3280 Cmd Rej: SLK IPLIML2 requires linkset MTPRSE setting to be no Commands Used: chg-ls, ent-slk You entered a chg-ls command to change the mtprse parameter value for a linkset from no to yes, and the...
  • Page 382 E3282 Cmd Rej: All links in linkset must have same Commands Error Recovery Manual IPLIML2 setting You specified the ipliml2 parameter for a signaling link that is not an IPLIMx signaling link. The ipliml2 parameter is valid only for IPLIMx links. Recovery If the signaling link is not an IPLIMx signaling link, re-enter the ent-slk command without specifying the ipliml2 parameter.
  • Page 383 You attempted to reserve an LNP subsystem number (ssn) for an application, but no STP true point code exists in the mated applications (MAP) table. Recovery View a list of (pc/pca/pci/pcn) point codes assigned to the EAGLE 5 ISS. Enter the rtrv-sid command. Assign mated application values to the true point code (pc/pca/pci/pcn) and subsystem number (ssn).
  • Page 384 E3289 Cmd Rej: Must specify NC when NI is specified Commands Error Recovery Manual for ORIGNINC Assign mated application values for the true point code (pc/pca) and subsystem number (ssn). Enter the ent-map command. Re-enter the ent-ss-appl command specifying the newly assigned values for pc/pca and ssn parameters. E3289 Cmd Rej: Must specify NC when NI is specified for ORIGNINC Commands Used: rept-meas...
  • Page 385 Commands Error Recovery Manual E3292 Cmd Rej: Must specify either: ENTRY or ROW with COLUMN E3292 Cmd Rej: Must specify either: ENTRY or ROW with COLUMN Commands Used: disp-tbl, set-tbl The command was entered specifying an invalid combination of the entry, row, and column parameters. The row parameter must be specified with the column parameter.
  • Page 386 E3296 Cmd Rej: A timeout occurred while processing Commands Error Recovery Manual SCSI Debug Command E3296 Cmd Rej: A timeout occurred while processing SCSI Debug Command Commands Used: disp-disk-dir, disp-lba, disp-tbl, set-lba, set-tbl, tst-disk A timeout occurred on the SCSI device before or during the processing of this command. Recovery Call your Customer Care Center.
  • Page 387 Commands Error Recovery Manual E3300 Cmd Rej: Value <data> not supported for <parm> parameter in this implementation (C<col>) Enter the rtrv-ctrl-feat command. Refer to the procedure in the Database Administration Manual–System Management to enable and turn on the Network Security Enhancements feature. Call your Customer Care Center for assistance.
  • Page 388 E3303 Cmd Rej: Value <data> for <parm> parameter Commands Error Recovery Manual is not valid (C<col>) Refer to the Commands Manual for the format and valid values for this command parameter. Call your Customer Care Center if this error message appears again. See the "Customer Care Center" section in Chapter 1 of this manual.
  • Page 389 Commands Error Recovery Manual E3306 Cmd Rej: Value <data> out of range for <parm> parameter (C<col>) Call your Customer Care Center if this error message appears again. See the "Customer Care Center" section in Chapter 1 of this manual. E3306 Cmd Rej: Value <data> out of range for <parm> parameter (C<col>) Commands Used: all OAP commands The command you entered contains an value (<data>) that is out of the allowable range for the parameter specified...
  • Page 390 E3309 Cmd Rej: Rejection threshold argument - not Commands Error Recovery Manual valid (C<col>) E3309 Cmd Rej: Rejection threshold argument - not valid (C<col>) Commands Used: all OAP commands The command you entered contains an invalid rejection threshold argument. (C<col>) indicates the column number of the last character of the data that generated this error message.
  • Page 391 Commands Error Recovery Manual E3313 Cmd Rej: Minutes argument - not valid (C<col>) The command you entered contains an invalid occurrence argument. (C<col>) indicates the column number of the last character of the data that generated this error message. Recovery Re-enter the command specifying the correct syntax and format for this command parameter.
  • Page 392 E3316 Cmd Rej: Input parameter argument - version Commands Error Recovery Manual range error (C<col>) Re-enter the command specifying the correct syntax and format for this command. Refer to the Commands Manual for the correct values and format for this command. Call your Customer Care Center if this error message appears again.
  • Page 393 Commands Error Recovery Manual E3319 Cmd Rej: Input parameter argument - point code range error (C<col>) Re-enter the command specifying the correct syntax and format for this command parameter. Refer to the Commands Manual for the correct values and format for this command parameter, specifically for the sequence-number parameter.
  • Page 394 E3322 Cmd Rej: Input parameter ‘<parm>’ - missing Commands Error Recovery Manual (C<col>) Refer to the Commands Manual for the correct values and format for this command parameter, specifically for the sequence-number parameter. Call your Customer Care Center if this error message appears again. See the "Customer Care Center" section in Chapter 1 of this manual.
  • Page 395 Commands Used: all OAP commands A system software error has occurred: the EAGLE 5 ISS has received a message longer than 450 bytes. (C<col>) indicates the column number of the last character of the data that generated this error message.
  • Page 396 E3330 Cmd Rej: APORT or IGM must be enabled Commands Error Recovery Manual Refer to the Commands Manual for the correct values and format for this command parameter. Call your Customer Care Center if this error message appears again. See the "Customer Care Center" section in Chapter 1 of this manual.
  • Page 397 Commands Error Recovery Manual E3334 Cmd Rej: LNP and specified feature are mutually exclusive The cgpc, cgssn, gta and opc parameters are mutually exclusive. Each of these parameters must be specified individually in separate commands. Recovery Re-enter the command specifying a value for each of the cgpc, cgssn, gta and opc parameters individually in separate commands.
  • Page 398 E3336 Cmd Rej: IGM must be enabled Commands Error Recovery Manual FeatureManual - EIR to enable and use the Equipment Identity Register feature. FeatureManual - G-Port to enable and use the G-Port feature. Database AdministrationManual - Features to enable and use the IDP Relay feature. FeatureManual - A-Port to enable and use the A-Port and MTPR features.
  • Page 399 Commands Error Recovery Manual E3345 Cmd Rej: SRM, MRC or WT specified with RC (use FORCE=YES) Display the currently used features using the rtrv-ctrl-feat command. Display the status of the G- Flex feature only using the rtrv-feat command. If the G-Flex, G-Port, Prepaid SMS Intercept Ph1, feature is on according to the output of step 1, re-enter the command.
  • Page 400 E3348 Cmd Rej: FORCE only with RCx and WTx Commands Error Recovery Manual specified E3348 Cmd Rej: FORCE only with RCx and WTx specified Commands Used: chg-mrn The force parameter can be used only to specify the rc, rc1, rc2, rc3 or rc4 parameter and the wt, wt1, wt2, wt3, or wt4 parameter in the same command.
  • Page 401 Commands Error Recovery Manual E3354 Cmd Rej: EIR cannot enable if MTPR is turned Refer to the procedures in the Feature Manual – A-Port to enable, turn on, and use the A-Port feature and the MTP MSGS for SCCP Apps feature. Call your Customer Care Center if this error message appears again.
  • Page 402 E3355 Cmd Rej:INP/AINPQ cannot enable if MTPR is Commands Error Recovery Manual turned ON Refer to the procedure “Enabling and Activating the EIR Feature” in the Feature Manual–Equipment Identity Register for additional information. Call your Customer Care Center if this error message appears again.
  • Page 403 Commands Error Recovery Manual E3363 Cmd Rej: APORT cannot be enabled if DSM with less than 4G is present E3363 Cmd Rej: APORT cannot be enabled if DSM with less than 4G is present Commands Used: enable-ctrl-feat The A-Port feature cannot be enabled because the installed DSM card is not configured with at least 4 GB of memory.
  • Page 404 E3367 Cmd Rej: DRA=RNNECDN and NEC=NONE Commands Error Recovery Manual combination not allowed E3367 Cmd Rej: DRA=RNNECDN and NEC=NONE combination not allowed Commands Used: chg-inpopts You cannot specify a value of none for the National Escape Code (nec) parameter, and a value of value of rnnecdn for the destination routing address (dra) parameter in the same command.
  • Page 405 Commands Error Recovery Manual E3372 Cmd Rej: All specified RC values must be equal E3372 Cmd Rej: All specified RC values must be equal Commands Used: ent-map, ent-mrn If the threshold (thr) parameter is specified when adding PCs to an RC group, the values specified for the rc parameters (rc1, rc2, rc3, and rc4) must be equal.
  • Page 406 E3376 Cmd Rej: THR can't be specified with Commands Error Recovery Manual ESWT=none • change a weighted load-sharing entity set to a different weight where the eswt parameter value represents the weight that will be assigned to each entity in the entity set. Use the grpwt parameter to specify a uniform weight to all entities in an RC group.
  • Page 407 Commands Error Recovery Manual E3378 Cmd Rej: RCx or WTx must be specified E3378 Cmd Rej: RCx or WTx must be specified Commands Used: chg-mrn When the WGTTLS feature is enabled and the chg-mrn command is used to modify individual entities, the wt or rc parameter must be specified for each point code.
  • Page 408 E3382 Cmd Rej: Can’t specify weight for non-weighted Commands Error Recovery Manual groups E3382 Cmd Rej: Can’t specify weight for non-weighted groups Commands Used: chg-map, chg-mrn, ent-mrn For the chg-map command, if adding a new mate point code (mpc) to a non-weighted MAPGROUP, the weight (mwt) parameter cannot be specified.
  • Page 409 Commands Error Recovery Manual E3385 Cmd Rej: Weight can't be specified to create SOL or DOM groups Perform one of the following steps: • Re-enter the command without specifying the grpwt parameter. Instead, re-enter the command specifying a value (1-99) for the eswt parameter. •...
  • Page 410 E3387 Cmd Rej: WT and MWT must be specified Commands Error Recovery Manual together • Re-enter the ent-map command without specifying the thr parameter. E3387 Cmd Rej: WT and MWT must be specified together Commands Used: ent-map The wt and mwt parameters must be specified together in the same command. Recovery Re-enter the ent-map command specifying both the wt and the mwt parameters.
  • Page 411 Commands Error Recovery Manual E3390 Cmd Rej: RCx must be specified • To modify an individual entity in an entity set or RC group, specify the rc, wt, mrc, srm, sso or grp parameters as applicable. E3390 Cmd Rej: RCx must be specified Commands Used: chg-mrn If the Weighted GTT Loadsharing feature is not enabled, and individual PCs are being modified, the routing cost (rc) parameter must be specified for each PC.
  • Page 412 E3393 Cmd Rej: Association is not assigned to AS Commands Error Recovery Manual E3393 Cmd Rej: Association is not assigned to AS Commands Used: rept-meas The association specified by the aname parameter must be assigned to the application server specified by the asname parameter.
  • Page 413 Commands Error Recovery Manual E3404 Cmd Rej: VCI values 0...4 and 6...31 are reserved Re-enter the command specifying the aname parameter. Refer to the Commands Manual for a complete listing of the parameter combinations for this command. E3404 Cmd Rej: VCI values 0...4 and 6...31 are reserved Commands Used: ent-slk You cannot specify the values 0...4 and 6...
  • Page 414 E3407 Cmd Rej: LSL parameters not valid for card type Commands Error Recovery Manual E3407 Cmd Rej: LSL parameters not valid for card type Commands Used: ent-slk The parameter values specified for the signaling link (ecm, l1mode, l2set, pcrn1, pcrn2, and tset), are valid only for low-speed signaling links.

  • Page 415: Table 2-16. Possible Low-Speed And High-Speed Link Combinations For 1500 Links

    Commands Error Recovery Manual E3409 Cmd Rej: Max number combined LSLs and ATM HSLs already entered A maximum of 1200, or 1500 links is allowed, depending on the hardware that is installed. A mixture of ATM and E1 ATM high-speed and low-speed signaling links is supported. If the addition of either a low-speed signaling link or an ATM or E1 ATM high-speed signaling link exceeds the total number of low-speed and high-speed signaling links allowed in the system, the ent-slk command is rejected.
  • Page 416 E3410 Cmd Rej: Failed reading the ATM link Commands Error Recovery Manual parameter set table For a maximum of 115 ATM and/or E1 ATM high-speed links total, perform the following actions: Enter the rtrv-slk command to determine the number of low-speed signaling links and ATM and E1 ATM high-speed signaling links the system already contains.
  • Page 417 Commands Error Recovery Manual E3413 Cmd Rej: ACTION and SRCLPSET must be specified together E3413 Cmd Rej: ACTION and SRCLPSET must be specified together Commands Used: chg-atm-lps The action and srclpset parameters must both be specified. The action=copy parameter indicates that the values for one link parameter set are to be copied to another.

  • Page 418: Table 2-17. Valid Transmission Rates For The Bps Parameter

    E3417 Cmd Rej: NC is invalid for type-enttype combo Commands Error Recovery Manual E3417 Cmd Rej: NC is invalid for type-enttype combo Commands Used:rept-meas If the enttype=lnp parameter is specified, then the nc parameter cannot be specifiedThe type=gtwy parameter and the enttype=origninc parameter must be specified before the nc parameter can be specified. Recovery Re-enter the rept-meas command specifying type=gtwy and enttype=originc.

  • Page 419: Table 2-18. Routesets Feature With Maximum Values For The Mtpdpcq And Mtpxlq Parameters

    Commands Error Recovery Manual E3420 Cmd Rej: 'Default' is an invalid ASNAME Recovery Re-enter the command specifying the day parameter with type=mtcd and enttype=lnp/mapscrn/np/eir. E3420 Cmd Rej: 'Default' is an invalid ASNAME Commands Used: ent-as ASNAME cannot be "Default" regardless of case. Recovery Change the ASNAME to something other than "Default".
  • Page 420 E3422 Cmd Rej: Echo capability not applicable on Commands Error Recovery Manual originating terminal • If the DSTN5000 feature is turned off (from the output of step 1), turn it on. Enter chg- feat:dstn5000=on command. • Re-enter the command that generated this error message. Call your Customer Care Center if this error message appears again.
  • Page 421 Commands Error Recovery Manual E3425 Cmd Rej: Invalid parameter for SS7ANSI, ATMANSI, IPLIM, or SS7IPGW E3425 Cmd Rej: Invalid parameter for SS7ANSI, ATMANSI, IPLIM, or SS7IPGW Commands Used: ent-trace You entered a parameter that is invalid for an ANSI SS7 card running the ss7ansi, atmansi, iplim, or ss7ipgw GPL.
  • Page 422 E3429 Cmd Rej: Invalid parameter for VSCCP Commands Error Recovery Manual The following parameters are invalid for ITU SS7 cards running the ccs7itu or iplimi GPLs: gt, entityid, dn, imei, imsi, lrn, tn, and tlnpisuptype. For ITU SS7 cards, MSUs can be filtered using one or more of the following parameters: sspi/sspn, opci/opcn, and dpci/dpcn.
  • Page 423 Commands Error Recovery Manual E3434 Cmd Rej: The alarms are already inhibited for this device E3434 Cmd Rej: The alarms are already inhibited for this device Commands Used: inh-alm Alarms already inhibited for the specified device. Recovery Identify any alarms that have been inhibited. Enter the rept-stat-trbl command.
  • Page 424 E3437 Cmd Rej: Device alarm inhibit table not Commands Error Recovery Manual accessible Call your Customer Care Center if this error message appears again. See the "Customer Care Center" section in Chapter 1 of this manual. If the output from Step 1 shows that the option is disabled, enter the chg-stpopts:critalminh=yes command.
  • Page 425 Commands Error Recovery Manual E3440 Cmd Rej: Active TDM in unknown upgrade mode Follow the recovery procedure in the upgrade procedure documentation, or contact your Customer Care Center. E3440 Cmd Rej: Active TDM in unknown upgrade mode Commands Used: act-upgrade The TDMs have upgrade phase indicators.
  • Page 426 E3444 Cmd Rej: MTP Restart Indicator must be off to Commands Error Recovery Manual execute this command Recovery Perform one of the following actions: • Re-enter the act-upgrade command without specifying the thres parameter. • Re-enter the act-upgrade command specifying the thres parameter and the convertnet parameter. •...
  • Page 427 Commands Error Recovery Manual E3446 Cmd Rej: SLK not provisioned for assigned Lhost Refer to the Database Administration Manual - IP Secure Gateway for information on signaling link and socket or association assignments. If saaltali is shown in the IPLIML2 column from step 3 for the link assigned to the local host signaling link port, you must enter a command that defines a socket connection for the local host.
  • Page 428 E3448 Cmd Rej: LHOST has open socket or association Commands Error Recovery Manual Database Administration Manual - IP Secure Gateway for the procedures for adding or changing an association. E3448 Cmd Rej: LHOST has open socket or association Commands Used: chg-ip-lnk, dlt-slk You entered a command to change the local host IP address.
  • Page 429 (IDs 17-40) or the type=emsalm parameter (IDs 1-40) can be specified. The command you entered requires the ISUP Normalization feature to be enabled and possibly a feature for a Tekelec-defined or user-defined ISUP Normalization Variant to be enabled. Recovery - chg-ctrl-feat Display the status of feature access key controlled features that are purchased and enabled in the system.
  • Page 430 E3452 Cmd Rej: Invalid Feature Access Key Commands Error Recovery Manual Enable the IP User Interface (Telnet) feature to support Telnet terminals (trm= value or greater). Display the Telnet terminals and their types, enter the rtrv-trm command. Determine the status of the Telnet feature. Enter the command: rtrv-ctrl-feat:partnum=893005701. Verify the Telnet feature has been purchased and installed in your system.

  • Page 431: Table 2-19. Routesets Feature With Maximum Values For The Mtpdpcq And Mtpxlq Parameters

    Commands Error Recovery Manual E3454 Cmd Rej: Routesets Feature Quantity must be increased If the serial number is not in the database, contact your system administrator and refer to the ent-serial-num command in the Commands Manual for the procedure and information to enter and lock the correct serial number for your system.
  • Page 432 E3455 Cmd Rej: SCTP Association or SLK provisioned: Commands Error Recovery Manual Card supports 2 links E3455 Cmd Rej: SCTP Association or SLK provisioned: Card supports 2 links Commands Used: ent-slk You cannot specify more than two signaling links on an IPLIMx card running on a DCM. The IPLIM/IPLIMI application supports up to eight SAALTALI signaling links on SSEDCM cards only.
  • Page 433 Commands Error Recovery Manual E3458 Cmd Rej: LNP ported TNs 4million Qty Feat Require at least TSM512MB • 15 Minute Measurments • ANSI-ITU-China SCCP Conversion • GSM MAP Screening (GMS) • Enhanced GSM MAP Screening (EGMS) • Spare Point Code Support •...
  • Page 434 E3459 Cmd Rej: LNP ported TNs 6million Qty Feat Commands Error Recovery Manual Require at least TSM768MB To enable the LNP Ported TNs 4 Million Quantity Key feature, all TSM cards must have at least 512 MB of memory. You need to upgrade your hardware. Recovery Upgrade your hardware with a sufficient (at least 512 MB) memory quantity.
  • Page 435 Commands Error Recovery Manual E3462 Cmd Rej: LNP ported TNs 24million Qty Feat Require at least DSM2GB Recovery Upgrade your hardware with a sufficient (at least 1 GB) memory quantity. Enable the LNP Ported TNs 12 Million Quantity feature. Refer to the LNP Feature Activation Guide for details.
  • Page 436 E3467 Cmd Rej: FTP SERV table must contain one entry with application USER Commands Used: act-ftp-trns You entered a command to activate an FTP transfer on the EAGLE 5 ISS, but the FTP Server table does not have an entry specifying the application USER. Recovery...
  • Page 437 USER. E3468 Cmd Rej: FTP transfer already in progress Commands Used: act-ftp-trns You entered a command to activate an FTP transfer on the EAGLE 5 ISS, but an FTP Server transfer is currently in progress. Recovery The FTP transfer is currently in progress. Re-enter the act-ftp-trns command later when the current transfer has completed.
  • Page 438 E3473 Cmd Rej: The last active serial port cannot be Commands Error Recovery Manual inhibited Re-enter the command specifying the asname parameter. Refer to the Commands Manual for a complete listing of this commands valid parameters. E3473 Cmd Rej: The last active serial port cannot be inhibited Commands Used: inh-trm The inh-trm command does not permit the user to inhibit all serial ports from a Telnet user.
  • Page 439 Commands Error Recovery Manual E3475 Cmd Rej: Failed reading HOME SMSC ADDRESS table E3475 Cmd Rej: Failed reading HOME SMSC ADDRESS table Commands Used: dlt-home-smsc, ent-home-smsc, rtrv-home-smsc The Home SMSC Address table is corrupt or cannot be found by the system. This table contains the HOME SMSC specific addresses.
  • Page 440 E3478 Cmd Rej: Home SMSC Table is Full Commands Error Recovery Manual E3478 Cmd Rej: Home SMSC Table is Full Commands Used: ent-home-smsc The specified address cannot be entered into the Home SMSC Address table because the HOME SMSCADDR table is full. The HOME SMSCADDR table can contain a maximum of 500 entries. Recovery Display the HOME SMSCADDR table.
  • Page 441 Commands Error Recovery Manual E3482 Cmd Rej: Link capacity exceeds limit allowed by SE-HSL feature key Recovery Re-enter the rept-imt-info command specifying a valid combination of parameters. Refer to the Commands Manual for the valid combination of parameters specific to the rept-imt-info command.
  • Page 442 E3483 Cmd Rej: CAS=ON is not supported on this card Commands Error Recovery Manual Contact your local Tekelec Sales Representative for assistance with purchasing a SE-HSL SLK Capacity feature. E3483 Cmd Rej: CAS=ON is not supported on this card Commands Used: ent-e1, chg-e1 You cannot specify the cas=on parameter for the HC-MIM or the E5-E1T1 cards.
  • Page 443 Commands Error Recovery Manual E3486 Cmd Ref: CHANBRDG parameter is invalid for even numbered port E3486 Cmd Ref: CHANBRDG parameter is invalid for even numbered port Commands Used: chg-e1, chg-t1, ent-e1, ent-t1 The chanbrdg=on parameter indicates whether an odd-numbered port is to pair with its even-numbered port for non-signaling data pass through.
  • Page 444 E3489 Cmd Rej: Adjacent even numbered port has Commands Error Recovery Manual signaling link assigned E3489 Cmd Rej: Adjacent even numbered port has signaling link assigned Commands Used: chg-e1, chg-t1, ent-e1, ent-t1 All signaling links assigned to the adjacent even-numbered E1 port must be deleted before an odd-numbered E1 port (e1port parameter) on an HC-MIM and E5-E1T1 card can be provisioned into channel bridging mode using the chanbrdg=on parameter.
  • Page 445 Commands Error Recovery Manual E3492 Cmd Rej: ADD/DROP mode provisioned FORCE=YES required The specified port cannot be changed since it is bridged with its adjacent odd-numbered port (master port). The master port should be changed instead. Provisioning of a bridged slave E1/T1 port is not allowed while channel bridging is activated. Recovery Re-enter the command specifying a channel bridged master E1/T1 port instead.
  • Page 446 E3494 Cmd Rej: Link is invalid for card location Commands Error Recovery Manual For more information about the Default Country Codes and Multiple Country Codes, refer to the Commands Manual. E3494 Cmd Rej: Link is invalid for card location Commands Used: dact-slk, dlt-slk, ent-slk, rtrv-slk You cannot provision links a4, b4, …, a31, b31 and specify an even-numbered card location.
  • Page 447 Commands Error Recovery Manual E3497 Cmd Rej: Either ALIASN or ALIASN24, not both, for destination Recovery Re-enter the command specifying a valid combination of parameters. Refer to the Commands Manual for the valid combination of parameters specific to the command that generated this error message.

  • Page 448: Table 2-20. Conditions That Generate An E3500 Error Message

    E3499 Cmd Rej: GTT Selector does not exist in Commands Error Recovery Manual GTIN24-TT-NP(V)-NAI(V) E3499 Cmd Rej: GTT Selector does not exist in GTIN24-TT- NP(V)-NAI(V) Commands Used:chg-gttsel, dlt-gttsel You specified an entry that does not match an existing gtin24, tt, np/nai, and npv/naiv parameter combination as required. For example, if you want to change the selectors linked with GTTSN itun241 so that they are linked to GTTSN itun242, and the current selectors for itun241 are (gtin24=2, tt=5, npv=1, naiv=2), you would enter the following combination:...

  • Page 449: Table 2-21. Prepaid Sms Intercept Ph 1 Commands/Parameters

    The rn parameter of an ent-homern or dlt-homern command. GSM MAP SRI Redirect feature prefix values. The ent-vflx-vmsid command using one the command parameters IDX0 through IDX9. The EAGLE 5 ISS does not allow this action. Recovery Re-enter the command specifying a valid parameter value.
  • Page 450 E3507 Cmd Rej: Translation TYPEN24 already exists Commands Error Recovery Manual Display the status of the controlled features in the system. Enter the rtrv-ctrl-feat command. Refer to the procedures in the Feature Manual–G-Port® to enable, turn on, and use the PPSMS feature. Call your Customer Care Center if this error message appears again.
  • Page 451 Commands Error Recovery Manual E3516 Cmd Rej: SCCP appl provisioned with TSM card type To add a new ccnc/mccmnc parameter combination, enter the chg-gsmopts:ccnc=xx:mccmnc=yy command where xx (the value of the ccnc parameter) and yy (the value of the mccmnc parameter) specify the ccnc/mccmnc parameter combination to add.
  • Page 452 E3517 Cmd Rej: VSCCP cards have insufficient Commands Error Recovery Manual extended memory To enable the Origin Based SCCP Routing feature, refer to the procedure “Activating the Origin-Based SCCP Routing Feature” in Appendix A of the Database Administration Manual - Global TitleTranslation for additional information.

  • Page 453: Table 2-22. Conditions That Generate An E3524 Error Message

    Commands Error Recovery Manual E3522 Cmd Rej: Service Selector Table is full Call your Customer Care Center if this error message appears again. See the "Customer Care Center" section in Chapter 1 of this manual. E3522 Cmd Rej: Service Selector Table is full Commands Used: ent-srvsel You cannot add an entry to the Service Selector table because the Service Selector table is full.
  • Page 454 E3525 Cmd Rej: Command will cause system clock Commands Error Recovery Manual outage – Use FORCE=YES Commands Condition chg-ss-appl, dlt-ss-appl, The INP feature must be turned on before you can specify the appl=inp ent-ss-appl parameter. enable-ctrl-feat You attempted to enable a feature but the INP feature must first be turned on. NOTE: Once a Permanently On feature that is controlled using a feature access key is turned on, it cannot be turned off.
  • Page 455 Commands Error Recovery Manual E3527 Cmd Rej: NMULTCC entry already exists in the GSM Options MULTCC list You can specify the Initialize TDM Bitfile indicator (initclk) parameter for only TDM cards that support bitfile reloading, that is, TDMs with part number 870-0774-15 or later, (or 870-0774-18). Recovery Perform one of the following: •...
  • Page 456 E3535 Cmd Rej: E1 Port test command not in progress Commands Error Recovery Manual Recovery Wait for all tests to complete, then re-enter the tst-e1 command. E3535 Cmd Rej: E1 Port test command not in progress Commands Used: tst-e1 There is no active test in progress on this e1port. The parameter action=stop cannot be performed if there is no active port test.
  • Page 457 Commands Error Recovery Manual E3541 Cmd Rej: Failed reading GSM Options Table The linkset with ipgwapc=no cannot have both 14-bit ITU-N and 24-bit ITU-N APC/SAPC if no links are provisioned Recovery Re-enter the command specifying the correct format and parameters. Refer to the Commands Manual for information on the command format, parameters, and syntax.
  • Page 458 E3545 Cmd Rej: Failed reading SERV Selector Table Commands Error Recovery Manual The GTT Set table is corrupt or cannot be found by the system. The GTT Set table must be accessible. Recovery Re-enter the command that generated this error message. Call your Customer Care Center if this error message appears again.
  • Page 459 Commands Error Recovery Manual E3548 Cmd Rej: System serial number is already locked in database E3548 Cmd Rej: System serial number is already locked in database Commands Used: ent-serial-num The serial number entered has already been locked in the Serial Number table. Once the table is locked, you cannot enter the serial number again.
  • Page 460 E3553 Cmd Rej: GTI (A)=4, and GTI (X)=1 and 3 are Commands Error Recovery Manual not supported You cannot specify both the nai and naiv parameters together. Recovery Re-enter the command specifying either the nai or the naiv parameter, but not both. E3553 Cmd Rej: GTI (A)=4, and GTI (X)=1 and 3 are not supported Commands Used: chg-gttsel, chg-srvsel, dlt-gttsel, dlt-srvsel, ent-gttsel,...
  • Page 461 Commands Error Recovery Manual E3556 Cmd Rej: This command is not valid when EGTT is ON You cannot specify either gtii/gtin/gtin24=4, without specifying either the np/nai or the npv/naiv parameter combinations. If you specify gtii/gtin/gtin24=4, you must also specify either the np/nai or the npv/naiv parameter combinations.
  • Page 462 E3558 Cmd Rej: CdPA GTT Selector already exists in Commands Error Recovery Manual GTI-TT-NP(V)-NAI(V) NOTE: The Global Title Translation (GTT) feature must be turned on (chg-feat:gtt=on) before the Enhanced Global Title Translation (EGTT) feature can be turned on.. Recovery Display the features in the database. Enter the rtrv-feat command. If the EGTT feature is on (from the output of step 1), re-enter the command that generated this error message.
  • Page 463 Commands Error Recovery Manual E3560 Cmd Rej: GTT Set specified by GTTSN already exists E3560 Cmd Rej: GTT Set specified by GTTSN already exists Commands Used: ent-gttset The value specified for the gttsn parameter already exists in the database. This action is not allowed. Recovery Display the existing GTT set entries.
  • Page 464 E3564 Cmd Rej: GTT Set table is full Commands Error Recovery Manual The specified Nature of Address Indicator (NAI) could not be entered into the GTT Selector table because no more than 5 NAI entries per Translation Type-Numbering Plan (TT-NP) combination are allowed. For each unique TT- NP combination, you can specify up to 5 specific NAI entries.
  • Page 465 Commands Error Recovery Manual E3566 Cmd Rej: GTT Set specified by GTTSN has GTT Selectors assigned to it Recovery Re-enter the command specifying a valid GTT set name parameter. E3566 Cmd Rej: GTT Set specified by GTTSN has GTT Selectors assigned to it Commands Used: dlt-gttset The specified GTT set cannot have any GTT selectors assigned to it.
  • Page 466 E3569 Cmd Rej: NTT must be specified when Commands Error Recovery Manual XLAT=DPCNGT Recovery Perform one of the following actions: • Re-enter the command specifying the ntt parameter and xlat=dpcngt. • Re-enter the command without specifying the ntt parameter. E3569 Cmd Rej: NTT must be specified when XLAT=DPCNGT Commands Used: chg-gta, ent-gta, rtrv-gta You cannot specify xlat=dpcngt without specifying the ntt parameter.
  • Page 467 Commands Error Recovery Manual E3571 Cmd Rej: GTA Length does not match GTT Set number of digits Determine the network domain of the GTT set. Enter the rtrv-gttset command. The network domain is listed in the NETDOM column of the output. Re-enter the command specifying a point code whose network type matches the specified gttsn parameter.
  • Page 468 E3574 Cmd Rej: NTT must be specified for new values Commands Error Recovery Manual of XLAT/RI If the new or existing pc/pca/pci/pcn/pcn24 parameter is an STP PC or CPC, the ccgt=no parameter must be specified. Recovery Re-enter the command specifying the ccgt=no parameter. E3574 Cmd Rej: NTT must be specified for new values of XLAT/RI Commands Used: chg-gta...
  • Page 469 Commands Error Recovery Manual E3578 Cmd Rej: NP and NAI must be specified as DFLT together Call your Customer Care Center if this error message appears again. See the "Customer Care Center" section in Chapter 1 of this manual. E3578 Cmd Rej: NP and NAI must be specified as DFLT together Commands Used: chg-gttsel, dlt-gttsel, rtrv-gttsel The np and nai parameters must both be specified as dflt and both must be specified together...
  • Page 470 E3582 Cmd Rej: INP subsystem is offline in database Commands Error Recovery Manual E3582 Cmd Rej: INP subsystem is offline in database Commands Used: alw-map-ss You attempted to run this command while the INP subsystem was offline in the database. Recovery Enter the command chg-ss-appl:appl=inp:nstat=online to activate the INP subsystem.
  • Page 471 Commands Error Recovery Manual E3585 Cmd Rej: Dest IP Address is invalid • SCCP Loop Detection • Recovery Upgrade your hardware configuration so that only DSM/VSCCP cards are in your system. Refer to the applicable Card Removal/Replacement procedure in the Maintenance Manual for details. NOTE: * The A-Port and AINPQ features require a DSM/VSCCP card with at least 4 GB of memory.
  • Page 472 E3587 Cmd Rej: Dest IP Address cannot be local to this Commands Error Recovery Manual cards A, B network E3587 Cmd Rej: Dest IP Address cannot be local to this cards A, B network Commands Used: ent-ip-rte You cannot define a destination IP address that is local to the A or B network for the card in the location specified by the loc parameter.
  • Page 473 The temporary access key has expired for the feature that you tried to enable. Recovery To continue to use the feature, you must purchase the feature from Tekelec. Contact your Customer Care Center. When you have purchased the feature and obtained a permanent feature access key, re-enter the enable- ctrl-feat command to enable the feature.
  • Page 474 E3593 Cmd Rej: Part Number does not belong to an On/ Commands Error Recovery Manual Off Feature If you need to change the serial number, Call your Customer Care Center. See the "Customer Care Center" section in Chapter 1 of this manual. E3593 Cmd Rej: Part Number does not belong to an On/Off Feature Commands Used: chg-ctrl-feat...
  • Page 475 Commands Error Recovery Manual E3596 Cmd Rej: IP Address still referenced by the Def Router Enter the rtrv-ip-card command specifying the loc parameter for this card. Re-enter the chg-ip-card command specifying a defrouter IP address that is local to the A or B network for this card.
  • Page 476 Chapter 1 of this manual. If necessary, turn on the LNP ELAP Configuration feature. Refer to the procedure “Activating the LNP Feature on the EAGLE 5 ISS“ in the LNP Feature Activation Guide. If necessary, turn on the WNP feature. Enter the command: chg-feat:wnp=on.
  • Page 477 Commands Error Recovery Manual E3615 Cmd Rej: T1 Port test command in progress Display a list of SSNs that exist in the SS-APPL table. Enter the rtrv-appl-ss command. Re-enter the command that generated this error message specifying a value for the ssn parameter. E3615 Cmd Rej: T1 Port test command in progress Commands Used: tst-t1 A T1 Port test is in progress.
  • Page 478 You entered a command to change the Private Virtual Network (PVN) IP address and the PVN subnet mask in the system. The EAGLE 5 Integrated Monitoring Support featurecopy function must be turned off before you can change the PVN and PVN submask addresses in the system. You can turn the copy function back on after the addresses are changed.
  • Page 479 Commands Error Recovery Manual E3632 Cmd Rej: MULTCC list is full The APORT or IGM feature must be enabled before this command can be entered. Using this command requires that the following features be in the correct status. • APORT must be enabled or ON •...
  • Page 480 E3634 Cmd Rej: Cannot set DefCC to none if a GSM Commands Error Recovery Manual Options MULTCC is defined Enter the rtrv-gsmopts commands and examine the multcc definitions. Re-enter the chg-gsmopts command specifying a valid multcc entry. E3634 Cmd Rej: Cannot set DefCC to none if a GSM Options MULTCC is defined Commands Used: chg-stpopts You cannot specify a Default Country Code of none (defcc=none) if a GSM Options MULTCC entry is already...
  • Page 481 Chapter 1 of this manual. E3641 Cmd Rej: Specified OAP not available Commands Used: act-oap-config For the act-oap-config command to execute, the link from the EAGLE 5 ISS to the specified OAP(s) must be in service. Recovery Enter the rtrv-oap-config command to check whether the entry for config is sngl or dual.
  • Page 482 Commands Used: act-oap-config You specified the oap=a, oap=b, or oap=all parameter with the act-oap-config command. For the command to execute, the specified OAP(s) must be configured, and the link from the EAGLE 5 ISS to the OAP(s) must be in service.
  • Page 483 Commands Error Recovery Manual E3648 Cmd Rej: XLAT must be DPCSSN and RI must be SSN if PC is the True PC Recovery Display the features in the database. Enter the rtrv-feat command. If the WNP feature is turned on (from the output of step 1), re-enter the command. Call your Customer Care Center if this error message appears again.
  • Page 484 E3657 Cmd Rej: NSR cannot be specified if ACTNAME Commands Error Recovery Manual is specified Recovery Enter the rtrv-gws-actset command. The ACT NAME field in the output shows a list of valid action names. If the value you entered appears in the output, Call your Customer Care Center. See the "Customer Care Center"...

  • Page 485: Table 2-23. Tsm And Tdm Memory Requirements

    Commands Error Recovery Manual E3664 Cmd Rej: Capacity of TDM(s) / TSM(s) insufficient to support request The Memory Equipage table is corrupt or cannot be found by the system. Recovery Re-enter the chg-db command that generated this error message. Call your Customer Care Center if this error message appears again. See the "Customer Care Center" section in Chapter 1 of this manual.
  • Page 486 E3669 Cmd Rej: The CNCF feature must be on if CNCF Commands Error Recovery Manual is specified E3669 Cmd Rej: The CNCF feature must be on if CNCF is specified Commands Used: chg-gws-actset You cannot specify a value of cncf for a parameter from act1 through act10 if the Calling Name Conversion Feature (CNCF) is turned off.
  • Page 487 Commands Error Recovery Manual E3673 Cmd Rej: COPY must be in ACT1 E3673 Cmd Rej: COPY must be in ACT1 Commands Used: chg-gws-actset You entered the parameter value of copy for an action set other than act1. The copy value can be used only with the act1 parameter.
  • Page 488 E3680 Cmd Rej: No match on ACTNAME parameter Commands Error Recovery Manual during retrieve Recovery Re-enter the chg-gws-actset command specifying force=yes. E3680 Cmd Rej: No match on ACTNAME parameter during retrieve Commands Used: all gateway screening retrieve commands The entered GWS stop action set name (actname) was not found. Recovery Enter the command specifying the screening reference to show all action set name identifiers, as well as other values for the screening reference.
  • Page 489 Commands Error Recovery Manual E3683 Cmd Rej: TLNP feature must be ON Display the status of the controlled features in the database. Enter the rtrv-feat and the rtrv-ctrl- feat command. If both the GWS and LNP features are on (from the output of step 1), re-enter the chg-feat command. NOTE: The LNP feature is "turned on"...
  • Page 490 E3685 Cmd Rej: TLNP and CNCF cannot be in the same Commands Error Recovery Manual action set E3685 Cmd Rej: TLNP and CNCF cannot be in the same action set Commands Used: chg-gws-actset You cannot specify both the tlnp and cncf stop actions within the same action set. The Triggerless LNP (tlnp) gateway screening stop action cannot be specified in the same action set with the Calling Name Conversion Facility (cncf) gateway screening stop action.
  • Page 491 Commands Error Recovery Manual E3689 Cmd Rej: Period must be 1/4 hour boundary The rept-ftp-meas command was entered with either the type=systot, type=comp, type=gtwy, or type=avl parameter during routine collection. Recovery To get a report before routine collection has started, perform one of the following actions: Enter the command specifying the period=last parameter.
  • Page 492 E3695 Cmd Rej: Command supported only for IPGWx and IPSG linksets Commands Used: rept-stat-iptps This command cannot be entered for linksets that are not IPGWx or IPSG M3UA linksets The EAGLE 5 ISS does not support this command for non-IPGWx linksets. Recovery Display the linksets in the database.
  • Page 493 Commands Error Recovery Manual E3698 Cmd Rej: At least one MCP card must be IS-NR Re-enter the chg-measopts command. E3698 Cmd Rej: At least one MCP card must be IS-NR Commands Used: chg-ctrl-feat When you entered the command, no Measurements Collection Processor card was IS-NR (in service-normal). Recovery Enter the rtrv-card and rept-stat-card commands to verify the status of MCPM cards in the system.
  • Page 494 E3700 Cmd Rej: SEAC CLLI parameter requires SEAS Commands Error Recovery Manual feature Call your Customer Care Center if this error message appears again. See the "Customer Care Center" section in Chapter 1 of this manual. If the EIR feature is on, re-enter the command that generated this error message. NOTE: Once a feature that is controlled using a feature access key is permanently enabled, it cannot be disabled.
  • Page 495 Commands Error Recovery Manual E3702 Cmd Rej: X.25 mode parameter requires SEAS feature NOTE: Once a feature that is controlled using a feature bit has been turned on, it cannot be turned off. Refer to the chg-feat command in the Commands Manual for further information.
  • Page 496 E3705 Cmd Rej: PSEL parameter requires LNP feature Commands Error Recovery Manual Recovery Display the features in the database. Enter the rtrv-ctrl-feat command. If the LNP feature is on, the LNP ported TNs entry appears in the output with a quantity less than or equal to 12,000,000.
  • Page 497 Commands Error Recovery Manual E3707 Cmd Rej: OAP Hostname required before OAP update If the LNP feature is on, the LNP ported TNs entry appears in the output with a quantity less than or equal to 12,000,000. NOTE: Once a feature that is controlled using a feature access key is permanently enabled, it cannot be disabled.
  • Page 498 (TPS) capacity beyond the level that the EAGLE 5 ISS can handle. The EAGLE 5 ISS calculates the current system TPS capacity based on the number and type of provisioned SCCP cards available in the system.
  • Page 499 When you issue the ent-card command to add a card that requests service from either an SCCP card or VSCCP card, the EAGLE 5 ISS adds the current TPS level to the estimated TPS level for the new card. The EAGLE 5 ISS uses the following values to derive the TPS estimate: 53 for LSL (cards provisioned as SS7ANSI, CCS7ITU or SS7GX25 cards), 480 for ATM cards, and 1000 for IPLIM cards.
  • Page 500 E3718 Cmd Rej: SEAC CLLI required before OAP Commands Error Recovery Manual update Re-enter the set-uim-acthresh command specifying both the limit and intrvl parameters. E3718 Cmd Rej: SEAC CLLI required before OAP update Commands Used: act-oap-config The database must be configured for the SEAC Common Language Location Identifier for the SEAS feature, before this command can be executed.
  • Page 501 Commands Error Recovery Manual E3725 Cmd Rej: Removable cartridge database level is not compatible The database must be configured for X.25 mode for the SEAS feature, before this command can be executed. If the SEAS feature is on, the X.25 mode (x25mode) parameter must be specified in order to update specified OAP. Recovery Enter the rtrv-oap-config command to view information about your OAP configuration.
  • Page 502 E3727 Cmd Rej: Max number of cards of application Commands Error Recovery Manual type already exist Re-enter the dlt-card command that generated this error message. Recovery - dlt-slk Disconnect (deactivate) the signaling link. Enter the canc-slk or dact-slk command. The link is placed in the OOS-MT-DSBLD state. Perform one of the following actions: If the link to be deleted is the last or only link in a link set that is still used by an ordered route, enter the dlt-slk command specifying the force=yes parameter.

  • Page 503: Table 2-24. Valid Subnet Mask Values

    Commands Error Recovery Manual E3729 Cmd Rej: APPL parameter valid only with CONVERTNET action E3729 Cmd Rej: APPL parameter valid only with CONVERTNET action Commands Used: act-upgrade You specified the appl parameter with a parameter other than action=convertnet. The appl parameter is valid only when the action=convertnet parameter is also specified.
  • Page 504 E3733 Cmd Rej: Socket name not found Commands Error Recovery Manual Class A Networks Class A or B Networks Class A, B, or C Networks 255.252.0.0 255.255.252.0 255.255.255.252 255.254.0.0 255.255.254.0 255.255.128.0 255.255.255.128 Recovery Re-enter the command specifying a value for the submask parameter derived from Table 2-24. Call your Customer Care Center if this error message appears again.
  • Page 505 Commands Error Recovery Manual E3738 Cmd Rej: Host table is full You entered a socket name into the Routing Key table with filter parameters (dpc/dpca, si, ssn, opc, cics, cice), using the ent-appl-rtkey command, but an identical socket name with identical filter parameters is already present.
  • Page 506 E3740 Cmd Rej: If AUTO=yes, then DUPLEX and Commands Error Recovery Manual SPEED are not allowed Enter the rtrv-ip-host command. Host names are shown in the HOST field of the output. If the host name you entered is shown in the HOST field of the output, re-enter the dlt-ip-host command. Call your Customer Care Center if this error message appears again.
  • Page 507 Commands Error Recovery Manual E3743 Cmd Rej: SSN required if SI is 3 E3743 Cmd Rej: SSN required if SI is 3 Commands Used: chg-appl-rtkey, dlt-appl-rtkey, dlt-rmt-appl, ent-appl-rtkey, ent-rmt-appl You entered a value of si=3 (or the string equivalent si=sccp) for this command, but you did not specify a value for the ssn parameter.
  • Page 508 E3749 Cmd Rej: If IPADDR is specified SUBMASK is Commands Error Recovery Manual required E3749 Cmd Rej: If IPADDR is specified SUBMASK is required Commands Used: chg-ip-lnk When entering the chg-ip-lnk command, you specified a value for the ipaddr parameter but did not specify a value for the submask parameter.
  • Page 509 Commands Error Recovery Manual E3754 Cmd Rej: Command is not supported for IPGW(x) links E3754 Cmd Rej: Command is not supported for IPGW(x) links Commands Used:canc-lpo, inh-slk, unhb-slk, alw-slk The command you entered is not valid on TCP/IP point-to-multipoint links (SSEDCM cards or E5NET cards equipped with SS7IPGW, IPSG or IPGWI links).
  • Page 510 E3761 Cmd Rej: At least one of TIMER, PARM, Commands Error Recovery Manual SRCSET must be entered You tried to enter a host name and IP address into the IP Host table, and the IP address is already in the IP Host table.
  • Page 511 Commands Error Recovery Manual E3763 Cmd Rej: Routing Key table full If the IP address you entered is not in the IP Host table, enter the IP address. Enter the ent-ip-host command. Re-enter the chg-ip-lnk command that generated this error message. Call your Customer Care Center if this error message appears again.
  • Page 512 E3765 Cmd Rej: Fully specified connection required to Commands Error Recovery Manual change OPEN Call your Customer Care Center if this error message appears again. See the "Customer Care Center" section in Chapter 1 of this manual. E3765 Cmd Rej: Fully specified connection required to change OPEN Commands Used: chg-assoc You tried to change the setting of the open parameter, to yes but you did not specify values for all parameters...
  • Page 513 Commands Error Recovery Manual E3770 Cmd Rej: SS7 parameters cannot be specified for IP7 link E3770 Cmd Rej: SS7 parameters cannot be specified for IP7 link Commands Used: ent-slk The specified SS7 parameters are not allowed when entering an IP Secure Gateway link (card application iplim, iplimi, ipgwi, or ss7ipgw).
  • Page 514 E3774 Cmd Rej: Failed reading the UIM Threshold Commands Error Recovery Manual Table Enter the chg-ls:action=add command. Call your Customer Care Center if this error message appears again. See the "Customer Care Center" section in Chapter 1 of this manual. E3774 Cmd Rej: Failed reading the UIM Threshold Table Commands Used:set-uim-acthresh The UIM Threshold Table must be accessible for the command to execute.

  • Page 515: Table 2-25. Conditions That Generate An E3779 Error Message

    Commands Error Recovery Manual E3778 Cmd Rej: Active/Stby GPL versions are not compatible E3778 Cmd Rej: Active/Stby GPL versions are not compatible Commands Used: copy-disk, format-disk The OAM GPL version that is running on the active OAM card location differs from the OAM GPL version that is running on the standby OAM card.
  • Page 516 E3780 Cmd Rej: Syntax Error Found Commands Error Recovery Manual E3780 Cmd Rej: Syntax Error Found Commands Used: Pass-through commands The command you entered does not conform to the required syntax. Recovery Re-enter the command as the rules require. Refer to the Commands Manual for the syntax rules for the command. Call your Customer Care Center if this error message appears again.
  • Page 517 Commands Error Recovery Manual E3783 Cmd Rej: CICS must be less than or equal to CICE Call your Customer Care Center if this error message appears again. See the "Customer Care Center" section in Chapter 1 of this manual. E3783 Cmd Rej: CICS must be less than or equal to CICE Commands Used: chg-appl-rtkey, dlt-appl-rtkey, ent-appl-rtkey, rtrv-appl- rtkey You specified a value for the starting circuit identification code (cics) that was greater than the value specified for...
  • Page 518 E3788 Cmd Rej: OPC, CICS, CICE are required if SI Commands Error Recovery Manual is 4, 5, or 13 You specified the ssn parameter along with the opc, cics, and cice parameters. The opc, cics, and cice parameters are used to route ISUP messages and require that si=5 (or the string equivalent si=isup). The ssn parameter is not allowed unless si=3 (or the string equivalent si=sccp).
  • Page 519 Commands Error Recovery Manual E3792 Cmd Rej: Gtwy IP Address must be local to this cards A, B network • Must not correspond to any loopback address (i.e. 127.X.X.X) • Must be unique per card • Must not correspond to an IP address that is local to this card’s A or B network Recovery Re-enter the command specifying a valid gateway IP address.
  • Page 520 E3795 Cmd Rej: LNP ported NPANXXs 300K Qty Feat Commands Error Recovery Manual Requires at least DSM2GB Display the existing route entries for the card. Enter the rtrv-ip-rte command. To add another route entry for the card, delete an existing route entry from the table. Enter the dlt-ip-rte command.
  • Page 521 Commands Error Recovery Manual E3798 Cmd Rej: Measurement Preparation in progress, Retry later Upgrade your hardware. Refer to the procedures in the LNP Feature Activation Guide for enabling LNP feature quantities. Call your Customer Care Center if this error message appears again. See the "Customer Care Center" section in Chapter 1 of this manual.
  • Page 522 E3800 Cmd Rej: BLM/DCM card must be provisioned Commands Error Recovery Manual and IS-NR for bulk download Example: rept-stat-rtd:reset=yes:force=yes E3800 Cmd Rej: BLM/DCM card must be provisioned and IS- NR for bulk download Commands Used: chg-db You specified the chg-db:action=beginedl command, but the Bulk Load Module (BLM) and DCM cards do not meet the requirements for a bulk download.
  • Page 523 Commands Error Recovery Manual E3802 Cmd Rej: BLM must be provisioned and IS-NR for an upload Call your Customer Care Center if this error message appears again. See the "Customer Care Center" section in Chapter 1 of this manual. E3802 Cmd Rej: BLM must be provisioned and IS-NR for an upload Commands Used: chg-db You specified the chg-db:action=finishedl command.
  • Page 524 E3805 Cmd Rej: Enhanced Bulk Download not in Commands Error Recovery Manual progress init-card:loc=xxxx where xxxx is the location of the BLM card. From the LSMS, restart the bulk download, and then re-enter the chg-db command that generated this error message. Call your Customer Care Center if this error message appears again.
  • Page 525 Enter the rtrv-sid command to display the point codes currently in the SID table. The EAGLE 5 ISS’s true point code is shown in the PCA field. Capability point codes are shown in the CPCA, CPCI, CPCN, and CPCN24 fields.
  • Page 526 E3811 Cmd Rej: SPC may not exist as a TPC, CPC, or Commands Error Recovery Manual DPC in the route table E3811 Cmd Rej: SPC may not exist as a TPC, CPC, or DPC in the route table Commands Used:chg-sid, ent-spc The value of the spc parameter cannot already exist in the Destination table as a destination point code, true point code, or concerned point code.
  • Page 527 Commands Error Recovery Manual E3819 Cmd Rej: SPC may not be referenced in the STP’s route table The maximum number of Secondary Point Codes (SPCs) you can enter into the database is 40. When you entered the command, you specified a SPC that would have been the 41st entry in the database. You must first delete an existing SPC entry from the database before you can add a new one.
  • Page 528 E3822 Cmd Rej: SPC must be a full point code Commands Error Recovery Manual spcn (ITU-N), and dpcn24 with spcn24 (24-bit ITU-N). As long as spc=none is not specified, the secondary point code (SPC) must be the same network type as the Adjacent Destination Point Code (APC). Recovery Re-enter the command specifying spc and dpc parameters that are the same network type.
  • Page 529 Commands Error Recovery Manual E3827 Cmd Rej: No change requested You specified a value for the new starting circuit identification code (ncics) that is greater than the value specified for the new ending circuit identification code (ncice). The value entered for the starting circuit identification code must be less than or equal to the value entered for the ending circuit identification code.
  • Page 530 E3829 Cmd Rej: Link set with IPGWAPC=YES Commands Error Recovery Manual requires SS7IPGW/IPGWI GPL Call your Customer Care Center if this error message appears again. See the "Customer Care Center" section in Chapter 1 of this manual. E3829 Cmd Rej: Link set with IPGWAPC=YES requires SS7IPGW/IPGWI GPL Commands Used: ent-slk When the specified linkset name (lsn) is defined with the ipgwapc=yes parameter, the card application must be...

  • Page 531: Table 2-26. Valid Parameter Combinations For Routing Key Types Using Thechg-Appl-Rtkey Command

    Commands Error Recovery Manual E3832 Cmd Rej: SPLIT must be greater than CICS Specify split to split the routing key into 2 entries with adjacent CIC ranges Refer to Table 2-26 for valid parameter combinations for specific actions and service indicator values. Table 2-26.
  • Page 532 E3833 Cmd Rej: SPLIT must be less than or equal to Commands Error Recovery Manual CICE Call your Customer Care Center if this error message appears again. See the "Customer Care Center" section in Chapter 1 of this manual. E3833 Cmd Rej: SPLIT must be less than or equal to CICE Commands Used: chg-appl-rtkey The value entered for the circuit identification code split range (split) must be less than or equal to the value entered for the ending circuit identification code (cice).
  • Page 533 Commands Error Recovery Manual E3836 Cmd Rej: Command not valid for IPLIM E3836 Cmd Rej: Command not valid for IPLIM Commands Used: blk-slk, ublk-slk The command you entered is not valid on TCP/IP point-to-point links (DCM cards equipped as IPLIM links). Recovery Verify that the card at the specified location is a DCM card running the IPLIM application.
  • Page 534 E3839 Cmd Rej: SPLIT, RC, NCICS, NCICE or Commands Error Recovery Manual attributes required E3839 Cmd Rej: SPLIT, RC, NCICS, NCICE or attributes required Commands Used: chg-appl-rtkey You entered the command to change a routing key but did not specify a value for the split, rc, ncics, or ncice parameter.
  • Page 535 Commands Error Recovery Manual E3842 Cmd Rej: Entries in static route key table cannot exceed SRKQ Enter the dlt-appl-rtkey command. E3842 Cmd Rej: Entries in static route key table cannot exceed SRKQ Commands Used: chg-appl-rtkey, chg-sg-opts, ent-appl-rtkey The srkq parameter value in the chg-sg-opts command limits the maximum number of static routing keys that can be provisioned using the ent-appl-rtkey command.
  • Page 536 E3845 Cmd Rej: DYNRTK feature must be enabled to Commands Error Recovery Manual perform this operation Perform one of the following actions: • Re-enter the rtrv-appl-rtkey command without specifying the loc parameter • Re-enter the rtrv-appl-rtkey command specifying mode=dynamic and the loc parameter Call your Customer Care Center if this error message appears again.
  • Page 537 Commands Error Recovery Manual E3847 Cmd Rej: FORCE valid only with APPL, DATA or INITCLK parameters NOTE: Once a feature that is controlled using a feature bit has been turned on, it cannot be turned off. Refer to the chg-feat command in the Commands Manual for further information.

  • Page 538: Table 2-27. Reason That Card Requires A Full Data Download

    E3850 Cmd Rej: Parameters inconsistent on re-entering Commands Error Recovery Manual of command If the data=persist parameter is specified and any SCCP cards present in the system cannot maintain a persistent LNP database over the reset, the force parameter must be specified. The data=persist parameter was specified without the force parameter.
  • Page 539 Commands Error Recovery Manual E3851 Cmd Rej: MTPRSE parameter is only valid if ITUMTPRS feature is ON command the second time, the parameters did not match the parameters you entered the first time. The parameters must be the same both times. Recovery Re-enter the init-sys command specifying the same parameters both times.
  • Page 540 E3853 Cmd Rej: SS7IPGW/IPGWI cards must be Commands Error Recovery Manual inhibited to change SYNC E3853 Cmd Rej: SS7IPGW/IPGWI cards must be inhibited to change SYNC Commands Used: chg-sg-opts You attempted to perform an action on a card that is not allowed if the card is in a state other than Out-of-Service - Maintenance-Disabled (OOS-MT-DSBLD).
  • Page 541 Commands Error Recovery Manual E3856 Cmd Rej: Processor timeout error E3856 Cmd Rej: Processor timeout error Commands Used: chg-sg-opts There was a processor timeout error during the period when this command was entered. Recovery Re-enter the chg-sg-opts command that generated this error message. Call your Customer Care Center if this error message appears again.
  • Page 542 E3861 Cmd Rej: Cannot echo to OAP terminal Commands Error Recovery Manual The link parameter values a, b, a1, b1, a2, b2, a3, and b3 can be specified only if the card is an SSEDCM card running the iplim or iplimi application. The link parameter values a, b, a1-a7, and b1-b7 can be specified only if the card is an E5-ENET card running the iplim or iplimi application, or a, b, a1-a15, b1-b15 for IPSG.
  • Page 543 Commands Error Recovery Manual E3863 Cmd Rej: SLSOCBIT parameter not permitted if SLSOCB feature is off • Re-enter the command specifying an ITU link set. • Re-enter the command without specifying the slsocbit or slsrsb parameters. E3863 Cmd Rej: SLSOCBIT parameter not permitted if SLSOCB feature is off Commands Used:chg-ls, ent-ls, ent-rs, chg-rs The SLSOCB feature must be turned on before the slsocbit parameter can be specified...
  • Page 544 E1 or T1 ports 3 through 8, • specify linkclass=unchan for an E1 port • bring an HC-MIM card in an EAGLE 5 ISS shelf into service • provision a second SE-HSL port. Recovery Display the features in the database. Enter the rtrv-feat command.
  • Page 545 Commands Error Recovery Manual E3870 Cmd Rej: GTT must be ON before VGTT can be Display the features in the database. Enter the rtrv-feat command. If the MPC feature is turned on, re-enter the command that generated this error message. Turn the MPC feature on.
  • Page 546 E3872 Cmd Rej: IPGWI link must be in a single link Commands Error Recovery Manual linkset E3872 Cmd Rej: IPGWI link must be in a single link linkset Commands Used: ent-slk The card in the specified location is running the IPGWI application and it already has a link assigned to it. Only one IPGWI link is allowed in a linkset.
  • Page 547 Commands Error Recovery Manual E3875 Cmd Rej: Command not valid for IPGWI The opc/opca/opci/opcn, cics, cice, ncics, ncice, split, pstncat, pstnid, and norm parameters are not valid in this case. You can enter just the sname and asname for a new routing key. You can change only the sname (with the nsname parameter) and the asname (with the nasname parameter) of an existing routing key.
  • Page 548 E3877 Cmd Rej: ANSI/ITU point code type mismatch Commands Error Recovery Manual E3877 Cmd Rej: ANSI/ITU point code type mismatch Commands Used:chg-rtx, ent-rte, ent-rtx, chg-dstn The network domain of the adjacent point code in the linkset or of the routes in the specified routeset must be the same network domain of the specified destination point code or its alias.

  • Page 549: Table 2-28. Valid Cic Ranges For Si And Msu Types

    Commands Error Recovery Manual E3879 Cmd Rej: The MPC feature must be ON before ITUDUPPC can be ON • For the ent-appl-rtkey command, you can specify the cics and cice parameters only if you specify si=5. You specified a value for the cics or cics parameter, or both, that is outside the valid range for si type 5 and the DPC type.
  • Page 550 E3880 Cmd Rej: Grp Code of dstn & True PC must Commands Error Recovery Manual match if no Secondary PC E3880 Cmd Rej: Grp Code of dstn & True PC must match if no Secondary PC Commands Used: chg-dstn, ent-dstn If the destination does not use an SPC, the group code of the destination must be the same as the group code of the ITU national true point code.

  • Page 551: Table 2-29. Conditions That Generate An E3883 Error Message

    Commands Error Recovery Manual E3884 Cmd Rej: SSN/TYPE combination already exists Table 2-29. Conditions that Generate an E3883 Error Message Commands Condition The GSM MAP Screening feature must be enabled and turned on before you can chg-gsmmap-scrn, ent- enter any of these commands. gsmmap-scrn, chg-gsms- opcode, ent-gsms-opcode, ent-gsmssn-scrn...
  • Page 552 E3885 Cmd Rej: Failure reading the GSM SSN Commands Error Recovery Manual Screening Table E3885 Cmd Rej: Failure reading the GSM SSN Screening Table Commands Used: ent-gsmssn-scrn, dlt-gsms-opcode, dlt-gsmssn-scrn, rtrv- gsmssn-scrn The GSM SSN Screening table must be accessible for the command to execute. A failure occurred in reading the table.
  • Page 553 Commands Error Recovery Manual E3889 Cmd Rej: Failure reading the GSM OPCODE Table Display the GSM MAP Op-Code table. Enter the rtrv-gsms-opcode command. Re-enter the ent-gsms-opcode command specifying a value for the opname parameter that does not already exist in the database. E3889 Cmd Rej: Failure reading the GSM OPCODE Table Commands Used: chg-gsms-opcode, chg-gsmmap-scrn, dlt-gsms-opcode, dlt- gsmmap-scrn, ent-gsms-opcode, ent-gsmmap-scrn, rtrv-gsmmap-scrn, rtrv-gsms-...
  • Page 554 E3893 Cmd Rej: Entry being deleted is referenced by a Commands Error Recovery Manual GSM MAP Screen entry E3893 Cmd Rej: Entry being deleted is referenced by a GSM MAP Screen entry Commands Used: dlt-gsms-opcode You attempted to delete an entry that is referenced in the GSM MAP screening table. This action is not allowed. Recovery Delete the entry from the GSM MAP screening table.
  • Page 555 Commands Error Recovery Manual E3898 Cmd Rej: EADDR cannot be specified without SADDR • If a range entry is specified for the CgPA or CdPA (that is, eaddr is specified), the combination of saddr, eaddr, npv, naiv for the specified opname must not already exist or overlap with another range entry in the GSM MAP Screening Table.
  • Page 556 E3901 Cmd Rej: CGPA entry is referred by CDPA Commands Error Recovery Manual entries Refer to the procedures in the Database Administration Manual - Features and to the Commands Manual to enable, turn on, and use the GMS MAP Screening feature. Call your Customer Care Center if this error message appears again.
  • Page 557 Commands Error Recovery Manual E3904 Cmd Rej: DFLTACT cannot be ATIERR unless OPCODE=71 • Re-enter the command that generated this error message specifying action/naction=pass/discard, but do not specify a value of atierr. • Re-enter the command that generated this error message specifying a different value for the opname parameter (that is, opcode=71).
  • Page 558 E3906 Cmd Rej: The GSM MAP Screening table is full Commands Error Recovery Manual To display any portion of the EGMS MAP Screen Table, specify the rtrv-gsmmap-scrn command and the appropriate opname, cgsr, and optionally the cdsr parameter(s) E3906 Cmd Rej: The GSM MAP Screening table is full Commands Used: ent-gsmmap-scrn The GSM MAP Screening table is full.
  • Page 559 Commands Error Recovery Manual E3911 Cmd Rej: Either PLNP or WNP Features must be ON Re-enter the rtrv-tt or rtrv-gtt command specifying no parameters to display the Translation Type table. Re-enter the command specifying one of the translation type (tt) values displayed from the output of step 1. E3911 Cmd Rej: Either PLNP or WNP Features must be ON Commands Used: chg-lnpopts You specified the wqredrct parameter, which requires that either the Personal Communication Service 1900...
  • Page 560 E3914 Cmd Rej: CdPA GTT Selector already exists in Commands Error Recovery Manual GTIN-TT-NP(V)-NAI(V) To see if the translation type you want to use already exists in the translation type table, enter the rtrv-tt command. E3914 Cmd Rej: CdPA GTT Selector already exists in GTIN- TT-NP(V)-NAI(V) Commands Used: ent-gttsel The specified CdPA Selector was not entered because an entry that matches the values specified gtin, tt, and np/...
  • Page 561 Commands Error Recovery Manual E3917 Cmd Rej: GTT Selector does not exist in GTII- TT-NP(V)-NAI(V) Display the GTT Selector table. Enter the rtrv-gttsel command. Re-enter the command specifying a parameter combination that exists in the database. E3917 Cmd Rej: GTT Selector does not exist in GTII-TT- NP(V)-NAI(V) Commands Used: chg-gttsel, dlt-gttsel You specified an entry that does not match an existing gtii, tt, np/nai, and npv/naiv parameter combination as...
  • Page 562 To be able to turn on just the VGTT feature requires either TSM or DSM cards. For more information on these cards, refer to the procedure “Adding an SCCP Card” in the Hardware Manual – EAGLE 5 ISS. Recovery Upgrade your hardware with DSM cards only.
  • Page 563 Commands Error Recovery Manual E3925 Cmd Rej: HOMERN Table is full You cannot turn on the INAP Number Portability (INP) feature, or the ANSI-41 INP Query (AINPQ) feature, if the Global Title Translation (GTT) feature is turned off. The GTT feature must be turned on before the INP feature, or the ANSI-41 INP Query (AINPQ) feature, can be turned on.
  • Page 564 NOTE: The LNP feature is "turned on" when an LNP ported TNs quantity is shown in the rtrv-ctrl-feat command output. Refer to the procedure “Activating the LNP Feature on the EAGLE 5 ISS” in the LNP Feature Activation Guide for additional information.
  • Page 565 Commands Error Recovery Manual E3930 Cmd Rej: RN already exists in HOMERN Table Enable and turn on the EIR feature, enter the commands: Refer to the Feature Manual–EIR for assistace. Enable and turn on the INP feature. Refer to the Feature Manual–INP for assistance. Enable and turn on the LNP feature.

  • Page 566: Table 2-30. Conditions That Generate An E3932 Error Message

    E3934 Cmd Rej: CPCx must not be ANSI if CPCTYPE Commands Error Recovery Manual is INP or EIR Table 2-30. Conditions that Generate an E3932 Error Message Commands Condition ent-trace The INP, G-Flex, TINP, or G-Port feature must be turned on before the dn and entityid parameters can be specified.
  • Page 567 Commands Error Recovery Manual E3936 Cmd Rej: DRANAI and DRANAIV must not be specified together E3936 Cmd Rej: DRANAI and DRANAIV must not be specified together Commands Used:chg-inpopts,chg-vflx-opts, rtrv-inpopts You cannot specify the dranai and dranaiv parameters together in the same command. Recovery Re-enter the command specifying either the dranai or dranaiv parameter, but not both.
  • Page 568 E3940 Cmd Rej: (N)SERV value is invalid for the Commands Error Recovery Manual specified (N)SNAI E3940 Cmd Rej: (N)SERV value is invalid for the specified (N)SNAI Commands Used: chg-srvsel, ent-srvsel, rtrv-srvsel If the value specified for the snai parameter is rnidn, rnndn, or rnsdn, then the value specified for the serv parameter must be inpmr, gport, or smsmr.
  • Page 569 Commands Error Recovery Manual E3943 Cmd Rej: (N)SNP/(N)SNAI mustn't be specified for requested service MO-based IS41 SMS NP Enabled? Nserver Value Can gtia/gti be specified? inpmr,inpq,gport, eir, mnpsms, smsmr No mnpsms Display the current features that are enabled by using the rtrv-feat command. Refer to the Command Manual for assistance if necessary.
  • Page 570 E3945 Cmd Rej: SERV must not be GFLEX when SNAI Commands Error Recovery Manual = RNIDN/RNNDN/RNSDN E3945 Cmd Rej: SERV must not be GFLEX when SNAI = RNIDN/RNNDN/RNSDN Commands Used: rtrv-srvsel You specified the serv=gflex parameter with one of the following values for the snai parameter: rnidn, rnndn, or rnsdn.
  • Page 571 Commands Error Recovery Manual E3948 Cmd Rej: Entry does not exist with specified GTII-TT-NP(V)-NAI(V)-SSN E3948 Cmd Rej: Entry does not exist with specified GTII-TT- NP(V)-NAI(V)-SSN Commands Used: chg-srvsel, dlt-srvsel You specified an entry that does not match an existing gtii, tt, np(v) and nai(v), and ssn parameter combination as required.
  • Page 572 E3954 Cmd Rej: NSNAI must be specified when Commands Error Recovery Manual NSERV = INPMR E3954 Cmd Rej: NSNAI must be specified when NSERV = INPMR Commands Used: chg-srvsel You cannot specify the nserv=inpmr parameter without specifying the nsnai parameter. Recovery Perform one of the following actions: •...
  • Page 573 Commands Error Recovery Manual E3958 Cmd Rej: When type=partial or default, SPLIT/ RESIZE are not supported Re-enter the chg-appl-rtkey command specifying the routing key type of partial or default, and include the attributes parameters rcontext, pstncat, pstnid, or norm. E3958 Cmd Rej: When type=partial or default, SPLIT/ RESIZE are not supported Commands Used: chg-appl-rtkey You specified the routing key type specified as partial or default, and you specified the split parameter in the...
  • Page 574 E3964 Cmd Rej: TSCSYNC must be ON before E5IS can be Commands Used: chg-feat You tried to turn on the EAGLE 5 Integrated Monitoring Support feature before the Time Slot Counter Synchronization (TSC) feature has been turned on. The TSC feature must be turned on before the E5IS feature can be turned on (or at the same time the E5IS feature is turned on, in the same command—...
  • Page 575 Commands Used: ent-card You tried to add a Signaling Transport Card (STC) to a shelf for the EAGLE 5 Integrated Monitoring Support feature. However, the specified shelf already contains the maximum three STC cards allowed in the system. Recovery Display the cards on the shelf.
  • Page 576 Commands Used: chg-eisopts You entered a command to enable the copy function for the EAGLE 5 Integrated Monitoring Support feature. The required hardware is not in the system for the command. The E5IS feature requires at least two STC cards in IS- NR state to be installed on at least one shelf in the system.
  • Page 577 Commands Error Recovery Manual E3988 Cmd Rej: GPORT feature requires DSM Cards NOTE: The G-Port feature requires a DSM card running the VSCCP application. If the GTT feature is on (gtt=on from the output of step 1), enable and turn on the G-Port feature. Enter the following commands: enable-ctrl-feat:partnum=893017201:fak=<G-Port FAK>chg-ctrl-feat:partnum=893017201:status=on If the GTT feature is off (gtt=off from the output of step 1), turn the GTT feature bit on.
  • Page 578 E3990 Cmd Rej: (N)SNP must be E164 when Commands Error Recovery Manual (N)SERV=GPORT/PPSMS/MNPSMS E3990 Cmd Rej: (N)SNP must be E164 when (N)SERV=GPORT/PPSMS/MNPSMS Commands Used: chg-srvsel, ent-srvsel If the value specified for the serv parameter is gport or smsmr, then the snp=e164 parameter must be specified. Recovery Re-enter the command specifying nsnp/snp=164.
  • Page 579 Commands Error Recovery Manual E3992 Cmd Rej: SRFADDR, SRFNAI & SRFNP parameters must be entered together If the G-Port feature is not listed or the status is Off in the output from step 1, refer to the procedures in the Feature Manual - G-Port for enabling, turning on, and using the G-Port feature.
  • Page 580 E3997 Cmd Rej: GFLEX must be ON or GPORT/EIR/ Commands Error Recovery Manual IGM must be enabled Re-enter the command specifying both the msrnnai and msrnnp parameters. E3997 Cmd Rej: GFLEX must be ON or GPORT/EIR/IGM must be enabled Commands Used: rtrv-gsmopts Before you can specify the rtrv-gsmopts command, the G-Flex and G-Port features must be turned on, or EIR or IGM feature must be enabled.
  • Page 581 Commands Error Recovery Manual E4001 Cmd Rej: Group Code of DPCN and OPCN must match Re-enter the command specifying either the dpc and/or the si parameters. E4001 Cmd Rej: Group Code of DPCN and OPCN must match Commands Used: ent-appl-rtkey The group codes for the dpcn and opcn parameter values must match when you specify both parameters in the command.

  • Page 582: Table 2-31. Conditions That Generate An E4005 Error Message

    E4005 Cmd Rej: Either INP/AINPQ or GPORT feature Commands Error Recovery Manual must be ON or TINP must be enabled Refer to the chg-appl-rtkey description in the Commands Manual for valid parameter values when pstncat=1 is specified in the command. Recovery Re-enter the chg-appl-rtkey command specifying the pstncat=1 parameter and an ITU-I or ITU-N point code.
  • Page 583 Commands Error Recovery Manual E4006 Cmd Rej: DSM’s are required when LNP and VGTT are ON Turn on the G-Port feature, enter the command: chg-ctrl- feat:partnum=893017201:status=on Turn on the A-Port feature, enter the command: chg-ctrl- feat:partnum=893016601:status=on Turn on the IGM feature, enter the following command: chg-ctrl- feat:partnum=893017301:status=on Re-enter the command that generated this message.
  • Page 584 E4008 Cmd Rej: Ten GTA Lengths are supported per Commands Error Recovery Manual GTTSET E4008 Cmd Rej: Ten GTA Lengths are supported per GTTSET Commands Used: ent-gta If the variable length GTT (VGTT) feature is turned on, you cannot provision more than 10 GTA lengths per GTT set.

  • Page 585: Table 2-32. Valid Pvn Subnet Mask Values

    Commands Error Recovery Manual E4012 Cmd Rej: Invalid PVNMASK Recovery Perform one of the following actions: • Re-enter the command without specifying the ndgt parameter. • Enter the ent-gta or ent-gtt command to provision up to 10 different GTA lengths per GTT set. E4012 Cmd Rej: Invalid PVNMASK Commands Used: chg-netopts The IP address specified by the Private Virtual Network subnet mask (pvnmask) parameter is invalid.
  • Page 586 E4015 Cmd Rej: CGSR or CDSR shouldn't be specified Commands Error Recovery Manual when SADDR is specified Recovery Re-enter the rtrv-gsmmap-scrn command specifying both the cdsr and the cgsr parameters. E4015 Cmd Rej: CGSR or CDSR shouldn't be specified when SADDR is specified Commands Used: rtrv-gsmmap-scrn For the rtrv-gsmmap-scrn command, if you specify the saddr parameter, the cgsr or cdsr parameters cannot...
  • Page 587 Commands Error Recovery Manual E4019 Cmd Rej: OPCODE and OPNAME shouldn't be specified together • Re-enter the rtrv-gsmmap-scrn command specifying the action or forbid parameters, but do not include either the cdsr parameter or the combination of saddr (with or without eaddr), npv, and naiv parameters. E4019 Cmd Rej: OPCODE and OPNAME shouldn't be specified together Commands Used: rtrv-gsms-opcode...
  • Page 588 E4032 Cmd Rej: Either BUS or Location (not both) Commands Error Recovery Manual must be specified Re-enter the rept-int-info command specifying the sshelf and/or eshelf parameters and report=hmuxerr. E4032 Cmd Rej: Either BUS or Location (not both) must be specified Commands Used: init-mux The bus or loc parameter must also be specified.
  • Page 589 Commands Error Recovery Manual E4035 Cmd Rej: TTA must be specified for a direction of ATOI E4035 Cmd Rej: TTA must be specified for a direction of ATOI Commands Used: chg-gtcnv, dlt-gtcnv If you specify that the direction of conversion is ANSI-to-ITU (dir=atoi), the ANSI translation type (tta) parameter must be specified.

  • Page 590: Table 2-33. Routing Keys And Supported Pstn Categories And Pstn Ids For

    E4039 Cmd Rej: MULTGC=YES not allowed if Commands Error Recovery Manual ITUDUPPC feature is OFF Table 2-33. Routing Keys and Supported PSTN Categories and PSTN IDs for PSTN Category 1 pstnid for pstncat = 1 Routing Key Entry norm=yes is 3=UK PNO- 4=GERMAN PC Type...
  • Page 591 Commands Error Recovery Manual E4040 Cmd Rej: Invalid combination of PSTNCAT and PSTNID values Re-enter the command without specifying a value of yes for the multiple group code (multgc) parameter. E4040 Cmd Rej: Invalid combination of PSTNCAT and PSTNID values Commands Used: chg-appl-rtkey You specified an invalid combination of pstncat and pstnid parameter values.
  • Page 592 E4045 Cmd Rej: Linkset with MULTGC=YES requires Commands Error Recovery Manual IPGWI/IPLIMI/IPSG GPL Re-enter the command specifying the correct format and parameters. Refer to the Commands Manual for detailed information about the use of these commands. E4045 Cmd Rej: Linkset with MULTGC=YES requires IPGWI/IPLIMI/IPSG GPL Commands Used: ent-slk When the specified linkset name (lsn) is defined with multgc=yes, the card in the specified card location must be...
  • Page 593 Commands Error Recovery Manual E4048 Cmd Rej: All signaling links serviced by the E1 must be deactivated Associate at least one signaling link with the card. Enter the ent-slk command. Refer to the Commands Manual for detailed information about the use of the ent-slk command.
  • Page 594 E4051 Cmd Rej: TS value on the E1 already in use by a Commands Error Recovery Manual signaling link Display the E1 port and card location information. Enter the rtrv-e1 command. Verify that the e1loc parameter specifies the correct card location. Verify that the e1loc parameter specifies the correct card location.
  • Page 595 Commands Error Recovery Manual E4054 Cmd Rej: The E1PORT at the specified location is already equipped E4054 Cmd Rej: The E1PORT at the specified location is already equipped Commands Used: ent-e1 You cannot add an E1 interface to the database if the e1port on the E1 card (e1port = 1 or 2) already has an E1 interface defined on that E1 card in the specified location.
  • Page 596 E4056 Cmd Rej: Timeslot 16 on the E1 is in use, CAS = Commands Error Recovery Manual ON not allowed Call your Customer Care Center if this error message appears again. See the "Customer Care Center" section in Chapter 1 of this manual. E4056 Cmd Rej: Timeslot 16 on the E1 is in use, CAS = ON not allowed Commands Used: chg-e1...
  • Page 597 Commands Error Recovery Manual E4058 Cmd Rej: The Channel card must be on the same shelf as its E1 card. Delete the E1 or T1 interface. Re-enter the dlt-e1 or dlt-t1 command. E4058 Cmd Rej: The Channel card must be on the same shelf as its E1 card.
  • Page 598 E4062 Cmd Rej: Inhibit IPSM card(s) before changing Commands Error Recovery Manual feature status ADJPC's group code. If the ADJPC's group code is changed, MULTGC must be YES or there must be no routes using the linkset. Recovery Enter the chg-ls command to update apc/sapc group code. E4062 Cmd Rej: Inhibit IPSM card(s) before changing feature status Commands Used: chg-ctrl-feat...
  • Page 599 Commands Error Recovery Manual E4064 Cmd Rej: Host Name Referenced by Application Socket or Association E4064 Cmd Rej: Host Name Referenced by Application Socket or Association Commands Used: dlt-ip-host You cannot delete a host name from the IP Host table if the host name is still referenced by one or more application sockets or associations.
  • Page 600 E4067 Cmd Rej: Only ASNAME or RCONTEXT Commands Error Recovery Manual allowed for default rtkey Enter the rtrv-appl-rtkey command. Verify that the AS name and routing key for your command are correct and unique. Re-enter the ent-appl-rtkey command specifying the correct AS name and routing key. E4067 Cmd Rej: Only ASNAME or RCONTEXT allowed for default rtkey Commands Used: ent-appl-rtkey...
  • Page 601 Commands Error Recovery Manual E4073 Cmd Rej: AS/socket cannot be deleted while assigned to a routing key E4073 Cmd Rej: AS/socket cannot be deleted while assigned to a routing key Commands Used: dlt-assoc, dlt-as You entered a command to delete an AS from the AS table, and the AS is still associated with a routing key. You must first delete the AS association with the routing key before you can delete the AS.
  • Page 602 E4077 Cmd Rej: Parameters incompatible with adapter Commands Error Recovery Manual type Re-enter the command specifying the correct card location in the loc parameter for the card on which you want to add, change, delete, or retrieve the E1 interface. E4077 Cmd Rej: Parameters incompatible with adapter type Commands Used:dlt-appl-rtkey, alw-slk, ent-assoc, inh-slk, tst-slk, unhb-slk IPSG-M3UA signaling link testing is not supported.
  • Page 603 Commands Error Recovery Manual E4083 Cmd Rej: Connection adapter type does not match AS adapter type Display the associations with ASs in the AS table. Enter the rtrv-as command. To create another association with the AS, you must first delete an existing association from the AS. Refer to the Commands Manual for detailed information about the use of the dlt-as command.
  • Page 604 E4091 Cmd Rej: Association connection parameters Commands Error Recovery Manual must be unique Enter the dlt-as command specifying the association name parameter (aname=) of the association to delete. Re-enter the chg-assoc command to change the adapter value for the desired association. E4091 Cmd Rej: Association connection parameters must be unique Commands Used: chg-assoc, ent-assoc...
  • Page 605 Commands Error Recovery Manual E4094 Cmd Rej: IPSM card has Critical Thermal Alarm Recovery Display the associations in the IPAPSOCK table. Enter the rtrv-assoc command. Re-enter the command if the card allows another association. Call your Customer Care Center if this error message appears again. See the "Customer Care Center" section in Chapter 1 of this manual.
  • Page 606 E4098 Cmd Rej: OPEN must be NO to change an Commands Error Recovery Manual Association or its AS/Rtkey Enter the rtrv-ip-lnk command. Re-enter the command that generated this message, specifying the host name associated with the A interface. Call your Customer Care Center if this error message appears again. See the "Customer Care Center" section in Chapter 1 of this manual.
  • Page 607 Commands Error Recovery Manual E4099 Cmd Rej: Association name not found E4099 Cmd Rej: Association name not found Commands Used:chg-assoc, dlt-assoc, rept-stat-assoc rept-meas, ent-slk You entered a command that specified an association name; the name that you specified is not defined in the IPAPSOCK table.
  • Page 608 E4102 Cmd Rej: At least one EPAP DB feature/LNP Commands Error Recovery Manual ELAP CFG must be enabled/ON If the value of the appl parameter is sccp enter a valid parameter value. Refer to the ELAP Administration Manual for assistance Re-enter the command that generated this message.
  • Page 609 Commands Error Recovery Manual E4108 Cmd Rej: Host assignment to IPLIM/IPLIMI card not supported The AS cannot be assigned to a routing key. The connection state for the associations assigned to the AS must be open=no Delete an AS from the AS table. Enter the dlt-as command.
  • Page 610 E4114 Cmd Rej: TTA cannot be specified for a direction Commands Error Recovery Manual of ITOA The command you entered is not allowed at this time because the OAM measurements collection is in progress. Measurement requirements for disk access are not compatible with the copy-disk and format-disk commands.
  • Page 611 Commands Error Recovery Manual E4117 Cmd Rej: Wildcard/Asterisk combination invalid for direction Re-enter the command without specifying wildcards or asterisks if the direction of conversion is BOTH (dir=both) parameter is specified. E4117 Cmd Rej: Wildcard/Asterisk combination invalid for direction Commands Used: ent-gtcnv The specified command is invalid because the combination of wildcards used is not correct for the specified (dir) parameter.
  • Page 612 E4121 Cmd Rej: ENCODE = AMI not currently Commands Error Recovery Manual supported Recovery Enter the ent-gtcnv command specifying all the key values dir, tta, tti, np, and nai. Once all key values are defined, re-enter the original command. E4121 Cmd Rej: ENCODE = AMI not currently supported Commands Used: chg-e1, ent-e1, ent-t1 You cannot specify a value of ami for the encode parameter (encode=ami) for a 2-port E1 card.
  • Page 613 Commands Error Recovery Manual E4125 Cmd Rej: Maximum SAPC entries exceeded Display all apc/sapc entries for the specified linkset. Enter the rtrv-ls:lsn command. Delete the apc/sapc entry. Enter the chg-ls command specifying action=delete, if necessary. E4125 Cmd Rej: Maximum SAPC entries exceeded Commands Used: chg-ls No additional secondary adjacent point code (sapc) entry can be added.
  • Page 614 E4129 Cmd Rej: SAPC allowed for ITU-I or ITU-N Commands Error Recovery Manual linkset only Recovery Delete a sapc entry. Enter the chg-ls command specifying action=delete. E4129 Cmd Rej: SAPC allowed for ITU-I or ITU-N linkset only Commands Used: chg-ls The secondary adjacent point code (sapc) value specified is not allowed for this ANSI linkset.
  • Page 615 Commands Error Recovery Manual E4133 Cmd Rej: Group code required for ITUN when ITUDUPPC feat is ON For the dlt-na command, enter the rtrv-na command to display the existing network appearances. Verify the network appearance that you want to delete. Re-enter the command that generated this message without specifying the gc parameter for the network appearance.
  • Page 616 E4138 Cmd Rej: NA entry not found Commands Error Recovery Manual You entered a command to define a network appearance that already exists in the Network Appearance table. Recovery Display the existing network appearances in the Network Appearance table. Enter the rtrv-na command. Re-enter the ent-na command to define a network appearance that does not already exist in the Network Appearance table.
  • Page 617 Commands Error Recovery Manual E4141 Cmd Rej: IPSM card(s) must be inhibited to enable telnet feature E4141 Cmd Rej: IPSM card(s) must be inhibited to enable telnet feature Commands Used: chg-ctrl-feat Before you can change the status of the Telnet feature (either turning on or turning off), you must first inhibit all Internet Protocol Services Module (IPSM) cards.
  • Page 618 E4149 Cmd Rej: ARM register must be specified Commands Error Recovery Manual Recovery Re-enter the ent-bp command specifying the correct format and parameters. Refer to the Commands Manual for detailed information about the use of the ent-bp command. E4149 Cmd Rej: ARM register must be specified Commands Used: ent-bp The ca, cb, and drarm register values must be specified for an IXP-based card with processor type=arm.
  • Page 619 Commands Error Recovery Manual E4153 Cmd Rej: CA or CB register value is invalid for this card Refer to the Commands Manual for detailed information about the use of the ent-bp command. E4153 Cmd Rej: CA or CB register value is invalid for this card Commands Used: ent-bp The ca, cb, and drarm register values must be specified for an IXP-based card with processor type=arm.
  • Page 620 E4157 Cmd Rej: DA parameter is invalid for this card Commands Error Recovery Manual E4157 Cmd Rej: DA parameter is invalid for this card Commands Used: ent-bp The dump address (da) parameter is not valid on an IXP-based card. Recovery Re-enter the ent-bp command specifying the correct format and parameters.
  • Page 621 Commands Error Recovery Manual E4161 Cmd Rej: Routing Context parameter is required for SUA E4161 Cmd Rej: Routing Context parameter is required for Commands Used: chg-appl-rtkey, ent-appl-rtkey, ent-as Routing context is mandatory for routing keys associated with an AS containing SUA ASPs. Recovery - chg-appl-rtkey, ent-appl-rtkey You attempted to add or change a routing key without specifying a routing context value.
  • Page 622 E4165 Cmd Rej: Point Code Subtype Prefix not Commands Error Recovery Manual supported • If the feature is disabled or not showing it must be enabled. Refer to the Database Adminstration Manual - System Management to enable this feature. • Re-enter the command to set the gflexmaplayerrtg parameter.
  • Page 623 Commands Error Recovery Manual E4168 Cmd Rej: At least one Non-Key parm that is to be changed is required Re-enter the chg-ctcnv command specifying gtixlatt=22 and without specifying the np and nai parameters. E4168 Cmd Rej: At least one Non-Key parm that is to be changed is required Commands Used: chg-gtcnv The command is invalid because it does not specify at least one non-key parameter to be changed.
  • Page 624 E4171 Cmd Rej: SCCP Conversion feature must be Commands Error Recovery Manual enabled E4171 Cmd Rej: SCCP Conversion feature must be enabled Commands Used: chg-gta, chg-gtcnv, chg-gtt, chg-gttset, chg-stpopts, chg- sccpopts, dlt-gtcnv, ent-gta, ent-gtcnv, ent-gtt, ent-gttset, rtrv-gta, rtrv-gtcnv, rtrv-gttset The ANSI/ITU/24 Bit SCCP Conversion feature must be enabled before you can specify the netdom=cross parameter.
  • Page 625 Commands Error Recovery Manual E4173 Cmd Rej: Not compatible with SCCP Conversion feature E4173 Cmd Rej: Not compatible with SCCP Conversion feature Commands Used: chg-feat You cannot specify either the SCCP Conversion (SCCPCNV feature bit) or TCAP Conversion (TCAPCNV feature bit) features because the ANSI-ITU-China SCCP Conversion feature is already enabled.
  • Page 626 Commands Used: enable-ctrl-feat The Equipment Identity Register (EIR) feature cannot be enabled if the EAGLE 5 ISS contains TSM cards (i.e., the test verifies that no SCCP GPLs are present). The EIR feature requires DSM cards, not TSM cards.
  • Page 627 Commands Error Recovery Manual E4180 Cmd Rej: Wildcard SSN already exists Recovery Display the cards and loads in the system. Enter the rtrv-card command. If a TSM card is present in the system, it will show the APPL as SCCP, which is incompatible with the EIR feature.
  • Page 628 E4183 Cmd Rej: INP/AINPQ/EIR/ feature must be ON Commands Error Recovery Manual Recovery Enter the rtrv-sid command to see the point codes (pca/pci/pcn) assigned to the system. Enter the ent-map command and assign mated application values for the true point code (pc/pca/pci/ pcn) and the EIR subsystem number (ssn).
  • Page 629 Commands Error Recovery Manual E4186 Cmd Rej: Required feature (s) must be enabled/ Enter the rtrv-ctrl-feat command. Refer to the procedures in the Feature Manual – EIR to enable and turn on the EIR feature. Re-enter the command that generated this error message. Call your Customer Care Center if this error message appears again.
  • Page 630 E4188 Cmd Rej: LNP/EIR/ must be enabled or INP/ Commands Error Recovery Manual AINPQ must be ON E4188 Cmd Rej: LNP/EIR/ must be enabled or INP/AINPQ must be ON Commands Used: rtrv-ss-appl The rtrv-ss-appl command is not valid unless one of the following conditions is true: •...
  • Page 631 Commands Error Recovery Manual E4191 Cmd Rej: GFLEX/EIR must be ON or GPORT/ IGM enabled Re-enter the command that generated this error message specifying the correct values for the SSN value. Refer to the Commands Manual for assistance. E4191 Cmd Rej: GFLEX/EIR must be ON or GPORT/IGM enabled Commands Used: chg-gsmopts Before the chg-gsmopts command can be specified, the G-Flex feature must be turned on, EIR must be enabled...
  • Page 632 E4193 Cmd Rej: Spare Point Code Feature must be Commands Error Recovery Manual enabled Re-enter the command that generated this message. Call your Customer Care Center if this error message appears again. See the "Customer Care Center" section in Chapter 1 of this manual.. E4193 Cmd Rej: Spare Point Code Feature must be enabled Commands Used: ent/chg-dstn, ent/dlt-cspc, ent/chg-map, ent-na, ent/dlt/ rtrv-spc, ent/chg/vfy-sid, ent/chg/dlt/rtrv-scr-aftpc, ent/chg/dlt/rtrv-...
  • Page 633 Commands Error Recovery Manual E4197 Cmd Rej: CCGT and NGTI are mutually exclusive The Spare Point Code feature cannot be enabled if TALI sockets have been provisioned for an IPGWI card. Recovery Call your Customer Care Center. See the "Customer Care Center" section in Chapter 1 of this manual. E4197 Cmd Rej: CCGT and NGTI are mutually exclusive Commands Used: chg-gta, ent-gta If the ccgt parameter is specified, the ngti parameter cannot be specified.
  • Page 634 E4200 Cmd Rej: Cannot use NEXT if preceding RTRV- Commands Error Recovery Manual LOG command used TYPE=ALL E4200 Cmd Rej: Cannot use NEXT if preceding RTRV-LOG command used TYPE=ALL Commands Used: rtrv-log You specified the next parameter that followed a rtrv-log command specifying the type=all parameter. You cannot use the next parameter with the type=all parameter.
  • Page 635 Commands Error Recovery Manual E4203 Cmd Rej: ENUM requires an SNUM as its mate parameter E4203 Cmd Rej: ENUM requires an SNUM as its mate parameter Commands Used: rtrv-log, rtrv-trbltx You specified the enum parameter but not with its mate parameter, snum. When enum is specified, the snum parameter is required too.
  • Page 636 E4208 Cmd Rej: No other parameters are permitted Commands Error Recovery Manual with the NEXT parameter Re-enter the rtrv-log command without specifying the next parameter. To extend the display of UAM or UIM log entries, re-enter the rtrv-log command specifying the next parameter, while making certain that no other terminal enters an intervening rtrv-log command.
  • Page 637 Commands Error Recovery Manual E4212 Cmd Rej: Cannot execute command until table initialization complete The command entered is invalid because it specified incorrect date/time parameters when dir=bkwd (direction is a backward search). For a backward search direction, the specified sdate/stime must be greater than the edate/ etime.
  • Page 638 E4215 Cmd Rej: LOC and T1PORT parameter Commands Error Recovery Manual combination must be specified E4215 Cmd Rej: LOC and T1PORT parameter combination must be specified Commands Used: inh-alm, unhb-alm When the dev=t1port parameter is specified, the loc parameter and the t1port parameter must be specified Recovery Re-enter the command specifying the correct format and parameters.
  • Page 639 Commands Error Recovery Manual E4219 Cmd Rej: Mated linksets must contain only SS7IPGW or IPGWI links The output displays mates of other linksets under the MATELSN heading. Based on the output from step 1, verify that the correct matelsnwas specified. If the correct matelsn was specified, then the number of signaling links assigned to that linkset must be reduced to one in order to allow the linkset to be referenced as a matelsn.
  • Page 640 E4222 Cmd Rej: Card having link in mate linkset must Commands Error Recovery Manual first be inhibited NOTE: The following card locations are not valid for the rmv-card command: 1113, 1114, 1115, 1116, 1117, 1118, and all xy09 and xy10 locations (where x is the frame and y is the shelf).
  • Page 641 Commands Error Recovery Manual E4225 Cmd Rej: Mate already exists for linkset You cannot assign more than eight SS7IPGW or IPGWx signaling links to an unmated linkset. For an unmated linkset, a maximum of eight SS7IPGW or IPGWx signaling links are allowed per linkset. Recovery Verify that the card in the specified location is running an unmated SS7IPGW or IPGWx application.
  • Page 642 E4235 Cmd Rej: NGT can only be specified when Commands Error Recovery Manual XLAT=DPC or DPCNGT E4235 Cmd Rej: NGT can only be specified when XLAT=DPC or DPCNGT Commands Used: chg-gtt, ent-gtt If the ANSI-ITU-China SCCP Conversion feature is on, the ngt parameter can be specified only if the xlat=dpc parameter or the xlat=dpcngt parameter is specified The ngt parameter can only be specified when xlat=dpc or xlat=dpcngt.
  • Page 643 Commands Error Recovery Manual E4239 Cmd Rej: At least one other optional parameter is required The Signal Transfer Point (STP) validates the command to ensure that the specified destination address does not correspond to the STP’s secondary point code. Recovery Display the site destination secondary point codes (SPCs) in the system.
  • Page 644 E4241 Cmd Rej: Link test must not be running on Commands Error Recovery Manual requested link • Refer to the Feature Manual – G-Flex for details about using the G-Flex feature. E4241 Cmd Rej: Link test must not be running on requested link Commands Used: act-cdl, act-lbp, dact-lbp You entered this command while a tst-slk command was running.
  • Page 645 Commands Error Recovery Manual E4243 Cmd Rej: Link test command in progress Call your Customer Care Center if this error message appears again. See the "Customer Care Center" section in Chapter 1 of this manual. E4243 Cmd Rej: Link test command in progress Commands Used: tst-slk You entered this command for a specified signaling link that is already performing a link test.
  • Page 646 E4246 Cmd Rej: Command driven loopback in progress Commands Error Recovery Manual Enter the rtrv-card command to verify the card type and application at the specified location is one of the following: An AINF LIM (card type limds0, limocu, limv32 and either application ss7ansi or ccs7itu), or A multi-port LIM (card type limds0 and application ss7ansi), or An E1/T1 MIM (card type lime1, limt1, or limch and either application ss7ansi or ccs7itu), or limatm, or lime1atm...
  • Page 647 Commands Error Recovery Manual E4249 Cmd Rej: Mate linkset not defined You must either remove the resident version before activating a new one, or you must activate the resident version before activating a new version. E4249 Cmd Rej: Mate linkset not defined Commands Used: chg-ls You specified a mate linkset (matelsn) that is not defined.
  • Page 648 E4253 Cmd Rej: LSUSEALM allowed only for IPGWx Commands Error Recovery Manual and IPSG linksets The iptps parameter cannot be specified for linksets that are not IPGWx. The ipgwapc=yes parameter must be specified before the iptps parameter can be specified. Recovery Re-enter the command that generated this error message without specifying the iptps parameter.
  • Page 649 Commands Error Recovery Manual E4256 Cmd Rej: TPS must be divisible by 10 Then display the IPTPS values for the existing linksets with the rtrv-ls command. (The error occurs when the sum of the provisioned System TPS plus the new TPS being defined is greater than the system TPS limit).
  • Page 650 E4259 Cmd Rej: Target card is not in Active state Commands Error Recovery Manual Display the cards in the system. Enter the rtrv-card command. DSM VSCCP cards are identified by the entries DSM in the TYPE field and VSCCP in the APPL field in the rtrv-card command output. Re-enter the command specifying the loc parameter of a DSM card with the VSSCP application.
  • Page 651 Commands Error Recovery Manual E4264 Cmd Rej: Parameter PCST / NPCST is not allowed with C for blocked SR Enter the rtrv-appl-rtkey command. Assign a valid si value to the appropriate routing key. Enter the chg-appl-rtkey command. Re-enter the ent-as command to create the AS. E4264 Cmd Rej: Parameter PCST / NPCST is not allowed with C for blocked SR Commands Used: chg/dlt/ent/rtrv-scr-aftpc, chg/dlt/ent/rtrv-scr-cdpa, chg/...
  • Page 652 E4267 Cmd Rej: Invalid timing source for channel Commands Error Recovery Manual bridging E4267 Cmd Rej: Invalid timing source for channel bridging Commands Used: ent-e1, chg-e1, ent-t1, chg-t1 To use the chanbrdg parameter, you must also specify a timing source (e1tsel). The timing source valid entries are master (internal), slave (line), or recovered from its paired port.
  • Page 653 Commands Error Recovery Manual E4270 Cmd Rej: Failed reading Application Socket table E4270 Cmd Rej: Failed reading Application Socket table Commands Used: enable-cntrl-feat The Application Socket table could not be read. Recovery Verify that an Application Socket table entry exists with the parameter values you specified. Enter the rtrv-appl-sock command.
  • Page 654 E4273 Cmd Rej: Private PC is only allowed for IPGWx Commands Error Recovery Manual linksets A routing key containing a routing context may only be deleted if all of the ASPs associated with the routing key are open=no. E4273 Cmd Rej: Private PC is only allowed for IPGWx linksets Commands Used: chg-ls, ent-ls Private (p-) and private and spare (ps-) point codes can only be assigned to IPGW linksets (the ipgwapc=yes...
  • Page 655 Commands Error Recovery Manual E4276 Cmd Rej: If specified BPS must be 1984000 when Linkclass = Unchan Enter the rtrv-e1 command and verify the E1PORT setting for the card location in question. Re-enter the ent-slk command specifying the correct format and parameters. Refer to the Commands Manual for detailed information about the use of the ent-slk command.
  • Page 656 E4279 Cmd Rej: Only IPGW routes are allowed for Commands Error Recovery Manual private PCs E4279 Cmd Rej: Only IPGW routes are allowed for private Commands Used: ent-rte, ent-rtx, chg-rte You cannot specify a private point code as the destination point code (dpca/dpci/dpcn) for a non-IPGW route. A destination point code cannot be a private point code for a link set that is not an IP gateway route.
  • Page 657 Commands Error Recovery Manual E4282 Cmd Rej: A SEHSL feature key must be enabled to provision SEHSL Verify the E1 port setting for the card location in question. Enter the rtrv-e1 command. Re-enter the ent-slk command specifying link=a or link=b for SE-HSL un-channelized links. Refer to the Commands Manual for detailed information about the use of the ent-slk command.
  • Page 658 E4284 Cmd Rej: CGPA entry can’t be provisioned Commands Error Recovery Manual The lock commands is invalid and cannot be performed from a Telnet terminal. For the act-upgrade command: Display a list of valid terminal choices. Enter the rtrv-trm command. If the entry in the TYPE column is telnet, the terminal is not a valid choice.
  • Page 659 Commands Error Recovery Manual E4286 Cmd Rej: EADDR shouldn't be specified when SADDR = * When the EGMS feature is on, re-enter the command that generated this message. E4286 Cmd Rej: EADDR shouldn't be specified when SADDR Commands Used: ent-gsmmap-scrn, rtrv-gsmmap-scrn You specified the saddr=* parameter, so the eaddr parameter is not needed and not allowed.
  • Page 660 E4290 Cmd Rej: CDSR must be specified when NCDSR Commands Error Recovery Manual is specified Re-enter the command specifying a value for the cgsr or ncgsr parameters that is not in the output from step E4290 Cmd Rej: CDSR must be specified when NCDSR is specified Commands Used:chg-gsmmap-scrn , enable-ctrl-feat You cannot specify the ncdsr parameter without specifying the cdsr parameter.
  • Page 661 Commands Error Recovery Manual E4292 Cmd Rej: SADDR must be specified when EGMS feature is OFF Enter the enable-ctrl-feat command and the appropriate part number and access key information. Refer to the Commands Manual and the Database Administration Manual – Features for more information about enabling this feature.
  • Page 662 E4295 Cmd Rej: The FEATURE/ANSIGFLEX option Commands Error Recovery Manual combination is invalid When the Enhanced GSM MAP Screening (EGMS) feature is turned on, this command cannot be used to generate EGMS measurements reports. Recovery Enter the rept-ftp-meas command. Refer to the Commands Manual for detailed information about the use of this command. Call your Customer Care Center if this error message appears again.
  • Page 663 Commands Error Recovery Manual E4296 Cmd Rej: SRVSEL of ITU found, but not allowed with ANSIGFLEX Call your Customer Care Center if this error message appears again. See the "Customer Care Center" section in Chapter 1 of this manual. E4296 Cmd Rej: SRVSEL of ITU found, but not allowed with ANSIGFLEX Commands Used: chg-stpopts The ansigflex option cannot be enabled when Service Selector table contains an ITU entry.
  • Page 664 E4299 Cmd Rej: Cannot enter a wildcard with Commands Error Recovery Manual XLAT=2, Use XLAT=4 for wildcard If 8000 entries are provisioned, perform one of the following actions: Delete destination point code entries until the number of provisioned aliases is less than 8000. Enter the dlt-dstn command.
  • Page 665 Commands Error Recovery Manual E4301 Cmd Rej: PCx specified does not exist as a True Point Code • Re-enter the rtrv-data-gms command specifying both the cgds and cgpa parameters. • Re-enter the rtrv-data-gms command specifying both the cdds and cdpa parameters. E4301 Cmd Rej: PCx specified does not exist as a True Point Code Commands Used:chg-sid...
  • Page 666 E4318 Cmd Rej: VENDID already exists in VENDID Commands Error Recovery Manual table Re-enter the command that generated this message. Call your Customer Care Center if this error message appears again. See the "Customer Care Center" section in Chapter 1 of this manual. E4318 Cmd Rej: VENDID already exists in VENDID table Commands Used: ent-vendid The specified ID entry is already present in the Vendor ID table.
  • Page 667 Commands Error Recovery Manual E4321 Cmd Rej: All VENDID table entries must be of length VENDIDLEN Display the status of the GSM MAP SRI Redirect feature in the database. Enter the rtrv-ctrl-feat commands. If the GSM MAP SRI Redirect feature does not appear in the output of step 1: Refer to the procedure in the Database Administration Manual - Features to enable the GSM MAP SRI Redirect feature.
  • Page 668 E4323 Cmd Rej: Invalid condition value comparison for Commands Error Recovery Manual CA or CB register. E4323 Cmd Rej: Invalid condition value comparison for CA or CB register. Commands Used: ent-bp The condition value specified for comparison of the CA or CB registers is invalid. Recovery Re-enter the ent-bp command specifying a valid set of condition values.
  • Page 669 Commands Error Recovery Manual E4326 Cmd Rej: ELAP must be available to verify LNP quantity support Call your Customer Care Center if this error message appears again. See the "Customer Care Center" section in Chapter 1 of this manual. E4326 Cmd Rej: ELAP must be available to verify LNP quantity support Commands Used: enable-ctrl-feat You cannot enable an LNP feature greater than 96 Million because no ELAP is currently available.
  • Page 670 E4329 Cmd Rej: Set SERVERPFX to NONE before Commands Error Recovery Manual disabling IS412GSM E4329 Cmd Rej: Set SERVERPFX to NONE before disabling IS412GSM Commands Used: chg-gsmopts The serverpfx parameter must be set to none before you can disable IS-41-to-GSM Migration feature Recovery Enter the chg-gsmopts command to set serverpfx=none.
  • Page 671 Commands Error Recovery Manual E4333 Cmd Rej: Cannot specify IP routes to the PVN Re-enter the chg-ip-lnk or chg-netopts command specifying IP network addresses that are not the same for the PVN and the card's ethernet interface. E4333 Cmd Rej: Cannot specify IP routes to the PVN Commands Used: ent-ip-rte You cannot specify a destination IP network address using the dest and the submask parameters that is the same as the network address specified by the pvn and pvnmask parameters defined in the NETOPTS table.
  • Page 672 E4336 Cmd Rej: : TINP and CNCF cannot be in the Commands Error Recovery Manual same action set Determine if multiple cgssn/selid entries exist for the specified global title selector. Enter the rtrv-gttsel command specifying the gti and tt parameters. •...
  • Page 673 Commands Error Recovery Manual E4340 Cmd Rej: Common screening list key invalid E4340 Cmd Rej: Common screening list key invalid Commands Used: chg-csl, ent-csl The parameter specified for the common screening list key is invalid. Refer to the command descriptions in the Commands Manual for a list of valid screening list parameters.

  • Page 674: Table 2-34. Number Of Allowed Prefixes

    E4345 Cmd Rej: Feature Prefix already exists Commands Error Recovery Manual Table 2-34. Number of Allowed Prefixes Feature Name Number of Allowed Prefixes GSM MAP SRI Redirect Prepaid IDP Query Relay ISUP NP with EPAP 7 (5 values, 1 Insertion Country Code, and 1 Deletion Condition) Recovery Display the provisioned prefix information for all features.
  • Page 675 Commands Error Recovery Manual E4347 Cmd Rej: Feature Name is not valid E4347 Cmd Rej: Feature Name is not valid Commands Used: chg-prefix, dlt-prefix, rtrv-prefix The specified feature name must be the name of an enabled controlled feature as it is displayed in the rtrv-ctrl-feat command output;...
  • Page 676 E4352 Cmd Rej: SUBNETID table is full Commands Error Recovery Manual Display the status of controlled features in the system by entering the rtrv-ctrl-feat command If the Telnet feature is not enabled, or not shown in the output from Step 1, refer to the Database Administration Manual - System Management for assistance in enabling the feature.
  • Page 677 Commands Error Recovery Manual E4355 Cmd Rej: SUBNETID does not exist in SUBNETID table Enter the rtrv-subnetid command. Change an existing Subnet ID entry. Enter the chg-subnetid command. OR Display the Subnet ID table. Enter the rtrv-subnetid command. Delete an existing Subnet IDentry. Enter the dlt-subnetid command.
  • Page 678 E4358 Cmd Rej: SUBNETIDLEN may only be changed Commands Error Recovery Manual if SUBNETID table is empty If there are no entries in the Subnet ID table, the value of the subnetidlen parameter may be changed. Recovery Determine the value of the subnetidlen parameter. Enter the rtrv-subnetid command.
  • Page 679 Commands Error Recovery Manual E4360 Cmd Rej: VENDIDLEN must be set before Vendor ID may be entered Recovery Provision a prefix for the ISUP NP with EPAP feature. Enter the chg-prefix command. Re-enter the ent-subnetid command that generated this message. E4360 Cmd Rej: VENDIDLEN must be set before Vendor ID may be entered Commands Used: ent-vendid...
  • Page 680 E4363 Cmd Rej: Enter params SUBNETIDLEN or Commands Error Recovery Manual paramrs SUBNETID and SUBNETNUM Recovery Specify a value for the subnetidlen parameter. Enter the ent-subnet:subnetidlen=xx command where xx is any value from 1-15. Re-enter the ent-subnetid command to enter subnet ID values. E4363 Cmd Rej: Enter params SUBNETIDLEN or paramrs SUBNETID and SUBNETNUM Commands Used: ent-subnetid...

  • Page 681: Table 2-35. Parameter Combinations For The Inh-Alm Command

    Commands Error Recovery Manual E4366 Cmd Rej: DEV type is not supported by specified location If the TLNP feature is turned on, or the ISUP NP with EPAP feature is enabled, re-enter the chg-gws- actset command that generated this message. If the TLNP feature is turned off or the ISUP NP with EPAP feature does not appear in the output from step 1, refer to the procedures in the Database Administration Manual - Gateway Screening for provisioning and using the TLNP stop action.
  • Page 682 E4367 Cmd Rej: Cannot change network domain to Commands Error Recovery Manual anything other than CROSS Value (:dev) Device Parameter :sname :t1port=1-8 :trm Recovery Re-enter the command specifying the correct format and parameters. Refer to the Commands Manual for detailed information about the use of these commands. E4367 Cmd Rej: Cannot change network domain to anything other than CROSS Commands Used: chg-gttset...
  • Page 683 Commands Error Recovery Manual E4369 Cmd Rej: Cannot assign APC with exception routes to linkset E4369 Cmd Rej: Cannot assign APC with exception routes to linkset Commands Used: ent-rtx You cannot provision exception routes for adjacent point codes. Adjacent point codes cannot have exception routes. Recovery Re-enter the ent-rtx command specifying a point code value that is not an adjacent point code.
  • Page 684 E4375 Cmd Rej: Route Exception already exists for Commands Error Recovery Manual input parameters Re-enter the ent-as command specifying a different AS. Refer to the Commands Manual for detailed information about the use of the ent-as command. Display the AS and its associations. Enter rtrv-as command.
  • Page 685 E4378 Cmd Rej: Maximum Route Exceptions already exist for this STP Commands Used: ent-rtx The overall number of exception routes and normal routes that may be defined for the EAGLE 5 ISS cannot be over 8000. Recovery Display the Route table.
  • Page 686 E4380 Cmd Rej: Route Exception does not exist Commands Error Recovery Manual E4380 Cmd Rej: Route Exception does not exist Commands Used: chg-rtx, dlt-rtx The combination of exception route parameter conditions specified does not exist. Recovery Display the Route table. Enter the rtrv-rtx command.
  • Page 687 Commands Error Recovery Manual E4384 Cmd Rej: Use type=remote or enter ipaddr in IPLNK table E4384 Cmd Rej: Use type=remote or enter ipaddr in IPLNK table Commands Used: ent-ip-host The system detected the host as type=local but the IP address does not exist in the IP-LNK table. For local hosts, the IP address must exist in the IP-LNK table.
  • Page 688 E4386 Cmd Rej: IP Address found in host table Commands Error Recovery Manual Enter the chg-ip-lnk:ipaddr=0.0.0.0 command. Re-enter the ent-ip-host command specifying the correct format and parameters. Refer to the Commands Manual for detailed information about the use of the ent-ip-host command. E4386 Cmd Rej: IP Address found in host table Commands Used: chg-ip-lnk You attempted to change an IP address to a remote host but a corresponding IPHOST entry to that IP address is...
  • Page 689 Commands Error Recovery Manual E4389 Cmd Rej: BOOT=NO not supported for specified Re-enter the ent-rtx command specifying a value for the dpc parameter that is not an Adjacent Point Code. E4389 Cmd Rej: BOOT=NO not supported for specified gpl Commands Used: init-flash The boot parameter cannot be set to NO if the gpl being downloaded is BLCPLD.
  • Page 690 E4393 Cmd Rej: Origin Based SCCP Routing feature Commands Error Recovery Manual must be enabled E4393 Cmd Rej: Origin Based SCCP Routing feature must be enabled Commands Used: chg-gta, chg-gttsel, chg-ls, chg-sccpopts, dlt-gta, ent-gta, ent-gttsel, ent-gttset, ent-ls, rtrv-gta, rtrv-gttsel, rtrv-gttset For the chg-gta or ent-gta commands, the Origin Based SCCP Routing feature must be enabled whenever the cggtasn, cgpcsn, cgssnsn, opcsn, cgpc/cgpca/cgpci/ cgpcn/cgpcn24, opc/opca/opci/opcn/opcn24, (e)cgssn, or selid, xlat=disc or xlat=udts parameters are specified.
  • Page 691 Commands Error Recovery Manual E4394 Cmd Rej: Specified SELID is already used E4394 Cmd Rej: Specified SELID is already used Commands Used: chg-gttsel, ent-gttsel You cannot specifiy a value for the selid parameter that already exists in the SSNSELID table or is being used by another selector.
  • Page 692 E4399 Cmd Rej: Set type of GTT Set Name doesn't Commands Error Recovery Manual match You cannot specify the cggtasn, cgpcsn, and selid parameters together in the same command line. These parameters are mutually exclusive and must be specified using separate command lines. Recovery Re-enter the command specifying each of the cggtasn, cgpcsn, and selid parameters separately.
  • Page 693 Commands Error Recovery Manual E4402 Cmd Rej: SETTYPE must be CDGTA when NETDOM=CROSS Re-enter the command specifying the cggtasn, opcsn, cgpcsn, and selid parameters without specifying the cgssnsn parameter. E4402 Cmd Rej: SETTYPE must be CDGTA when NETDOM=CROSS Commands Used: chg-gttset, ent-gttset, rtrv-gttset For the ent-gttset command, the value specified for the GTT set type (settype) parameter must be cdgta, when the value specified for the network domain (netdom) parameter is cross.
  • Page 694 E4405 Cmd Rej: Optional GTT Set is not compatible Commands Error Recovery Manual with GTTSN set type Call your Customer Care Center if this error message appears again. See the "Customer Care Center" section in Chapter 1 of this manual. E4405 Cmd Rej: Optional GTT Set is not compatible with GTTSN set type Commands Used: chg-gta, ent-gta...
  • Page 695 Commands Error Recovery Manual E4409 Cmd Rej: CGSSN parm must be specified if GTTSN is type of CGSSN Recovery Re-enter the command specifying the opc/opca/opci/opcn/opcn24 parameter and a value for the GTTSN set type of opc. E4409 Cmd Rej: CGSSN parm must be specified if GTTSN is type of CGSSN Commands Used: chg-gta, dlt-gta, ent-gta The cgssn parameter must be specified if the value specified for the GTTSN set type is cgssn.
  • Page 696 E4413 Cmd Rej: CgPA GTT Selector already exists in Commands Error Recovery Manual GTI-TT-NP(V)-NAI(V) The specified CGSSN range cannot overlap a range that currently exists for the specified GTT Set. Recovery Re-enter the command specifying a CGSSN range that does not overlap the existing cgssn range for the specified GTT Set.
  • Page 697 Commands Error Recovery Manual E4417 Cmd Rej: Link Set is referenced by the RTX table If the specified destination point code has exception routes, and all routes are assigned to the destination point code through the routeset, then the rsn=none parameter cannot be specified. The last route to a destination that contains exception routes cannot be deleted.
  • Page 698 E4419 Cmd Rej: FGTTLS feature requires minimum Commands Error Recovery Manual DSM card with VSCCP APPL Display the STP Options table. Enter the rtrv-sccpopts command. Re-enter the chg-sccpopts command specifying gti=0 and a default set name (dfltcgpcasn or dfltcgpcisn) parameter that exists in the GTTSET table. E4419 Cmd Rej: FGTTLS feature requires minimum DSM card with VSCCP APPL Commands Used: ent-card...
  • Page 699 Commands Error Recovery Manual E4425 Cmd Rej: Entered OPC does not exist in APPFLT table Call your Customer Care Center if this error message appears again. See the "Customer Care Center" section in Chapter 1 of this manual. Enable the feature. Enter the enable-ctrl-feat command.
  • Page 700 E4428 Cmd Rej: Parameters OPC - NOPC must be Commands Error Recovery Manual entered in pair E4428 Cmd Rej: Parameters OPC - NOPC must be entered in pair Commands Used: chg-appflt The opc and nopc parameters must be specified together. To change the specified point codes, both the origination point code (opc) and the new origination point code (nopc) must be specified together.
  • Page 701 Commands Error Recovery Manual E4432 Cmd Rej: Force must be specified to inhibit the last SEAS terminal Re-enter the chg-appflt command specifying an nopc that is in the Application Filter table. Call your Customer Care Center if this error message appears again. See the "Customer Care Center" section in Chapter 1 of this manual.
  • Page 702 E4437 Cmd Rej: Entered NOPC does not exist in the Commands Error Recovery Manual routing table E4437 Cmd Rej: Entered NOPC does not exist in the routing table Commands Used: chg-appflt The specified new origination point code (nopc) does not exist in Routing table. Recovery Re-enter the chg-appflt command specifying a nopc that exists in the Routing table.
  • Page 703 Commands Error Recovery Manual E4444 Cmd Rej: CGGTA or CGPC must be specified If the cgssn parameter is specified, then either cggta or cgpc or opc parameter must be specified. Recovery Re-enter the rtrv-data-gtt command specifying the cgssn parameter and either the cggta, or cgpc, or opc parameters.
  • Page 704 E4448 Cmd Rej: Too many IP connection states per Commands Error Recovery Manual card Enter the tag or command to verify that there are no links provisioned in the system. Refer to the Commands Manual for assistance entering the correct command. If there are no provisioned links shown in the output from step 1, the commands to start measurements collection cannot be entered until at least one link has been configured.
  • Page 705 Commands Error Recovery Manual E4453 Cmd Rej: SOIP feature must be ON E4453 Cmd Rej: SOIP feature must be ON Commands Used: alw-trm, rst-trm, The SEAS Over IP feature must be turned on before a SEAS terminal can be specified. Recovery Display the status of controlled features in the system by entering the rtrv-ctrl-feat command.
  • Page 706 E4457 Cmd Rej: SELID is valid only if specified Commands Error Recovery Manual GTTSN’s set type is CDGTA • For the default CGPCI Set Name (dfltcgpcisn), the specified network domain must be must be an ITU (including ITU-I, ITU-N, ITU-N24) network domain. Recovery Re-enter the chg-sccpopts command specifying the correct network domain for the specified GTT Set Name.
  • Page 707 Commands Error Recovery Manual E4461 Cmd Rej: Common screening list entry already exists skts, insl - IDP Screening for Prepaid feature gt, ccnc, delpfx, skbcsm - Prepaid IDP Query Relat feature acscode, esccode, npflgrst —TINP delpfx—Prepaid IDP Query Relay feature, MO-based GSM SMS NP feature and MO-based IS41 SMS NP feature.
  • Page 708 E4466 Cmd Rej: Common screening list is full Commands Error Recovery Manual list=skbcsm - ds parameter list=skts - ds parameter list=insl - ds parameter list=vmpfx - ds parameter list=acscode - ds parameter list=esccode - ds parameter list=npflgrst - pc/pca/pci/pcn/pcn24 parameter Recovery Re-enter the command specifying a valid parameter combination.
  • Page 709 Commands Error Recovery Manual E4467 Cmd Rej: Common screening list read fail Refer to the Commands Manual for detailed information about the use of these commands. E4467 Cmd Rej: Common screening list read fail Comands Used: chg-csl, dlt-csl, ent-csl, rtrv-csl The specified screening list cannot be read.
  • Page 710 E4470 Cmd Rej: SSNSELID entry already exists Commands Error Recovery Manual Call your Customer Care Center if this error message appears again. See the "Customer Care Center" section in Chapter 1 of this manual. E4470 Cmd Rej: SSNSELID entry already exists Commands Used: chg-gttsel, ent-gttsel The value specified for the cgssn and/or selid parameter already exists in the SSNSELID table.
  • Page 711 The SEASCLLI must be set before this command can be entered for a SEAS terminal. Recovery The CLLI part of node name of the EAGLE 5 ISS consisting of one alphabetic character and up to 15 alphanumeric characters. The seasclli value must also be configured on the Telcordia Message Router (CCS MR).
  • Page 712 Specifying the parameter results in more than one SEAS terminal on an E5-IPSM card. • Specifying the parameter results in more than two SEAS terminals in the EAGLE 5 ISS. • An E5-IPSM card is not physically present in the corresponding location.
  • Page 713 Commands Error Recovery Manual E4480 Cmd Rej: Specified MRNSET does not exist The Flexible GTT Load Sharing feature must be enabled before the mrnset parameter can be specified. Recovery Display the current features enabled using the rtrv-ctrl-feat command. Verify the Flexible GTT Load Sharing feature is enabled in the output of step 1. If the Flexible GTT Load sharing feature is not enabled or not listed it must be enabled.
  • Page 714 E4483 Cmd Rej: PC does not exist in specified MRNSET Commands Error Recovery Manual Recovery Refer to the Commands Manual and the procedures in the Database Administration Manual – Global Title Tranlation to provision and use MRN sets. Call your Customer Care Center if this error message appears again. See the "Customer Care Center" section in Chapter 1 of this manual.
  • Page 715 Commands Error Recovery Manual E4486 Cmd Rej: GTT Set specified by CGGTASN/ CGPCSN does not exist Re-enter the rtrv-mrn command specifying both pc and the mrnset parameters. Refer to the Commands Manual for detailed information about the use of the rtrv-mrn command. E4486 Cmd Rej: GTT Set specified by CGGTASN/CGPCSN does not exist Commands Used: chg-gttsel, ent-gttsel, rtrv-gttsel...
  • Page 716 E4489 Cmd Rej: Common screening list key must be Commands Error Recovery Manual unique • For the cggtasn parameter, the specified set type should be cggta. • For the cgpcsn parameter, the specified set type should be cgpc. Recovery Re-enter the command specifying the correct set type parameter value. E4489 Cmd Rej: Common screening list key must be unique Commands Used: chg-csl, ent-csl The leading digit pattern in the specified digit string (ds parameter) must be unique in the specified screening list...
  • Page 717 Commands Error Recovery Manual E4492 Cmd Rej: Common screening list invalid DS parameter value E4492 Cmd Rej: Common screening list invalid DS parameter value Commands Used: chg-csl, ent-csl The specified digit string (ds) parameter contains invalid value(s) for the specified feature screening list. Recovery Re-enter the command specifying a valid ds parameter value for the specified feature and list type.
  • Page 718 E4498 Cmd Rej: The Prepaid IDP Query Relay Feature Commands Error Recovery Manual Must be Enabled Recovery Display the features in the system. Enter the rtrv-ctrl-feat command. Verify the IntraCarrier Number Portability and IN Triggers (ICNP) feature has been purchased and installed in your system.
  • Page 719 Commands Error Recovery Manual E4500 Cmd Rej: Prepaid IDP Query Relay feature must be ON when (N)SERV=IDPR Re-enter the command specifying the correct format and parameters. Refer to the Commands Manual for detailed information about the use of these commands. E4500 Cmd Rej: Prepaid IDP Query Relay feature must be ON when (N)SERV=IDPR Commands Used: ent-srvsel, rtrv-srvsel...
  • Page 720 E4504 Cmd Rej: IDPR cannot be enabled if ASM/TSM Commands Error Recovery Manual is present Display the status of features in your system. Enter the rtrv-feat command. If the status of the GTT feature is Off in the output from step 1, refer to the procedures in the Database Administration Manual - Global Title Translation to turn on the GTT feature and enable the IDP Relay feature.
  • Page 721 Commands Error Recovery Manual E4507 Cmd Rej: IDPR feature requires DEFCC to be provisioned Refer to the Commands Manual for detailed information about the use of the rtrv-data-insrv command. E4507 Cmd Rej: IDPR feature requires DEFCC to be provisioned Commands Used: chg-ctrl-feat Before you can turn on the Prepaid IDP Query Relay (IDP Relay, IDPR) feature, the default country code (defcc) parameter must first be provisioned using the chg-stpopts command.
  • Page 722 E4510 Cmd Rej: Translation entry does not exist Commands Error Recovery Manual E4510 Cmd Rej: Translation entry does not exist Commands Used: chg-gta, dlt-gta The translation entry for the specified CgPA PC or OPC does not exist. Recovery Re-enter the command specifying a different value for the CgPA PC or OPC. E4511 Cmd Rej: CDGTASN/GTTSN is not provisioned Commands Used: chg-gttsel, ent-gttsel, rtrv-gttsel For the chg-gttsel command, the specified CDGTA GTTSET or GTT Set Name is not provisioned for the...
  • Page 723 Commands Error Recovery Manual E4513 Cmd Rej: CDGTASN/GTTSN cannot be specified as NONE E4513 Cmd Rej: CDGTASN/GTTSN cannot be specified as NONE Commands Used: chg-gttsel You cannot specify a value of none for the cdgtasn or gttsn parameters. If the chg-gttsel command specifies the only GTTSET associated with that selector, then cdgtasn=none cannot be specified.
  • Page 724 E4517 Cmd Rej: CDGTASN must not be specified Commands Error Recovery Manual You cannot specify the cggtasn or cgpcsn parameters if the cgssn and/or selid parameters are specified. Recovery Re-enter the command specifying the cgssn and/or selid parameters without specifying the cggtasn or cgpcsn parameters.
  • Page 725 Commands Error Recovery Manual E4520 Cmd Rej: Specified Fahrenheit values convert to same Celsius value Recovery Re-enter the command specifying the cdgtasn or gttsn parameter whose set type is cdgta. E4520 Cmd Rej: Specified Fahrenheit values convert to same Celsius value Commands Used: chg-th-alm Due to the Fahrenheit to Celsius temperture conversion method used, there are multiple values in Fahrenheit which convert to the same Celsius value which is not allowed.
  • Page 726 E4523 Cmd Rej: MAPSET must be specified (only) if Commands Error Recovery Manual FGTTLS feature is enabled E4523 Cmd Rej: MAPSET must be specified (only) if FGTTLS feature is enabled Commands Used: chg-gsmmap-scrn, chg-gsms-opcode, chg-gta, chg-gtt, chg-map, dlt-map, ent-gsmmap-scrn, ent-gsms-opcode, ent-gta, ent-gtt, ent-map, rtrv- gsmmap-scrn, rtrv-gsms-opcode, rtrv-gta, rtrv-gtt, rtrv-map The MAPSET ID (mapset parameter) must be specified if the Flexible GTT Load-Sharing (FGTTLS) feature is enabled.
  • Page 727 Commands Error Recovery Manual E4526 Cmd Rej: MAP table is full E4526 Cmd Rej: MAP table is full Commands Used: chg-map, ent-map The MAP table can contain a maximum of 3,000 unique point code entries and up to 36,000 pc/ssn entries entries. You must delete an entry before another entry can be added to the MAP table.
  • Page 728 E4529 Cmd Rej: MAP entry is being referred by other Commands Error Recovery Manual entries Display the pc/ssn/mapset entries that are in the MAP table. Enter the rtrv-map command. Re-enter the appropriate chg/dlt/rtrv-map command specifying a valid pc/ssn/mapset parameter combination that exists in the MAP table. Recovery chg-gsms-opcode Display the pc/ssn entries that are in the MAP table.
  • Page 729 Commands Error Recovery Manual E4531 Cmd Rej: NMAPSET must be specified if FORCE is specified E4531 Cmd Rej: NMAPSET must be specified if FORCE is specified Commands Used: chg-gsms-opcode, chg-gsmmap-scrn The force parameter may be specified only if the new mapset id (nmapset) parameter is specified. Recovery Re-enter the command specifying both the force=yes and the nmapset parameters.
  • Page 730 E4535 Cmd Rej: NDGT parameter is invalid for Commands Error Recovery Manual CGSSN, CGPC and OPC sets Recovery Display the RPC3/MAP table. Enter the rtrv-cspc command. Reassign the specified cspc references in the RPC3/MAP table. Enter the chg-cspc command. Delete the specified cspc from the RPC3/MAP table. Enter the dlt-cspc command.
  • Page 731 Commands Error Recovery Manual E4538 Cmd Rej: Power Threshold entry does not exist in FPT table The value specified for the thrshld parameter is already be provisioned in the Frame Power Threshold table. Recovery Enter the chg-frm-pwr command specifying a different value (valid range is 30 - 65 amps) for the thrshld parameter.

  • Page 732: Table 2-36. Valid Frame Id Parameter Values

    E4542 Cmd Rej: Failed deleting shelf as FPT entry is Commands Error Recovery Manual provisioned The frame specified by the frame id parameter (frm) is not a provisioned frame (i.e. no shelf is provisioned in that frame). Refer to Table 2-36 for a list of valid Frame ID parameter values. Table 2-36.
  • Page 733 Commands Error Recovery Manual E4544 Cmd Rej: The IDPS for Prepaid Feature Must be Enabled • For the rtrv-map command, if the pc and mapset parameters are specified and the ssn parameter is not specified, then at least one entry for that pc/mapset must exist in MAP table. Recovery Re-enter the command specfiying valid pc and mapset parameter values.
  • Page 734 E4546 Cmd Rej: GTT must be on before IDPS can be Commands Error Recovery Manual enabled If the IDP Screening for Prepaid feature is turned off or does not appear in the output from step 1, refer to the Commands Manual to enable, turn on, and use the IDP Screening for Prepaid feature. Re-enter the command that generated this error message Call your Customer Care Center if this error message appears again.
  • Page 735 Commands Error Recovery Manual E4549 Cmd Rej: EDATE/ETIME must be greater than current system date/time If the nserv=idps parameter is specified, then the only valid mandatory service parameters are tt, serv, ssn, gtin, and gtii. The optional service selector parameters supported are: np and nai. Recovery Re-enter the command specifying the correct service selector parameters.
  • Page 736 E4553 Cmd Rej: EDATE parameter requires DUR = Commands Error Recovery Manual timed For the rept-stat-alm command, if you specify the edate parameter, you must also specify the dur parameter. Recovery Re-enter the rept-stat-alm command specifying both the edate parameter and the dur parameter. E4553 Cmd Rej: EDATE parameter requires DUR = timed Commands Used: rept-stat-alm For the rept-stat-alm command, if the edate parameter is specified, the value specified for the dur parameter...
  • Page 737 Commands Error Recovery Manual E4556 Cmd Rej: Timer not supported for M2PA Draft Call your Customer Care Center if this error message appears again. See the "Customer Care Center" section in Chapter 1 of this manual. E4556 Cmd Rej: Timer not supported for M2PA Draft 6 Commands Used: chg-m2pa-tset The T2 timer is not supported by M2PA Draft 6.
  • Page 738 E4559 Cmd Rej: ASM/TSM Cards Cannot be Commands Error Recovery Manual Provisioned when IDPS is Enabled Determine which features are turned on in the system. Enter the rtrv-feat and rtrv-ctrl-feat commands. Determine the total number of VSCCP cards provisioned in the system. Enter the rept-stat-sccp or rept-stat-sys command.
  • Page 739 Commands Error Recovery Manual E4562 Cmd Rej: DSCNTLNT can only be set for Telnet Terminals If the MO-based IS41 SMS NP feature is OFF or not showing, enable it . Refer to the Database Administation Manual - Feature Activation Guide for assistance. Re-enter the command that caused this error to appear.
  • Page 740 E4566 Cmd Rej: LoopSet Table is full Commands Error Recovery Manual list=vmpfx - ds parameter list=acscode - ds parameter list=esccode - ds parameter list=npflgrst - pc/pca/pci/pcn/pcn24 parameter Recovery Re-enter the command specifying a valid parameter combination. Refer to the Commands Manual for detailed information about the use of these commands. E4566 Cmd Rej: LoopSet Table is full Commands Used: chg-loopset, ent-loopset The Loopset table is full.
  • Page 741 Commands Error Recovery Manual E4569 Cmd Rej: Cannot delete loopset when in use by E4569 Cmd Rej: Cannot delete loopset when in use by GTT Commands Used: dlt-loopset The specified loop set cannot be deleted because it is being used by the GTT feature. A loopset entry that is being referenced by the GTT feature cannot be deleted.
  • Page 742 E4572 Cmd Rej: Requires force since Loopset is in use Commands Error Recovery Manual by GTT Display the contents of the Loopset. Enter the rtrv-loopset command specifying the name of the loopset. Delete a single point code entry in the specified loop set using the dlt-loopset command. Re-enter the chg-loopset command specifying the apcl and rpcl parameters as necessary, to add the desired point codes to the loopset.
  • Page 743 Commands Error Recovery Manual E4576 Cmd Rej: PC1/PC2 cannot be used with either Point Code list Re-enter the command specifying either the apcl or rpcl parameters, but not both. E4576 Cmd Rej: PC1/PC2 cannot be used with either Point Code list Commands Used: chg-loopset You cannot specify the pc1/pc2 parameters and the replacing point code list (rpcl) parameter, or appending point code list (apcl) parameter, in the same command.

  • Page 744: Table 2-37. Eagle 5 Iss Link Cards Not Supported

    6-Way Loadsharing on Routesets • Proxy Point Code (PPC) cannot be turned on if any of the following unsupported cards are equipped in the system: Table 2-37. EAGLE 5 ISS Link Cards Not Supported LIM Card Name LIM Card Name LIMDS0...

  • Page 745: Table 2-38. Eagle 5 Iss Link Cards Not Supporing Rset Feature

    Commands Error Recovery Manual E4582 Cmd Rej: Single rte to APC or SAPC for IPGW LS allowed Table 2-38. EAGLE 5 ISS LInk Cards not supporing RSET feature LIM Card Name LIM Card Name LIMDS0 ILAVEILA LIMV35 LIM-E1 LIMOCU Dual-Slot DCM Recovery Upgrade your hardware to ensure that you have no unsupported cards on your system.
  • Page 746 E4584 Cmd Rej: MTP Origin Based Routing Feature Commands Error Recovery Manual must be ON E4584 Cmd Rej: MTP Origin Based Routing Feature must be Commands Used:chg-rtx, dlt-rtx, ent-rtx, rtrv-rtx, rtrv-stat-rte The MTP Origin Based Routing feature must be enabled and turned on before you can access a UI option that is unique to the feature.
  • Page 747 Commands Error Recovery Manual E4587 Cmd Rej: At least one point code must be specified Recovery Re-enter the command specifying a valid combination of point codes. E4587 Cmd Rej: At least one point code must be specified Commands Used: dlt-sccp-serv You entered this command without specifying at least one point code.
  • Page 748 E4592 Cmd Rej: Multiple groups are not allowed for Commands Error Recovery Manual SCCP-SERV set The specified point code does not exist in the specified SCCP service group. Recovery Display the SCCP Service table. Enter the rtrv-sccp-serv command. Re-enter the dlt-sccp-serv command specifying a point code that exists in the specified SCCP service group.
  • Page 749 Commands Error Recovery Manual E4597 Cmd Rej: RTKEY DPC cannot be IPGWx APC or SAPC You cannot specify more than one e1 port on an E5-E1T1 card that is used as an SE-HSL card (linkclass=unchan). Any 1 of the 8 ports can be used as an e1 port on the SE-HSL card. Recovery Re-enter the ent-e1 command specifying only one e1 port on an E5-E1T1 card as linkclass=unchan.

  • Page 750: Table 2-39. Default Buffer Configuration Sizes

    E4600 Cmd Rej: Must specify ASNAME or RC Commands Error Recovery Manual Display the SCCP Options table. Enter the rtrv-sccpopts command. Delete the specified GTT Set name. Enter the chg-sccpopts command specifying gttsn=none. Call your Customer Care Center if this error message appears again. See the "Customer Care Center" section in Chapter 1 of this manual.
  • Page 751 Commands Error Recovery Manual E4603 Cmd Rej: CGTT/CGNPV/CGNAIV mustn't be specified when CGGTIx=0 Determine the used and total sctp buffer space on the card and the card location. Enter the rtrv-assoc command. Re-enter the command specifying a buffer size that is between 8 and 400 KB. Example: chg-assoc:aname=xxxxx:open=nochg-assoc:aname=xxxxx:bufsize=345 Call your Customer Care Center if this error message appears again.
  • Page 752 E4608 Cmd Rej: True Point Code can exist only in Commands Error Recovery Manual Default MAPSET Perform one of the following actions: Re-enter the dlt-ls command specifying a linkset that is not referenced by an exception route. Display the Route table. Enter the rtrv-rtx command.
  • Page 753 Commands Error Recovery Manual E4615 Cmd Rej: SEAS Terminal Not Inhibited Enable the SEAS Over IP feature. Refer to the Database Administration Manual - System Management for assistance. Turn on the SEAS Over IP feature. Refer to the Database Administration Manual - System Management for assistance.
  • Page 754 E4618 Cmd Rej: STPOPTS DefCC must not be NONE Commands Error Recovery Manual • Enter the rtr-trm command to determine if an E5-IPSM or simply an IPSM card is present. Make sure an E5-IPSM card is in place and confgured for this terminal. Refer to the Database Administration Manual - System Managment for assistance.
  • Page 755 Commands Used:chg-ls, ent-ls A maximum of 1 IPGW linkset or maximum of 6 of any other linksets are allowed between any APC and the EAGLE 5 ISS. Recovery Display the existing linksets using the rtrv-ls command to verify the maximum number (6) was reached.
  • Page 756 E4633 Cmd Rej: SPC may not be referenced in the Commands Error Recovery Manual STP's linkset table If a seventh linkset is necessary. Refer to the Database Administration Manual - SS7 for further assistance in configuring your system. Call your Customer Care Center if this error message appears again. See the "Customer Care Center" section in Chapter 1 of this manual.
  • Page 757 Commands Error Recovery Manual E4637 Cmd Rej: APC has no assigned linksets Recovery Display the existing SPC by using the rtrv-spc command. Verify the SPC does not also exist as an SPC for the linksets for the linksets adjacent destination (APC) in the Destination table.
  • Page 758 E4651 Cmd Rej: Invalid adapter for specified Commands Error Recovery Manual association Use the enable-ctrl-feat command to enable this feature. Refer to the Commands Manual for assistance. Re-enter the command that generated this error message. E4651 Cmd Rej: Invalid adapter for specified association Commands Used: chg-assoc The association specified is invalid.
  • Page 759 Commands Error Recovery Manual E4658 Cmd Rej: ADAPTER can only be specified when IPSG=YES For further assistance in configuring the linksets, refer to the Database Administration Manual - IP7 Secure Gateway. E4658 Cmd Rej: ADAPTER can only be specified when IPSG=YES Commands Used:chg-ls, ent-ls The adapter parameter can be specified only for IPSG linksets ( when ipsg=yes is specified).
  • Page 760 E4666 Cmd Rej: ASNOTIF prohibited unless Commands Error Recovery Manual IPSG=YES and ADAPTER=M3UA The defmcc GSM option (see the chg-gsmopts command} must be provisioned before the MT-Based GSM SMS NP feature can be turned on. Recovery Display the GSM option setting using the rtrv-gsmopts command. The value for the GSM option setting must be something other than NONE.
  • Page 761 Commands Error Recovery Manual E4672 Cmd Rej: Login, Password, and Host must be set in SEASCFG Call your Customer Care Center if this error message appears again. See the "Customer Care Center" section in Chapter 1 of this manual. E4672 Cmd Rej: Login, Password, and Host must be set in SEASCFG Commands Used: chg-ctrl-feat You tried to turn on the SOIP feature with the OAM IP Security feature turned on or vice versa, and any one of...
  • Page 762 E4679 Cmd Rej: Domain must be SS7 if Proxy PC is Commands Error Recovery Manual specified The Proxy Point Code feature must be enabled before the ppc parameter can be specified. Recovery To enable the Point Proxy Code feature. Refer to the Database Administration Manual - SS7 for assistance. Re-enter the command that caused this error to occur.
  • Page 763 Commands Error Recovery Manual E4683 Cmd Rej: Group code of PPC and DPC must match Recovery Make sure the DPC and PPC parameters are the same network type. Refer to the Database Administration Manual - SS7 for assistance. Re-enter the command that caused this error to occur. E4683 Cmd Rej: Group code of PPC and DPC must match Commands Used: ent-dstn The DPC and PPC parameters must be of same group code.
  • Page 764 E4686 Cmd Rej: PPC not supported for IPGWx DPC Commands Error Recovery Manual E4686 Cmd Rej: PPC not supported for IPGWx DPC Commands Used: ent-ls,ent-dstn The lpgwapc parameter must not be specified as yes if the ppc parameter is specified as yes. Recovery Change one of the parameters to no in order to use them together.
  • Page 765 Commands Error Recovery Manual E4690 Cmd Rej: Cannot use one PPC for more than 10 linksets If the linktype is prx specify the ppc parameter. Refer to the Database Administration Manual - SS7 for further assistance. E4690 Cmd Rej: Cannot use one PPC for more than 10 linksets Commands Used: ent-ls A maximum of 10 linksets may refer one PPC.
  • Page 766 E4694 Cmd Rej: APC must not use SPC and PPC Commands Error Recovery Manual together A valid command for use with proxy linksets must be used. For a full list of valid commands refer to the Commands Manual. E4694 Cmd Rej: APC must not use SPC and PPC together Commands Used:, ent-srvsel A linkset must not use the SPC and PPC features together.
  • Page 767 Commands Error Recovery Manual E4698 Cmd Rej: Group code of PPC and APC must match Make sure the PPC and APC are of the same network type. Refer to the Database Administration Manual - SS7 for further assistance. Re-enter the command that initiated this message. E4698 Cmd Rej: Group code of PPC and APC must match Commands Used: ent-srvsel,ent-ls The specified apc and ppc group codes must be of the same network type.
  • Page 768 E4702 Cmd Rej: MO SMS must be ON or MO/MT- Commands Error Recovery Manual Based SMS NP must be enabled The MT-Based GSM SMS NP (SMSC) feature must be enabled before the MT-Based GSM MMS NP (MMSC) feature can be enabled. Recovery Display the features status using the rtrv-ctrl-feat command.
  • Page 769 Commands Error Recovery Manual E4707 Cmd Rej: PRX using DPC not allowed in GTT, MAP, MRN tables E4707 Cmd Rej: PRX using DPC not allowed in GTT, MAP, MRN tables Commands Used:chg-gta, chg-map, chg-mrn,ent-mrn, ent-map The specified point code must not have a proxy point code assigned in the Route (DSTN) table. The pc/pc1/pc2/ pc3/pc4 parameter cannot be assigend a value that is already assigned to a proxy point code.
  • Page 770 E4713 Cmd Rej: PRX using DPC not allowed in GSM Commands Error Recovery Manual tables Call your Customer Care Center if this error message appears again. See the "Customer Care Center" section in Chapter 1 of this manual. E4713 Cmd Rej: PRX using DPC not allowed in GSM tables Commands Used:chg-gsmmap-scrn, chg-gsms-opcode,ent-gsmmap-scrn If naction parameter is specified as forward, duplicate or dupdisc, then specified npc/npca/npci/npcn/npcn24 parameter to be provisioned in GSMSCRN table, must not use a proxy pc in route(dstn) table...
  • Page 771 Commands Error Recovery Manual E4723 Cmd Rej: PRX=YES not supported for Private Display the mtsmsdltr value using the rtrv-is41opts command. Change the mtsmsdltr value to a valid value other than none. E4723 Cmd Rej: PRX=YES not supported for Private PC Commands Used: chg-dstn, rtrv-dstn The parameter prx must not be specified as yes if the specified dpc is a private point code.
  • Page 772 E4727 Cmd Rej: SPC cannot be assigned to entry that Commands Error Recovery Manual uses PPC Use a linsket that is not a proxy linkset. The lst=yes parameter cannot be specified. Refer to the Database Administration Manual - SS7 for further assistance. E4727 Cmd Rej: SPC cannot be assigned to entry that uses Commands Used: chg-dstn The SPC must not be assigned to a DPC that uses a proxy point code.
  • Page 773 Commands Error Recovery Manual E4731 Cmd Rej: Cluster DPCs can't inherit PRX linkset type E4731 Cmd Rej: Cluster DPCs can't inherit PRX linkset type Commands Used: ent-dstn Cluster DPCs are not allowed to inherit cluster members that have routes with prx linkset type. Recovery For correct configuration refer to the Database Administration Manual - SS7.
  • Page 774 E4738 Cmd Rej: New routeset name cannot be the same Commands Error Recovery Manual as current name Determine if the value for the nrsn parameter exists in the Routset table. If the value exists choose another value for the nrsn parameter. If the value does not exsit in the Routset table, re-enter the command that caused this error message and type in the correct value.
  • Page 775 Commands Error Recovery Manual E4741 Cmd Rej: Either a routset or a linkset must be specified • Call your "Customer Care Center" if this error message appears again. See the "Customer Care Center" section in Chapter 1 of this manual. E4741 Cmd Rej: Either a routset or a linkset must be specified Commands Used: chg-rtx If the enttype=lnkset parameter is specified, then the lsn or the rsn parameter must be specified.
  • Page 776 E4744 Cmd Rej: Failed reading Routeset table Commands Error Recovery Manual • Call your "Customer Care Center" if this error message appears again. See the "Customer Care Center" section in Chapter 1 of this manual. E4744 Cmd Rej: Failed reading Routeset table Commands Used:chg-dstn, chg-rs, chg-rte, chg-rtx, dlt-rs, dlt-rtx, ent-rs, ent-rte, rept-stat-rs, rtrv-dstn, rtrv-rs, rtrv-rtx, tst-rs, The Routeset table must be accessible...
  • Page 777 Commands Error Recovery Manual E4751 Cmd Rej: If COND param is specified, then OPC/ DPC must be specified Recovery • Verify if the rsn parameter is specified, then the nlsn and rc paramters cannot be specified. Refer to the Database Administration Manual - SS7 for assistance. •...
  • Page 778 E4760 Cmd Rej: Linkset APC/SPC pair is already being Commands Error Recovery Manual used E4760 Cmd Rej: Linkset APC/SPC pair is already being used Commands Used:chg-ls. ent-ls The apc and spc parameters cannot be changed to values that are assigned to another linkset Recovery Make sure the vaules assigned to the apc and sapc parameters are unique.
  • Page 779 Commands Error Recovery Manual E4770 Cmd Rej: DPC or RSN must be specified E4770 Cmd Rej: DPC or RSN must be specified Commands Used:, chg-rte, dlt-rte, ent-rte The dpc parameter or the rsn parameter must be specified in the command. Recovery •...
  • Page 780 E4778 Cmd Rej: RSN must be specified Commands Error Recovery Manual Re-enter the command that generated this message. E4778 Cmd Rej: RSN must be specified Commands Used: inh-alm, unhb-alm If the dev=rs parameter is specified, then the rsn parameter must be specified. Recovery Re-enter the command specifying the rsn parameter with the dev=rs parameter.
  • Page 781 Commands Error Recovery Manual E4783 Cmd Rej: Routesets cannot be assigned to cluster members E4783 Cmd Rej: Routesets cannot be assigned to cluster members Commands Used: chg-dstn The ncai=yes parameter must be specified for a nested cluster. ncai=no is to be used with a standard cluster. If the specified destination address is a full point code address (ni-nc-ncm) and is a member of a provisioned cluster (ni-nc-*), and if the ncai=no parameter is specified, then destinations comprising a cluster inherit their routeset from the cluster, and a routeset cannot be assigned.
  • Page 782 Commands Used: enable-ctrl-feat The AMGTT CdPA Only feature cannot be enabled using the enable-ctrl-feat command. This feature is automatically enabled and turned on if the MGTT feature was on before upgrade to EAGLE 5 ISS Release 38.0 occurred. Recovery •...
  • Page 783 Commands Error Recovery Manual E4794 Cmd Rej: Routeset table full Display the status of the AMGTT CdPA Only feature and the AMGTT CgPA Upgrade feature using the rtrv-ctrl-feat command. Make sure the status is off, or not showing. If the status is on, Refer to the Database Administration Manual - Global Title Translation for assistance. Call your Customer Care Center if this error message appears again.
  • Page 784 E4797 Cmd Rej: Cannot delete RSET when associated Commands Error Recovery Manual with 1 or more RTX dstns Call your Customer Care Center if this error message appears again. See the "Customer Care Center" section in Chapter 1 of this manual. E4797 Cmd Rej: Cannot delete RSET when associated with 1 or more RTX dstns Commands Used: dlt-rs...
  • Page 785 Commands Error Recovery Manual E4803 Cmd Rej: Association and LOC must reference same card The specified association (aname parameter ) is configured in the database but has an adapter that differs from that of the specified linkset ( lsn parameter ). Recovery •...
  • Page 786 E4807 Cmd Rej: TPS exceeded for card Commands Error Recovery Manual The IPSG card (specified in loc parameter ) has already reached its limit of 32 signaling links. Recovery • Display the linkset using the rtrv-ls command. Either delete unnecessary links or assign some links to another card.
  • Page 787 Commands Error Recovery Manual E4811 Cmd Rej: SLKTPS is prohibited for non-IPSG linksets E4811 Cmd Rej: SLKTPS is prohibited for non-IPSG linksets Commands Used:chg-ls, ent-ls The slktps parameter cannot be specified for linksets that are not ipsg. Recovery • Diplay the linkset using the rtrv-ls command. •...
  • Page 788 E4827 Cmd Rej: Correct RCONTEXT value is required Commands Error Recovery Manual to delete Multiple Group Code ( multgc=yes parameter ) are not allowed for IPSG-M3UA linksets. If the ipsg=yes and adapter=m3ua parameters are specified the multgc=yes parameter may not be specified. Recovery •...
  • Page 789 Commands Error Recovery Manual E4831 Cmd Rej: Cannot set DefCC to NONE if MT- Based IS41 SMS NP is ON Display the linksets using the rtrv-ls command. Verify that multiple signaling links do not share the same association. Refer to the Database Administration Manual - IP7 Secure Gateway for assistance.
  • Page 790 E4834 Cmd Rej: Routeset test command not in progress Commands Error Recovery Manual Verify at least one link within the routset is in service. If not use local troubleshooting procedures to return one of the links to service. Refer to the Commands Manual for assistance. Re-enter the command that generated this message.
  • Page 791 Commands Error Recovery Manual E4847 Cmd Rej: SAPC is prohibited on IPSG-M3UA linksets Recovery • Display the parameter values using the rtrv-ctrl-feat command. • The mapset parameter and the mrnset parameter cannot both be specified. Refer to the Database Administration Manual - Global Title Translation for assistance. E4847 Cmd Rej: SAPC is prohibited on IPSG-M3UA linksets Commands Used: chg-ls If the ipsg=yes and adapter=m3ua parameters are specified, a linkset cannot have an SAPC.
  • Page 792 E4852 Cmd Rej: All MTP cards are in Inactive state Commands Error Recovery Manual Recovery Display the curent traces using the rtrv-ctrl-feat command. Refer to the Commands Manual for assistance. E4852 Cmd Rej: All MTP cards are in Inactive state Commands Used : tst-rs All MTP cards are inactive.
  • Page 793 Commands Error Recovery Manual E4870 Cmd Rej: NUMSLKPROH must be less than or equal to NUMSLKRSTR If the wrnln parameter is specified, then the wrntx parameter or the clrwrntx=yes parameter must be specified. Recovery Display the specified parameters. Refer to the Commands Manual for assistance. If the wrnln parameter is specified, either the wrntx or the clrwrntx=yes must be specified.
  • Page 794 E4874 Cmd Rej: NUMSLK value exceeds number of Commands Error Recovery Manual links in the linkset Call your Customer Care Center if this error message appears again. See the "Customer Care Center" section in Chapter 1 of this manual. E4874 Cmd Rej: NUMSLK value exceeds number of links in the linkset Commands Used: chg-lsopts The value of the parameters numslkalw, numslkproh and numslkrstr cannot be greater than the number of links...
  • Page 795 Commands Error Recovery Manual E4901 Cmd Rej: TTI, NP, NAI cannot be specified for a direction of ATOI Enter the rtrv-srvsel command. Re-enter the command specifying a parameter combination that exists in the database. E4901 Cmd Rej: TTI, NP, NAI cannot be specified for a direction of ATOI Commands Used: dlt-gtcnv The following parameter(s) cannot be specified when the direction of conversion is ANSI-to-ITU (dir=atoi): ITU...
  • Page 796 E4904 Cmd Rej: ADDTBLCNV and DELTBLCNV Commands Error Recovery Manual cannot be specified together E4904 Cmd Rej: ADDTBLCNV and DELTBLCNV cannot be specified together Commands Used: chg-upgrade-config The specified parameters (addtblcnv and deltblcnv) are mutually exclusive. Recovery Re-enter the chg-upgrade-config command specifying either the addtblcnv or the deltblcnv parameter, but not both.

  • Page 797: Table 2-40. Epap-Based Itu Np Controlled Features

    Commands Error Recovery Manual E4950 Cmg Rej: At least one ITU NP feature must be If deleting the link causes the provisioned link count to fall below the numslk thresholds configured for the corresponding IPSG-M3UA linkset (see the chg-lsopts command), then the command cannot be entered. If values of 0 or 1 are specified for all of the numslk threshold parameters, then the last link can be deleted.
  • Page 798 E4991 Cmd Rej: RSET Feature bit not allowed in this Release Commands Used: chg-feat The RSET feature is not available in the EAGLE 5 ISS Release 38.0. Recovery Call your Customer Care Center for further assistance. See the "Customer Care Center" section in Chapter 1 of this manual.
  • Page 799 Commands Error Recovery Manual E4999 Cmd Rej: Undefined Call your Customer Care Center. See the "Customer Care Center" section in Chapter 1 of this manual. 910-5254-001 Revision C, July 2008 2-789...
  • Page 800 E4999 Cmd Rej: Undefined Commands Error Recovery Manual 910-5254-001 Revision C, July 2008 2-790...

  • Page 801: Glossary

    A G-Port MNP feature that detects instances of circular routing caused by incorrect Prevention information in one or more of the network number portability databases. If a circular route has been detected, a message will be generated by the EAGLE 5 ISS and returned to the originator. CLASS...
  • Page 802 Common Language Location Identifier Cluster Routing and A feature in the EAGLE 5 ISS that allows MSUs to be routed to a cluster of point codes Management and enhances the management of the SS7 traffic to the cluster of point codes.
  • Page 803 A feature that is designed for the signaling connection control part (SCCP) of the SS7 Translation protocol. The EAGLE 5 ISS uses this feature to determine to which service database to send the query message when a Message Signaling Unit (MSU) enters the system.
  • Page 804 Intelligent Network (IN) Portability Intelligent Peripheral Internet Protocol Tekelec's Internet Protocol to SS7 Interface IP Address The location of a device on a TCP/IP network. The IP Address is a number in dotted decimal notation which looks something like [192.168.1.1].
  • Page 805 A G-Port MNP feature that detects instances of circular routing caused by incorrect Prevention information in one or more of the network number portability databases. If a circular route has been detected, a message will be generated by the EAGLE 5 ISS and returned to the originator. Mate Point Code...
  • Page 806 Commands Error Recovery Manual National Point Code Operations, Administration, and Maintenance The application running on the OAP used for the SEAS and LNP features. The LNP feature can be enabled only for a quantity of 2 to 12 million numbers. This GPL does not support 24-bit ITU-N point codes.
  • Page 807 The SPC enables the EAGLE 5 ISS to assume more than one point code for SS7 routing. (SPC) The EAGLE 5 ISS uses the SPC for routing and provisioning as if the SPC were an actual point code of the EAGLE 5 ISS. The EAGLE 5 ISS supports one ANSI true point code and up to seven secondary point codes.
  • Page 808 Commands Error Recovery Manual A leased-line connection capable of carrying data at 1,544,000 bits-per-second. TBGTTLS Transaction-based GTT Loadsharing TCP/IP Transmission Control Protocol/Internet Protocol Terminal Disk Module. Time Division Multiplexing. TLNP Triggerless LNP Timing Output Translation Services Module Telephone User Part Unsolicited Information Message V.35 ITU Interface Recommendation, V.35...

  • Page 809: Index

    Index Fixed disk is not initialized 2-308 Fixed disk is not inserted 2-308 admonishments, documentation 1-3 Removable cartridge is inaccessible (internal Command Rejected Messages problem) 2-308 description 2-1 Removable cartridge is not a MEAS disk 2-308 Removable cartridge is not a system disk 2-308 documentation Removable cartridge is not inserted 2-308 admonishments 1-3...
  • Page 810 Commands Error Recovery Manual 910-5254-001 Revision C, July 2008 Index-2...

Table of Contents
