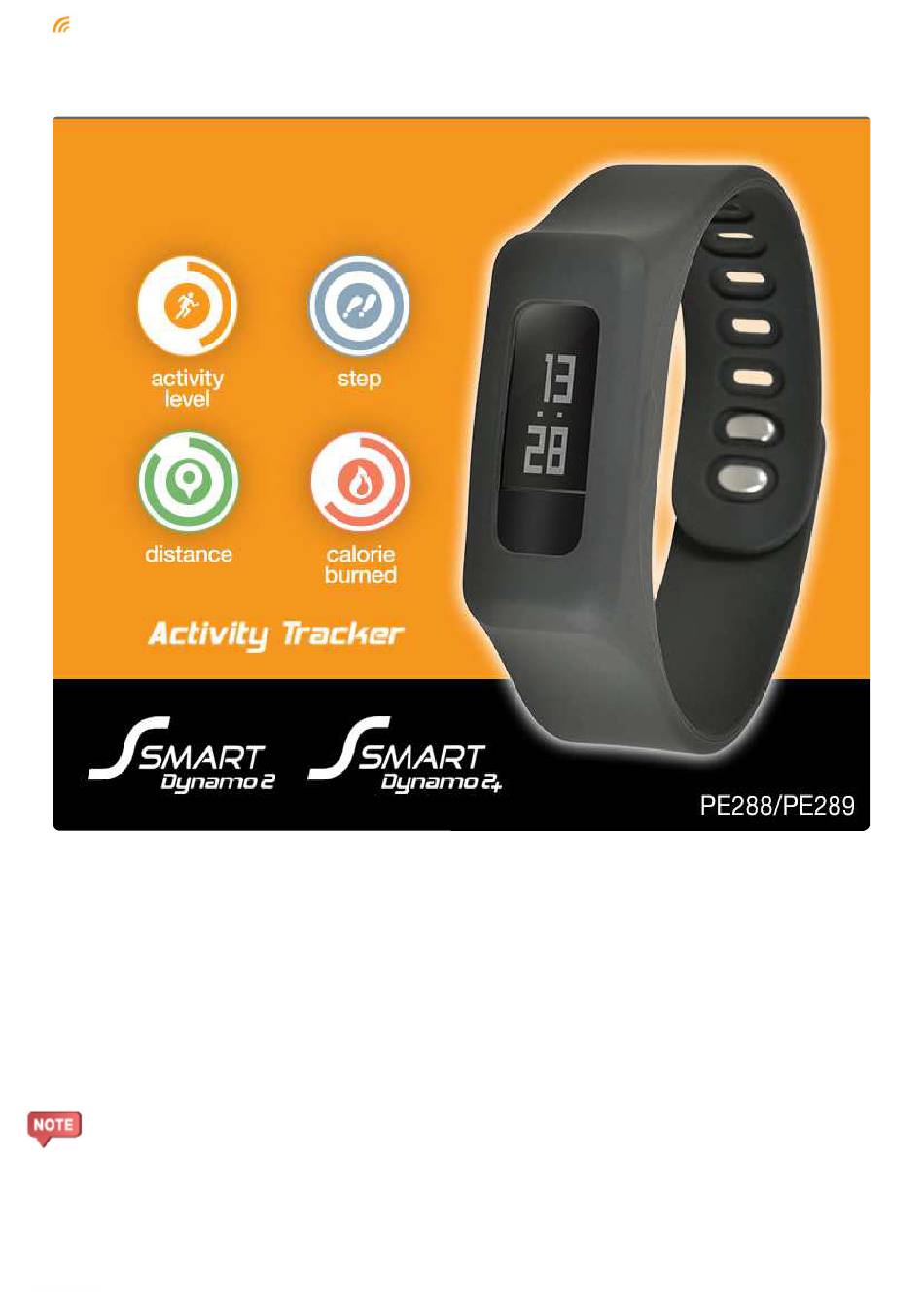

- Page 1 HELP CONTENT & FAQ Version 1.1 (2014/10/07) ENGLISH Due to printing limitations, the displays shown online may differ from the actual display.
- Page 2 Introduction Dynamo 2/Dynamo 2+ Number Description Operation button • Press to display the last messages, current time and mobile device notification summary. • Press and hold to start/end sleep mode or find my phone. Snap button holes Metal Plate (PE289 - Dynamo 2+ only) Display screen Buckle Smart core...
-
Page 3: Package Items
The illustrations as shown above may differ from the actual product. Package Items The package includes the following items:... -
Page 4: How To Charge
1 x Dynamo 2/Dynamo 2+ Activity Tracker 1 x Charger Pod (AD288) 1 x Oregon Scientific™ Warranty Card 1 x Quick Start Guide 1 x Extension cable How to charge Before you start using the activity tracker, please charge it for at least 1 hour before use. -
Page 5: Battery Indicator
1. Align the two metal connection points of the charger pod with the pair on the smart core. 2. Make sure the clips of the charging pod are aligned with the sides of the smart core, then gently push the smart core into the charger pod as shown in the diagram below. - Page 6 When the smart core is fully charged, it lasts about 5-7 days. The operation time varies depend on actual usage. Indicators Status Action Connect the smart core with the Charging charger pod and link it to USB power supply. Remove the smart core from the Charging completed charger pod.
-
Page 7: Compatible Models
Indicators Status Action Pls Charge Compatible models Dynamo 2/Dynamo 2+ supports iOS and Android smart devices. For the latest compatible list, please visit... -
Page 8: How To Wear
http://ssmart.oregonscientific.com/dynamo2 for details. iOS 7.0 or above iPhone 4s/5/5c/5s iPad mini WiFi iPad mini Wi-Fi + Cellular iPad Wi-Fi (3rd/4th generations) iPad Wi-Fi + Cellular (3rd/4th generations) iPad Air Wi-Fi iPad Air Wi-Fi + Cellular iPad mini WiFi with Retina display iPad mini Wi-Fi + Cellular with Retina display iPod touch (5th generation) Android 4.3 or above... - Page 9 Your Dynamo 2/Dynamo 2+ is adjustable to fit most wrist sizes. Please follow the below steps: 1. Insert the smart core into the wristband. Align the button side of both wristband and smart core before inserting. 2. Insert the buckle into the appropriate buttonholes. 3.
-
Page 10: Download The App
4. To make sure the Dynamo 2/Dynamo 2+ is securely fastened, pull the smart core with some pressure to make sure it is not easily loosened from your wrist. Download the App The app is available in both Apple App Store and Google Play Store. Search “Ssmart Fit” in the search engine... - Page 11 to find the app. Dynamo 2/Dynamo 2+ supports iOS and Android smart devices. Visit http://ssmart.oregonscientific.com/dynamo2 to check the compatibility of your smart device. Download the app and install it on your mobile device. The App Icon USER PROFILE Once the Ssmart Fit app has successfully been installed, simply open the App and tap the “Get Started” icon to begin.
- Page 12 Turn on the Bluetooth before start Make sure the Bluetooth access of your mobile device is available ( is shown in the app). Go to Settings of your mobile device to turn on Bluetooth connectivity, otherwise pop-up message will appear.
- Page 13 Pairing Dynamo 2/Dynamo 2+ with the App Make sure your Dynamo 2 is charged for at least 1 hour before pairing. 1. Activate Bluetooth on your smart phone and follow the in-app instruction in Ssmart Fit app for first time pairing.
- Page 14 3. Remove your Dynamo 2/Dynamo 2+ from the USB charger pod. The smart core will then display PAIR ME The smart core displays and it is available for pairing for up to 2 minutes. After 2 minutes, the smart core switches off. To make it available for pairing again, repeat step 1. 4.
- Page 16 Tutorial You will have an in-app tutorial before entering into the Home screen.
- Page 17 You can also view the tutorial at any time by pressing on the top right corner of the screen.
-
Page 18: User Profile Settings
User Profile settings Then, select User Profile. -
Page 19: Home Screen Settings
You can make changes to the following items: o Profile photo o Gender o Date of birth o Height o Weight o Unit o Calorie BMR (on/off) Tap Save to save your settings. Home screen settings You may customize your Home screen by choosing which items to display. - Page 21 , then select Home screen. You can make changes to the following items by choosing on/off: o Quick view function Set this function to ON to see the 6 icons on the Home screen. Sleep Weight Active pie Sharing...
-
Page 22: Device Settings
Device settings Here you can review and change your tracking device settings. - Page 23 You can make changes to the following items: o Silent alarm Set your agenda with daily reminder. You can set up to 7 alarms. Tap Add a new alarm.
- Page 24 Tap Save to save the alarm. You can edit you existing alarm by tapping Edit. Tap to delete an alarm. Tap Done to save.
- Page 25 Tap < Back to exit. o Notification Toggle to receive the notifications on Dynamo 2/Dynamo 2+ from your mobile device. Compatibility Icon Notification Android ✓ Voicemail Social ✓ ✓...
- Page 26 Compatibility Icon Notification Android Email ✓ ✓ Entertainment ✓ ✓ Health and Fitness ✓ ✓ ✓ ✓ Incoming call Miss call ✓ ✓ Reminder/Calendar ✓...
- Page 27 Dynamo 2/Dynamo 2+ supports the following social media platforms: Icon Social media Facebook Facebook Message Google+ Line...
- Page 28 Icon Social media SMS/Instagram/ Google Hangouts & others Skype Sina Weibo WeChat...
- Page 29 Icon Social media Tecent Weibo Twitter Whatsapp Pinterest...
- Page 30 Some Android mobile devices may need to activate the notification access in order to receive notifications on your Dynamo 2/Dynamo 2+. Go to Settings on your mobile device, scroll to Security > Notification access, then check the box of Ssmart Fit app. For details about supported app notifications, see Appendix section.
- Page 31 Then, set the Start time and End time for the period of reminder. Tap Done to save. Your Dynamo 2/Dynamo 2+ vibrates. o Set display You can choose your desired content to display on the Dynamo 2/Dynamo 2+. Tap Edit to edit the setting.
- Page 32 Tap and hold to move up/down the options to adjust the order. Tap Done to save. o Set button You can change the Dynamo 2/Dynamo 2+ operation button use. Choose either activate Find my phone, or Sleep monitoring when you press and hold the operation button. 1.
- Page 33 Set your activity targets Set your activity targets before getting started by filling the following items to your personal targets: o Active minutes o Steps o Calories (kcal) o Distance (km/miles)
-
Page 34: Wake Up Time Setting
Wake up time setting You can set to turn off the Sleep monitoring automatically on a daily basis. Set your wake up time for weekdays and weekend before using sleep monitoring function. This setting will wake the App and Dynamo 2/Dynamo 2+ from “sleep mode”... - Page 35 Slide to turn on/off the function. Tap the time to edit. Tap < Back to save and exit. Monitor your activity You can monitor the progress and results of your activity via your mobile device.
- Page 36 On the Home screen, there are 6 icons: Activity Minutes Steps Distance Calories (The calories chart shows an overall summary of intake or burnt calories. If the amount of calories burnt is greater than the intake, the chart shows the reading of calories burnt. If the amount of calories burnt is less than the intake, the chart shows the reading of calories intake.) Locator...
- Page 37 Find my phone Tap an icon and the screen automatically moves upwards; displaying the collected data and progress bar of each item. The colors of the bar trend indicate the achievement progress as follows: Color Achievement progress ≤50 % 51-89 % 90-99 % ≥100 %...
- Page 38 for in-app tutorial. Your activity achievement will also be displayed on your Dynamo 2/Dynamo 2+ after the time display. Tap your Dynamo 2/Dynamo 2+ twice to review your activity progress on Dynamo 2/Dynamo 2+. It displays the active minutes, steps, calories (kcal), distance (km). See Set display to customize desired display options. When you reach your activity target, your Dynamo 2/Dynamo 2+ will randomly display Locator...
- Page 39 The mobile screen displays the proximity between your Dynamo 2/Dynamo 2+ and your mobile device. The pink circle on the screen indicates the approximate distance between you and the Dynamo 2/Dynamo 2+. The larger the circle means the greater distance.
-
Page 40: Find My Phone
Find my phone Not only locating your tracking device, Dynamo 2/Dynamo 2+ can also be used to locate your mobile device... - Page 41 when it is within the range. Set your operation button before using this feature. See Set Device > Set button section in this manual.
- Page 42 Press and hold the operation button on Dynamo 2/Dynamo 2+. The smart core on Dynamo 2/Dynamo 2+ displays and the mobile device rings or vibrates to catch your attention. How close is your Dynamo 2/Dynamo 2+ and mobile device? Find my phone tells you the connection between your Dynamo 2/Dynamo 2+ and your mobile device. Your...
- Page 43 Dynamo 2/Dynamo 2+ shows the following indicators and vibrates. Display screen Status Connected to the mobile device Away from the mobile device Disconnected from the mobile device to activate or inactivate the Find my phone function. Add up your calorie intake You can input the calorie value of the food you eat into the app, which will calculate your daily calorie...
- Page 44 consumption for you. You may check the calories of your foods in our in-app database. In Home screen, drag the screen downwards to enter the Calorie intake. If you do not know the calorie in your food, tap the search bar and put the name of the food for a quick search in our database as shown on the next screen shot of the App.
- Page 45 You can find the foods calorie information on the nutrition label of the foods packaging as shown below:...
- Page 46 Heart rate monitor (PE289 – Dynamo 2+ only) Dynamo 2+ can measure your heart rate and help you to monitor your exercise intensity.
- Page 47 1. Place your finger on the metal plate part of the Dynamo 2+. The smart core displays the animation below: 2. Dynamo 2+ measures and displays your heart rate on the OLED display: 3. When Dynamo 2+ is connected with your smart device, your heart rate will also show on the Ssmart Fitapp.
- Page 48 Number Description Percentage of maximum heart rate Instant heart rate Heart rate zone indicator If you cannot get your heart rate reading within 10 seconds or if any unusual conditions occurs during heart rate reading: Moisten your fingertip slightly. Make sure your fingertip is warm and steady. Do not press too hard on the metallic plate.
- Page 49 Enjoy your sleep with Dynamo 2/Dynamo 2+...
- Page 50 Now you can enjoy your activity tracking day and night! Sleep Monitoring Function To monitor your sleeping status, make sure you are wearing a fully charged Dynamo 2/Dynamo 2+ and the wake...
- Page 51 up time is set (See Wake up time setting section of this manual) before you sleep. Start Sleep Monitoring Mode Press and hold the operation button on Dynamo 2/Dynamo 2+ until the smart core displays and then vibrates. Set your operation button to Sleep monitoring before using this function. - OR - Tap Enter sleep mode in Ssmart Fit App on your mobile device, your Dynamo 2/Dynamo 2+ vibrates once entered.
