Fermax BUS2 iLOFT MONITOR User& Installer's Manual page 18

iLOFT Monitor iLOFT Monitor
iLOFT Monitor iLOFT Monitor

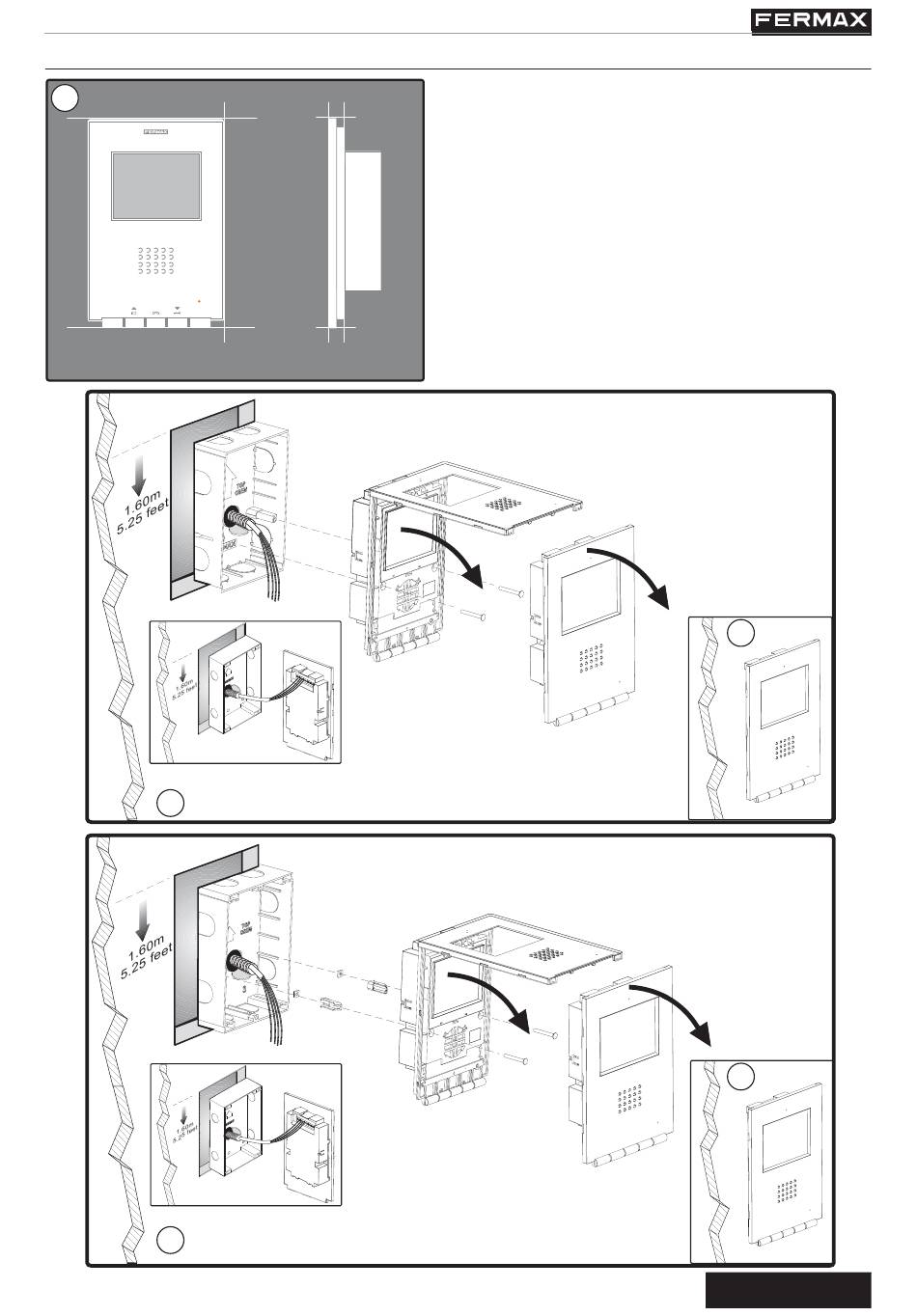

FLUSH MOUNTED MONITOR INSTALLATION
1
MENU
F1 F2
131mm
2a
Installation with a FERMAX BOX
2b
Installation with a UNIVERSAL BOX
Page 18
197mm
XXmm
14mm
F2
F1
T A+
Ct
-
L +
M
V
V M
F2
F1
T A+
Ct
- L
+
M
V V
M
Monitor Dimensions
(Height x Width x Depth*.)
197 x 131 x 60 mm / 7.7" x 5.1" x 2.3"
Pure Monitor Dimensions
197 x 131 x 59 mm / 7.7" x 5.1" x 2.3"
Fermax Box Dimensions
158 x 108 x 45 mm / 6.2" x 4.2" x 1.7"
Universal Box Dimensions
174 x 114 x 50 mm / 6.8" x 4.5" x 2"
Note:
- this Monitor can be installed in a universal box.
- Depth *: the Monitor depth stated here takes into account
the Fermax box
(*) Remove the electrostatic protective tag
(*)
(*) Remove the electrostatic protective tag
(*)
:
(Height x Width x Depth*.)
:
(Height x Width x Depth)
(Height x Width x Depth)
(*)
3
(*)
3
ENGLISH
:
:
