Parameter
Space needed for 19" rack mount
Weight

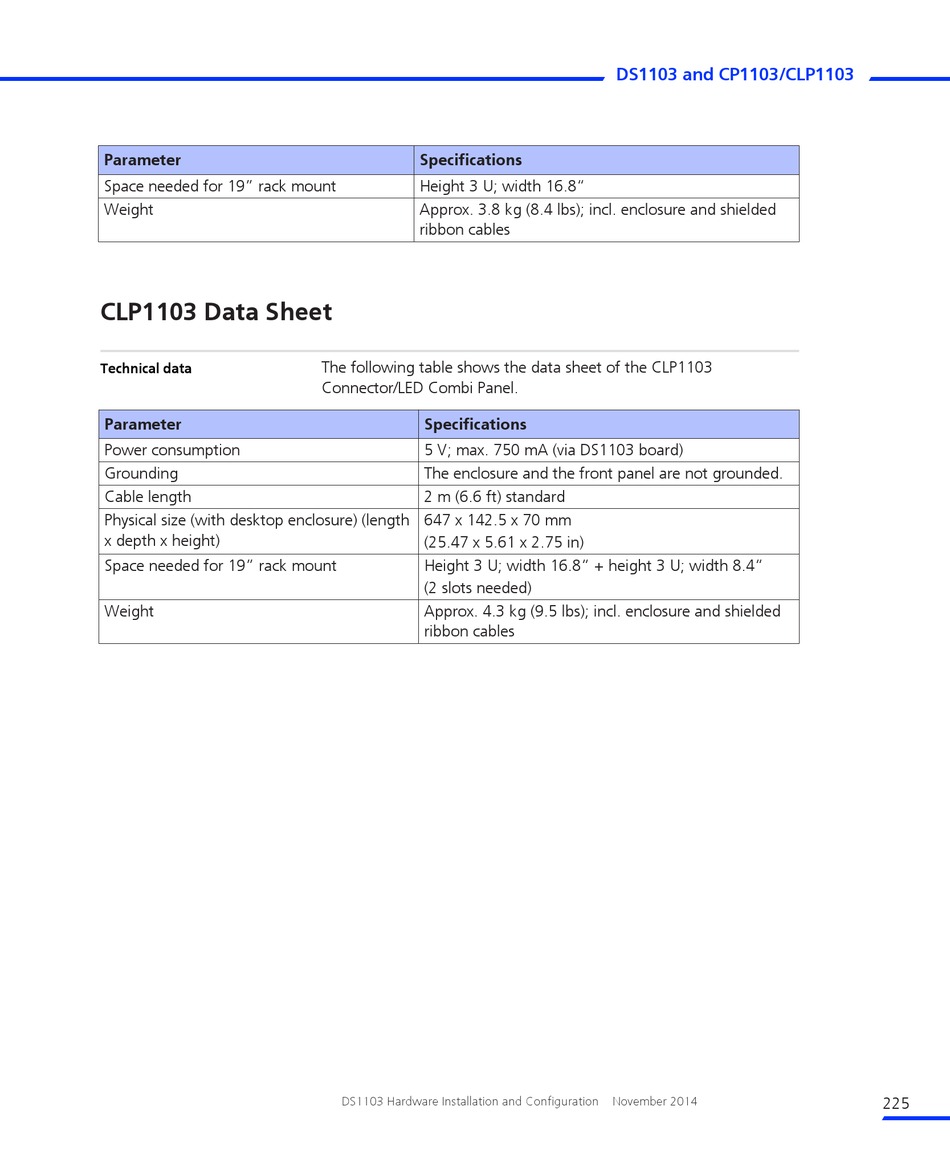

CLP1103 Data Sheet

Technical data
Parameter
Power consumption
Grounding
Cable length
Physical size (with desktop enclosure) (length
x depth x height)
Space needed for 19" rack mount
Weight
Specifications
Height 3 U; width 16.8"
Approx. 3.8 kg (8.4 lbs); incl. enclosure and shielded
ribbon cables
The following table shows the data sheet of the CLP1103
Connector/LED Combi Panel.
Specifications
5 V; max. 750 mA (via DS1103 board)
The enclosure and the front panel are not grounded.
2 m (6.6 ft) standard
647 x 142.5 x 70 mm
(25.47 x 5.61 x 2.75 in)
Height 3 U; width 16.8" + height 3 U; width 8.4"
(2 slots needed)
Approx. 4.3 kg (9.5 lbs); incl. enclosure and shielded
ribbon cables
