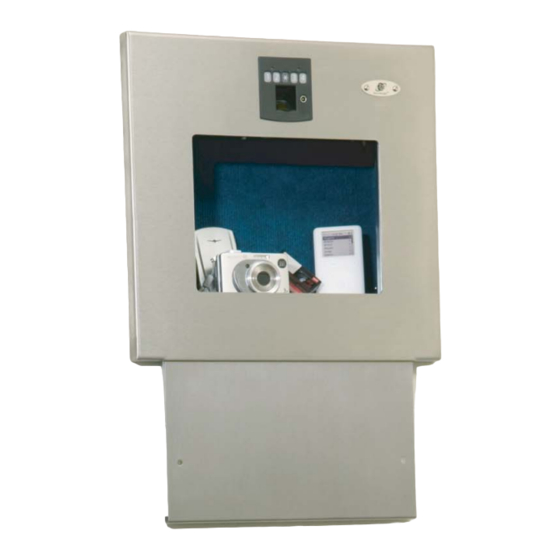

- Page 2 Congratulations thank purchasing the ETL ® SecureLogic™ Wall Vault™. Your new Wall Vault™ is a high quality security product, that can be used to store a variety of items out of reach of children or other unauthorized persons. Please read...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Warnings & Recommendations pg. 3 Standard Features pg. 5 Installation Instructions pg. 7 Programming Model 20700 pg. 9 Programming Model 20710 pg. 12 Operating Instructions pg. 13 Maintenance Instructions pg. 15 Security Features pg. 16 Trouble Shooting pg. -
Page 4: Warnings & Recommendations
WARNINGS AND RECOMMENDATIONS Anything in this installation guide that has been written in Italics is a WARNING. Failure to observe these instructions constitutes a MISUSE of this product and may result in serious physical injury or DEATH. NO UNAUTHORIZED REPAIR The Wall Vault™... - Page 5 WARNING: Never grab your firearm by the trigger when removing or placing into the Wall Vault™. Make sure your firearm’s safety mechanism is on. WARNING: Always follow the firearm safety rules set out by the firearm’s manufacturer. IMPORTANT NOTICE: - Vault must be in vertical position and installed on a vertical wall in order for door to drop open - Door must be open in order to install - Designed to install between 16”...
-
Page 6: Standard Features
STANDARD FEATURES Drop down quick access door > 12 gauge stainless steel face > Plush fabric interior > Touchpad / Numeric Keypad > Biometric Finger Sensor with 6 user storage > (Model 20700 Only) Emergency access key lock with 2 keys >... -
Page 8: Installation Instructions
INSTALLATION INSTRUCTIONS The Wall Vault™ is specifically designed to be mounted into a standard residential wall with at least 2x4 construction and wall studs of at least sixteen (16) inches on center apart. It is recommended to use an industrial grade stud finder to locate studs and ensure the wall void is free of other obstructions (ie. water pipes, electrical conduit, etc.). - Page 9 Template 5 feet...
-
Page 10: Programming Model 20700
PROGRAMMING INSTRUCTIONS (MODEL 20700) TouchPad The numbered touchpad operates on the capacitance of your skin and is very accurate in sensing the pressure of a touched area. Very little pressure is needed to operate this sensor. However, when using the numbered touchpad, the entire area of the number should be covered with your finger. - Page 12 PROGRAMMING INSTRUCTIONS (MODEL 20700) Adding Additional Users Up to five (5) additional users can be added to the system. To ensure safety please keep all codes secret. Press ‘*’ button and wait for five (5) seconds Press ‘2’ and hold for three (3) seconds. One (1) beep, followed by three (3) beeps will indicate the system is in Enroll Mode.
-
Page 13: Programming Model 20710
PROGRAMMING INSTRUCTIONS (Model 20710) Setting Main Pin Number The Wall Vault™ can store 2 access codes at a time. To program your access code, follow the instructions below. Open vault door. Default code is 1 2 3 4 followed by the ‘#’ key. Wait approximately ten (10) seconds until inner light turns off. -
Page 14: Operating Instructions
OPERATING INSTRUCTIONS Opening Door If pin number has not been changed, default code is 1 2 3 4 4 (Model 20700) or 1 2 3 4 (Model 20710). If pin number has already been programmed, default pin will not work until system is reset. Opening Door with Biometric Sensor (Model 20700) Please refer to the programing instructions on how to program finger print(s). -
Page 16: Maintenance Instructions
MAINTENANCE INSTRUCTIONS Charging Batteries When battery is low, an Alert beep will sound immediately following system startup. Plug AC Adapter into charger port (See Figure 24 for Model 20700 - See Figure 25 for Model 20710) Charge overnight Replacing the Battery The Wall Vault™... -
Page 17: Security Features
SECURITY FEATURES Function Possible Solution Tamper Lock Out When an incorrect code is attempted 5 consecutive times, the Wall Vault™ will go into Lock Out Mode for three (3) minutes. One (1) long beep, followed by four (4) short beeps will indicate Lock Out Mode is activated. -
Page 18: Trouble Shooting
TROUBLE SHOOTING Problem Possible Solution Upon pulling it out of the box, 1. Charge battery for 12 hours. electronics do not work. 2. If charging the battery does not activate electronic panel, call Customer Service. Power/touchpad are operational, but 1. Open Wall Vault™ door with door does not drop. -
Page 19: Warranty & Registration
® or by calling 209-529-3546 within the USA. Defects or damage caused by use of other than genuine ETL ® parts are not covered by this warranty. Please do NOT return your product without first contacting ETL PRODUCT REGISTRY ®... - Page 20 ® © Copyright 2004. ETL and SecureLogic . All Rights Reserved. Patent Pending. ™...
