REMKO HTS 90 Instructions Manual

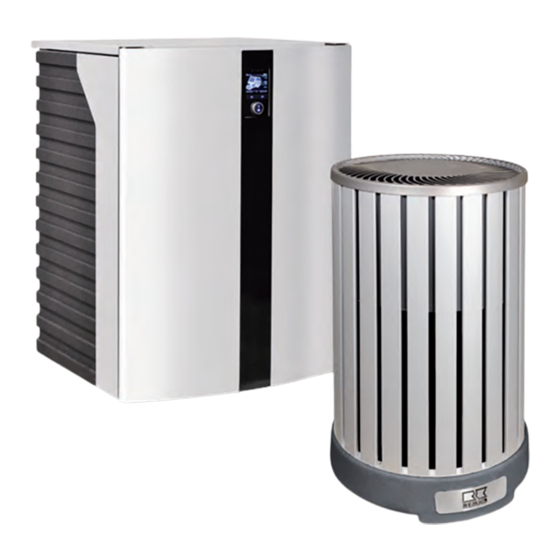

Air/water heat pump with inverter technology
Hide thumbs Also See for HTS 90:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Instructions
Electrical wiring

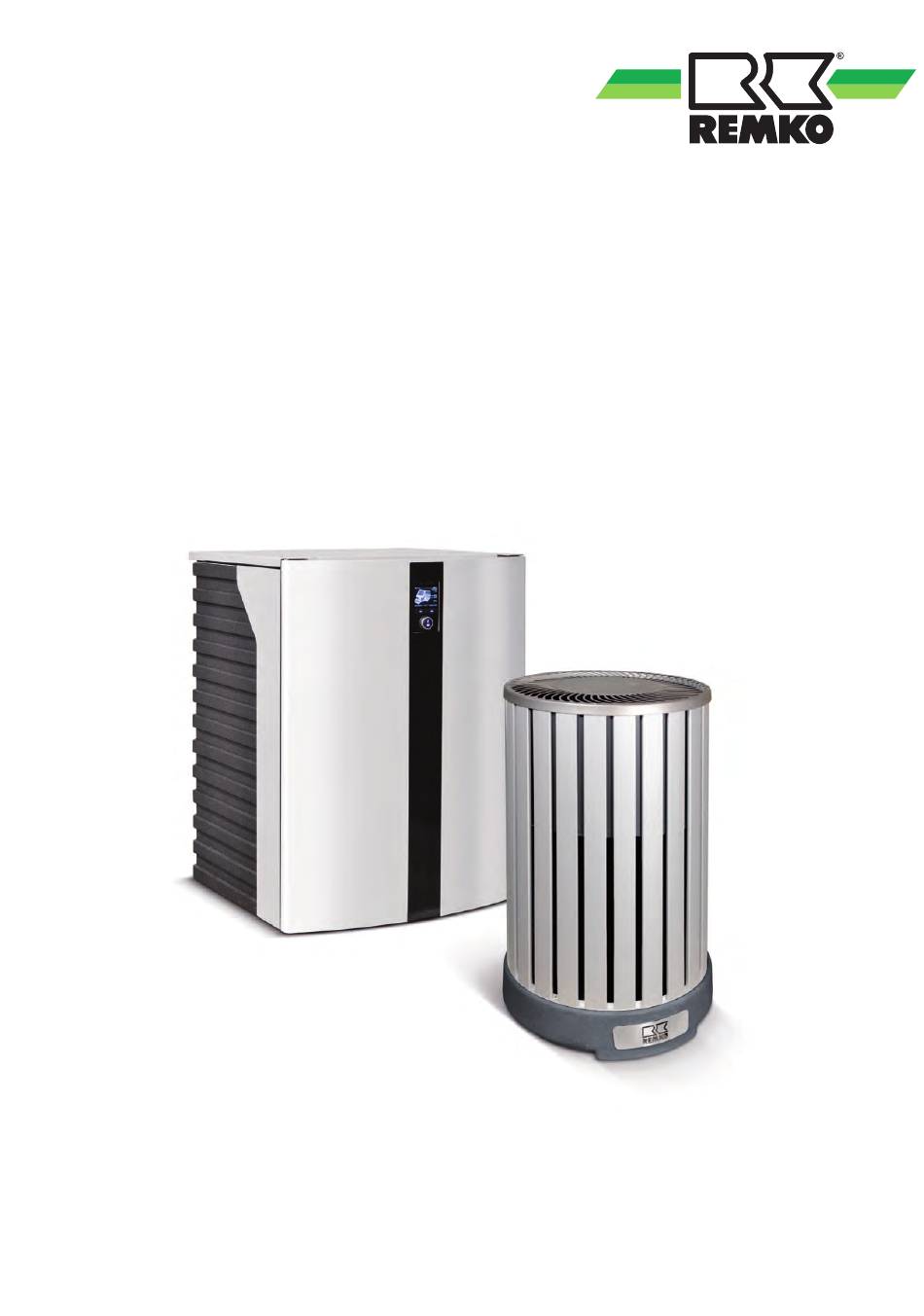

REMKO HTS 90 / 130 / 200 / 260
Air/water heat pump with inverter technology
Instructions for the Technician
Read the instructions prior to performing any task!
0092-2015-03 Version 1, en_GB

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HTS 90 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for REMKO HTS 90

Summary of Contents for REMKO HTS 90

  • Page 1 Electrical wiring REMKO HTS 90 / 130 / 200 / 260 Air/water heat pump with inverter technology Instructions for the Technician Read the instructions prior to performing any task! 0092-2015-03 Version 1, en_GB...
  • Page 2 Read these operating instructions carefully before commis- sioning / using this device! These instructions are an integral part of the system and must always be kept near or on the device. Subject to modifications; No liability accepted for errors or mis- prints! Translation of the original...

  • Page 3: Table Of Contents

    2.4 Electrical connection - outdoor module ..................10 2.5 Electrical configuration - I/O module..................... 13 2.6 Terminal block / key........................14 Electrical wiring HTS 90........................16 3.1 Overview of electrical connection cables..................16 3.2 Overview of terminal assignment ....................17 Electrical wiring HTS 130........................

  • Page 4: Safety And Usage Instructions

    REMKO HTS Safety and usage instructions CAUTION! This combination of symbol and signal word 1.1 General safety notes warns of a potentially hazardous situation, which if not avoided may cause injury or mate- Carefully read the operating manual before com- rial and environmental damage.

  • Page 5: Safety Notes For The Operator

    "certificate of warranty" to with all applicable regional regulations. REMKO GmbH & Co. KG at the time when the Local regulations and laws such as Water units are purchased and commissioned.

  • Page 6: Transport And Packaging

    REMKO HTS 1.11 Transport and packaging The devices are supplied in a sturdy shipping con- tainer. Please check the equipment immediately upon delivery and note any damage or missing parts on the delivery and inform the shipper and your contractual partner. For later complaints can not be guaranteed.

  • Page 7: Electrical Connection - General

    7: Power supply line to indoor module: 1: Fan / air outlet HTS 90 = 230V / 1~ / 50Hz, 16A (e.g. 3 x 2.5 mm 2: Condensate drain, external module HTS 130 = 400V / 3~ / 50Hz, 3x16A (e.g. 5 x 2.5 mm...
  • Page 8 REMKO HTS Fig. 2: System layout HTS 200/260 Outdoor area sensor cable sheathed 2 x 1.0 mm Indoor area Refrigerant lines " and “ C1: Outdoor module 1 Inlet C2: Outdoor module 2 Return flow Indoor module Mains supply line, indoor module = 400V / 3~ / 50Hz, 16A (e.g.

  • Page 9: General Notes

    A mains power line must be routed to the indoor module. All cable sizes are to be selected according to The indoor module HTS 90 needs to have a VDE 0100. Special attention should be given to one-phase power supply from 230 V / 1~/50 Hz...

  • Page 10: Electrical Connection - Indoor Module

    REMKO HTS 2.3 Electrical connection - indoor module NOTICE! The following instructions describe the electrical It is necessary to provide a separate RCD 100 connection of the inner module. mA, type B (universal current-sensitive) with a contact load of 40 A for the heat pump.
  • Page 11 Follow the connection schematic and the circuit Ä Chapter 2.6 ‘Terminal block / key’ diagrams ( on page 14). When connecting the control cable, make sure that polarity is correct. If the outdoor module is installed on a roof, it and the supporting structure must be earthed separately (connection to lightning conductors or foundation earth/ground feature).
  • Page 12 REMKO HTS Outdoor sensor The connection of an outdoor sensor is always required for Smart Control. Mount the outdoor sensor pointing skyward, in a north-easterly direction, about 2.5 metres above the ground. It may not be subjected to direct sunlight and is to be protected against excessive wind.

  • Page 13: Electrical Configuration - I/O Module

    2.5 Electrical configuration - I/O module Use wire gauge corresponding with the connection cable supplied! Lay load lines separately to measuring lines! Power supply I/O module Optional S0 WP current counter (min. 500 imp./kWh) S0 household counter (min. 500 imp./kWh) S0 PV yield (min.

  • Page 14: Terminal Block / Key

    REMKO HTS 2.6 Terminal block / key Terminal configuration Designation Input Output Signal Description Power supply I/O 230V Power supply primary pump IM Solar probe collector Solar probe storage tank, bottom Solar probe inlet HM solar Solar probe RF HM solar Circulation RF temp./impulse...
  • Page 15 Speed specification 2nd mixed heating circ. (0-10V) Not connected OT 1 (2x) Not connected OT 2 (2x) Not connected B1, A1 Operating module 1 - Bus 1 communication +12 Volt, B2 / A2 Bus 2 communication B3 / A2 Not connected RC code resistance HTS 90/130/200/260...

  • Page 16: Electrical Wiring Hts 90

    REMKO HTS Electrical wiring HTS 90 3.1 Overview of electrical connection cables Fig. 6: Overview of electrical connection HTS 90 A: Outdoor unit 4: Control cable, outdoor module 0-10V B: Indoor module (sheathed) / sensor cable (sheathed), C: Customer-provided sub-distribution e.g.

  • Page 17: Overview Of Terminal Assignment

    3.2 Overview of terminal assignment Fig. 7: Terminal configuration HTS 90 A: Outdoor unit 2: Mains supply line, booster heating, B: Indoor module 400V / 3~ / 50Hz, 16A, e.g. 5 x 2.5 mm C: Customer-provided sub-distribution 3: Terminals in indoor module...

  • Page 18: Electrical Wiring Hts 130

    REMKO HTS Electrical wiring HTS 130 4.1 Overview of electrical connection cables Fig. 8: Overview of electrical connection HTS 130 A: Outdoor unit 4: Control cable, outdoor module 0-10V B: Indoor module (sheathed) / Sensor cable (sheathed), C: Customer-provided sub-distribution e.g.

  • Page 19: Overview Of Terminal Assignment

    4.2 Overview of terminal assignment Fig. 9: Terminal configuration HTS 130 A: Outdoor unit 2: Mains supply line, booster heating, B: Indoor module 400V / 3~ / 50Hz, 16A, e.g. 5 x 2.5 mm C: Customer-provided sub-distribution 3: Terminals in indoor module D: Outdoor sensor 4: Terminals on electrical heating coil E: Electrical heating coil...

  • Page 20: Electrical Wiring Hts 200

    REMKO HTS Electrical wiring HTS 200 5.1 Overview of electrical connection cables Fig. 10: Connection cables HTS 200 A1: Outdoor module 1 230V / 1~ / 50Hz, 10A, e.g. 5 x 1.5 mm A2: Outdoor module 2 Control line, outdoor module 1 (sheathed) /...

  • Page 21: Overview Of Terminal Assignment

    5.2 Overview of terminal assignment Fig. 11: Terminal configuration HTS 200 A1: Outdoor module 1 Mains supply line, booster heating, A2: Outdoor module 2 400V / 3~ / 50Hz, 16A, e.g. 5 x 2.5 mm Indoor module Terminals in indoor module Customer-provided sub-distribution Terminals on electrical heating coil Outdoor sensor...
  • Page 22 REMKO HTS Electrical connections between indoor module and outdoor module 1 Outdoor Indoor module module 1 Terminal Description Terminal Power supply PE Power supply L Power supply N Power supply booster heating L (optional) Power supply booster heating N (optional)

  • Page 23: Electrical Wiring Hts 260

    Electrical wiring HTS 260 6.1 Overview of electrical connection cables Fig. 12: Connection cables HTS 260 A1: Outdoor module 1 230V / 1~ / 50Hz, 10A, e.g. 5 x 1.5 mm A2: Outdoor module 2 Control line, outdoor module 1 (sheathed) / Indoor module sensor cable (sheathed), e.g.

  • Page 24: Overview Of Terminal Assignment

    REMKO HTS 6.2 Overview of terminal assignment Fig. 13: Terminal configuration HTS 260 A1: Outdoor module 1 Mains supply line, booster heating, A2: Outdoor module 2 400V / 3~ / 50Hz, 16A, e.g. 5 x 2.5 mm Indoor module Terminals in indoor module...
  • Page 25 Electrical connections between indoor module and outdoor module 1 Outdoor Indoor module module 1 Terminal Description Terminal Power supply PE Power supply L Power supply N Power supply booster heating L (optional) Power supply booster heating N (optional) Signal cable 0-10V Response signal Temperature sensor Electrical connections between indoor module and outdoor module 2...

  • Page 26: Circuit Diagrams

    Mixer 230V 2nd heat generator /8.6 Sensor PT1000 /10.1 Coding resistor A22/open Bypass 2nd mix. heating cycle RF HTS 90 / 130 / 200 / 260 A23/closed /8.9 Sensor PT1000 Heat pump RF Mixer 230V A24/A25 /11.9 Opener contact Potential-free /11.10...
  • Page 28 REMKO HTS Only on HTS 200 and HTS 260! Outdoor Unit Outdoor Unit...
  • Page 30 REMKO HTS...
  • Page 32 REMKO HTS...
  • Page 33 Dew point monitoring is provided by the customer...
  • Page 34 REMKO HTS...
  • Page 36 REMKO HTS...
  • Page 38 REMKO HTS...
  • Page 40 REMKO HTS...
  • Page 42 REMKO HTS...
  • Page 43 Key to the circuit diagrams Colour codes: blue blk: black blu: blue brown bro: brown yellow green grn: green orange ora: orange black violet vio: violet yel: yellow Miscellaneous: Circ.: Circulation Com.: Communication Eev: Electronic expansion valve EVU: Electrical power company Heating cycle Hot water INL:...

  • Page 44: Index

    REMKO HTS Index General ......4 Identification of notes ....4 Circuit diagrams .
  • Page 46 REMKO HTS...
  • Page 48 SFlb Customer Service Our equipment operates precisely and reliably. However, in the event of a fault, REMKO customer service is quickly at the scene. Our comprehensive network of experienced dealers always guarantees quick and REMKO GmbH & Co. KG reliable service.
