CSZ NORM-O-TEP 111Z Operation & Technical Manual

Hyperthermia system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Operation / Technical Manual

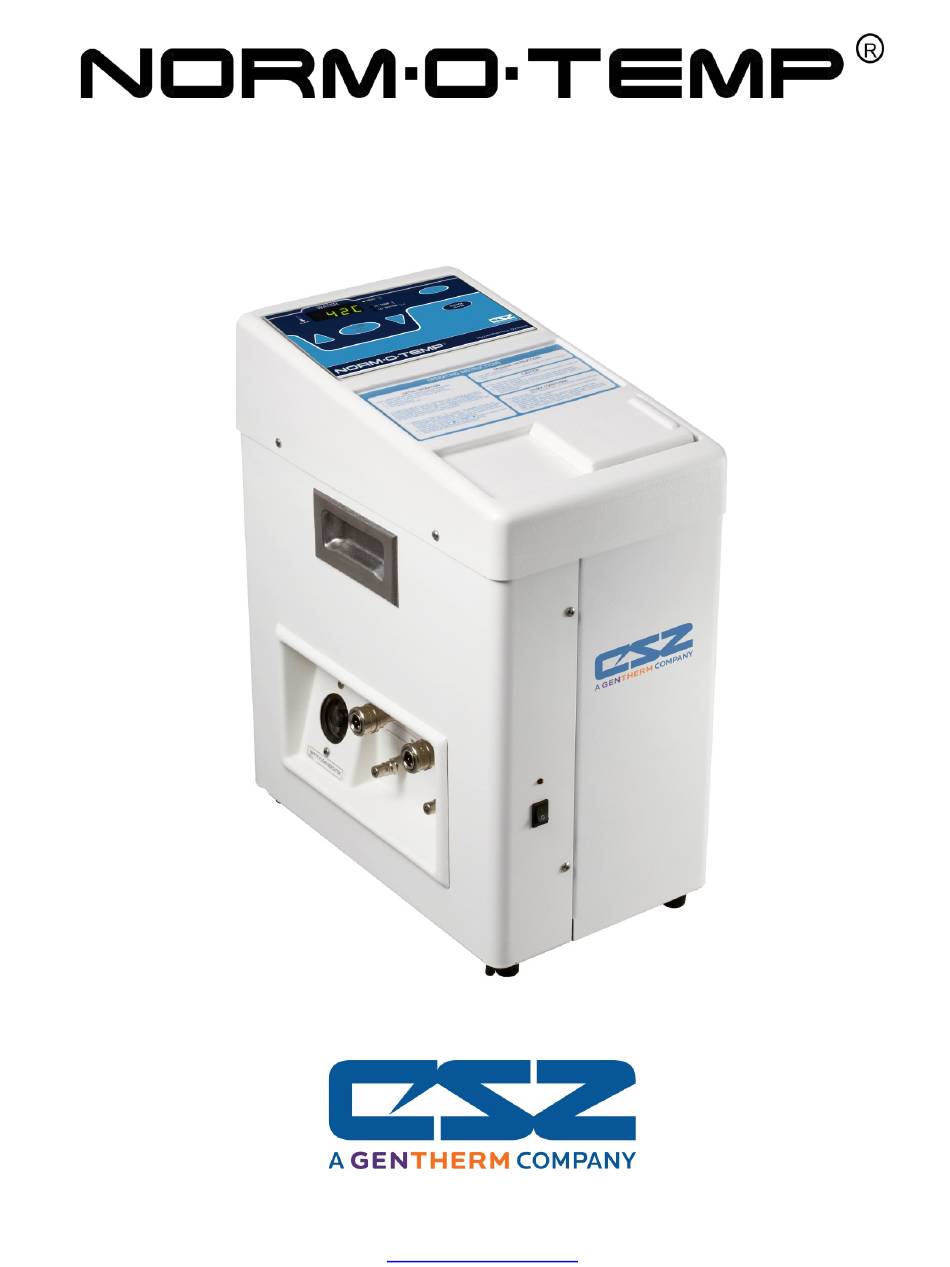

Model 111Z Hyperthermia System
Cincinnati Sub-Zero Products, LLC • 12011 Mosteller Road • Cincinnati, Ohio 45241, U.S.A.
www.cszmedical.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NORM-O-TEP 111Z and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CSZ NORM-O-TEP 111Z

Summary of Contents for CSZ NORM-O-TEP 111Z

  • Page 1 Operation / Technical Manual Model 111Z Hyperthermia System Cincinnati Sub-Zero Products, LLC • 12011 Mosteller Road • Cincinnati, Ohio 45241, U.S.A. www.cszmedical.com...
  • Page 2 Operation / Technical Manual NORM-O-TEMP, Model 111Z NORM-O-TEMP , MAXI-THERM , MAXI-THERM LITE, Gelli-Roll and PLASTI-PAD are registered trademarks of Cincinnati Sub-Zero Products, LLC, Cincinnati, Ohio USA. ® ® ® ® ® Copyright 2016 Cincinnati Sub-Zero Products, LLC. All rights reserved. Manual 59225 Rev.
  • Page 3 Operation / Technical Manual NORM-O-TEMP, Model 111Z SYMBOLS Caution: Read Fuse Temperature Set Operation Instructions and Manual Before Operating Increasing Silence Alarm Water Temperature Temperature Decreasing Fill to Strainer Temp. Set Point Temperature Indicator Inlet Heat Water Flow Indicator Outlet Risk of Explosion: Do not use in the Power Cord Holder...
  • Page 4 Operation / Technical Manual NORM-O-TEMP, Model 111Z Cincinnati Sub-Zero Products, LLC, reserves the right to make changes to the device, which may not be reflected in this manual. WARNING A physician's order is required for the use of the device and setting the temperature of the blanket/pad.
  • Page 5 Operation / Technical Manual NORM-O-TEMP, Model 111Z Do not use the NORM-O-TEMP system in the presence of flammable anesthetics. Risk of • ® The warming of transdermal medications (patches) can increase drug delivery, resulting • explosion can result. • • Power interruption will cause the NORM-O-TEMP to revert to Preset Set point Temperature in possible injury to the patient.
  • Page 6 • power source. Unapproved blanket/pad(s) or hoses should never be used. Always use CSZ • No modification of this equipment is allowed without prior, written authorization from CSZ. recommended blankets/pads. • Page 6 of 81...

  • Page 7: Table Of Contents

    Operation / Technical Manual NORM-O-TEMP, Model 111Z TABLE OF CONTENTS TECHNICAL HELP ..............................10 BEFORE YOU CALL FOR SERVICE......................... 10 IN-WARRANTY REPAIR AND PARTS........................10 RECEIVING INSPECTION ............................10 IMPORTANT SAFETY INFORMATION ........................10 NORM-O-TEMP OPERATING INSTRUCTIONS QUICK START GUIDE ............ 11 ®...
  • Page 8 Operation / Technical Manual NORM-O-TEMP, Model 111Z 6-0. Introduction ................................. 48 6-1. Access to the Interior ............................49 6-1.1. Removing the Top of the Unit ........................49 6-1.2. Replace / Reinstall the Top of the Unit ....................50 6-1.3. Removing the Three-Sided Enclosure Panel ..................50 6-1.4.
  • Page 9 Operation / Technical Manual NORM-O-TEMP, Model 111Z Figure 1. NORM-O-TEMP unit, Front View ........................14 TABLE OF FIGURES ® Figure 2. NORM-O-TEMP unit, Left Side View ......................16 ® Figure 3. NORM-O-TEMP unit, Rear View ........................18 ® Figure 4. NORM-O-TEMP unit, Right Side View ......................

  • Page 10: Technical Help

    12011 Mosteller Road 1-513-772-9119 Cincinnati, OH 45241 (U.S.) 24hr Clinical Support 1-513-460-2038 E-Mail csz@genthermcsz.com Visit our Web Site at http://www.cszmedical.com To help us better serve you, please have the serial number of your NORM-O-TEMP unit Before you call for Service..
