CSZ Norm-O-Temp 111W Operation And Technical Manual

Hyperthermia system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Operation / Technical Manual
Model 111W Hyperthermia System
Cincinnati Sub-Zero Products, LLC.  12011 Mosteller Road  Cincinnati, Ohio 45241, U.S.A.
www.cszmedical.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Norm-O-Temp 111W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CSZ Norm-O-Temp 111W

Summary of Contents for CSZ Norm-O-Temp 111W

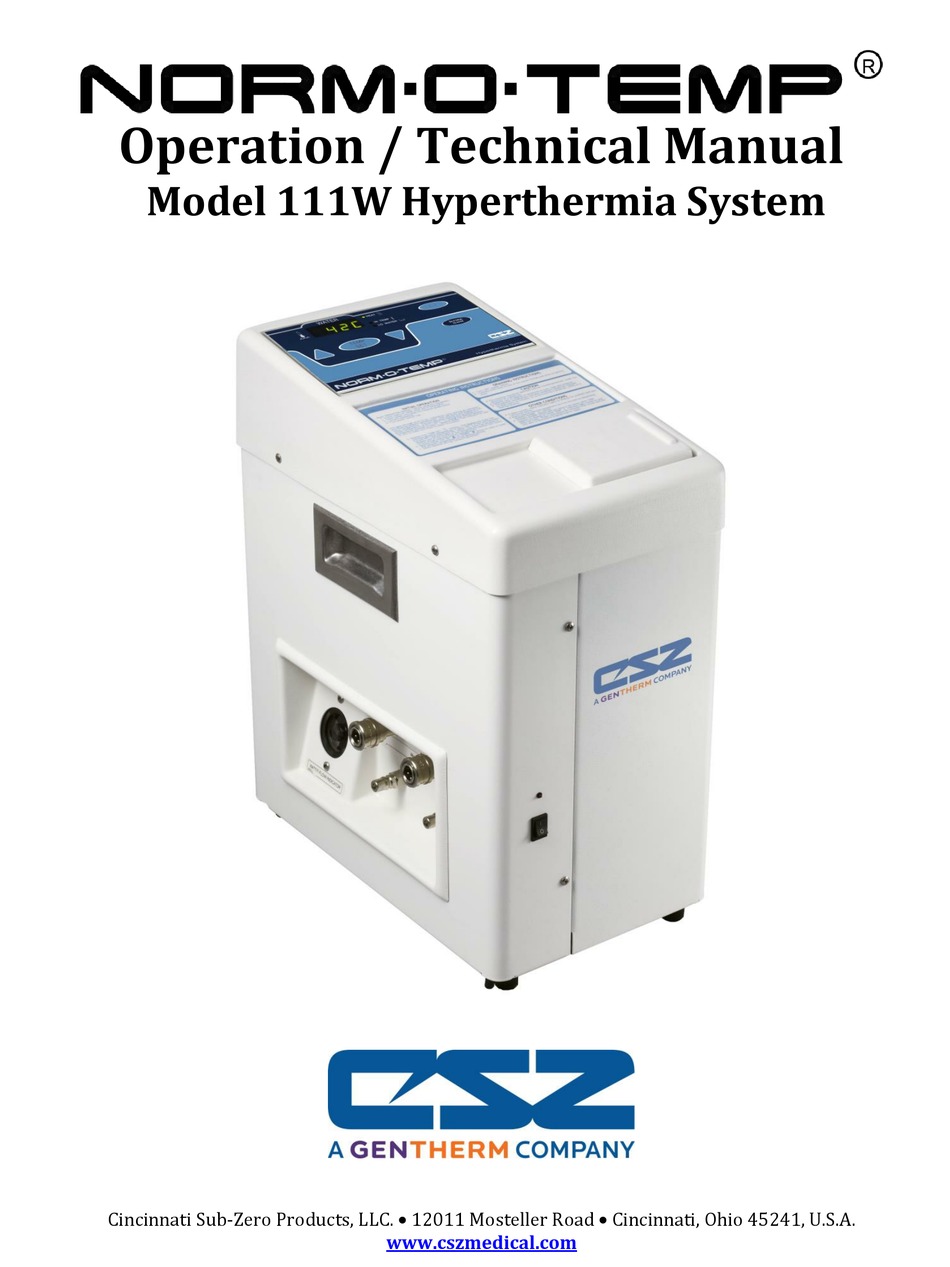

  • Page 1 Operation / Technical Manual Model 111W Hyperthermia System Cincinnati Sub-Zero Products, LLC.  12011 Mosteller Road  Cincinnati, Ohio 45241, U.S.A. www.cszmedical.com...
  • Page 2 Operation/Technical Manual NORM-O-TEMP , Model 111W ® NORM-O-TEMP , MAXI-THERM , MAXI-THERM LITE, Gelli-Roll and PLASTI-PAD are registered ® ® ® ® ® trademarks of Cincinnati Sub-Zero Products, LLC, Cincinnati, Ohio USA. Copyright 2018 Cincinnati Sub-Zero Products, LLC. All rights reserved. Manual 56430 Rev.
  • Page 3 Operation/Technical Manual NORM-O-TEMP , Model 111W ® SYMBOLS Caution: Read Fuse Temperature Set Operation Instructions and Manual Before Operating Increasing Silence Alarm Water Temperature Temperature Decreasing Fill to Strainer Temp. Set Point Temperature Indicator Inlet Heat Water Flow Indicator Outlet Risk of Explosion: Do not use in the Power Cord Holder...
  • Page 4 Operation/Technical Manual NORM-O-TEMP , Model 111W ® Cincinnati Sub-Zero Products, LLC, reserves the right to make changes to the device, which may not be reflected in this manual. WARNING  A physician's order is required for the use of the device and setting the temperature of the blanket/pad.
  • Page 5 Operation/Technical Manual NORM-O-TEMP , Model 111W ®  Do not by-pass ground lug. Electrical Hazards may result.  Any time water is found leaking into or around the unit, connecting hose, and/or blanket/pad, turn the unit off, disconnect the power cord from its power source, and correct the problem before proceeding.
  • Page 6  Unapproved blanket/pad(s) or hoses should never be used. Always use CSZ recommended blankets/pads.  No modification of this equipment is allowed without prior, written authorization from CSZ.

  • Page 7: Table Of Contents

    Operation/Technical Manual NORM-O-TEMP , Model 111W ® TABLE OF CONTENTS Technical Help ................................10 Before you call for Service............................10 In-Warranty Repair and Parts ..........................10 Receiving Inspection ..............................10 Important Safety Information ..........................10 NORM-O-TEMP Operating Instructions Quick Start Guide ................11 ®...
  • Page 8 Operation/Technical Manual NORM-O-TEMP , Model 111W ® 6-1. Access to the Interior ............................49 6-1.1. Removing the Top of the Unit ........................49 6-1.2. Replace / Reinstall the Top of the Unit ....................50 6-1.3. Removing the Three-Sided Enclosure Panel ..................50 6-1.4.
  • Page 9 Operation/Technical Manual NORM-O-TEMP , Model 111W ® TABLE OF FIGURES Figure 1. NORM-O-TEMP unit, Front View ....................15 ® Figure 2. NORM-O-TEMP unit, Left Side View ....................17 ® Figure 3. NORM-O-TEMP unit, Rear View ...................... 19 ® Figure 4. NORM-O-TEMP unit, Right Side View ...................

  • Page 10: Technical Help

    12011 Mosteller Road 1-513-772-9119 Cincinnati, OH 45241 (U.S.) 24hr Clinical Support 1-513-460-2038 E-Mail csz@genthermcsz.com Visit our Web Site at http://www.cszmedical.com Before you call for Service... To help us better serve you, please have the serial number of your NORM-O-TEMP unit ®...

  • Page 11: Norm-O-Temp ® Operating Instructions Quick Start Guide

    Operation/Technical Manual NORM-O-TEMP , Model 111W ® NORM-O-TEMP Operating Instructions Quick Start Guide ® Read Operation Manual before using this device First Time Use Cleaning: Refer to section 5-1.1, 5-1.2 and 5-1.3 for cleaning instructions. Initial Operation: 1. Check reservoir water level and fill if necessary 2.
  • Page 12 Operation/Technical Manual NORM-O-TEMP , Model 111W ® Draining Instructions: 1. Turn “OFF” power switch. 2. Connect drain hose to one of the outlet fittings and allow to gravity drain. Alarm Conditions:  If an alarm sounds, check indicator lights or display for problem and take corrective action.

  • Page 13: Introduction

    Operation / Technical Manual NORM-O-TEMP , Model 111W ® Section 1. Introduction 1-0. General Safety Precautions To provide the patient maximum safety during the use of the NORM-O-TEMP ® hyperthermia system, a thorough knowledge and understanding of the system, and the correct application and operating use are required.

  • Page 14: Physical Description Of The Norm-O-Temp System

    Operation / Technical Manual NORM-O-TEMP , Model 111W ® NORM-O-TEMP, Model 111W The NORM-O-TEMP , Model 111W hyperthermia System is used to keep a patient ® comfortable by maintaining blanket/pad water temperature through conductive heat transfer. The NORM-O-TEMP hyperthermia system is composed of a heater, ®...

  • Page 15: Figure 1. Norm-O-Temp ® Unit, Front View

    Operation / Technical Manual NORM-O-TEMP , Model 111W ® Figure 1. NORM-O-TEMP unit, Front View ® Page 15 of 82...

  • Page 16: 1-3.2. External Features And Descriptions - Left Side View

    Operation / Technical Manual NORM-O-TEMP , Model 111W ® 1-3.2. External Features and Descriptions – Left Side View The external features in Figure 2 of the NORM-O-TEMP unit are described as ® follows: A. The water flow indicator is a paddle wheel immersed in the path of the circulating water with a window to the outside.

  • Page 17: Figure 2. Norm-O-Temp ® Unit, Left Side View

    Operation / Technical Manual NORM-O-TEMP , Model 111W ® Figure 2. NORM-O-TEMP unit, Left Side View ® Page 17 of 82...

  • Page 18: 1-3.3. External Features And Descriptions - Rear View

    Operation / Technical Manual NORM-O-TEMP , Model 111W ® 1-3.3. External Features and Descriptions – Rear View The external features in Figure 3 of the NORM-O-TEMP unit are described as ® follows: A. The specification label outlines the NORM-O-TEMP unit's electrical ®...

  • Page 19: Figure 3. Norm-O-Temp ® Unit, Rear View

    Operation / Technical Manual NORM-O-TEMP , Model 111W ® Figure 3. NORM-O-TEMP unit, Rear View ® Page 19 of 82...

  • Page 20: 1-3.4. External Features And Descriptions - Right Side View

    Operation / Technical Manual NORM-O-TEMP , Model 111W ® 1-3.4. External Features and Descriptions – Right Side View The external featuresin Figure 4 of the NORM-O-TEMP unit are described as ® follows: A. The three sided enclosure panel, secured with eight screws, provides access to the interior.

  • Page 21: Figure 4. Norm-O-Temp ® Unit, Right Side View

    Operation / Technical Manual NORM-O-TEMP , Model 111W ® Figure 4. NORM-O-TEMP unit, Right Side View ® Page 21 of 82...

  • Page 22: 1-3.5. External Features And Descriptions - Top View

    Operation / Technical Manual NORM-O-TEMP , Model 111W ® 1-3.5. External Features and Descriptions – Top View The membrane control panel as shown in Figure 5 is composed of pressure sensitive touch switches and LED displays. The membrane control panel is divided into the following sections: A.

  • Page 23: Figure 5. Norm-O-Temp ® Unit, Model 111W Top View

    Operation / Technical Manual NORM-O-TEMP , Model 111W ® Figure 5. NORM-O-TEMP unit, Model 111W Top View. ® Page 23 of 82...

  • Page 24: Required Accessories

    Operation / Technical Manual NORM-O-TEMP , Model 111W ® 1-4. Required Accessories Operation of the NORM-O-TEMP unit requires the use of the blanket/pad(s) designed ® to circulate warm water via a connecting hose with quick-disconnect male and female couplings. NORM-O-TEMP System Equipment and accessories are listed in Figure 16.

  • Page 25: 1-5.3. Temperature Safety Control System

    Operation / Technical Manual NORM-O-TEMP , Model 111W ® In addition, the circulating reservoir contains a low water level sensor which shuts down the unit and sounds an alarm if the water level drops below 1 ½ quarts (1.4 liters). The unit becomes operational after the water level is restored to normal. 1-5.3.

  • Page 26: Specifications And Certifications

    Operation / Technical Manual NORM-O-TEMP , Model 111W ® Section 2. Specifications and Certifications Specifications for the NORM-O-TEMP are presented in Figure 6 and are subject to ® change without notice. Physical Control System Microprocessor-based temperature control Dimensions: system, and Alarm indications. 22.86 cm Wide 38.14 cm Deep 46.99 cm High...
  • Page 27 Operation / Technical Manual NORM-O-TEMP , Model 111W ® Electrical System Safety System Maximum High Control Setting Electrical Characteristics: 42°C 230V, 50Hz, 4.8 Amps 240V, 50Hz, 4.6 Amps Primary Temperature Limit: 43.5°C ± 0.6°C Heater Power: Secondary Temperature Limit: 800 watts 44.5°C ±...

  • Page 28: General Preparation Of The Norm-O-Temp ® System

    Operation / Technical Manual NORM-O-TEMP , Model 111W ® Section 3. General Preparation of the NORM-O-TEMP System ® 3-0. Introduction This section describes the procedures to prepare the NORM-O-TEMP unit for general ® use. This entails unpacking the shipment, arranging all the equipment for the first time, and completing a test routine.
  • Page 29 Operation / Technical Manual NORM-O-TEMP , Model 111W ® B. Visually inspect the NORM-O-TEMP unit to determine that there are no missing ® parts, dents, or punctures. C. Examine the power cord for cuts or exposed wires and the power plug for bent or missing prongs.

  • Page 30: 3-2.2. Completing A System Test Routine

    Operation / Technical Manual NORM-O-TEMP , Model 111W ® ii. Slide the collar back towards the hose iii. Push the female Hansen socket of the hose over a male Hansen plug of the unit iv. Allow the collar to SNAP into place and return to its original position v.
  • Page 31 Operation / Technical Manual NORM-O-TEMP , Model 111W ® A. Make sure that the power switch is in the “I” position (unit is turned on). 1. A beeper sounds. 2. The microprocessor board goes through self-test. 3. The seven segment display reads CAL for several seconds. 4.

  • Page 32: Unit And Patient Related Precautions

    Operation / Technical Manual NORM-O-TEMP , Model 111W ® H. Check the couplings at the unit and at the blanket/pad for positive connection. To drain the water from the reusable blanket/pad simply shut off power to the unit and allow the water to drain from the blanket/pad back into the NORM-O- TEMP unit.

  • Page 33: Alarms And Error Displays

    Operation / Technical Manual NORM-O-TEMP , Model 111W ® B. Changes in skin color, edema, inflammation, or indications of pressure, especially over bony prominences, should be noted and treated as ordered. Avoid prolonged tissue pressure and shearing forces over bony prominences. C.
  • Page 34 Operation / Technical Manual NORM-O-TEMP , Model 111W ® E. Independent Mechanical High Temperature Safety Alarm 1. If the circulating water reaches 46°C ± 0.6°C the independent mechanical high temperature safety will activate to shut off the power to the pump, shut off the power to the heater, the HI TEMP LED and Power Fail LED illuminate, and the trouble alarm sounds.

  • Page 35: Operating The Norm-O-Temp ® System

    Operation / Technical Manual NORM-O-TEMP , Model 111W ® Operating the NORM-O-TEMP System ® Section 4. 4-0. Introduction This section describes how to operate the NORM-O-TEMP system in order to control ® the blanket/pad water temperature. For proper knowledge and understanding of the unit, in-service training is available upon request.

  • Page 36: Operating The Norm-O-Temp ® System

    Operation / Technical Manual NORM-O-TEMP , Model 111W ® K. Connect the blanket/pad to the NORM-O-TEMP unit as described in Section 3- ® 2.1. L. If a single-patient use hyper-hypothermia blanket/pad is used, connect the couplings of the connecting hose to the blanket/pad as described in the instructions packaged with each blanket/pad.

  • Page 37: Concluding The Use Of The Norm-O-Temp ® System

    Operation / Technical Manual NORM-O-TEMP , Model 111W ® 4-3. Concluding the Use of the NORM-O-TEMP System ® NOTE: It is important to drain the unit before placing in dry storage. After the patient temperature reaches the prescribed temperature for the prescribed amount of time, discontinue the use of the NORM-O-TEMP unit as ordered.

  • Page 38: General Maintenance Of The Norm-O-Temp ® System

    Operation / Technical Manual NORM-O-TEMP , Model 111W ® Section 5. General Maintenance of the NORM-O-TEMP System ® 5-0. Introduction This section describes the general requirements maintenance personnel should complete on a regular basis so that the NORM-O-TEMP system continues to operate within the ®...

  • Page 39: Figure 7. Norm-O-Temp ® Maintenance Checklist

    Operation / Technical Manual NORM-O-TEMP , Model 111W ® Required Preventative Maintenance Checklist (Quarterly Hospital Control No. Serial Number Check When Completed 1. External cabinet in good condition. (No unusual dents or missing parts.)  2. All labels properly affixed. ...

  • Page 40: Maintenance Of Water Reservoir

    Operation / Technical Manual NORM-O-TEMP , Model 111W ® 5-1. Maintenance of Water Reservoir The dual compartment reservoir holds approximately 1½ gallons (5.7 liters) of distilled water that remains in the unit between periods of use. Once a month the water reservoir should be drained and replenished. The drain hose, included in the packaging of the unit, is attached and the water is pumped out of the unit.
  • Page 41 Operation / Technical Manual NORM-O-TEMP , Model 111W ® D. Fill the reservoir with warm distilled water. E. Turn the unit on and circulate per the Chemical Cleaning Circulation Chart (above). F. Drain the unit as instructed in Step A. G.

  • Page 42: 5-1.2. Internal Cleaning And Disinfecton Using Gigasept Ff / Dry Storage Procedure

    Operation / Technical Manual NORM-O-TEMP , Model 111W ® 5-1.2. Internal Cleaning and Disinfecton Using Gigasept FF / Dry Storage Procedure For Circulating Water Units Utilizing CE Approved Gigasept FF (Product of Schulke & Mayr) (Contact your local Cleaning Supplier). Gigasept FF Is Not Available In the United States.

  • Page 43: 5-1.3. Internal Cleaning And Disinfection Using Maranon H / Dry Storage Procedure

    Operation / Technical Manual NORM-O-TEMP , Model 111W ® 5-1.3. Internal Cleaning and Disinfection Using Maranon H / Dry Storage Procedure For circulating water units utilizing CE approved Maranon H (Product of Ecolab). Maranon H is not available in the United States. The following procedure disinfects the fluid circuit in these products.

  • Page 44: 5-1.4. Draining The Reservoir

    Operation / Technical Manual NORM-O-TEMP , Model 111W ® 5-1.4. Draining the Reservoir CAUTION  Always drain the NORM-O-TEMP to a sanitary drain because bacteria may be ® present in the unit’s water supply. A. Collect these items: 1. An empty container to drain the water into that can hold at least 3 gallons (11.4 liters).

  • Page 45: 5-1.5. Replenishing The Reservoir / Fixing A Low Water Alarm

    Operation / Technical Manual NORM-O-TEMP , Model 111W ® J. If any other maintenance/repair is to be completed, go to the appropriate section, e.g., cleaning the water filter. If not, go to Section 5-1.5 to replenish the reservoir. 5-1.5. Replenishing the Reservoir / Fixing a Low Water Alarm A.
  • Page 46 Operation / Technical Manual NORM-O-TEMP , Model 111W ® WARNING  The repair, calibration, and servicing of the NORM-O-TEMP should be performed by ® qualified Medical Equipment Service Technicians, Certified Biomedical Electronics Technicians, or Certified Clinical Engineers familiar with good repair practices for servicing medical devices, and in accordance with instructions contained in this manual.

  • Page 47: Maintenance Of The Norm-O-Temp ® Exterior - Cleaning Instructions

    Operation / Technical Manual NORM-O-TEMP , Model 111W ® 5-3. Maintenance of the NORM-O-TEMP Exterior – Cleaning Instructions ® The NORM-O-TEMP unit is constructed of powder coated steel with a plastic top ® that should be cleaned quarterly with water and mild detergent solution. For cleaning and disinfecting, always use conventional hospital-approved topical equipment cleaners and disinfectants that do not contain alcohol.

  • Page 48: Field Repair / Service Of The Norm-O-Temp

    Operation / Technical Manual NORM-O-TEMP , Model 111W ® Section 6. Field Repair / Service of the NORM-O-TEMP ® WARNING  The repair, calibration, and servicing of the NORM-O-TEMP should be ® performed by a qualified Medical Equipment Service Technicians, Certified Biomedical Electronics Technicians, or Certified Clinical Engineers familiar with good repair practices for servicing medical devices, and in accordance with instructions contained in this manual.

  • Page 49: Access To The Interior

    Operation / Technical Manual NORM-O-TEMP , Model 111W ® The description of each task includes the tools, the procedures and the precautions necessary to complete the task. Maintenance, repair and/or service of the NORM-O- TEMP by qualified maintenance/technical personnel will not void the warranty. ®...

  • Page 50: 6-1.2. Replace / Reinstall The Top Of The Unit

    Operation / Technical Manual NORM-O-TEMP , Model 111W ® 6-1.2. Replace / Reinstall the Top of the Unit Re-Install top as it was removed in Section 6-1.1. NOTE: When securing the top, be sure the fill spout gasket inner lip on the aluminum cover top is in the up position and the fill spout goes directly into it.

  • Page 51: Replacement Of The Pump Housing

    Operation / Technical Manual NORM-O-TEMP , Model 111W ® H. Apply three (3) wraps of teflon tape around the threads of the replacement heater. I. Insert and tighten (hand tight plus half turn) the replacement heater into the reservoir. J. Connect the ground wire to the grounding stud located on the reservoir frame using a 6-32 kep nut.

  • Page 52: Replacement Of The Pump Motor

    Operation / Technical Manual NORM-O-TEMP , Model 111W ® M. Reconnect the hose from the water reservoir to the inlet at the center of the pump housing and tighten the clamp. N. Secure the three-sided enclosure panel as described in Section 6-1.4. O.

  • Page 53: Replacement Of The Water Filter Assembly

    Operation / Technical Manual NORM-O-TEMP , Model 111W ® 6-5. Replacement of the Water Filter Assembly. A. Obtain a replacement water filter assembly. B. Drain the reservoir as described in Section 5-1.4. C. Be sure that the unit is disconnected from any power source. D.

  • Page 54: Replacement Of The Water Manifolds

    Operation / Technical Manual NORM-O-TEMP , Model 111W ® G. Insert and tighten the replacement water temperature sensor into the copper outlet (bottom) water manifold. The threads of the replacement water sensor should be sealed with teflon tape. H. Connect the water temperature sensor. The connectors can be inserted only one way;...

  • Page 55: 6-7.2. Return Manifold

    Operation / Technical Manual NORM-O-TEMP , Model 111W ® J. Attach and tighten the male couplings to the water manifold. Make sure the copper elbow points down. K. Reconnect the by-pass line and replace the cable ties. L. Connect the hose from the pump housing to the copper elbow of the manifold and tighten the clamp.

  • Page 56: Replacement Of The Independent High Limit Safety Thermostat

    Operation / Technical Manual NORM-O-TEMP , Model 111W ® H. Install the new manifold into the unit and reattach the two quick disconnect fittings. Be sure the copper elbow is in the upward position. I. Reconnect the tubing and tighten the clamp. J.

  • Page 57: Calibration Of The Independent High Limit Safety Thermostat

    Operation / Technical Manual NORM-O-TEMP , Model 111W ® 6-9. Calibration of the Independent High Limit Safety Thermostat A. Allow the unit to run for at least an hour with the temperature set to 42°C. This will allow adequate time for the internal ambient temperature of the Norm-O-Temp cabinet to stabilize.

  • Page 58: Replacement Or Cleaning Of The Water Flow Indicator Assembly

    Operation / Technical Manual NORM-O-TEMP , Model 111W ® NOTE: Be sure that the unit is disconnected from any power source before moving the jumpers. G. After the water has been allowed to cool below 37°C, verify that the jumpers are in the correct position by turning the unit on and allowing it to heat to 37°C.

  • Page 59: Replacement Of The Power Switch

    Operation / Technical Manual NORM-O-TEMP , Model 111W ® P. Secure the three-sided enclosure panel as described in Section 6-1.4. Q. Refill the water reservoir as described in Section 5-1.5. 6-13. Replacement of the Power Switch A. Obtain the replacement power switch. B.

  • Page 60: Replacement Of The Power Supply Board

    Operation / Technical Manual NORM-O-TEMP , Model 111W ® H. Replace and tighten the four nuts on the screw posts. I. Reconnect the red, 2-pin connector. It can only be connected one way. J. Secure the top of the unit as described in Section 6-1.2. 6-15.

  • Page 61: Electrical Safety

    Operation / Technical Manual NORM-O-TEMP , Model 111W ® Membrane control panel B. Remove the top of the unit as described in Section 6-1.1. C. Position the top of the unit face down on a padded work space. D. Using a 5/16 inch wrench, remove the six nuts and star washers on the edge of the board E.

  • Page 62: Ground Integrity

    Operation / Technical Manual NORM-O-TEMP , Model 111W ® 6-17.1. Ground Integrity Using a Digital Multimeter, measure the resistance between an exposed, unpainted part of the metal case of the NORM-O-TEMP and the ground conductor of the ® power plug. Take measurements between ground pin and the Hansen fittings, also between the ground pin and the handle.

  • Page 63: Troubleshooting Guide

    Operation / Technical Manual NORM-O-TEMP , Model 111W ® Section 7. Troubleshooting Guide CAUTION  This device is still energized when the power switch is in the off position. To completely disconnect the device from the power source, remove the power cord plug from the power source.
  • Page 64 Operation / Technical Manual NORM-O-TEMP , Model 111W ® Observation Possible Problem Action To Be Taken C. The power switch is Power supply board is Replace the power supply pressed to the ON position. defective. board. See Section 6-15. It lights up green but the control panel is blank/ The cable(s) that connect(s) Reconnect the 12-pin and 9-...
  • Page 65 Operation / Technical Manual NORM-O-TEMP , Model 111W ® Observation Possible Problem Action To Be Taken G. Unit is set to operate. Microprocessor control Replace the microprocessor When the unit goes through board malfunctioned. control board. See Section 6- its test indicator cycle, the display shows a typical pattern display;...
  • Page 66 Operation / Technical Manual NORM-O-TEMP , Model 111W ® Observation Possible Problem Action To Be Taken K. The unit sounds an alarm. The 2-pin connection cable Reconnect the 2-pin The LO WATER indicator from the LOW WATER float connector. light is on. The water level is switch is disconnected.
  • Page 67 Operation / Technical Manual NORM-O-TEMP , Model 111W ® Observation Possible Problem Action To Be Taken M. Unit is set to operate Water not circulating. See observation N. but fluid does not heat. Defective heater Replace heater. See Section 6-2. Defective power supply Replace power supply board.

  • Page 68: Parts Information

    Operation / Technical Manual NORM-O-TEMP , Model 111W ® Section 8. Parts Information 8-0. Introduction This section outlines information for ordering, shipping and replacing parts. Identification of parts and components are shown in Figure 8, Figure 10, and Figure 12. The numbers in Figure 8, Figure 10, and Figure 12 correspond to the numbers in the left column of the accompanying parts lists in Figure 9, Figure 11, and Figure 13.

  • Page 69: Recommended Replacement Parts Inventory

    2. Cause of Failure. 3. Serial Number. 4. Date of installation or purchase of the unit. 5. Return Material Authorization (RMA) Number. (You must call CSZ first to obtain the RMA Number.) 8-4. Shipping Parts Parts to be returned to the factory should be carefully packaged, especially the micro- processor board and the control panel.

  • Page 70: Figure 8. Norm-O-Temp ® Internal Exploded - Front View

    Operation / Technical Manual NORM-O-TEMP , Model 111W ® Figure 8. NORM-O-TEMP Internal Exploded – Front View ® Page 70 of 82...

  • Page 71: Figure 9. Front View Parts List

    Operation / Technical Manual NORM-O-TEMP , Model 111W ® Index # I.D. # Description 57208 Control Panel 230/240 VAC 91628 Top Assembly 230/240 VAC 60033 (4) #8 Phillips Screws 60180 (4) 6/32” Brass Nut 57027 (6) 3/8” Stand Off 60180 6/32"...

  • Page 72: Figure 10. Norm-O-Temp ® Internal Exploded - Rear View

    Operation / Technical Manual NORM-O-TEMP , Model 111W ® Figure 10. NORM-O-TEMP Internal Exploded – Rear View ® Page 72 of 82...

  • Page 73: Figure 11. Rear View Parts List

    Operation / Technical Manual NORM-O-TEMP , Model 111W ® Index # I.D. # Description 56850 Recessed Stainless Steel Handle 06446 Left Side Panel 52307 Plastic Manifold Pan 07000 1/8" Hansen Socket Coupling 06002 1/8"Hansen Plug Coupling 56907 Flow Indicator Label (International) 91715 Water Flow Indicator Assembly 56908...

  • Page 74: Figure 12. Norm-O-Temp ® Internal Exploded Reservoir Assembly

    Operation / Technical Manual NORM-O-TEMP , Model 111W ® Figure 12. NORM-O-TEMP Internal Exploded Reservoir Assembly ® Page 74 of 82...

  • Page 75: Figure 13. Reservoir Assembly Parts List

    Operation / Technical Manual NORM-O-TEMP , Model 111W ® Index # I.D. # Description 06902 Reservoir Cover 91702 Low Water Switch Assembly Grounding Terminal 50211 Plastic 1/4" Hose Barb 52371 Plastic Reservoir Divider 51014 Bulkhead Fitting, 3/8" 51060 Elbow, 1/2”, Hose barb 51033 Bulkhead Fitting, 1/2"...

  • Page 76: Figure 14. Norm-O-Temp ® Electrical Wiring Diagram

    Operation / Technical Manual NORM-O-TEMP , Model 111W ® Figure 14. NORM-O-TEMP Electrical Wiring Diagram ® Page 76 of 82...

  • Page 77: Figure 15. Norm-O-Temp ® Water Circulation Diagram

    Operation / Technical Manual NORM-O-TEMP , Model 111W ® Figure 15. NORM-O-TEMP Water Circulation Diagram ® Page 77 of 82...

  • Page 78: Figure 16. Norm-O-Temp ® System Accessories

    Adult or O.R. Table Size (24" x 60") Pediatric Size (22" x 30") Infant Size (12" x 18") Contents: 5/box, 4 boxes/case Reusable Connecting Hose (for CSZ Unit) MAXI-THERM LITE Single-Patient Use Blanket/pad(s) Adult Size (25” x 64”) Pediatric Size (25” x 33”) Infant Size (12.5”...
  • Page 79 Operation / Technical Manual NORM-O-TEMP , Model 111W ® The following tables are presented in fulfillment of the requirements of IEC 60601-1-2 Guidance and manufacturer’s declaration – electromagnetic emissions The NORM-O-TEMP , Model 111W is intended for use in the electromagnetic environment specified below. The customer or the user of the ®...
  • Page 80 Operation / Technical Manual NORM-O-TEMP , Model 111W ® Guidance and manufacturer’s declaration – electromagnetic immunity The NORM-O-TEMP , Model 111W is intended for use in the electromagnetic environment specified below. The customer or the user of the ® NORM-O-TEMP , Model 111W should assure that it is used in such an environment.
  • Page 81 Operation / Technical Manual NORM-O-TEMP , Model 111W ® Recommended separation distances between portable and mobile RF communications equipment and the NORM-O-TEMP , Model 111W ® The NORM-O-TEMP , Model 111W is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. ®...
  • Page 82 Cincinnati Sub-Zero Products, LLC 12011 Mosteller Road Cincinnati, OH 45241  Telephone: 1-800-989-7373 or (513)772-8810  Fax: (513)772-9119  E-Mail: csz@genthermcsz.com...
