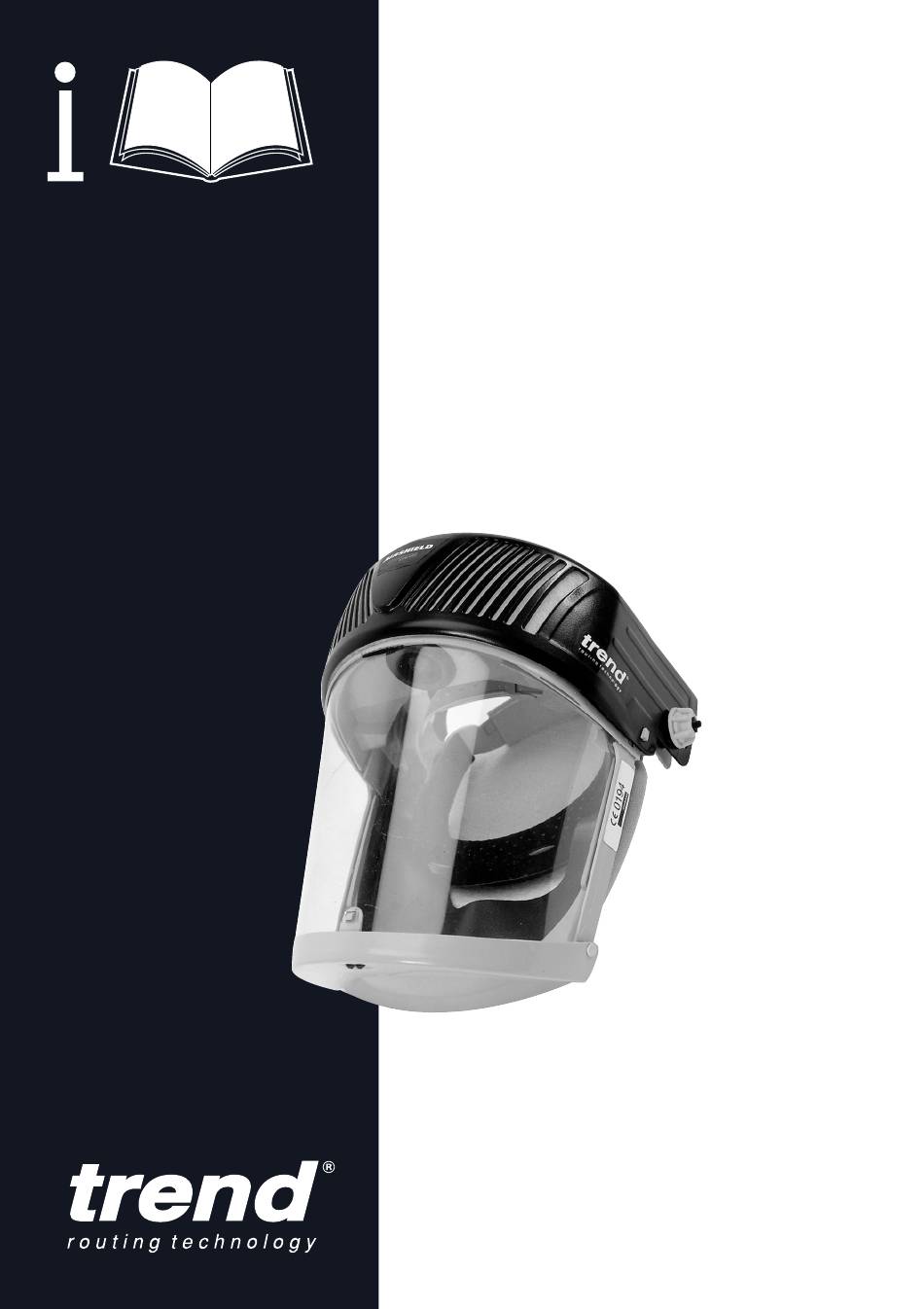

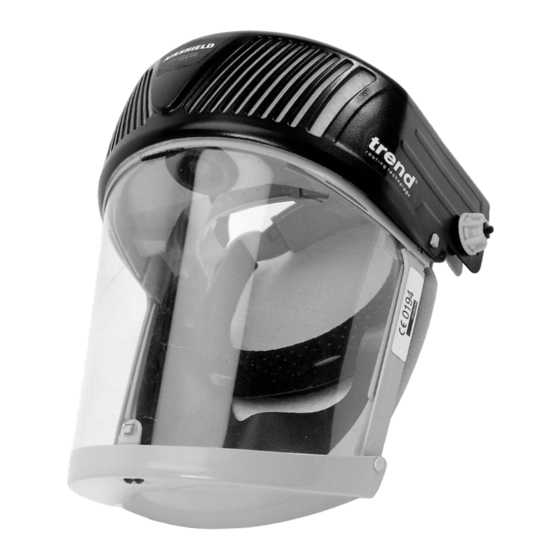

  • Page 1 AIRSHIELD RESPIRATOR APPROVED TO EN146:1991 VISOR APPROVED TO EN166:1995...

  • Page 2: Table Of Contents

    Please remember to return your guarantee card face protection from impact and chemical liquid within 28 days of purchase. splash. The Airshield is powered by either one or two CONTENTS rechargeable battery packs inside the respirator. Air is filtered through the respirator to provide a INTRODUCTION &...

  • Page 3: Introduction & Accessories

    230v charger (UK) Visor (eye protection) approvals EN 166. AIR/5/EURO 220v charger (Euro) Airshield manufactured by: AIR/5/ANZ 230v charger (Australia & New Trend Machinery & Cutting Tools Ltd Zealand) Odhams Trading Estate St Albans Road AIR/WIPE Visor wipes Watford England...

  • Page 4: Technical Specification

    AIRSHIELD Environmental TECHNICAL SPECIFICATION Range: Storage Type: Respirator, powered particle Temperature 0°C to 45°C -5°C to 50°C Pressure 800 to 1300 mbar 800 to 1300 mbar filtering device. Humidity 0 - 90% 0 - 90% (out of direct sunlight) Respiratory Approvals...

  • Page 5: Items Enclosed

    AIRSHIELD ITEMS ENCLOSED DESCRIPTION OF PARTS Cover 1x Airshield complete Pre-Filter 1x Airflow Indicator Main Filter 1x 4 Hour Rechargeable Battery Battery Pack 1x Disposable Visor Overlay - Clear (may be already fitted) Face Seal 1x Battery Charger Sweatband 1x Carry Bag...
  • Page 6 AIRSHIELD...

  • Page 7: Safety

    AIRSHIELD ■ Use the attachment with the power ■ Connect dust extraction equipment. SAFETY tools and accessories specified in If devices are provided for the this manual only. Do not force the connection of dust extraction and tool or attachment to do a job for...
  • Page 8 Trend Routing Catalogue. appropriate spanner or key in the design requirements and ■ Always use router cutters in a...

  • Page 9: Airshield Safety Precautions

    ■ DO NOT use replacement parts except those supplied by Trend Machinery & Cutting Tools Ltd. ■ To maintain the full efficiency of the Airshield, there must be no alteration to the structure or its component parts. ■ When using two battery packs always fit two fully charged replacements.

  • Page 10: Assembly & Adjustment

    Press and turn the ratchet knob anti-clockwise to enlarge the headband and lift the visor towards the back of the headband. Fit the Airshield onto the head by entering the Functional Test head into the headband. The purpose of this test is to ensure that the...

  • Page 11: Removal Procedure

    ■ Raise the visor and switch the fan-motor unit off. ■ Repeat above until a correct fit is achieved. ■ Lift the Airshield from the head. ■ After finishing using the Airshield follow the WARNING! maintenance procedures. Ensure that the unit is pivoted down...

  • Page 12: Maintenance & Care

    Clean regularly with a damp cloth - do not use ■ Carefully remove bulk contamination from the hydrocarbons, chemicals, cleaning fluids or Airshield and wipe down with a damp cloth solvents on the visor. If necessary, a mild containing a mild detergent solution.

  • Page 13: Storage

    STORAGE Ensure the lugs are fully engaged in the holes. Carry out a functional test. The Airshield should be placed in the carry bag, stored within a temperature range of 0°C to 45°C and out of direct sunlight. Replacement filters...

  • Page 14: Pre-Filter & Main Filter

    AIRSHIELD Pre-Filter Main Filter ■ Release the cover by lifting the left and right ■ Release the cover by lifting the left and right lower sides to disengage the lugs then pull lower sides to disengage the lugs then pull forward and lift.

  • Page 15: Sweatband & Headband

    AIRSHIELD Headband ■ Pull apart to separate hook fasteners to remove the sweatband from the headband. ■ Detach each end of the face seal from the headband. ■ Unscrew and remove the knob (4). Push the pivot pin (1) out through the cover washer (3), torque washer (2) and headband.

  • Page 16: Fan-Motor Unit & Visor

    Please call Trend Technical Support 01923 224681 for advice as to how to dispose of unwanted Trend electrical product in an environmentally safe way.

  • Page 17: Guarantee

    They may end up in an incinerator or landfill, which must be avoided. ■ Instead, take the batteries to a Trend Service Agent, your local distributor or a local recycling station. If necessary, contact your local municipality for disposal information.

  • Page 18: Spare Parts Diagram

    AIRSHIELD AIRSHIELD - SPARE PARTS DIAGRAM v4.0 05/2002 -IB-...
  • Page 19 Web: ____________www.trendmachinery.co.uk RECYCLABLE © Copyright Trend 2005. No part of this publication may be reproduced, stored or transmitted in any form without prior permission. Our policy of continuous improvement means that specifications may change without notice. Trend Machinery and Cutting Tools cannot be held liable for any material rendered unusable or any form of consequential loss.
