Original Issue Date: 7/04
Model: 6EKOD/5EFKOD, 9- -11EKOZD/7- -9EFKOZD, and
Market: Marine
Subject: Fuel/Water Separator Kit GM31994-KP1
Introduction
The marine generator set models shown in Figure 1
require a fuel/water separator located between the fuel
tank and the electric fuel pump.
separator kit helps to remove water and sediment from
the fuel system. After the kit is installed, verify that all
connections are tight.
6EKOD/5EFKOD
9EKOZD/7EFKOZD
11EKOZD/9EFKOZD
8EOZD/6.5EFOZD
9EOZD/7EFOZD
10EOZD/8.5EFOZD
10EOZD/9EFOZD
13EOZD/11EFOZD
14EOZD/11.5EFOZD
15EOZD/13EFOZD
15.5EOZD/13EFOZD
20EOZD/17EFOZD
20EOZD/17.5EFOZD
23EOZD/20EFOZD
24EOZD/20EFOZD
28EOZD/25EFOZD
32EOZD/28EFOZD
Figure 1 Marine Models Requiring a Fuel/Water
Separator

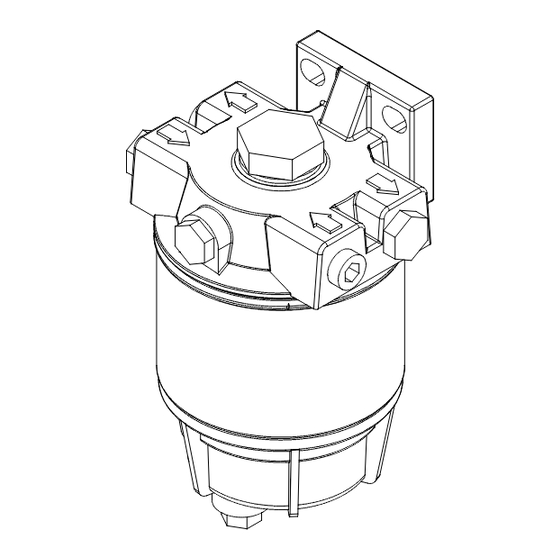

Fuel/Water Separator Kit
Kit: GM31994-KP1
Qty. Description
1
Filter, fuel/water separator
INSTALLATION INSTRUCTIONS
8- -32EOZD/6.5- -27EFOZD
The fuel/water
Part No.
GM41013
Safety Precautions
Observe the following safety precautions while installing
the kit.
WARNING
Accidental starting.
Can cause severe injury or death.
Disconnect the battery cables before
working
on the
Remove the negative (--) lead first
when disconnecting the battery.
Reconnect the negative (--) lead last
when reconnecting the battery.
Disabling the generator set.
cause severe injury or death.
generator set or connected equipment, disable the generator
set as follows: (1) Move the generator set master switch to the
OFF position. (2) Disconnect the power to the battery charger.
(3) Remove the battery cables, negative (--) lead first.
Reconnect the negative (--) lead last when reconnecting the
battery. Follow these precautions to prevent starting of the
generator set by an automatic transfer switch, remote
start/stop switch, or engine start command from a remote
computer.
Installation Procedure
1.
Remove the generator set from service.
1.1
Place the generator set master switch in the OFF
position.
1.2
Disconnect the generator set engine starting
battery(ies), negative (--) lead first.
TT-1375
4/12a
generator set.
Accidental starting can
Before working on the
