V-ZUG Komfort 60i KK60i Installation Instructions

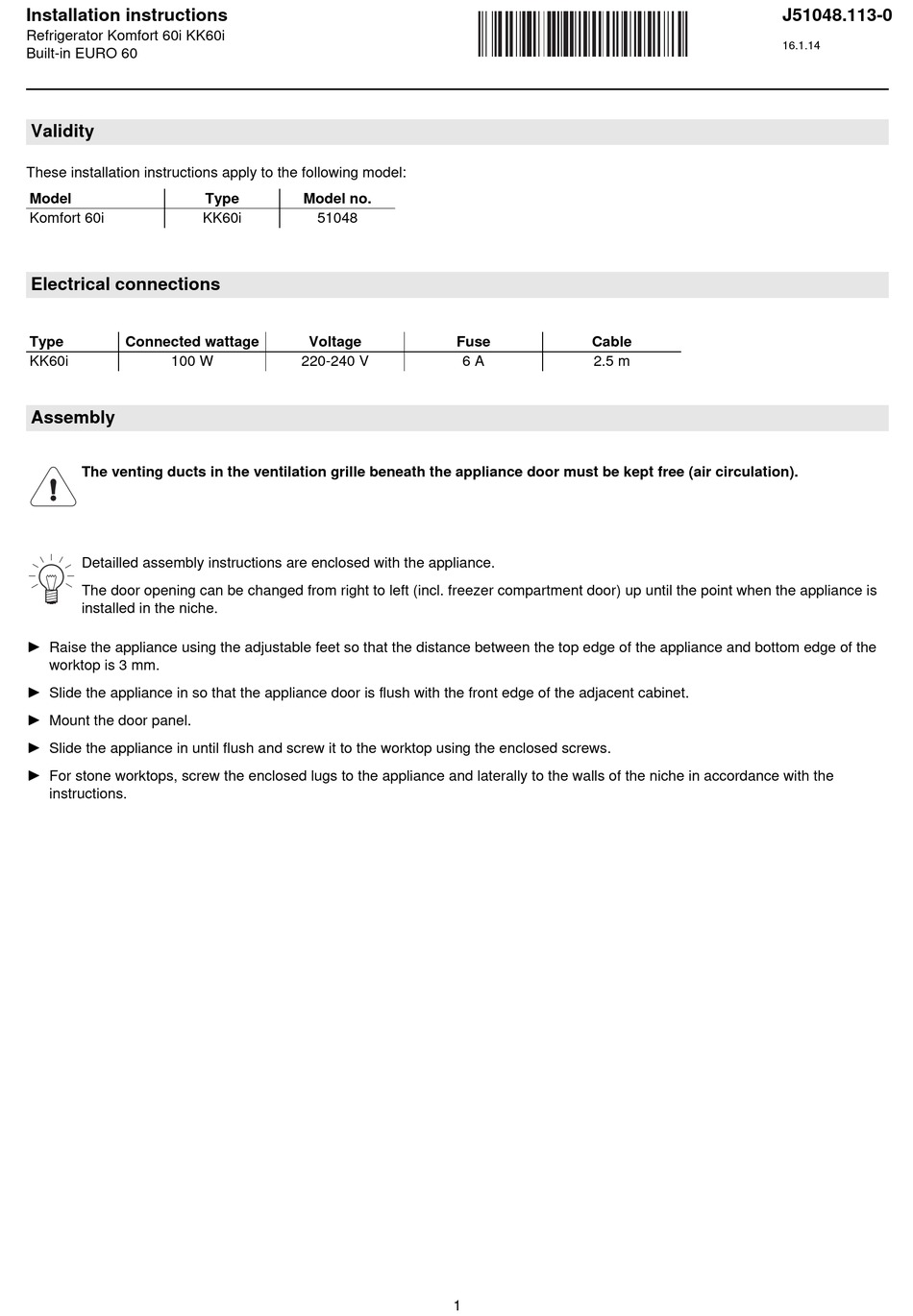

Installation instructions

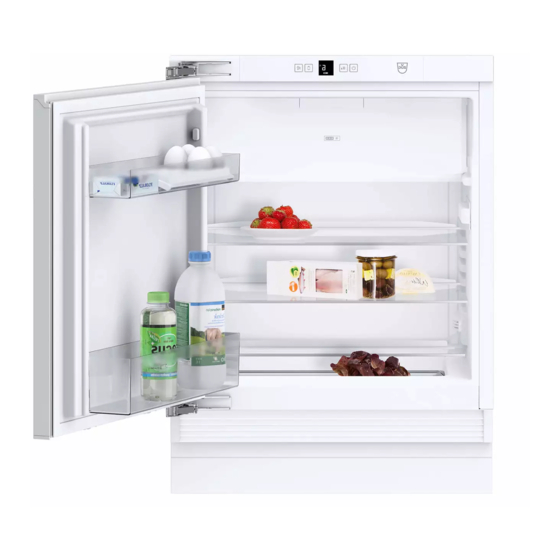

Refrigerator Komfort 60i KK60i
Built-in EURO 60

Validity

These installation instructions apply to the following model:
Model
Komfort 60i

Electrical connections

Type Connected wattage
KK60i 100 W

Assembly

The venting ducts in the ventilation grille beneath the appliance door must be kept free (air circulation).
Detailled assembly instructions are enclosed with the appliance.
The door opening can be changed from right to left (incl. freezer compartment door) up until the point when the appliance is
installed in the niche.
A
Raise the appliance using the adjustable feet so that the distance between the top edge of the appliance and bottom edge of the
worktop is 3 mm.
A
Slide the appliance in so that the appliance door is flush with the front edge of the adjacent cabinet.
A
Mount the door panel.
A
Slide the appliance in until flush and screw it to the worktop using the enclosed screws.
A
For stone worktops, screw the enclosed lugs to the appliance and laterally to the walls of the niche in accordance with the
instructions.
Type Model no.
KK60i 51048
Voltage
220-240 V
Fuse Cable
6 A 2.5 m
1
J51048.113-0
16.1.14
