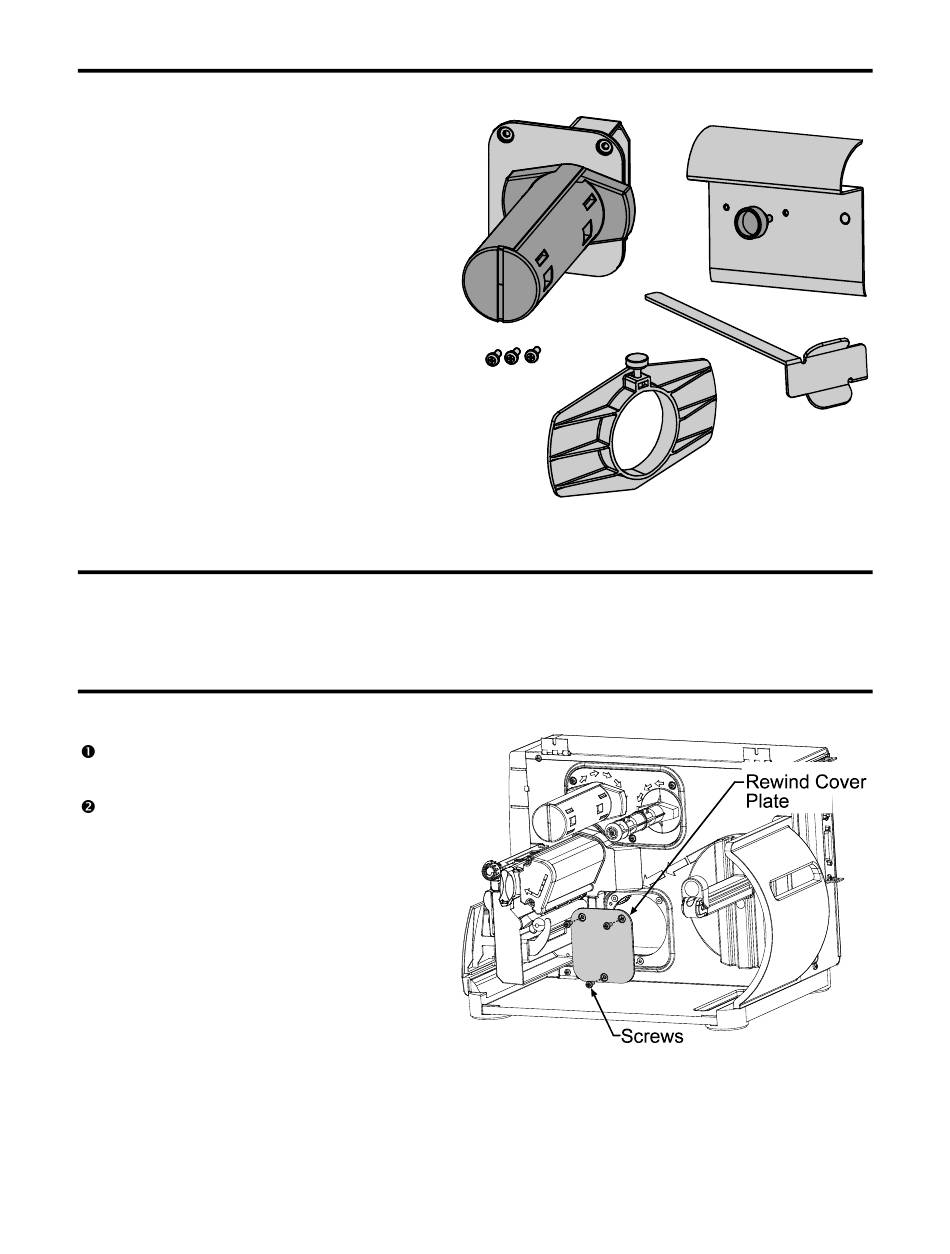

Contents of the Internal Rewind Kit (78-2302-01)
This kit contains the following items:
• Internal Rewind Assembly, p/n 15-2773-01
• Rewind Bracket, p/n 11-5220-01
• Thumbscrew, p/n 17-2858-01
• Media Clip, p/n 11-5339-01
• Rewinder Media Retainer, p/n 15-2864-01
• (3) Screws, p/n 10-2903-04
Tools Required
The Internal Rewind Option only requires a #2 Phillips head screwdriver for installation.
Preparing the Printer
Turn the power off and unplug the printer.
Remove any installed media from the printer.
Open the cover and remove the Screws and
the Rewind Cover Plate.
1
