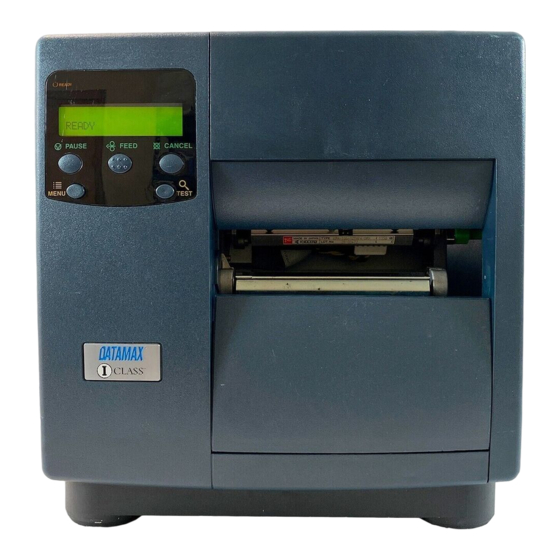

Datamax ICLASS Series Installation Instructions Manual

Internal rewind
Hide thumbs Also See for ICLASS Series:
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

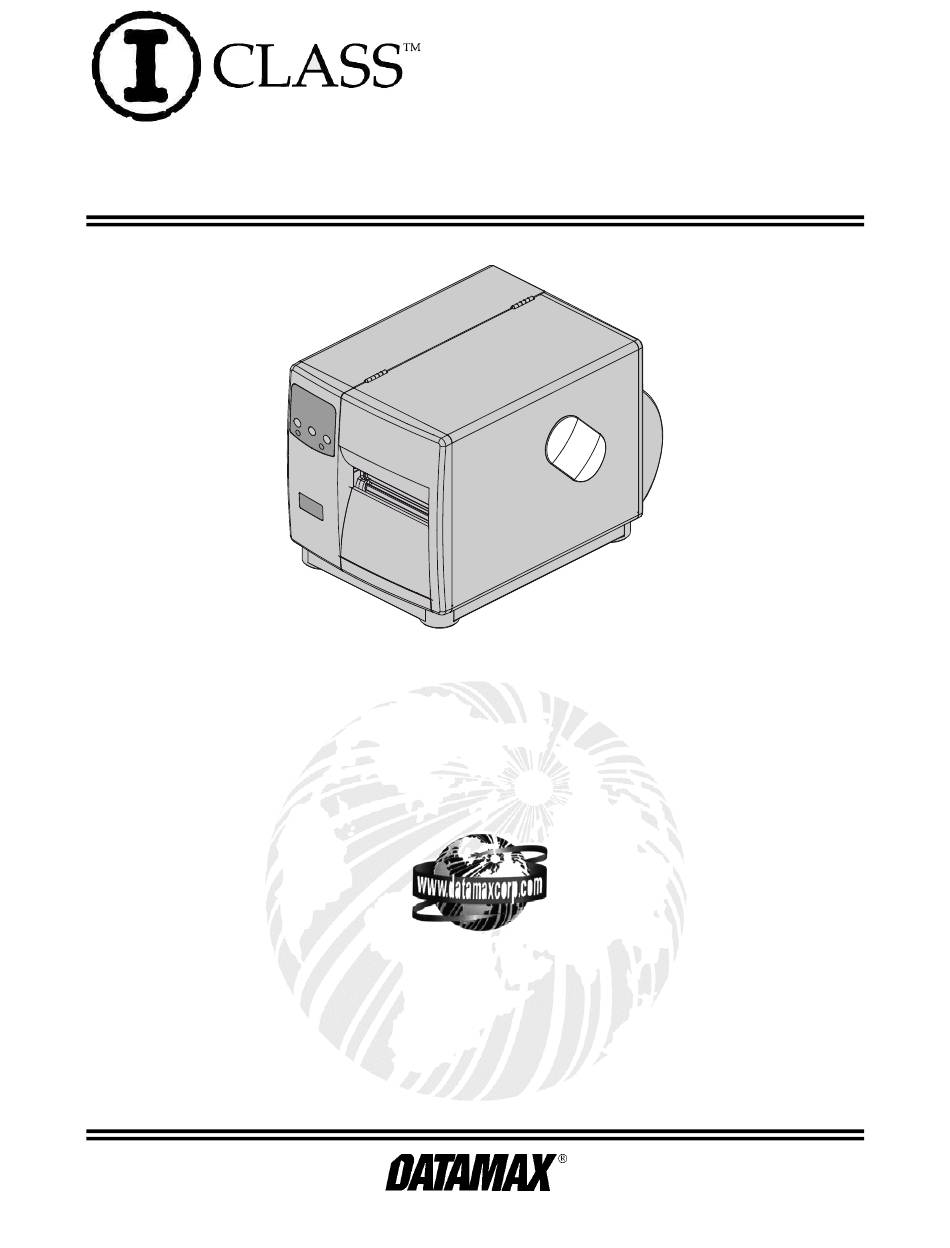

92-2191-01 Rev.D
Internal Rewind
Installation Instructions
Corporate Headquarters
4501 Parkway Commerce Blvd.
Orlando, Fl 32808
Phone: 407-578-8007
Fax: 407-578-8377
Asia-Pacific
Datamax International
19 Loyang Way
Herbert House
#01-01 CILC Building
12 Elizabeth Way, Pinnacles
Singapore 508724
Harlow, Essex CM19 5FE UK
Phone: +65 542-2611
Phone: +44 1279 772200
Fax: +65 542-3611
Fax: +44 1279 424448
Printed U.S.A. © Copyright 2002

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ICLASS Series and is the answer not in the manual?

Questions and answers

Related Manuals for Datamax ICLASS Series

Summary of Contents for Datamax ICLASS Series

  • Page 1 Installation Instructions Corporate Headquarters 4501 Parkway Commerce Blvd. Orlando, Fl 32808 Phone: 407-578-8007 Fax: 407-578-8377 Asia-Pacific Datamax International 19 Loyang Way Herbert House #01-01 CILC Building 12 Elizabeth Way, Pinnacles Singapore 508724 Harlow, Essex CM19 5FE UK Phone: +65 542-2611...

  • Page 3: Tools Required

    Contents of the Internal Rewind Kit (78-2302-01) This kit contains the following items: • Internal Rewind Assembly, p/n 15-2773-01 • Rewind Bracket, p/n 11-5220-01 • Thumbscrew, p/n 17-2858-01 • Media Clip, p/n 11-5339-01 • Rewinder Media Retainer, p/n 15-2864-01 • (3) Screws, p/n 10-2903-04 Tools Required The Internal Rewind Option only requires a #2 Phillips head screwdriver for installation.

  • Page 4: Setup And Configuration

    Installing the Internal Rewind Assembly Position the Internal Rewind Assembly in the printer as shown and secure using the three provided Screws. Setup and Configuration Remove the Front Fascia. Loosen and remove the Thumbscrew and remove the Tear Plate. Position the Rewind Plate on the Printer and install and tighten the Thumbscrew.

  • Page 5: Loading Media

    Loading Media Route the media back to and around the Rewind Hub. Insert the media’s leading edge into a Slot on the Media Rewind Hub then insert the Media Clip into a Slot to secure. Slide the Rewind Retainer onto the Media Rewind Hub to rest lightly against the outside edge of the media and tighten the Thumbscrew to secure.
  • Page 6 Internal Rewind: Parts List and Exploded View ITEM # PART # DESCRIPTION 15-2773-01 MEDIA TAKE-UP ASSY 10-2903-04 SCREW TRILOBULAR M4 PHILIPS HEAD 10 17-2858-01 THUMBSCREW 11-5220-01 REWIND BRACKET 11-5339-01 RETAINER, MEDIA (Metal) 15-2864-01 RETAINER, MEDIA (Plastic) 12-2941-01 COVER, MEDIA TAKE-UP 15-2764-01 HUB ASSY, TAKE-UP 17-2310-01...
