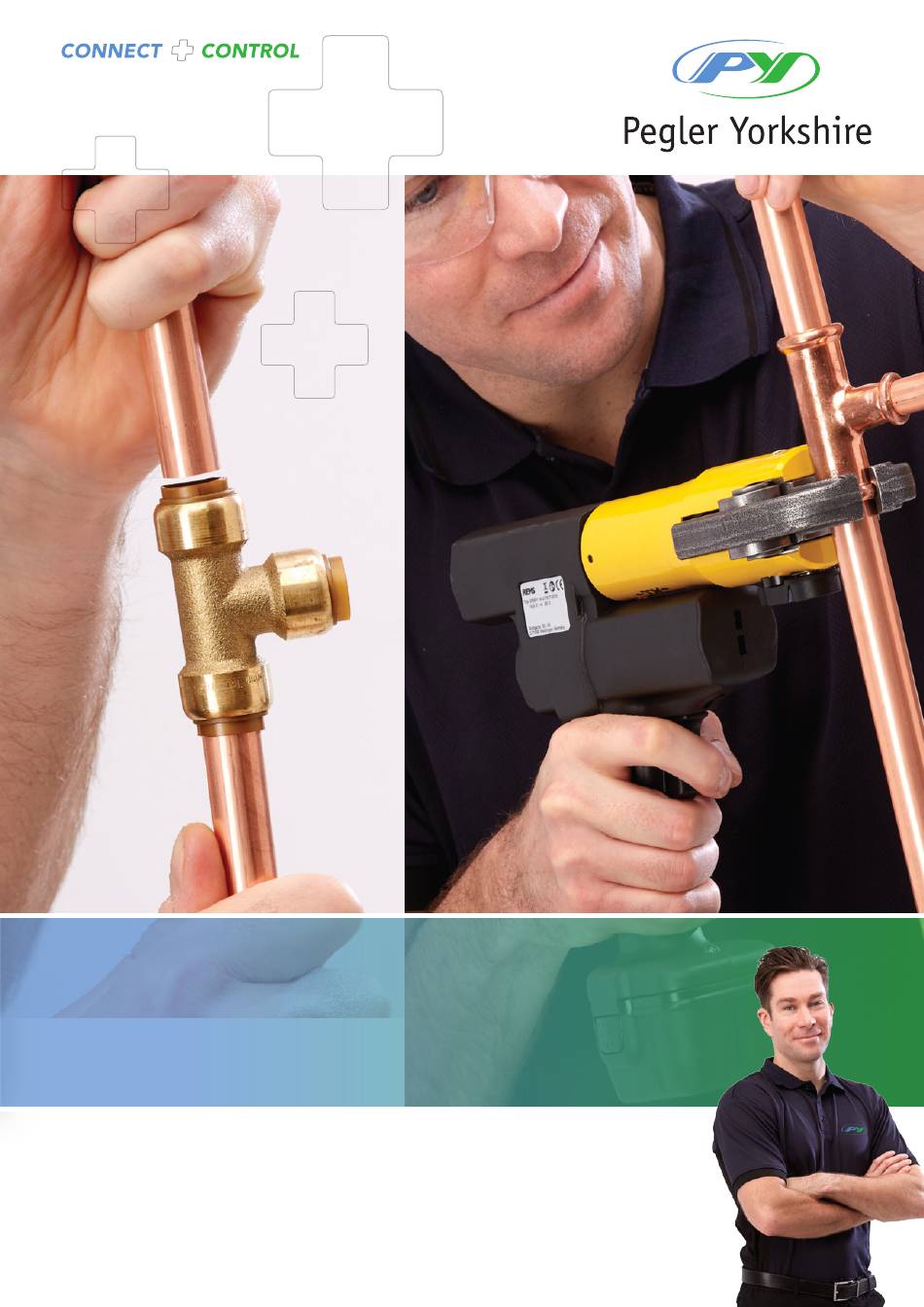

Page 1 FOR A FASTER CONNECTION PUSH OR PRESS WITH PEGLER YORKSHIRE For a comprehensive range of quality, innovative plumbing 0800 156 0010 and heating products backed FREE Phone: by a superb technical support email: uk.sales@pegleryorkshire.co.uk service, make sure you connect www.pegleryorkshire.co.uk...
Page 2 Connect + Control systems on a global scale. As one of Britain’s largest and most respected manufacturers and suppliers of products for the plumbing and heating industries, Pegler Yorkshire is confident we can provide you with all the connections, controls and support your project requires.
Page 3 Pegler Yorkshire’s Connect products mean you’ll complete your installation as seamlessly, efficiently and effectively as possible. TOTAL FUNCTIONALITY, COMPLETE EFFICIENCY Pegler Yorkshire’s range of Connect solutions offer innovatively designed, efficient and reliable products and systems that reduce installation time and cost without compromising quality, aesthetics or reliability.
Page 4 REMS Mini-Press ACC Fig. 1 Fig. 2 Fig. 3 Fig. 4...
Page 5: General Safety Instructions For Power Tools
Translation of the Original Instruction Manual The respective latest sales literature applies for the use of REMS pressing tongs, REMS Mini pressing tongs, REMS pressing rings with adapter tongs, REMS pressing heads and REMS expanding heads for the different pipe connection systems, see also www.rems.de >...
Page 6 d) Do not misuse the connecting cable to carry or hang up the power tool or to pull the plug out of the socket. Keep the connecting cable away from heat, oil, sharp edges or moving tool parts. Damaged or knotted cables increase the risk of electric shock. e) When operating a power tool outdoors, use an extension cord suitable for outdoor use.
Page 7 e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
Page 8 General Safety Instructions for power tools Read all the safety notes, instructions, illustrations and technical data which come with this power tool. Failure to heed the following instructions can lead to electric shock, fire and/or severe injuries. Save all warnings and instructions for future reference. The term “power tool”...
Page 9: Safety Instructions For Batteries
• Only operate the axial press with pressing heads fully inserted. Failure to do so could lead to fracture and flying parts can cause serious injuries. • Always screw expanding heads as far as they will go onto the expander. Failure to do so could lead to fracture and flying parts can cause serious injuries.
Page 10 • Only use original REMS batteries with the voltage specified on the rating plate. Using other batteries can lead to injuries and risk of fire due to exploding batteries. • Use the battery and the rapid charger only in the specified operating temperature range.
Page 11: Explanation Of Symbols
Electrical device complies with protection class II Environmental friendly disposal 1. Capacity REMS Mini-Press ACC / Mini-Press 22 V ACC Radial press for making press joints in all standard press fitting systems on steel pipes, stainless steel pipes, copper pipes, plastic pipes, Ø...
Page 12: Noise Information
1.3. Weights REMS Mini-Press ACC drive unit without battery 2.1 kg (4.5 lb) REMS battery Li-Ion 14.4 V, 1.5 Ah 0.3 kg (0.6 lb) Pressing tongs Mini (average) 1.2 kg (2.6 lb) 1.4. Noise Information Emission at workplace REMS Mini-Press ACC / 22 V ACC...
Page 13: Rechargeable Batteries
Rechargeable batteries Always hold the battery 14.4 V (10) upright when inserting it in the drive unitor the rapid charger. If inserted at an angle it can cause damage to the contacts and result in a short circuit which damages the battery. Total discharging by undervoltage The Li-Ion batteries may not drop below a minimum voltage because otherwise the battery could be damaged by “total discharge”.
Page 14 (4) are fully retracted. On REMS Power-Press SE push the rotation direction lever to the left and actuate the safety inching switch (6) if necessary, on REMS Mini-Press ACC, REMS Mini-Press 22 V ACC, REMS Power-Press / Power-Press ACC and REMS Akku-Press/ Akku-Press ACC, press the reset button (7), until the press rollers (4) have moved right back.
Page 15: Operation
3.1.1. Working procedure In the case of the REMS Mini-Press ACC, REMS Mini-Press 22 V ACC, REMS Akku-Press ACC and REMS Power-Press ACC, keep the safety inching switch pressed until the pressing is finished and...
Page 16: Operating Safety
REMS customer service workshop. The REMS Mini-Press ACC,ends the pressing operation automatically, emitting an acoustic signal (clicking), and returns automatically (forced movement).
Page 17 4.1. Inspection/repair Before any repair work, pull the mains plug or remove the battery! This work may only be performed by qualified personnel. The gearbox of the drive unit in the REMS Power-Press SE is maintenance-free. They operate in a permanent grease filling and therefore require no lubrication.
Page 18 of all pressing tongs, pressing tongs Mini, pressing rings, adapter tongs, adapter tongs Mini reg- ularly with a test pressing with inserted pressing fitting. A perfect pressing is only produced with full closure of the pressing tongs, pressing tongs Mini, pressing ring or pressing segment. This can be observed after completing the pressing.
Page 19 5.2. Fault: Radial press does not finish the pressing. Mini pressing tongs, adapter tongs do not close fully. Cause: Remedy: • Battery depleted or defective (REMS • Charge the battery with the Li-Ion/Ni-Cd cordless drive units). rapid charger or change the battery. •...
Page 20 5.6. Fault: The pipe is crushed between the press fitting and the fitting joint in axial pressing. Cause: Remedy: • Expansion too long. • Check whether the right expanding head was used. Pipe expanded several times, observe the installation and assembly instructions of the manufacturer/supplier of the press fitting system to be pressed.
Page 21 5.8. Fault: Expander does not complete the expanding, expanding head does not open fully. Cause: Remedy: • Drive unit overheated (REMS Power-Ex- • Let the drive unit cool down for about 10 Press Q & E ACC). minutes. • Worn carbon brushes (REMS Power-Ex- •...
Page 22: Ec Declaration Of Conformity
Replaced products and parts shall become the property of REMS. The user shall be responsible for the cost of shipping and returning the product. The legal rights of the user, in particular the right to make claims against the seller under the warranty terms, shall not be affected.
Page 24 Registered Office: Haigh Park Road, Stourton, Leeds, West Yorkshire, LS10 1RT England All brand names and logo styles are registered trademarks. Maintaining a policy of continual product development, Pegler Yorkshire reserves the right to change specifications, design and materials of products listed in this publication without prior notice.
