- Page 1 Electrical operating instructions Door control panel TS 961 Software 2.6 (Design and functions subject to change) 51171292 - f 02.2013...
-
Page 2: Table Of Contents
SAFETY DIRECTIONS ....................4 INSTALLATION ADVICE ....................6 INSTALLATION OVERVIEW ..................7 ENCLOSURE INSTALLATION ..................8 ® CONNECTING THE CONTROL AND THE ELEKTROMATEN ............LIMIT SWITCH CONNECTION Plug - in system ......................9 Terminal version (until year 1997) ................. 10 Single-limit-switches ....................10 MAINS SUPPLY ......................11... - Page 3 Page FUNCTION DESCRIPTION ..................22 Key switch (latching) interrupt automatic closing X4 ............22 Internal push button / Three push button / Key switch X5 ..........22 Runtime monitoring...................... 22 Automatic closing ......................22 Automatic closing interruption ..................22 Photo-beam for Closing Direction X6 ................. 23 Ceiling pull switch / Radio control X7 ................
-
Page 4: Operating Instructions
(see corresponding sections of the operating instructions). Safety Regulations ® During the installation, initial operation, maintenance and testing of the ELEKTROMATEN it is necessary to observe the safety and accident-prevention regulations valid for the specific application. In particular, you should observe the following regulations (this list is not exhaustive):... - Page 5 Please observe the safety and accident prevention regulations valid for ® the specific application. The installation of the ELEKTROMATEN , the opening of covers or lids and electrical connection must be carried out when the supply is switched off.
-
Page 6: Installation Advice
INSTALLATION ADVICE After the ELEKTROMATEN ® is fitted we recommend the following procedure to rapidly reach a fully functioning door. • Installation Enclosure installation page 8 • Installation Wiring the Drive to the Control page 8 LIMIT SWITCH CONNECTION Plug - in system... -
Page 7: Installation Overview
INSTALLATION OVERVIEW Important! Using the connection cable out side the building is not permitted. ® Connection cable ELEKTROMAT Motor and mechanical limits NES Spiral cable for Safety edge system Mains supply Photo-beam Pull switch Three push button Key switch (latching) interrupt automatic closing Emergency stop Key switch (latching) inter-... -
Page 8: Enclosure Installation
It is important that the door can be clearly seen from the position of the control through-out its travel. ® CONNECTING THE CONTROL AND THE ELEKTROMATEN After the drive and control are fitted they can be connected with a plug-in cable. The cable has plugs on each end and for easy fitting. -
Page 9: Limit Switch Connection
LIMIT SWITCH CONNECTION Plug - in system Page 9... -
Page 10: Terminal Version (Until Year 1997)
LIMIT SWITCH CONNECTION Terminal version (until year 1997) LIMIT SWITCH CONNECTION Single-limit-switches Page 10... -
Page 11: Mains Supply

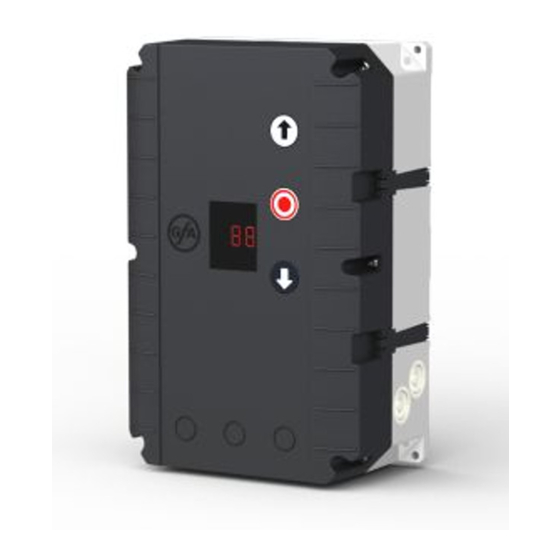

The supply disconnect device (Main switch or CEE plug) must be installed between 0,6m and 1,7m above floor level. The CONTROL PANEL TS 961 has a universal electric supply and works with the following supplies. (See diagram Fig.1-5) Mains supply terminal Fig.: 1... -
Page 12: Motor Connection (Internal Wiring)
Single-phase 1x230 V AC, N, PE Single-phase 1x230 V AC, N, PE symmetrical winding asymmetrical winding On several ELEKTROMATEN ® the connection U1 und V1 on the motor-plug are interchanged. PHASE ROTATION Important Notice! After the Mains supply has been connected by inserting the CEE plug in the... -
Page 13: Limit Switch - Adjustment
LIMIT SWITCH - ADJUSTMENT After checking the phase rotation, the limit switches must be adjusted in the following steps. When open and close position limits have been set the safety limits are automatically pre-adjusted. Eventually fine adjustment could be required. Please see Mechanical Operating Instruction. -
Page 14: Hardware Overview
HARDWARE OVERVIEW 1.5 1.6 1.7 F1 = 1,0A t TS 961 PE PE 3.1 3.2 4.1 4.2 5.3 5.4 6.2 7.1 7.2 8.1 8.2 X7 X8 Description Print: X1 Mains supply Selector switch external supply 230V 7-segment display 1.9 = L1 fused with F1 = 1A MOT Motor connection 1.8 = N... -
Page 15: Wiring Diagram
WIRING DIAGRAM Normallyclosed contact 1K2 Terminal box Bridge passor / slack wire switch contact end-of-line spiral cable resistor 1K2 plug-in bridge Terminal box Bridge Normallyopen contact 8K2 passor / slack wire switch contact spiral cable end-of-line plug-in bridge resistor 8K2 Optical safty edge system Terminal box Bridge passor / slack wire... -
Page 16: Control Programming
CONTROL PROGRAMMING Enter programming Mode Press selector switch for 3 sec. until display = 00 Chose program and confirm Turn selector press selector Adjustment Functionen Turn selector Memorise Functionen Press selector further adjustments Exit programming Turn selector until display = 00 Press selector Page 16... -
Page 17: Operating Mode
CONTROL PROGRAMMING Adjustment Choose program and Memorise confirm Operating mode Press Dead man OPEN Door function selector Dead man CLOSE Self-hold OPEN Dead man CLOSE Self-hold OPEN Self-hold CLOSE Self - hold OPEN, CLOSE (X5) release for external pushbutton function only dead man close Functions Press Safety edge function... -
Page 18: Reset
CONTROL PROGRAMMING Chose program and Adjustment confirm Maintenance cycle counter Counter adjustment 01-99 correspond from 1.000 up to Press 99.000 Count down cycles selector Reaction when Display appears „CS“ and adjusted Press reaching 0 number of cycles selector Changing to DEADMAN display appears „CS“... -
Page 19: Safety Devices
The three core plug must be connected to the safety edge terminal. The control panel TS 961 recognizes on first installation the safety edge system being used. If passdoor / slack wire switch contact exists, remove bridge at terminal ST and ST+ in the terminal box. -
Page 20: Typ 1: Resistance Evaluation 1K2 With Normally Closed Safety Edge Contact
SAFETY DEVICES Typ 1: Resistance evaluation 1K2 with normally closed safety edge contact This evaluation system is made for pressure-wave switches (N/C) within an end-of-line resistor of 1K2 +/- 5% 0,25W. A pressure wave is generated by compressing the rubber profile, which is conducted to the pressure-wave switch through the plastic hose. -
Page 21: Function Of The Safety Edge System
SAFETY DEVICES Function of the safety edge system With menu 2.1 the function of the safety edge system can be chosen. Function Reaction following the activation Active safety edge stop De-activated safety edge no reaction, door moves until final limit close only for folding doors Important note! When the safety edge has been operated twice the automatic closing feature... -
Page 22: Function Description
FUNCTION DESCRIPTION Key switch (latching) interrupt automatic closing The automatic closing time can be interrupted with a normally open switch (latching) Internal push button / Three push button / Key switch Internal and external push button Internal and external push button working seperately from each other. Pushing at the same time, the internal push button has priority. -
Page 23: Photo-Beam For Closing Direction X6
FUNCTION DESCRIPTION Photo-beam for Closing Direction One external photo-beam (thro’ beam or reflective photo beam) can be connected to the control. A 24V DC supply for the photo-beam is available. Important note! The load on the 24 V DC power supply may not exceed 150 mA. The light barrier is used in a normally closed operating mode. -
Page 24: Ceiling Pull Switch / Radio Control X7
FUNCTION DESCRIPTION Ceiling pull switch / Radio control It is possible to connect a ceiling pull switch or a radio receiver. The radio receiver's switching contact must be potential free. A small receiver can be fitted into the upper part of the housing under the cable entry. With each command (contact) the shutter operates in the following sequence: Shutter position Shutter operation... -
Page 25: Potential Free Changeover Contact X9
When maintenance was done the cycle counter could be re-adjusted to a new maintenance period and count down starts again. Short circuit / overload monitor The TS 961 control panel delivers 2 supplies for external devices. 230V AC; max. 1A DC; max. 150mA At a short circuit or overload at the 24V DC supply, the display is off. -
Page 26: Operating Status Display
OPERATING STATUS DISPLAY The control TS961 can display up to threedifferent status conditions one after another. Each status is displayed with a letter and a number. The letter and the number are flashing alternately, thereby the control differentiates between a FAULT = F and a command = E. Report Description Measure to solve the problem... - Page 27 OPERATING STATUS DISPLAY Report Description Measure to solve the problem Safety edge 8k2 defect Check safety edge and connecting cable are not broken Safety edge 1K2 activated Check safety edge and connecting cable are not broken Safety edge 8k2 defect Check safety edge and connecting cable do not have a short circuit Safety edge 1k2 pneumatic...
- Page 28 OPERATING STATUS DISPLAY Report Description Measure to solve the problem ROM - Fault Reset by switching OFF or change the control Internal fault report Reset by switching OFF or change the control RAM - Fault Reset by switching OFF or change the control Internal control fault Reset by switching OFF or change the control Time overrun...
-
Page 29: Technical Data
Housing Dimensions 190mm x 300mm x 115mm (B x H x T) Mounting vertical ® ELEKTROMATEN Supply Three-phase 3 x 230 / 400V AC ± 5%, 50...60Hz Single-phase 1 x 230V ± 5%, 50...60Hz Power max. at 3 x 400V AC, max. 3kW Control supply via L1,L2 400V AC or 230V AC + - 10%, 50-...60Hz,... -
Page 30: Lifetime / Doorcykles
Therefore we recommend a ® replacement for control boards in use after doors having reached their confirmed lifetime cycles. Coherence between power and amount of cycles for ELEKTROMATEN describes ® diagram bellow. -
Page 31: Declaration Of Incorporation
GfA - Gesellschaft für Antriebstechnik hereby declare that the following products are conform with the above EC Guidelines and are only intended for installation in door equipment. Door control panel TS 961 Standards applied DIN EN 12453 Doors - safety in use of power operated doors... -
Page 32: Function Overview
FUNCTION OVERVIEW • ® Conrol panel for ELEKTROMATEN up to. 3 kW at 400V / 3~ phase with mechanical limits • 7- Segment led display showing - Programming the control panel - Displays Command - / Info- / Fault •...
