Chison ECO 1VET Operation Manual

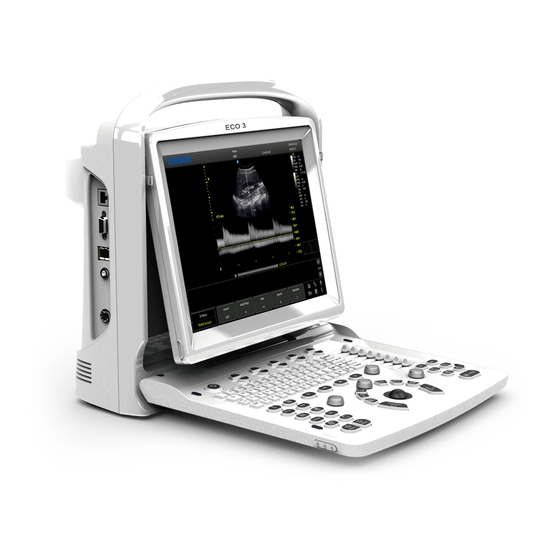

Digital color doppler ultrasound system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Digital Color Doppler Ultrasound System
Model
ECO 1VET/ ECO 2VET/ ECO 3VET/
ECO 3 EXPERT VET/ ECO 5VET
V2.1
Nov. 1st, 2017
OPERATION MANUAL
Direction: 57-00456-00
CHISON Medical Technologies Co., Ltd.
We reserve the rights to make changes to this manual without prior notice.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ECO 1VET and is the answer not in the manual?

Questions and answers

Related Manuals for Chison ECO 1VET

Summary of Contents for Chison ECO 1VET

  • Page 1 Digital Color Doppler Ultrasound System Model ECO 1VET/ ECO 2VET/ ECO 3VET/ ECO 3 EXPERT VET/ ECO 5VET V2.1 Nov. 1st, 2017 OPERATION MANUAL Direction: 57-00456-00 CHISON Medical Technologies Co., Ltd. We reserve the rights to make changes to this manual without prior notice.
  • Page 3 3.Before operating the system, please read and understand this manual. After reading, keep this manual in an easily accessible place. If you have any question or doubt, please contact CHISON's authorized service engineer. 4.CHISON’s Warranty only cover material and parts costs for repair, but do not cover any labor...
  • Page 4 8.This manual contains warnings regarding foreseeable potential dangers, but user shall always be alert to dangers other than those indicated as well. CHISON shall not be liable for damage or loss that results from negligence or from ignoring the precautions and operating instructions described in this operation manual.
  • Page 5 14.While the system or probe is over life time, please refer to operation manual section 9.4 15.Important data must be backed up on external memory media. CHISON shall not be liable for loss of data stored in the memory of this system caused by operator error or accidents.

  • Page 6: Table Of Contents

    ECO Series VET Digital Color Doppler Ultrasound System Content Chapter 1 Introduction ..........................1 1.1 System Overview ........................1 1.2 Contact Information ........................ 1 Chapter 2 System Safety........................... 2 2.1 Safety Overview ........................2 2.2 Electrical Safety ........................3 2.3 Labels ............................5 2.3.1 Warning Symbols ......................
  • Page 7 ECO Series VET Digital Color Doppler Ultrasound System 4.1 Alphanumeric Keyboard ....................... 25 4.2 Function Keys/Knob ......................25 4.2.1 SWITCH ........................25 4.2.2 PATIENT........................25 4.2.3 PROBE ......................... 25 4.2.4 SETUP .......................... 25 4.2.5 END ..........................26 4.2.6 BODYMARK ....................... 26 4.2.7 COMMENT ........................
  • Page 8 ECO Series VET Digital Color Doppler Ultrasound System 4.4.4 C ............................ 30 4.4.5 D ........................... 30 4.4.6 M ........................... 30 4.5 Control of Image ........................30 4.5.1 THI ..........................30 4.5.2 AIO ..........................30 4.5.3 CINE ..........................30 4.5.4 SAVE ..........................31 4.5.5 Left and Right Invert .....................
  • Page 9 ECO Series VET Digital Color Doppler Ultrasound System 5.5.5 M Mode ........................36 5.5.6 CFM Mode ........................36 5.5.7 PW Mode ........................37 5.6 B Image Adjustment ......................38 5.6.1 Frequency........................38 5.6.2 Dynamic ........................38 5.6.3 i-Image .......................... 38 5.6.4 Compound ........................
  • Page 10 ECO Series VET Digital Color Doppler Ultrasound System 5.8.1 Color Map ........................43 5.8.2 Color Invert ........................43 5.8.3 Contrast ......................... 43 5.8.4 Steering Angle ....................... 43 5.8.5 Wall Thre........................43 5.8.6 Blood Effection ......................43 5.8.7 Flow ..........................43 5.8.8 Freq ..........................
  • Page 11 ECO Series VET Digital Color Doppler Ultrasound System 5.11.3 Input Comment Library Characters ................47 5.11.4 Edit Quick Comments ....................47 5.11.5 Input Quick Comments ....................47 5.11.6 Move Comments ......................47 5.11.7 Edit Comments ......................47 5.11.8 Delete Comments ......................47 5.11.9 Set the Position of Default Comment ................
  • Page 12 ECO Series VET Digital Color Doppler Ultrasound System 6.1.2 [ENTER] ........................56 6.1.3 [UPDATE] ........................56 6.1.4 [DEL] ..........................57 6.1.5 [Change] ........................57 6.1.6 [Exit] ..........................57 6.1.7 Parameters control key ....................57 6.2 B Mode general Measurement methods ................57 6.2.1 Meas.
  • Page 13 ECO Series VET Digital Color Doppler Ultrasound System 6.17 PW mode measurement methods ..................66 6.17.1 Velocity ........................66 6.17.2 Time ..........................66 6.17.3 HR ..........................66 6.17.4 Auto Trace ........................66 6.17.5 Manual Trace ......................67 6.18 PW Fast Measurement ......................67 6.19 PW Genearl Measurement ....................
  • Page 14 ECO Series VET Digital Color Doppler Ultrasound System 7.5.4 Image Freeze Config ..................... 86 7.6 Keyboard ..........................87 7.7 DICOM ........................... 88 7.7.1 Add/Edit DICOM Function ................... 89 7.8 NET Work ..........................89 7.9 System ............................. 89 7.9.1 System information ....................... 89 7.9.2 Upgrade .........................
  • Page 15 ECO Series VET Digital Color Doppler Ultrasound System Appendix B: Guidance and Manufacturer’s Declaration ..............148 Appendix C: Measurement Results Summary ..................152 Appendix D: Display Accuracy and Acoustic Measurement Uncertainties .......... 153 Appendix E: Transducer Maximum Surface Temperature ..............154 Appendix F: Procedures of set network sharing in ECO series ............

  • Page 16: Chapter 1 Introduction

    For additional information or assistance, please contact your local distributor or the appropriate support resource shown below: CHISON website www.chison.com Service Support CHISON Medical Technologies Co., Ltd. Tel:0086-0510-85311707 Fax: 0086-0510-85310726 E-mail: service@chison.com.cn Placing an Order CHISON Medical Technologies Co., Ltd.

  • Page 17: Chapter 2 System Safety

    ECO Series VET Digital Color Doppler Ultrasound System Chapter 2 System Safety 2.1 Safety Overview This section discusses measures to ensure the safety of both the operator and patient. To ensure the safety of both operator and patient, please read the relevant details in this chapter carefully before operating this system. Disregarding the warnings or violation of relevant rules may result in personal injury or even loss of life for operator or patient.

  • Page 18: Electrical Safety

    ECO Series VET Digital Color Doppler Ultrasound System 2.2 Electrical Safety Type of protection against electric shock Class I Equipment CLASS I EQUIPMENT in which protection against electric shock does not rely on BASIC INSULATION only, but includes a protective earth ground. This additional safety precaution prevents exposed metal parts from becoming LIVE in the event of an insulation failure.
  • Page 19 Locate the equipment as far away as possible from other electronic equipment. Be sure to use only the cables provided by or designated by CHISON. Connect these cables following the installation procedures (e.g. wire power cables separately from signal cables).

  • Page 20: Labels

    ECO Series VET Digital Color Doppler Ultrasound System 2.3 Labels Real panel label 2.3.1 Warning Symbols Caution, consult accompanying documents. Dangerous electric voltage. Unplug the main This symbol advises the reader to consult the plug before opening the system! accompanying documents for important safety related information such as warnings and pre-cautions that cannot be presented on the device itself.
  • Page 21 ECO Series VET Digital Color Doppler Ultrasound System Be careful of static. Do not use the following devices near this equipment: cellular phone, radio receiver, and mobile radio transmitter, radio controlled toy, etc. Use of these devices near this equipment could cause this equipment perform outside...

  • Page 22: Patient Environmental Devices

    The Patient Environmental devices shown above are specified to be suitable for use within the PATIENT ENVIRONMENT. CAUTION: DO NOT connect any probes or accessories without approval by CHISON within the PATIENT ENVIRONMENT. DO NOT touch patient and devices without EN 60601-1 approval to avoid the leakage current risk within the PATIENT ENVIRONMENT.

  • Page 23: Biological Safety

    Such malfunction may impact the stability, effectiveness and safety of the system and probes, and users should immediately stop using the system and probes until CHISON authorized engineer has checked the system and confirm the effectiveness and safety of the system and probes.

  • Page 24: Scanning Patients And Education

    ECO Series VET Digital Color Doppler Ultrasound System guidelines: Clinical Safety Quoted from AIUM Approved March 26, 1997 Diagnostic ultrasound has been in use since the late 1950s. Given its known benefits and recognized efficacy for medical diagnosis, including use during human pregnancy, the American Institute of Ultrasound in Medicine herein addresses the clinical safety of such use: There are no confirmed biological effects on patients or instrument operators caused by exposures from present diagnostic ultrasound instruments.

  • Page 25: Safe Scanning Guidelines

    ECO Series VET Digital Color Doppler Ultrasound System Understand the meaning of the TI, TIS, TIB, TIC and MI output display, as well as the relationship between these parameters and the thermal/cavitation bioeffect to the tissue. Expose the patient to only the very lowest practical transmit power levels for the shortest possible time to achieve a satisfactory diagnosis (ALARA - As Low As Reasonably Achievable).

  • Page 26: Understanding The Mi/Ti Display

    ECO Series VET Digital Color Doppler Ultrasound System increases with MI values above this threshold. TI> 0.7 the overall exposure time of an embryo or fetus should be restricted in accordance with Table 2-2 below as a reference: Maximum exposure time (minutes) Maximum recommended exposure times for an embryo or fetus Non-diagnostic use of ultrasound equipment is not generally recommended.
  • Page 27 ECO Series VET Digital Color Doppler Ultrasound System effect, a TI equal to 1 does not mean the temperature will rise 1 degree C. It only means an increased potential for thermal effects can be expected as the TI increases. A high index does not mean that bioeffects are occurring, but only that the potential exists and there is no consideration in the TI for the scan duration, so minimizing the overall scan time will reduce the potential for effects.
  • Page 28 ECO Series VET Digital Color Doppler Ultrasound System Thermal Models Composition Mode Specification Application Small aperture Soft tissue Unscanned Pencil Probe (<1cm Evaluated at Soft tissue Scanned Breast color surface Soft tissue at Soft tissue and bone Scanned Muscle color surface Soft tissue and bone Unscanned...
  • Page 29 ECO Series VET Digital Color Doppler Ultrasound System For different operation modes, different indices must be displayed. However, only one index needs to be shown at a time. Display is not required if maximum MI is less than 1.0 for any setting of the operating mode, or if maximum TI is less than 1.0 for any setting of the operating mode.

  • Page 30: Battery Handling Instructions

    ECO Series VET Digital Color Doppler Ultrasound System In order to assure that an exam does not start at a high output level, the system initiates scanning at a reduced default output level. This reduced level is preset programmable and depends upon the exam icon and probe selected.

  • Page 31: Chapter 3 System Introduction

    ECO Series VET Digital Color Doppler Ultrasound System Chapter 3 System Introduction 3.1 Consol Overview Console Overview 3.2 Physical Specification Dimensions of main unit (approx.): 335mm（Length）× 155mm（Width）× 350mm（Height） Net weight of main unit (approx.): 6.5kg...

  • Page 32: System View In Different Views

    ECO Series VET Digital Color Doppler Ultrasound System 3.3 System View in Different Views System Front View System Side View 1. Ethernet 2. VGA 3.USB 4.FOOT SWITCH 5.DC IN Console Overview 1. Probe Holder 2.Probe 3.Keyboard...

  • Page 33: Function Introduction

    ECO Series VET Digital Color Doppler Ultrasound System System Rear View 1. Probe 2.USB 3. REMOTE 4. VIDEO OUT 5.Battery Holder 6. Probe Holder 3.4 Function Introduction 1.Possess B, B/B, 4B, B/M, M,CFM,PW display mode, M, B/M mode possess 4 kinds of scan velocity; 2.Possess many combination of focus, total gain control 8 segments STC;...

  • Page 34: Accessories

    ECO Series VET Digital Color Doppler Ultrasound System CFM mode PW mode 3.4.2 Accessories Transducers: C3-A, 2.5-5.0MHz Convex Array L7M-A, 5.3-10.0MHz Linear Array L7S-A, 5.3-11.0MHz Linear Array MC6-A, 4.5-8.0MHz Micro-convex Array L7V-A Linear Array, 5.3-10.0MHz Linear Array MC5V-A, 4.0-7.0MHz Micro-convex Array R7-A, 5.0-10.0MHz Linear Array Peripherals VGA output for external monitor...

  • Page 35: Installation Procedures

    ECO Series VET Digital Color Doppler Ultrasound System ECO 3 Configuration ECO 1VET ECO 2VET ECO 3VET ECO 5VET EXPERT VET 1(standard), 1(standard), Probe 2(standard) 2(standard) 2(standard) 2(option) 2(option) Maximum memory Option Option Option Option Built in battery Option Option...
  • Page 36 ECO Series VET Digital Color Doppler Ultrasound System High humidity Note: This equipment generates, uses and can radiate radio frequency energy. The equipment may cause radio frequency interference to other medical and non-medical devices and radio communications. To provide reasonable protection against such interference, this product complies with emissions limits for a Group 1, Class A Medical Devices Directive as stated in EN 60601-1-2.
  • Page 37 ECO Series VET Digital Color Doppler Ultrasound System temperature range between 0 degrees C (32 degrees F) and 50 degrees C (122 degrees F). Long term (3 months or more) storage of battery pack: Store the battery in a temperature range between-20 degrees C (-4 degrees F) and 45 degrees C (113 degrees F);...

  • Page 38: Powering The System

    ECO Series VET Digital Color Doppler Ultrasound System Load and unload the system to a vehicle parked on a level surface. Load the unit abroad the vehicle carefully and over its center of gravity. Keep the unit still and upright. Ensure that the transporting vehicle can bear the weight of system plus the passengers.

  • Page 39: Accessories Installation

    ECO Series VET Digital Color Doppler Ultrasound System Release the probe lock switch. Check the locked probe with one hand to make sure that it’s not loose, and it’s securely connected CAUTION Only power supply at “turn off” state, can install / take-down the probe, otherwise it will damage the machine or the probe.

  • Page 40: Chapter 4 Control Panel

    ECO Series VET Digital Color Doppler Ultrasound System Chapter 4 Control Panel 4.1 Alphanumeric Keyboard Alphanumeric Keyboard The alphanumeric keys are used for inputting patient number, name, character and figure etc. 4.2 Function Keys/Knob 4.2.1 SWITCH Turn on or off the device 4.2.2 PATIENT Set up a new patient data, input name and other information.

  • Page 41: End

    ECO Series VET Digital Color Doppler Ultrasound System Press this key to get in or out the system setting page. 4.2.5 END Press END key to finish the exam. 4.2.6 BODYMARK Press this key to enter into body mark working status, select the body mark and confirm the probe scanning position on the screen.

  • Page 42: Archive

    ECO Series VET Digital Color Doppler Ultrasound System PRINT1: Print the screen image by video printer connected to the system. PRINT2: Print the report by printer connected to the system (Only report page works). Or print the image in the scanning page; Or print the image in the review page. 4.2.11 Archive File management of system, you can view and edit the patient data.

  • Page 43: Central Control

    ECO Series VET Digital Color Doppler Ultrasound System 4.3 Central Control 1. UPDATE 2.EXIT 3.Cursor 4.Change 5.MENU 6. Dist 7.Trace 8.Calc 9.ENTER 10.Trackball 4.3.1 ENTER This multifunction key is work with trackball. The function switches with the unit status. Such as, set the cursor position, body mark position, comment position, toggle trackball function, selected the menu, and confirm the input.

  • Page 44: Trace

    ECO Series VET Digital Color Doppler Ultrasound System Press this key to enter into distance measurement. 4.3.7 Trace Press this key to enter into trace measurement, and press UPDATE to change between trace and ellipse. 4.3.8 Calc Press this key to enter into measurement software package. 4.3.9 MENU Press MENU-knob for second time to select the item and adjust the parameters.

  • Page 45: Control Of Image

    ECO Series VET Digital Color Doppler Ultrasound System 4.4.4 C Display CFM mode 4.4.5 D Display PW mode 4.4.6 M Press this key to change the mode between B/M and M. 4.5 Control of Image 4.5.1 THI Press this key to open or close the THI function. 4.5.2 AIO Only press this key for automatic optimization image.

  • Page 46: Save

    ECO Series VET Digital Color Doppler Ultrasound System 4.5.4 SAVE Only press this key to save the current image. 4.5.5 Left and Right Invert Press this key to invert the image from left and right. 4.5.6 Up and Down Invert Press this key to invert the image from up and down.

  • Page 47: Depth/Focus Knob

    ECO Series VET Digital Color Doppler Ultrasound System Rotate the knob to adjust the angle or zoom. Press this knob to change the function between angle and zoom. 4.5.10 DEPTH/FOCUS Knob Press the knob to adjust the depth and function position. Press the knob to change the function between depth and focus position.

  • Page 48: Chapter 5 Operation And Exam Mode

    ECO Series VET Digital Color Doppler Ultrasound System Chapter 5 Operation and Exam Mode This chapter mainly describes the process of the normal operation of the device, including the preparation before examination, how to get the image, optimize the image, add comments, body mark and so on. 5.1 Preparing the System for Use 5.1.1 The Device Inspection 1.The device is placed stability;...

  • Page 49: Patient Data Entry

    ECO Series VET Digital Color Doppler Ultrasound System 5.3 Patient Data Entry Press to display the Patient screen Patient’s Information Screen Function Buttons on Patient screen: [Archive]: Operation on the patient information which has already existed; [Wordlist]：Recall patient information in worklist. And need to open the DICOM function; [New Patient]：Create a new patient information identity;...

  • Page 50: Image Interface Display

    ECO Series VET Digital Color Doppler Ultrasound System 5.4 Image Interface Display 1, Logo 2, Control menu 3, Image status prompt 4, Image parameter area 5, System state prompt 6, Image parameter area 7, Gray-scale strip 8, Start point of scanning 9, Image Region 10, Cine loop 5.5 Display Mode Display Mode: B, 2B, 4B, M, B/M, they can be shifted by the mode key.

  • Page 51: B/M Mode

    ECO Series VET Digital Color Doppler Ultrasound System 5.5.4 B/M Mode Press [B/M] button, a real time B-mode image and a real-time M-mode image will be displayed at the same time. And a sample line will appear in the B-mode image area, which indicates the active sample position for M image on the B image area.

  • Page 52: Pw Mode

    ECO Series VET Digital Color Doppler Ultrasound System Color Gain: amplify the overall strength of echoes processed in the CROI Persistence: affect temporal smoothing and color Doppler ‘robustness’. 5.5.7 PW Mode Doppler is intended to provide measurement data concerning the velocity of moving tissues and fluids. PW Doppler lets you examine blood flow data selectively from a small region called the Sample Volume.

  • Page 53: B Image Adjustment

    ECO Series VET Digital Color Doppler Ultrasound System Baseline: adjust the baseline to accommodate faster or slower blood flows to eliminate aliasing. Angle: optimize the accuracy of the flow velocity. It estimates the flow velocity in a direction at an angle to the Doppler vector by computing the angle between the Doppler vector and the flow to be measured.

  • Page 54: Gain

    ECO Series VET Digital Color Doppler Ultrasound System In real M status, press the corresponding key of [Speed] to adjust M speed, and the range is 1~4. 5.6.7 Gain In real status, rotate [GAIN] knob to adjust the Gain, and the range is 0~255, the step is 5. 5.6.8 STC STC curves can be used for adjusting gain compensation in different image depth.

  • Page 55: Thi

    ECO Series VET Digital Color Doppler Ultrasound System indicates that the first scanning line in the left of the screen is corresponding to the initiative scanning position of the probe, “ ” situated in the right indicates that the first scanning line in the right of the screen is corresponding to the initiative scanning position of the probe.

  • Page 56: Line Density

    ECO Series VET Digital Color Doppler Ultrasound System In real status, press the first line key of [Persistence] to adjust. The range is 0~7. 5.7.4 Line Density Scan Line Density function is only valid for the image in B mode, B/B mode, B/M mode or 4B mode image. The line density has two types: high density and low density.

  • Page 57: Advance

    ECO Series VET Digital Color Doppler Ultrasound System 5.7.9 Advance In B Mode, select Advance, after pressing [MENU] button, it will appear Advance options. 5.7.9.1 Zoom Coef Adjust the size of the ruler and image. Choose [Zoom Coef], and rotate [MENU] button to adjust, the range is 60%~100%. 5.7.9.2 MB Through opening MB to improve image quality.

  • Page 58: Color Map

    ECO Series VET Digital Color Doppler Ultrasound System 5.8.1 Color Map Change the type of Color Map Activate the [Color Map] and rotate [MENU] to adjust Color Map, adjustment range from 0~8 5.8.2 Color Invert Invert the color of flow Activate [Color Invert] and rotate [MENU] to turn on or off.

  • Page 59: Freq

    ECO Series VET Digital Color Doppler Ultrasound System Activate [Flow] and rotate [MENU] to adjust flow, adjustment range low/middle/high. 5.8.8 Freq Adjust frequency of color mode. arameter control key Press p on [Freq] to change frequency, adjustment range depends on probe type. 5.8.9 Wall Filter Adjust Wall Filter.

  • Page 60: Enhance

    ECO Series VET Digital Color Doppler Ultrasound System Activate D 2D Map and rotate [MENU] adjustment range 1~4. 5.9.2 Enhance Adjust Enhance. Activate [Enhance] and rotate [MENU] to adjust Enhance, adjustment range from 0~3. 5.9.3 D Gamma Adjust D Gamma. Activate D gamma and rotate [MENU] to adjust D Gamma, adjustment range from 0~8.

  • Page 61: Speed

    ECO Series VET Digital Color Doppler Ultrasound System Press parameter control key on [Wall Filter] to adjust wall filter, adjustment range from 0~3. 5.9.11 Speed Press parameter control key on [Speed] to adjust speed, adjustment range from 0~2. 5.9.12 PRF Adjust PRF.

  • Page 62: Input Comment Library Characters

    ECO Series VET Digital Color Doppler Ultrasound System 5.11.2 Input Characters Operation: 1.Press button, then system will go into the comment process. 2.Move the cursor to the position where need to comments. 3.Input characters at cursor position by keyboard then press [ENTER] key to confirm. 4.Press again to exit.

  • Page 63: Set The Position Of Default Comment

    ECO Series VET Digital Color Doppler Ultrasound System 5.11.8.3 Delete All Contents of the Comment Don’t activate the single comment; press [DEL] to delete all characters that has input; Caution : Press [DEL] key, but it will delete the measurement and body mark at the same time; 5.11.9 Set the Position of Default Comment Operation: 1.Press [Save Home Pos.] to move cursor to the initial position;...

  • Page 64: Body Mark Operation

    ECO Series VET Digital Color Doppler Ultrasound System 5.12.2 Body Mark Operation Operation： 1.Press to enter into the body status. 2.Select the body mark that you need. 3.Move trackball after adding the body mark image and then adjust the position of probe. Rotate [MENU] or [ANGLE] knob can adjust the probe direction.

  • Page 65: Automatic Loop

    ECO Series VET Digital Color Doppler Ultrasound System Press [FREEZE] to freeze image, pop cine playback bar, at this time, move cursor to play by hand; Track ball rolling to the right, the loop play with ascending order side by side. Or press [Next/Pre] to play.

  • Page 66: Archive Management

    ECO Series VET Digital Color Doppler Ultrasound System Review interface ID: ID of Current patient. Name: Current patient’s name. Information: Enter into current patient’s information interface. Report: Enter into current patient’s report interface; Send images: Send image to USB hard disk , DICOM storage and print; Print the image: print the image which be chosen, it will be printed as the arrangement set;...

  • Page 67: Report

    ECO Series VET Digital Color Doppler Ultrasound System Archive interface Item: Type selection, select Patient’s ID or Name; Keyword: Search for key words; Period: Time filter, select today, one week, one month, three months, six months, recent one year and all; Multiple Choice: Multiple choice;...

  • Page 68: Dicom

    ECO Series VET Digital Color Doppler Ultrasound System Press the [Report] button and the page pop up the report page of the current exam mode. Change the other exam mode report by the drop-down box. Report Interface Report Title: Report options, different kinds of report can choose, such as Normal, OB/GYN etc. Hosp: Display the hospital name.

  • Page 69: Dicom Storage

    ECO Series VET Digital Color Doppler Ultrasound System ID: input ID or some characters, fuzzy query needs server; Search By: select term, ID or name; ID: display the ID of patients; Name: display the names of patients; BirthDate: display the birth date of patients; Sex: display sex of patients;...

  • Page 70: Dicom Print

    ECO Series VET Digital Color Doppler Ultrasound System DICOM Send Interface Select DICOM Storage in left, choose DICOM server and press Export button to DICOM storage. Enter Task Sequence and watch or edit DICOM process. 5.18.3 DICOM Print DICOM Print operation is the same as DICOM storage. 5.18.4 DICOM SR Press [Send DICOM SR] button in report interface, this task is added into DICOM Task Sequence.

  • Page 71: Chapter 6 Measurement And Calculation

    ECO Series VET Digital Color Doppler Ultrasound System Chapter 6 Measurement and Calculation Main content of this chapter: Normal calculation and measurement on B mode image and M mode image, OB calculation and Urology measurement etc, system can enter into corresponding measurement mode depend on current exam mode, and enter into the corresponding report depend on the measurement mode.

  • Page 72: Del]

    ECO Series VET Digital Color Doppler Ultrasound System 6.1.4 [DEL] Main functions are as follows: In frozen status, press the [DEL], delete all the measurement results, comments and traces. 6.1.5 [Change] Press [Change] to switch other menu; Press [Exit] to exit; 6.1.6 [Exit] Press [Exit] to exit the measurement menu.

  • Page 73: Trace

    ECO Series VET Digital Color Doppler Ultrasound System key [Ellipse], it will display a segment “+”icon. 2.Move the “+”icon by cursor, Press [ENTER] to fix the point and the cursor can be moved to form a round. 3.Press [UPDATE] can exchange the activated point and the fixed point. 4.Move the cursor to the end-point of the ellipse, press [ENTER] to fix the axis, at the same time, the next axis be updated, and can change the size of the axis by the cursor.

  • Page 74: Cross-Section Diagram

    ECO Series VET Digital Color Doppler Ultrasound System ◆ Measure the histogram by ellipse or trace method: The method is the same as that to measure ellipse or trace method, press [UPDATE] to change the measurement between ellipse and trace. The horizontal axis represents the gray scale of the image ranging from 0 to 255.

  • Page 75: B Genearl Measurement

    ECO Series VET Digital Color Doppler Ultrasound System Meas. Method/ Meas. Menu Submenu Unit Comment Meas. Formula Refer to distance Volume Meas. D1: the longer distance V ＝ (2 straight line) D2: the shorter distance Formula: (π/6)×D1×D22 Refer to distance Volume Meas.

  • Page 76: B Canine Measurement

    ECO Series VET Digital Color Doppler Ultrasound System Meas. Method/ Meas. Menu Submenu Unit Comment Meas. Formula Refer to distance A: Long Axis Volume(1 straight and ellipse Meas. B: Short Axis V ＝ line 1 ellipse) Formula: M: Distance (π/6)× A× B× M Refer to distance Meas.

  • Page 77: B Feline Measurement

    ECO Series VET Digital Color Doppler Ultrasound System Meas. Method/ Meas. Menu Submenu Unit Comment Meas. Formula Refer to distance L: Bladder Length Bladder Meas. W: Bladder Width V ＝ Volume Formula: H: Bladder Height （π/6）× L× H× W 6.6 B Feline Measurement Choose feline exam mode.

  • Page 78: B Bovine Measurement

    ECO Series VET Digital Color Doppler Ultrasound System Meas. Method/ Meas. Menu Submenu Unit Comment Meas. Formula Refer to distance L: Length Meas. Volume W: Width V ＝ Formula: H: Height （π/6）× L× W× H Length Refer to distance L: Thyroid Length Thyroid Width Meas.

  • Page 79: Genearl Measurement And Calculation In M, B/M Mode

    ECO Series VET Digital Color Doppler Ultrasound System Meas. Method/ Meas. Menu Submenu Unit Comment Meas. Formula Refer to distance Meas. Refer to distance Meas. Refer to distance Body Length Meas. Refer to distance Meas. Refer to distance L: Length Meas.

  • Page 80: Heart Rate

    ECO Series VET Digital Color Doppler Ultrasound System 3.Press [UPDATE] to active the two straight lines in turns and dragon them to change the distance between them. The measurement result will be displayed on the result area. 6.10.3 Heart rate Heart rate is used to calculate the number of heart beats per minute from cardiac image.

  • Page 81: M Feline Measurement

    ECO Series VET Digital Color Doppler Ultrasound System 6.13 M Feline Measurement Refer to M mode general measurement. 6.14 M Equine Measurement Refer to M mode general measurement. 6.15 M Bovine Measurement Refer to M mode general measurement. 6.16 M Ovine Measurement Refer to M mode general measurement.

  • Page 82: Manual Trace

    ECO Series VET Digital Color Doppler Ultrasound System 3.The measurement results will be displayed on the monitor and calculate other values of parameters 6.17.5 Manual Trace Measurement step: 1.Move the trackball to select the start point of the one cycle and press [ENTER] to fix it. 2.Move the trackball along the spectrum, and press [ENTER] to complete.

  • Page 83: Pw Genearl Measurement

    ECO Series VET Digital Color Doppler Ultrasound System Meas. Method/ Meas. Menu Submenu Unit Meas. Comment Formula ： Formula ＝ Pressure Pressure(d) mmHg 4× Vd× Vd/1000 Refer VMean cm/s speed meas. ： Formula ＝ Pressure Pressure(VMean) mmHg 4× VMean× VM ean/10000 Formula：...
  • Page 84 ECO Series VET Digital Color Doppler Ultrasound System Meas. Method/ Meas. Menu Submenu Unit Meas. Comment Formula ： Formula ＝ Pressure Pressure(d) mmHg 4× Vd× Vd/1000 Formula： SD＝ Vs/Vd Formula： SD＝ (Vs-Vd)/Vs Refer Time time meas. Refer cm/s speed meas. ：...

  • Page 85: Pw Canine Measurement

    ECO Series VET Digital Color Doppler Ultrasound System Meas. Method/ Meas. Menu Submenu Unit Meas. Comment Formula Formula： StD% ＝ D1:Distance1, StD% ((D1-D2)÷ D1) D2:Distance2 × 100% Refer Area1 ellipse meas. Refer Area2 ellipse meas. StA% Formula： StA% ＝ StA% A1:Area1,A2:Area2 ((A1-A2)÷...

  • Page 86: Pw Feline Measurement

    ECO Series VET Digital Color Doppler Ultrasound System 6.21 PW Feline Measurement Refer to PW general measurement. 6.22 PW Equine Measurement Refer to PW general measurement. 6.23 PW Bovine Measurement Refer to PW general measurement. 6.24 PW Ovine Measurement Refer to PW general measurement.

  • Page 87: Chapter 7 Preset

    ECO Series VET Digital Color Doppler Ultrasound System Chapter 7 Preset This chapter introduces the operation to make settings of the system through preset menu at preset mode. Preset function is used to set up working environment and status, parameters of each examination mode. The setting will be stored in the memory of system and not be lost even after the system is switched off.

  • Page 88: Measurement

    ECO Series VET Digital Color Doppler Ultrasound System Function name Setting method Function description Enable screen saver, user can custom screen saver Screen Select the function images, a custom picture named "screensaver", JPG, Controller and set its start time PNG, BMP format, size does not exceed 512 * 384 pixels Select the language of operation interface(Simplified Language...

  • Page 89: Measurement Formula Setting

    ECO Series VET Digital Color Doppler Ultrasound System General Measurement settings interface Distance: cm, mm Area: cm , mm Volume: ml, l Time: s, ms Speed: cm/s, mm/s Acceleration: cm/s , mm/s Angle: deg, rad Weight: g, kg Measure Option: whether clear results upon unfreeze, and the automatic froze image. Measure Result: the color of the result font is alternative, including yellow/white/orange/green.
  • Page 90 ECO Series VET Digital Color Doppler Ultrasound System 7.2.2.1 Interface Description-Measurement Menu Interface for Edition of measurement Formula Region: pull down and select needed measurement menu. Manage: pop up measurement software edition interface, add modify delete change marshalling sequence in measurement menu.
  • Page 91 ECO Series VET Digital Color Doppler Ultrasound System 7.2.2.2 Interface Description-Measurement Manipulation Interface for Edition of Measurement Formula Sheet 3 Measurement Edit content description Display the name of selected term that is display names in the Caption measurement menu The name of built-in selected measurement menu, user don’t Var Name need modify while display order according to the names Built-in code, user don’t need modify...
  • Page 92 ECO Series VET Digital Color Doppler Ultrasound System 7.2.2.3 Interface Description-Measurement Calculation Interface for Edition of Measurement Formal Sheet 4 Calc Measurement Edit content description Display the name of selected term that is display names in the Caption measurement menu The name of built-in selected measurement menu, user don’t Var Name need modify while display order according to the names...
  • Page 93 ECO Series VET Digital Color Doppler Ultrasound System 7.2.2.4 Create Measurement Operation Press [Add] in measurement operation interface, pop up the following dialog box Interface for Edition of Measurement Formula Sheet 5 Operation content description of creating new measurement Display the name of selected term that is display names in the Caption measurement menu The name of built-in selected measurement menu, user don’t...
  • Page 94 ECO Series VET Digital Color Doppler Ultrasound System Interface for Edition of Measurement Formula Formula: edit formula in input box via keyboard and built-in formula. Validate: press this button to check whether the formula is right or not after editing formula. Clear: clear the content in the input box.
  • Page 95 ECO Series VET Digital Color Doppler Ultrasound System Measurement Items: display created measurement term by now OB Tables: built-in OB formula table OB List Measure Item: OB Measurement Item GA Tables: Gestational list for the current measuring project. Growth Table: Growth table for the current measuring. Info: Display the gestational age and fetal weight for the current measuring.

  • Page 96: Annotation

    ECO Series VET Digital Color Doppler Ultrasound System Save: Save the users’ choice of formulas. 7.3 Annotation Annotation Setting Interface 7.3.1 Annotation Library The annotation database of the system is classified as: Abdomen, OB, GYN, Cardiac, Small part, Pathological change Annotation can be made by inputting characters from the soft keyboard or recalling the terms saved in annotation database.

  • Page 97: Edit Annotation

    ECO Series VET Digital Color Doppler Ultrasound System 7.3.2 Edit Annotation Operator uses only current annotation instead of all content annotation status provides inlay common annotation. If necessary, user can import annotation or self-compiled annotation into common annotation. 7.3.2.1 Add annotation from annotation library Operation: 1.Select needed source annotation status via Trackball and [ENTER].

  • Page 98: Body Marks

    ECO Series VET Digital Color Doppler Ultrasound System 7.4 Body marks Interface for Body Mark Setting 7.4.1 Body Marks Library Built-in body marks: Bovine, Canine, Equine, Feline and Ovine. Press [BodyMarkLib] pull down button, pop up name of built-in body marks, show needed body marks via Trackball and [ENTER] key.

  • Page 99: Body Mark Option

    ECO Series VET Digital Color Doppler Ultrasound System button to move selected body marks in [BodyMark Selected] column into source body marks. 4.Press [ENTER] on [>>]button to import all body marks in source into user-selected status; press [ENTER] on [>>] button to move all body marks in [BodyMarks Selected] column into source . 5.Press [ENTER] on [Move UP] button to move up the selected body mark;...

  • Page 100: Exam Mode Config

    ECO Series VET Digital Color Doppler Ultrasound System Choose Utility and press [MENU], the following interface pops up. Open the relate function by corresponding control area. Interface for ExamMode Setting Probe: select needed probe and ExamMode fit for it. ExamMode Lib: show all existed Exam modes. ExamMode Selected: show Exam modes in probe column.

  • Page 101: Image Freeze Config

    ECO Series VET Digital Color Doppler Ultrasound System Interface for Exam Mode Setting ExamMode: show all existed Exam modes in system. Comment: double press [ENTER] to activate widget box, can choose existed annotation status name. After setting, the default of the Exam mode is user-selected. BodyMark: same as Comment, select user-needed default body marks.

  • Page 102: Keyboard

    ECO Series VET Digital Color Doppler Ultrasound System 7.6 Keyboard Users can set the number buttons and the store button on the keyboard, easy to use. Interface for Keyboard Setting Output: including store images, store films, store images to U disk, store film to U disk, etc. function options.

  • Page 103: Dicom

    DICOM has been activated. In the system page of setting interface, you can check whether DICOM is open or not. If you want to activate DICOM, please contact with CHISON. There must be DICOM SCP server which has been installed with PACS or other relative DICOM server software.

  • Page 104: Add/Edit Dicom Function

    ECO Series VET Digital Color Doppler Ultrasound System 7.7.1 Add/Edit DICOM Function Default: check this option, set DICOM function as default. Service: choose DICOM Storage, DICOM Worklist, DICOM Print or DICOM SR. Server AE Title: input DICOM server AE name. Server IP address: input DICOM IP address.

  • Page 105: Function Setting

    [OK] key to save and exit. Full Screen Show: refer to DICOM. 7.9.4 Installment setting Input relevant key to open trial function and the detail please contact CHISON Company. 7.9.5 Video VGA Choose the video data: NTSC, PAL-M, and PAL-D.

  • Page 106: Chapter 8 System Maintenance

    3.When it is necessary to clean the probe connector and peripheral instrument, please contact Sales office contact customer service or agent of CHISON. Any self-cleaning may result in malfunction or degrading the function of device.

  • Page 107: Safety Check

    ECO Series VET Digital Color Doppler Ultrasound System Cleaning procedure: 1.Wipe the remaining coupling gel and blot with flowing clear water. Avoid the joint part between cable and probe touching the water or others. 2.Use wet gauze or other soft cloth with a little liquid soap to clean the probe totally. Don’t use cleaning agent and cleaner with abrasiveness.

  • Page 108: Malfunction Check

    ECO Series VET Digital Color Doppler Ultrasound System Customer Service department or Agents of manufacturer. If no image or menu but image, please check following malfunction table. If the malfunction can’t be solved, please contact with Sale Office, Customer Service department or Agents of manufacturer. 8.4 Malfunction Check serial malfunction...

  • Page 109: Chapter 9 Probes

    ECO Series VET Digital Color Doppler Ultrasound System Chapter 9 Probes 9.1 General Description Cable Stress Relief Handle Binding line Transducer Scanhead (Lens) Convex Probe Overview The probes provide high spatial and contrast ultrasound imaging of frequencies from 2.0MHz to 11.0MHz. These probes operate by pulsing sound waves into the body and listening to the returning echoes to produce high-resolution brightness mode, and a real time display.

  • Page 110: Cleaning And Disinfecting

    ECO Series VET Digital Color Doppler Ultrasound System The probes are designed to be used only with this ultrasound system. Use of these probes on any other system or a non-qualified probe may cause electrical shock or damage on the system/transducer. 9.2.2 Cleaning and Disinfecting Place the probe into the solution of cleaning-disinfectant.
  • Page 111 Before inserting the connector into the probe port, inspect the probe connector pins. If a pin is bent, DO NOT use the probe until it has been inspected and repaired/replaced by a CHISON Service Representative. Electrical leakage checks should be performed on a routine basis by CHISON Service or qualified hospital personnel.
  • Page 112 ECO Series VET Digital Color Doppler Ultrasound System membrane may cause an inflammation. If this happens, refer to instruction manual of the sterilant. Sterilant Exposure from Probe handle to Patient (e.g. Cidex): DO NOT allow the sterilant to contact the patient.
  • Page 113 ECO Series VET Digital Color Doppler Ultrasound System Wash the probe with mild soap in lukewarm water. Scrub the probe as needed using a soft sponge, gauze, or cloth to remove all visible residue from the probe surface. Prolonged soaking or scrubbing with a soft bristle brush (such as a toothbrush) may be necessary if material has dried onto the probe surface.
  • Page 114 CAUTION Please do not use any gel or other materials which are not provided by CHISON. Un-authorized gel, lubricants and other materials may corrode probes and other parts of the device, for example the keyboard.
  • Page 115 ECO Series VET Digital Color Doppler Ultrasound System After each use: clean the probes disinfect the probes. As necessary: inspect the probes, clean the probes, and disinfect the probes. Returning/Shipping Probes and Repair Parts Transportation dept. and our policy require that equipment returned for service MUST be clean and free of blood and other infectious substances.
  • Page 116 ECO Series VET Digital Color Doppler Ultrasound System will not necessarily inactivate Mycobacterium Tuberculosis or bacterial spores. The following specific recommendations are made for the use of Endocavitary ultrasound transducers. Users should also review the Centers for Disease Control and Prevention document on sterilization and disinfection of medical devices to be certain that their procedures conform to the CDC principles for disinfection of patient care equipment.
  • Page 117 ECO Series VET Digital Color Doppler Ultrasound System CIDEX OPA Soaking Orthophthalal-aldehyde CAUTION : Repeated disinfection will eventually damage the transducer, please check the transducer’s performance periodically. Other agents such as quaternary ammonium compounds are not considered high level disinfectants and should not be used.

  • Page 118: Probe Operation Instructions

    ECO Series VET Digital Color Doppler Ultrasound System Rooks VJ, Yancey MK, Elg SA, Brueske L. Comparison of probe sheaths for endovaginal sonography. Obstet. Gynecol 1996;87:27-9. Milki AA, Fisch JD. Vaginal ultrasound probe cover leakage: implications for patient care. Fertil Steril 1998;69:409-11.

  • Page 119: Cleaning And Disinfecting Tv And Tr Probes

    ECO Series VET Digital Color Doppler Ultrasound System the user to identify these patients and be prepared to treat allergic reactions promptly before scanning. Only water-solvable solutions or gel can be used. Petroleum or mineral oil-based materials may harm the cover.

  • Page 120: Service Responsibility

    If users install, use and maintain the system fully according to CHISON’s installation manual, operation manual and service manual, then CHISON ECO main unit has a life time of 5 years and CHISON ECO probes have life time of 5 years after ex-work.
  • Page 121 But if user still wants to continue using the system and probes, user should first contact CHISON service center at CHISON headquarter to arrange the necessary safety check and calibration by CHISON’s authorized service engineer.

  • Page 122: Appendix B: Acoustic Output Report Table

    ECO Series VET Digital Color Doppler Ultrasound System Appendix B: Acoustic Output Report Table Transducer Model: C3-A Operating Mode: B Index label Below Below surface surface surface surface – Maximum index value 0.50 0.10 0.10 Index component value 0.10 0.10 0.08 0.10 at Z...
  • Page 123 ECO Series VET Digital Color Doppler Ultrasound System Transducer Model: C3-A Operating Mode: THI-B Index label Below Below surface surface surface surface – Maximum index value 0.50 0.10 0.10 Index component value 0.10 0.10 0.09 0.10 at Z 0.94 r,α –...
  • Page 124 ECO Series VET Digital Color Doppler Ultrasound System Transducer Model: C3-A Operating Mode: Index label Below Below surface surface surface surface – Maximum index value 0.40 0.20 0.30 Index component value 0.14 0.20 0.25 0.30 at Z 0.66 r,α – 24.00 24.00 3.45...
  • Page 125 ECO Series VET Digital Color Doppler Ultrasound System Transducer Model: C3-A Operating Mode: THI-B+M Index label Below Below surface surface surface surface – Maximum index value 0.40 0.20 0.30 Index component value 0.14 0.20 0.22 0.30 at Z 0.66 r,α –...
  • Page 126 ECO Series VET Digital Color Doppler Ultrasound System Transducer Model: C3-A Operating Mode: Index label Below Below surface surface surface surface – Maximum index value 0.30 0.10 0.10 Index component value 0.10 0.10 0.09 0.10 at Z 0.64 r,α – 20.00 20.00 2.87...
  • Page 127 ECO Series VET Digital Color Doppler Ultrasound System Transducer Model: C3-A Operating Mode: PW Index label Below Below surface surface surface surface – Maximum index value 0.60 0.40 0.70 Index component value 0.35 0.40 0.66 0.70 at Z 1.00 r,α –...
  • Page 128 ECO Series VET Digital Color Doppler Ultrasound System Transducer Model: L7M-A Operating Mode: Index label Below Below surface surface surface surface – Maximum index value 0.30 0.10 0.10 Index component value 0.10 0.10 0.09 0.10 at Z 0.70 r,α – 16.00 16.00 3.92...
  • Page 129 ECO Series VET Digital Color Doppler Ultrasound System Transducer Model: L7M-A Operating Mode: THI-B Index label Below Below surface surface surface surface – Maximum index value 0.70 0.10 0.10 Index component value 0.10 0.10 0.06 0.10 at Z 0.69 r,α –...
  • Page 130 ECO Series VET Digital Color Doppler Ultrasound System Transducer Model: L7M-A Operating Mode: Index label Below Below surface surface surface surface – Maximum index value 0.30 0.30 0.10 Index component value 0.22 0.30 0.07 0.10 at Z 0.83 r,α – 10.00 10.00 2.45...
  • Page 131 ECO Series VET Digital Color Doppler Ultrasound System Transducer Model: L7M-A Operating Mode: THI-B+M Index label Below Below surface surface surface surface – Maximum index value 0.30 0.30 0.10 Index component value 0.25 0.30 0.09 0.10 at Z 0.83 r,α –...
  • Page 132 ECO Series VET Digital Color Doppler Ultrasound System Transducer Model: L7M-A Operating Mode: Index label Below Below surface surface surface surface – Maximum index value 0.40 0.20 0.20 Index component value 0.20 0.20 0.14 0.20 at Z 1.09 r,α – 16.00 16.00 3.92...
  • Page 133 ECO Series VET Digital Color Doppler Ultrasound System Transducer Model: L7M-A Operating Mode: Index label Below Below surface surface surface surface – Maximum index value 0.80 0.90 0.80 Index component value 0.84 0.90 0.74 0.80 at Z 1.98 r,α – 34.00 34.00 8.33...
  • Page 134 ECO Series VET Digital Color Doppler Ultrasound System Transducer Model: R7-A Operating Mode: Index label Below Below surface surface surface surface – Maximum index value 0.30 0.10 0.10 Index component value 0.10 0.10 0.08 0.10 at Z 0.81 r,α – 16.00 16.00 3.92...
  • Page 135 ECO Series VET Digital Color Doppler Ultrasound System Transducer Model: R7-A Operating Mode: THI-B Index label Below Below surface surface surface surface – Maximum index value 0.30 0.10 0.10 Index component value 0.10 0.10 0.08 0.10 at Z 0.79 r,α –...
  • Page 136 ECO Series VET Digital Color Doppler Ultrasound System Transducer Model: R7-A Operating Mode: Index label Below Below surface surface surface surface – Maximum index value 0.30 0.30 0.10 Index component value 0.25 0.30 0.09 0.10 at Z 0.83 r,α – 10.00 10.00 2.45...
  • Page 137 ECO Series VET Digital Color Doppler Ultrasound System Transducer Model: R7-A Operating Mode: THI-B+M Index label Below Below surface surface surface surface – Maximum index value 0.30 0.30 0.10 Index component value 0.25 0.30 0.05 0.10 at Z 0.83 r,α –...
  • Page 138 ECO Series VET Digital Color Doppler Ultrasound System Transducer Model: R7-A Operating Mode: Index label Below Below surface surface surface surface – Maximum index value 0.40 0.20 0.20 Index component value 0.20 0.20 0.11 0.20 at Z 1.09 r,α – 16.00 16.00 3.92...
  • Page 139 ECO Series VET Digital Color Doppler Ultrasound System Transducer Model: R7-A Operating Mode: PW Index label Below Below surface surface surface surface – Maximum index value 0.80 0.90 0.80 Index component value 0.87 0.90 0.77 0.80 at Z 1.98 r,α –...
  • Page 140 ECO Series VET Digital Color Doppler Ultrasound System Transducer Model: MC6-A Operating Mode: B Index label Below Below surface surface surface surface – Maximum index value 0.80 0.10 0.10 Index component value 0.10 0.10 0.08 0.10 at Z 1.94 r,α –...
  • Page 141 ECO Series VET Digital Color Doppler Ultrasound System Transducer Model: MC6-A Operating Mode: B+M Index label Below Below surface surface surface surface – Maximum index value 0.30 0.40 0.10 Index component value 0.32 0.40 0.06 0.10 at Z 0.61 r,α –...
  • Page 142 ECO Series VET Digital Color Doppler Ultrasound System Transducer Model: MC6-A Operating Mode: THI-B+M Index label Below Below surface surface surface surface – Maximum index value 0.30 0.40 0.10 Index component value 0.31 0.40 0.08 0.10 at Z 0.61 r,α –...
  • Page 143 ECO Series VET Digital Color Doppler Ultrasound System Transducer Model: MC6-A Operating Mode: B+C Index label Below Below surface surface surface surface – Maximum index value 0.50 0.50 0.50 Index component value 0.50 0.50 0.44 0.50 at Z 1.11 r,α –...
  • Page 144 ECO Series VET Digital Color Doppler Ultrasound System Transducer Model: MC6-A Operating Mode: PW Index label Below Below surface surface surface surface – Maximum index value 0.20 0.90 0.80 Index component value 0.84 0.90 0.77 0.80 at Z 0.49 r,α –...
  • Page 145 ECO Series VET Digital Color Doppler Ultrasound System Transducer Model: L7S-A Operating Mode: B Index label Below Below surface surface surface surface – Maximum index value 0.70 0.10 0.10 Index component value 0.10 0.10 0.07 0.10 at Z 1.92 r,α –...
  • Page 146 ECO Series VET Digital Color Doppler Ultrasound System Transducer Model: L7S-A Operating Mode: THI-B Index label Below Below surface surface surface surface – Maximum index value 0.40 0.10 0.10 Index component value 0.10 0.10 0.07 0.10 at Z 0.99 r,α –...
  • Page 147 ECO Series VET Digital Color Doppler Ultrasound System Transducer Model: L7S-A Operating Mode: Index label Below Below surface surface surface surface – Maximum index value 0.80 0.10 0.20 Index component value 0.08 0.10 0.16 0.20 at Z 1.92 r,α – 2.00 2.00 0.78...
  • Page 148 ECO Series VET Digital Color Doppler Ultrasound System Transducer Model: L7S-A Operating Mode: THI-B+M Index label Below Below surface surface surface surface – Maximum index value 0.70 0.10 0.20 Index component value 0.08 0.10 0.18 0.20 at Z 1.81 r,α –...
  • Page 149 ECO Series VET Digital Color Doppler Ultrasound System Transducer Model: L7S-A Operating Mode: Index label Below Below surface surface surface surface – Maximum index value 0.70 0.10 0.10 Index component value 0.10 0.10 0.08 0.10 at Z 2.06 r,α – 32.00 32.00 12.50...
  • Page 150 ECO Series VET Digital Color Doppler Ultrasound System Transducer Model: L7S-A Operating Mode: Index label Below Below surface surface surface surface – Maximum index value 0.80 1.20 1.70 Index component value 1.10 1.20 1.60 1.70 at Z 2.26 r,α – 30.00 30.00 11.72...
  • Page 151 ECO Series VET Digital Color Doppler Ultrasound System Transducer Model: MC5V-A Operating Mode: Index label Below Below surface surface surface surface – Maximum index value 0.70 0.10 0.10 Index component value 0.10 0.10 0.07 0.10 at Z 1.65 r,α – 18.00 18.00 6.25...
  • Page 152 ECO Series VET Digital Color Doppler Ultrasound System Transducer Model: MC5V-A Operating Mode: THI-B Index label Below Below surface surface surface surface – Maximum index value 0.50 0.10 0.10 Index component value 0.10 0.10 0.08 0.10 at Z 1.49 r,α –...
  • Page 153 ECO Series VET Digital Color Doppler Ultrasound System Transducer Model: MC5V-A Operating Mode: Index label Below Below surface surface surface surface – Maximum index value 0.40 0.40 0.10 Index component value 0.31 0.40 0.09 0.10 at Z 0.94 r,α – 16.00 16.00 5.56...
  • Page 154 ECO Series VET Digital Color Doppler Ultrasound System Transducer Model: MC5V-A Operating Mode: THI-B+M Index label Below Below surface surface surface surface – Maximum index value 0.30 0.40 0.10 Index component value 0.32 0.40 0.05 0.10 at Z 0.61 r,α –...
  • Page 155 ECO Series VET Digital Color Doppler Ultrasound System Transducer Model: MC5V-A Operating Mode: Index label Below Below surface surface surface surface – Maximum index value 0.40 0.50 0.50 Index component value 0.50 0.50 0.44 0.50 at Z 1.11 r,α – 46.00 46.00 15.97...
  • Page 156 ECO Series VET Digital Color Doppler Ultrasound System Transducer Model: MC5V-A Operating Mode: Index label Below Below surface surface surface surface – Maximum index value 0.20 0.80 0.70 Index component value 0.74 0.80 0.66 0.70 at Z 0.49 r,α – 82.00 82.00 28.47...
  • Page 157 ECO Series VET Digital Color Doppler Ultrasound System Transducer Model: L7V-A Operating Mode: B Index label Below Below surface surface surface surface – Maximum index value 0.30 0.10 0.10 Index component value 0.10 0.10 0.09 0.10 at Z 0.70 r,α –...
  • Page 158 ECO Series VET Digital Color Doppler Ultrasound System Transducer Model: L7V-A Operating Mode: THI-B Index label Below Below surface surface surface surface – Maximum index value 0.70 0.10 0.10 Index component value 0.10 0.10 0.05 0.10 at Z 1.75 r,α –...
  • Page 159 ECO Series VET Digital Color Doppler Ultrasound System Transducer Model: L7V-A Operating Mode: Index label Below Below surface surface surface surface – Maximum index value 0.30 0.30 0.10 Index component value 0.21 0.30 0.08 0.10 at Z 0.83 r,α – 10.00 10.00 2.00...
  • Page 160 ECO Series VET Digital Color Doppler Ultrasound System Transducer Model: L7V-A Operating Mode: THI-B+M Index label Below Below surface surface surface surface – Maximum index value 0.30 0.20 0.10 Index component value 0.11 0.20 0.06 0.10 at Z 0.83 r,α –...
  • Page 161 ECO Series VET Digital Color Doppler Ultrasound System Transducer Model: L7V-A Operating Mode: Index label Below Below surface surface surface surface – Maximum index value 0.40 0.20 0.20 Index component value 0.20 0.20 0.15 0.20 at Z 1.10 r,α – 16.00 16.00 3.21...
  • Page 162 ECO Series VET Digital Color Doppler Ultrasound System Transducer Model: L7V-A Operating Mode: Index label Below Below surface surface surface surface – Maximum index value 0.80 0.90 0.80 Index component value 0.88 0.90 0.74 0.80 at Z 1.98 r,α – 34.00 34.00 6.81...

  • Page 163: Appendix B: Guidance And Manufacturer's Declaration

    ECO Series VET Digital Color Doppler Ultrasound System Appendix B: Guidance and Manufacturer’s Declaration 1. Guidance and manufacturer’s declaration – electromagnetic emissions The ECO Series VET is intended for use in the electromagnetic environment specified below. The customer or the user of the ECO Series VET should assure that it is used in such an environment. –...
  • Page 164 ECO Series VET Digital Color Doppler Ultrasound System Surge ± 1 line(s) ± 1 line(s) Mains power quality IEC 61000-4-5 line(s) line(s) should be that ± 2 kV line(s) to earth ± 2 kV line(s) to earth of a typical commercial or hospital environment.
  • Page 165 ECO Series VET Digital Color Doppler Ultrasound System Conducted RF 3 Vrms 3 Vrms Portable and mobile RF communications IEC 61000-4-6 150 kHz to 80 3 V/m equipment should be used no closer to any Radiated RF part of the ECO Series VET, including IEC 61000-4-3 3 V/m cables, than the recommended separation...
  • Page 166 ECO Series VET Digital Color Doppler Ultrasound System Rated maximum Separation distance according to frequency of transmitter output power of transmitter 0,01 0,12 0,12 0,23 0,38 0,38 0,73 For transmitters rated at a maximum output power not listed above, the recommended separation distance d in metres (m) can be estimated using the equation applicable to the frequency of the transmitter, where P is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer.

  • Page 167: Appendix C: Measurement Results Summary

    ECO Series VET Digital Color Doppler Ultrasound System Appendix C: Measurement Results Summary Measurement Useful Range Accuracy Distance Full Screen <± 5% Circumference: Full Screen <± 5% trace method, ellipse method Area: Full Screen <± 10% trace method, ellipse method Volume Full screen <±...

  • Page 168: Appendix D: Display Accuracy And Acoustic Measurement Uncertainties

    ECO Series VET Digital Color Doppler Ultrasound System Appendix D: Display Accuracy and Acoustic Measurement Uncertainties According to IEC60601-2-37 and NEMA UD-3 2004, the display accuracy and acoustic measurement uncertainties are summarized in the table below. Display accuracy of MI is ± 20%, and TI is ± 40% or <0.1, if MI, TI below 0.5. Measurement Uncertainty Item (Percentage, 95% Confidence Value...

  • Page 169: Appendix E: Transducer Maximum Surface Temperature

    ISO Guide tout ye Expression of uncertainty in measurement. Three transducer samples have been tested and the confidence coefficient is at 95%,the value of t.975 is 4.30. The measurement data were obtained under the test conditions employed at CHISON. Transducer...

  • Page 170: Appendix F: Procedures Of Set Network Sharing In Eco Series

    ECO Series VET Digital Color Doppler Ultrasound System Appendix F: Procedures of set network sharing in ECO series For Windows set up, set up a shared document 1.Choose the file you want to share, as the “test” file. 2.Right click this file, choose “properties”, and click “share”. 3.Then you can see the sharing setting interface, as you can see in the picture, choose “everyone”, and click “add”.
  • Page 171 ECO Series VET Digital Color Doppler Ultrasound System 5.If the windows have not set the code, then turn off the password protected sharing is necessary. instructions as the image shows. a)Click “network and sharing center” in the sharing properties. b)In the network and sharing center interface, choose “public”, in the password protected sharing, choose turn off password protected sharing.
  • Page 172 ECO Series VET Digital Color Doppler Ultrasound System Set up in ECO IP set up 1.First, confirm the service address of shared files, you can get the IP address in windows interface. In windows “start”-“run” type in “cmd” and enter, then type in “ ipconfig” and enter, you can see the IP address of local service.
  • Page 173 ECO Series VET Digital Color Doppler Ultrasound System CAUTION: Ping: test if the IP is connected or not. Clear: clear all the IP address, user name, password and names of shared file Update: update the content to the chosen item. Delete: delete the chosen service item.

This manual is also suitable for:

Eco 2vetEco 3 expert vetEco 3vetEco 5vet

Table of Contents

Save PDF
