  • Page 1 Submersible Pump User's Manual Models：Q(D)X, Q(D)X-T(F), Q(D), QY, QS SHIMGE PUMP INDUSTRY GROUP CO., LTD.

  • Page 2: Conditions For Use

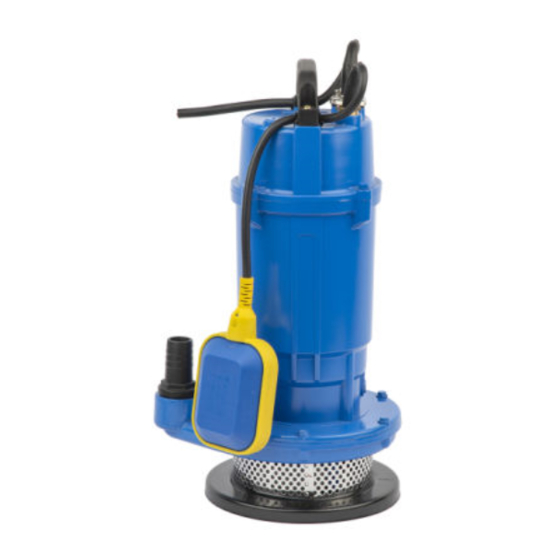

    Thanks for choosing our company’s products. Please read the user’s manual carefully before operation. Warnings! Before operation, make sure that the electric pump is properly grounded Do not touch the electric pump while it is running. Do not run the electric pump without water. Products Introduction Models Q(D)X, Q(D)X-T(F), Q(D), QY and QS submersible pumps (hereafter referred to as simply “electric pump”) consist of water pump, seal and motor.
  • Page 3 4. The performance of electric pump must meet the requirements marked on the name plate 5. The power of electric pump must conform to values marked on the name plate. 6. Maximum submersible depth: 5m. Installation and Warnings: l.Before installation, check whether the electric pump exist any damage during transit or storage e.g.

  • Page 4: Maintenance

    according to distance (thicker than the pump cable). 8.While in operation, washing, swimming, bathing are forbidden nearby the working area to avoid accidents. 9.1n normal operation, the built-in overload protection device shall not activate. If it starts and stops frequently, cut off the power to find problem. Only after resolving the trouble can it be used again I0.For electric pump which set a limit to head, it is used within the range of head to avoid damage due to overload.
  • Page 5 and impeller,etc. Replacements should be arranged if damages exist. (Notice: Don' disassemble model QY series electric pump motor soon till temperature of motor casing turn normal. Before dismantlement, screw off the oil-filled screw slowly to avoid of pump explosion). Pressure test: Pressure test shall be taken after the repair or replacement. The pressure shall remain 0.2MPa during the test period and it should last 3min till no leakage or sweat occurrence .

  • Page 6: Troubleshooting

    Troubleshooting Trouble Main reasons Solution 1. Adjust voltage to 0.9-1.1 times 1. Power voltage too low. of the rated value. Electric 2. Pump phase lost. 2 . Check the switch, cable and pump starts 3. Impeller clogged. terminal 4. Big loss of cable voltage. 3.

This manual is also suitable for:

Qdx seriesQdx-tf seriesQx-t seriesQ seriesQd seriesQy series ... Show all
