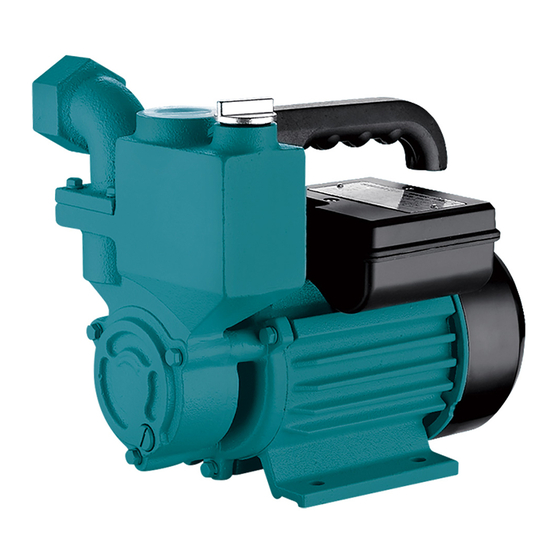

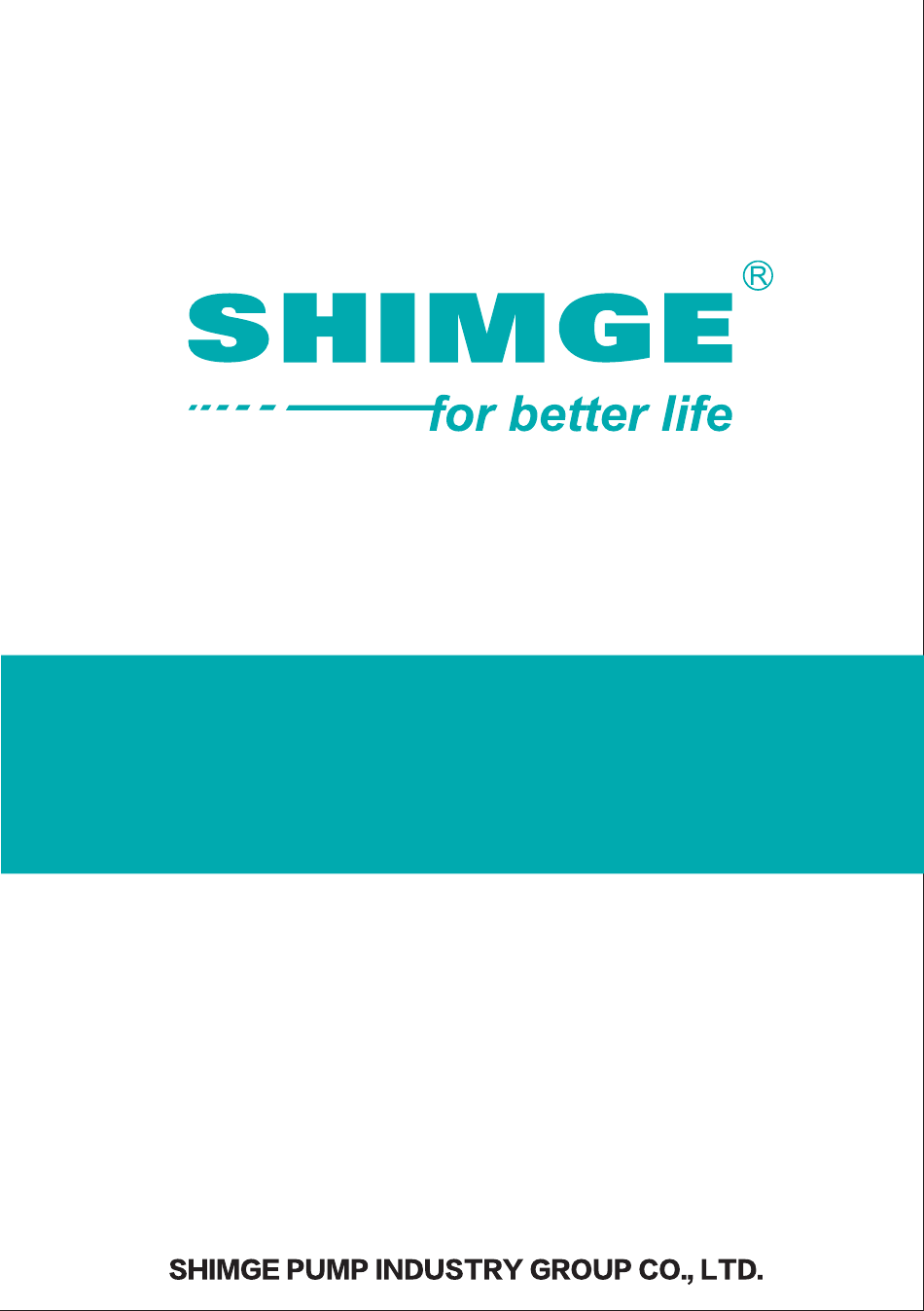

- Page 1 SERVICE MANUAL Vortex Type Micro Clean Water Pump Models: SQm、QB、WZB、AWZB、PW...
- Page 2 Contents I. Safety Precautions II. Product Introduction III. Operating Conditions IV. Structure Diagram V. Pump Wiring Diagram VI. Installation Diagram VII. Instructions for Installation VIII. Maintenance IX. Troubleshooting...
- Page 3 Expresses Forbidding Act; Expresses the Grounding Mark for electric shock prevention. Statement: SHIMGE shall not be liable for follow loss or damage suffered as a result of failure to comply with the content of the manual： ·Pump failure resulting from disassembly or maintenance conducted by non-professional people without certificate, or using the pump beyond its operating conditions;...
- Page 4 1. When the electric pump is working, if you want to adjust the pump location or there is any other action to touch the pump, you must cut off the power first. It is strictly forbidden to wash, swim and herd, etc.
- Page 5 WZB, AWZB and PW have the self- priming function while QB and SQm do not. PW and AWZB are equipped with the auto control system, which can realize the water discharge once you open the outlet valve and the electric pump works and once you close the outlet valve, the electric pump will automatically stop working without need to cut off the power artificially.
- Page 6 IV. Exploded View QB Series 1 Stator 11 Cable 2 Connector 12 Cable Sheath 3 O-ring 13 Terminal Box 4 Mechanical Seal 14 Capacitor 5 Circlip 15 Cable Pressing Plate 6 Impeller 16 Stator Housing 7 Vent Cock 17 Bearing 8 Pump Body 18 Rotor 9 Fan Housing...
- Page 7 PW Series 1 Vent Cock 11 O- ring Rubber Washer Cable Gland 2 Pressure Tank 12 Mechanical Seal 20 Check Valve 30 Fan Housing 3 Adapter 13 Impeller 21 Spring 31 Fan 4 Pressure Switch 14 Pump Body 22 Rubber Washer 32 Stator Housing 5 Combination Screws 15 Slotted Cheese...
- Page 8 PW-Z Series 1 Flow Switch 11 O-ring 19 Set Screw 29 Base 2 Vent Cock 12 Mechanical Seal 20 Capacitor 30 Hexagon Head 3 Pressure Tank 13 Impeller 21 Control Box Bolts 4 Pressure Switch 14 Pump Body 22 Rubber Washer 5 Combination Screws 15 Slotted Cheese 23 Control Box Cover...
- Page 9 14 13 PW-ZL Series 1 Flow Switch 11 Metal Hose Filter 29 Fan Housing 2 Vent Cock 12 Connector 20 Inlet 30 Foot 3 Set Screw 13 Mechanical Seal 21 Capacitor 31 Hexagon Head 4 Pressure Switch 14 O-ring 22 Control Box Bolts 32 Pressure Tank 5 Water Deflector...
- Page 10 24 25 AWZB Series 1 Inlet 11 Pressure Switch 21 Terminal Box 2 Vent Cock 12 Pressure Tank 22 Foot 3 Check Valve 13 Water Deflector 23 Cable Lock 4 Pump Body 14 Connector 24 Wavy Spring 5 Drain Screw 15 Bearing 25 Cable 6 Pump Cover...
- Page 11 AWZB-H1 Series 1 Flow Switch 21 Wavy Spring 11 Connector 2 Water Inlet 12 Water Deflector 22 Rear Cover 3 Rubber Gasket 13 Impeller 23 Fan 4 Filter 24 Fan Housing 14 Mechanical Seal 5 Pump Body 15 O-ring 25 Capacitor 6 Hexagon Head Bolts 16 Rotor 26 Cable Sheath...
- Page 12 WZB Series 1 Fan housing 12 Cross Recessed Small 23 Mechanical Seal 2 Countersunk Flat Pan Head Screw 24 Impeller Head Screws 13 Capacitor 25 O-ring 3 Fan 14 Cable Sheath 26 Vent Cock 4 Hexagon Head Bolts 15 Cable 27 Check Valve 5 Rear Cover 16 Countersunk Flat...
- Page 13 Pressure Winding Winding Switch Secondary Main Motor Winding Winding Common Line (Black/Red) 1AWZB-H1 、PW-Z S eries eries AWZB、PW S Common Line(Black/Red) Subline(Yellow/Green) Capacitor Main Line(White) Secondary Main Motor Winding Winding eries QB、SQm、WZB S VI. Installation Schematic Diagram Tap Water Pressurization...
- Page 14 Filter Suction Head Lifting Water from Well Roof Water Tower Indirect Pressure Water Supply...
- Page 15 VII. Installation of the Electric Pump and the Precautions Before installation and use, you should check 1. Use steel tube or rubber tube (not too soft for whether the electric pump is damaged during fear of being sucked flat) to connect the foot the transportation and storage, such as whether valve and the inlet of the electric pump, and the the cable, outgoing line and the plug (if...
- Page 16 1. When first use it, please be sure to fill the pump For areas with high sand content, it body with water and then plug in the power to is advised to install a Y-shaped filter avoid dry operation without water. at the inlet pipe to prevent the sand 2.
- Page 17 If the user wants to change For three-phase electric pump that needs to be the electric pump to auto equipped with an overload protector, you control, he just needs to should select the matching overload protector i n s t a l l a n a p p r o p r i a t e according to the current or power.
- Page 18 When the pump is used for pumping hot or hard After installation and use, you shall water, or it is used in aging pipelines, you need to remove and dispose the packing regularly clean the foreign matters on the check materials according to the local law.
- Page 19 1.When the environment temperature is Air tight test: After disassembly or replacement of lower than 4℃, you should empty the water various sealing units, the pressure-bearing parts in the pump body for fear of freezing and and complete machine shall be conducted a water breaking the pump body.
- Page 20 Fault Cause Remedy Insufficient flow or 1. Wrong pump selection 1. Select correct pump 2. Overlong inlet pipeline, over- 2. Shorten the pipeline, use it within the pressure high head or serious bending of head application range or make pipeline the pipeline bend gently 3.
- Page 21 Troubleshooting AWZB and PW Auto Self-priming Pump Fault Cause Remedy The electric pump 1. The water level is lower than 1. Reduce the installation height of the cannot be halted the pump suction pump 2. The pressure of the water 2.
- Page 22 Troubleshooting of PW-Z、AWZB-H1 Series Electric Pump Pressure Switch Flow Switch Plug(2-wire) Plug(3-wire) Flow Switch Pressure Switch Switches Wiring Fault Cause Remedy The electric pump 1. The water discharge of the faucet is little 1. Properly turn up the 2. Fault of the flow switch (Check method: Unplug the is started faucet plug of the flow switch on the controller and make the...
