Figure 2-7 Removing The Power Breaker Box - Sun Microsystems SPARCcenter 2000E Installation Manual

2
Captive screws (2 places)
Screws (2 places, hidden)
2-8
Note – J3 is located on the top of the AC distribution unit, J2 is on the backside.
2. Remove the three Phillips screws and two #6-32 Phillips screws.
3. Carefully remove the power distribution unit from the system chassis.
Remove the Breaker Box
1. Remove the power breaker box. See Figure 2-7.
a. Unplug the power cord from the breaker box going to the top power
supply.
b. Remove two screws from holes in the bottom lip of the breaker box
which secure it to the bottom power supply. Set the screws aside.
c. Unscrew two captive screws at the top of the breaker box securing it to
the top power supply.
d. Remove the box and set aside.

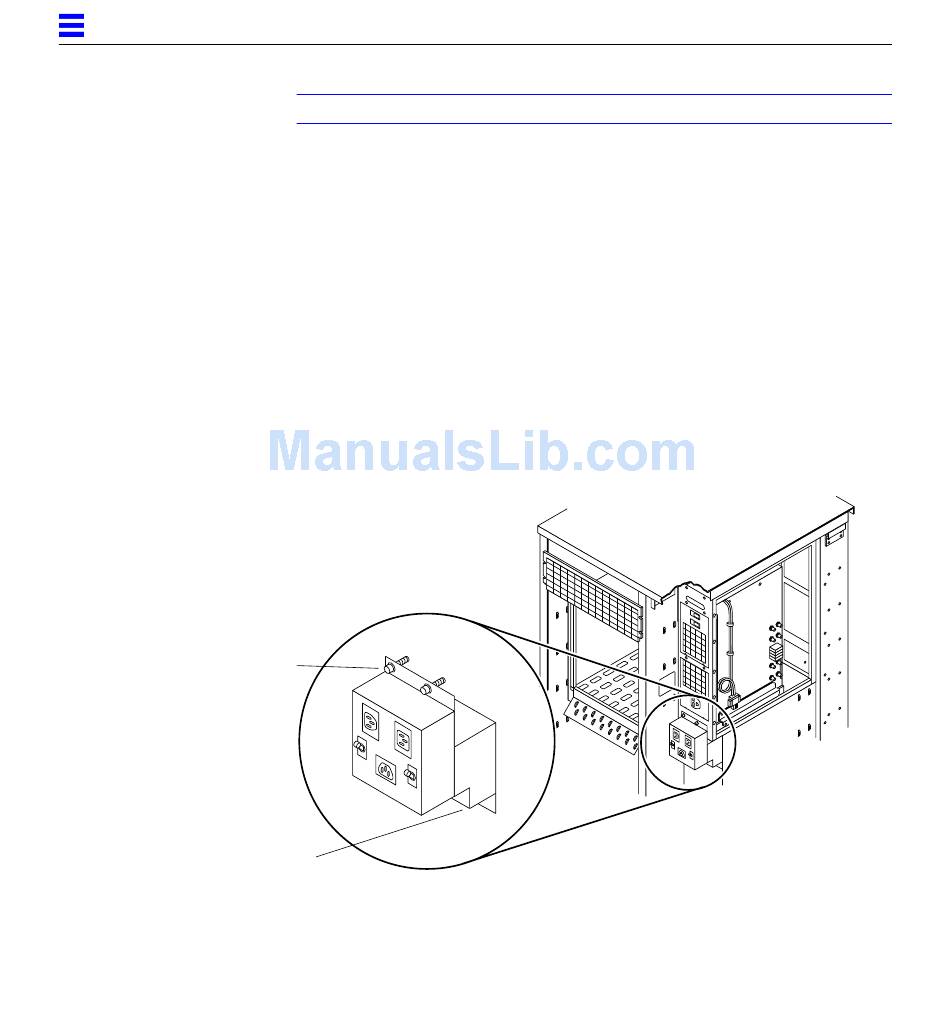

Figure 2-7 Removing the Power Breaker Box
SPARCserver 2000E Power Supply Installation Manual—April 1995
