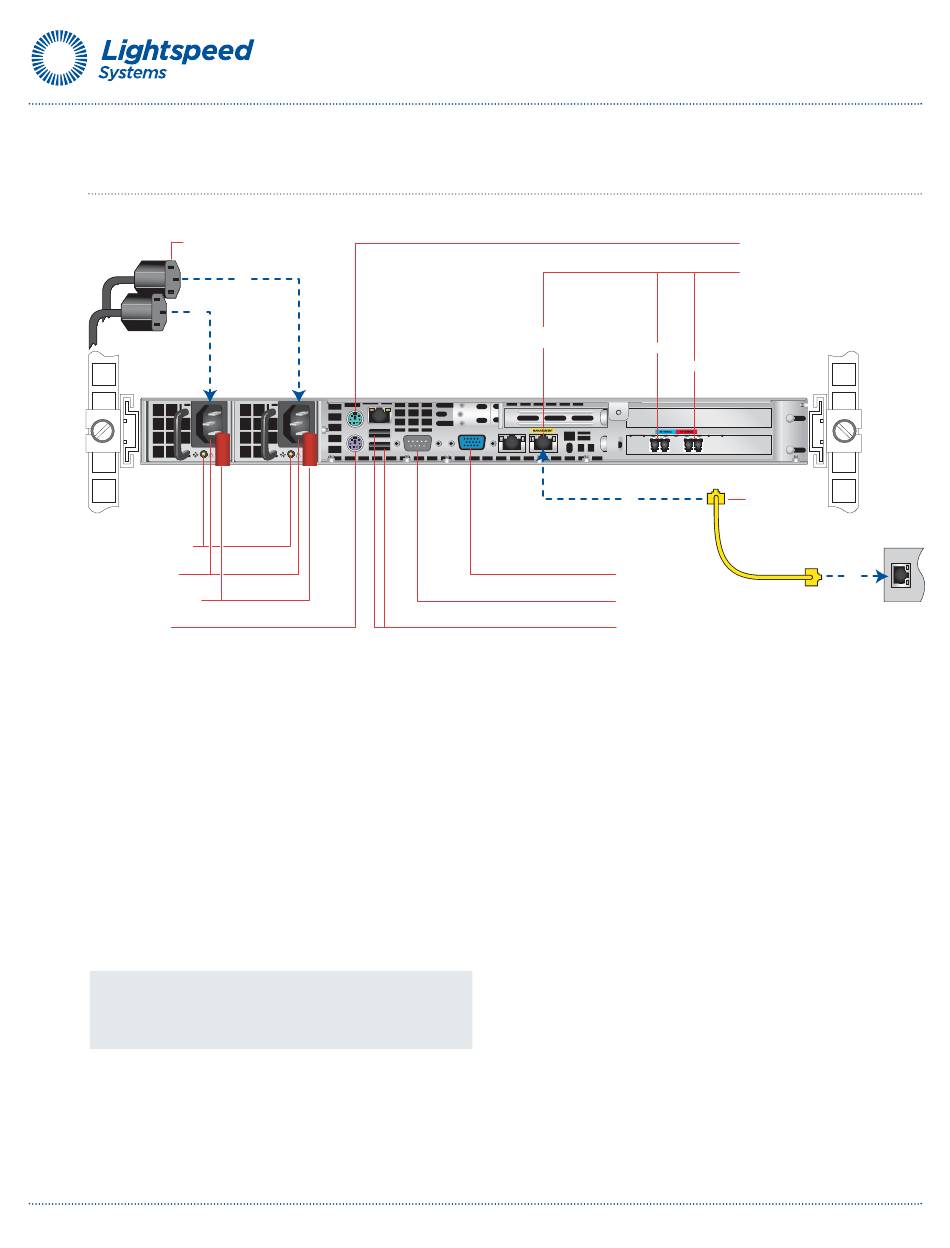

7E. Lightspeed Rocket Web Access Manager-10Gb Rear Panel Connections
Power Cords
4
Power Good LEDs
AC Power Inlets
Power Supply Locks
Keyboard Port
Step 1 Connect one end of the yellow Ethernet cable into the Ethernet port labeled MANAGEMENT.
Step 2 Connect the other end of the yellow Ethernet cable into an available switch port on your
Local Area Network. This port will require Internet access.
It is very important that ONLY the Management NIC is connected at this time. DO NOT connect
the External or Internal NIC cards until instructed to do so by a Lightspeed Support Engineer.
Step 3 Please review the latest Lightspeed Rocket Web Access Manager Product Manual on the
Lightspeed Wiki at (http://wiki.lightspeedsystems.com/LSRWAM).
Step 4 Connect the power cords.
Step 5 Proceed to Front Panel Operation on page 16.
NOTE: The Power Good LED on the rear panel will illuminate
green during normal operation. During standby or when it is
powered down, the Power Good LED will be yellow.
Lightspeed Hardware Installation Guide
4
Management
Port
Internal
External
1
VGA Port
COM Port
USB Ports
Mouse Port
Network Interface
Connectors
Ethernet
Cable
Local
Area
Network
2
