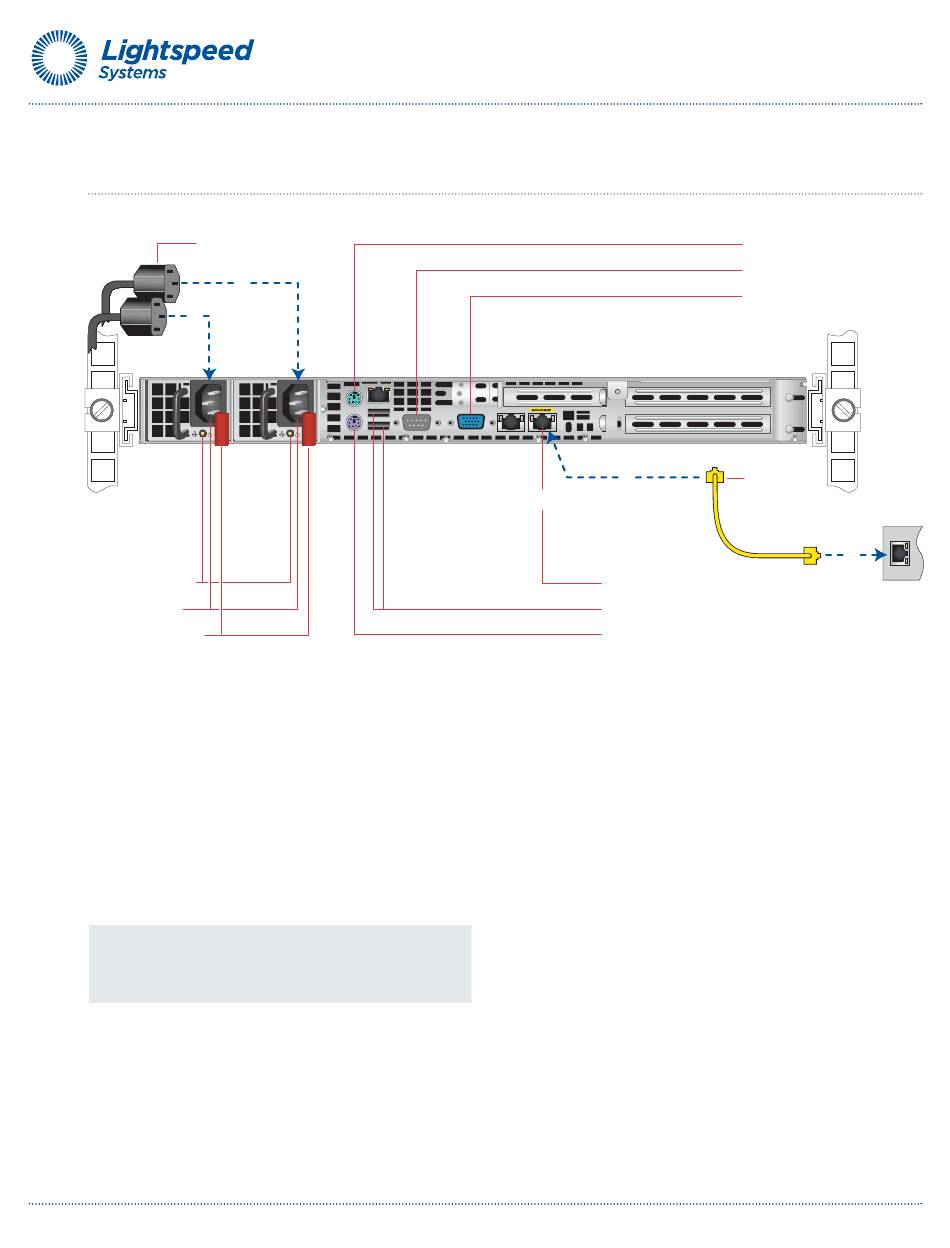

7A. Lightspeed Rocket Email Manager-R Rear Panel Connections
Power Cords
4
Power Good LEDs
AC Power Inlets
Power Supply Locks
Step 1
Connect one end of the yellow Ethernet cable into the Ethernet port labeled MANAGEMENT.
Step 2
Connect the other end of the yellow Ethernet cable into an available switch port on your
Local Area Network. This port will require Internet access.
Step 3
Please review the latest Lightspeed Rocket Email Manager Product Manual on the Lightspeed Wiki
at (http://wiki.lightspeedsystems.com/LSREM).
Step 4
Connect the power cords.
Step 5
Proceed to Front Panel Operation on page 16.
NOTE:
The Power Good LED on the rear panel will illuminate
green during normal operation. During standby or when it is
powered down, the Power Good LED will be yellow.
Lightspeed Hardware Installation Guide
4
1
Management
Port
Network Interface Connectors
USB Ports
Keyboard Port
Mouse Port
COM Port
VGA Port
Ethernet
Local
Cable
Area
Network
2
10
