Summary of Contents for Bentel Security Omnia

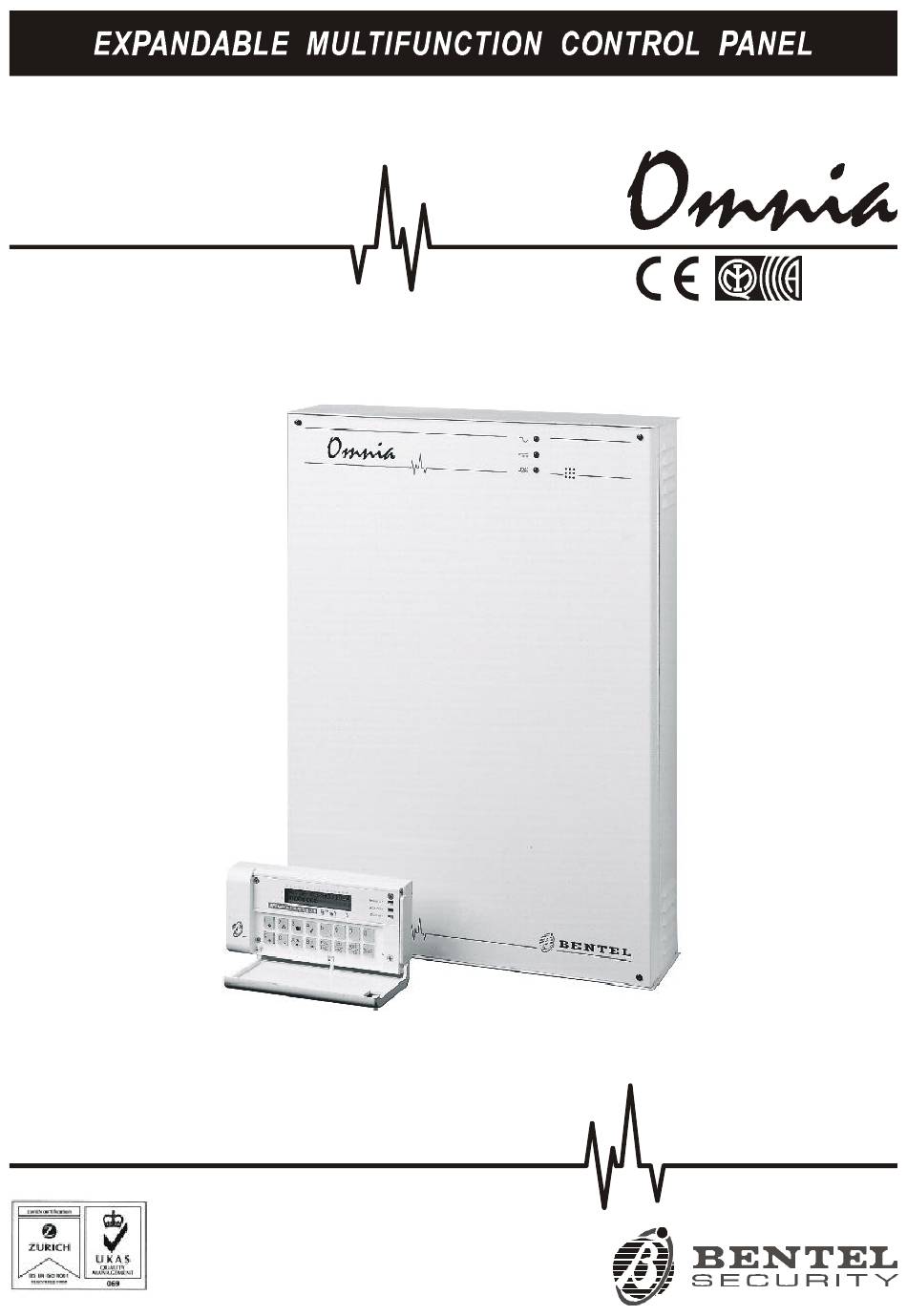

- Page 1 Omnia/S DAT n. U0805 USER MANUAL ® BS EN ISO 9001...
- Page 2 This Control panel can be programmed through the OMNIA 3.0 software or higher. Where features and programming procedures apply to Omnia and Omnia/S the product will be referred to as the Panel. Where features and programming procedures apply to one of the appliances in particular the product name will be specified.
-
Page 3: Table Of Contents
CONTENTS KEYPAD OPTIONS Type A arming (Amber) ....16 Type B arming (green) ....16 LEDs . - Page 4 Figure 1 OmniaTAST-R (a) and MIA-S (b) Omnia Expandable multifunction control panel...
-
Page 5: Keypad Options
CONTROLLING THE SYSTEM VIA KEYPAD All basic security system options, and the Advanced options provided by this Panel can be programmed and con- trolled from the keypads. This Control panel supports up to 8 OmniaTAST-R keypads (figure 1a) or MIA-S keypads (figura 1b). The instructions in this manual refer to OmniaTAST-R and MIA-S keypads (if not otherwise stated). -
Page 6: Leds
False Key/Card at Reader BPI bus device Trouble The status of the Teleservice and Answer machine options will be shown to the right of the trouble warning: ----Q directly above an icon means the corresponding option is enabled. Omnia Expandable multifunction control panel... -
Page 7: Basic Options
Icons and meanings ICON MEANING Teleservice enabled Answering machine option enabled The last icon indicates the telephone line status. above the icon means the Panel has engaged the telephone line. ICON MEANING Telephone line engaged Basic options Five basic options are available from standby status. Enter a User code PIN (4 to 6 digits) then press the relevant key. -
Page 8: View Trouble
: Mains failure---- the Panel will be powered by the battery Ø Low battery : battery needs recharging Ø Warn.pow.troub. : battery trouble or the battery protection fuse has blown Ø Warn.pow.station: remote power station trouble (mains failure, fuses, battery down or not working properly) Omnia Expandable multifunction control panel... -
Page 9: User Menu Options
User menu options <PIN> + Enter a valid User code PIN then press to access the USER MENU. A Welcome message will be shown, and it will be possible to select the various User menu options. The Welcome message can be disabled by the installer. to scroll the Options. -
Page 10: View Buffer
If the zone is double-balanced----the status may be: Ø Stdby (Standby) Ø Alarm Ø Short Ø Tamper Press to step back to the USER MENU. Press to view open or bypassed status zones of armed keypad partitions. Omnia Expandable multifunction control panel... -
Page 11: Arm / Disarm Partitions
n Arm / Disarm partitions Select this option to arm / disarm partitions. The current status of the zone will be shown for example: North Perimeter ↑↓ Disarmed to scroll the enabled partitions. Press to arm /disarm the selected partition. Press to confirm the current status. -
Page 12: Enable / Disable Teleservice [En./Dis.teleser.]
Press to Activate / Deactivate the selected output. Only outputs programmed as Reserved for manual control can be used for this purpose. A similar option is available via telephone (refer to TELEPHONE OPTIONS). Omnia Expandable multifunction control panel... -
Page 13: Code Programming
n Code programming This option is available to Master codes only. The Code hierarchy (Masters and Slaves) must be programmed by the Installer. Master codes can select / deselect the Active status of their Slave codes, and change their PINs. Active User codes An Active User code can operate its enabled partitions and options only. - Page 14 Key Readers: a) PROXI Proximity Reader; b) PROXI-CARD; c) ECLIPSE Flush mounting,Contactless Reader; d) SAT Contactless Key; e) BP13 Flush mounting Reader with Contacts; f) BP13W Wall mounting Reader with Con- tacts; DKC key with contacts. Omnia Expandable multifunction control panel...
-
Page 15: Key Options
----type A arming mode (Amber LED) ----type B arming mode the (Green LED) Keys/Cards The Omnia system supports 250 Keys/Cards (see Figure 2), and an unlimited number of clones keys/cards (clones of key/card 250). Each key/card can be programmed with specific attributes, and can be enabled on selected partitions, as per Cus- tomer requirements. -
Page 16: Global Arming
PROXI Reader. If the Enable Panel-Alarm Stop with valid Electronic Key option is active, the Control panel alarms will also be interrupted. If the Key is programmed to stop calls----the ongoing call will be interrupted and the call queue will be cleared. Omnia Expandable multifunction control panel... -
Page 17: Telephone Options
TELEPHONE OPTIONS The optional OmniaVOX board will allow the Panel to manage incoming and outgoing telephone calls (DTMF only). 7 User codes are available for Panel Control via telephone. The installer can enable / disable User code options and partitions----as per customer requirements. There are two ways of accessing Panel Control via telephone: ---- Dialler Mode Access (after receiving a Dialler call);... -
Page 18: Function Keys
The panel will enable the Output then step back to Enter data status and emit a ready beep. This option applies to outputs that are Reserved for manual control. If the User code is not enabled for this option, or a non-reserved output is requested the Panel will emit an error beep. Omnia Expandable multifunction control panel... -
Page 19: Arm Partition (Area)
n Arm Partition (Area) then press the Partition (Area) identifier number key (refer to the MEMO Chart). Press The panel will arm the Partition (Area) then step back to Enter data status and emit a ready beep. n Global arming Press to arm all the partitions of the User code in question. -
Page 20: Memo Chart
User with a copy. Cut along the dotted line and fold the chart in two (parts A and B back to back) then seal it in a plastic cover. Omnia Expandable multifunction control panel... -
Page 21: User Notes
USER NOTES USER NOTES... - Page 22 Omnia Expandable multifunction control panel...
-
Page 23: Quick Guide
Quick Guide Use the keys shown in the following table to operate the basic options. Global arming: User code Ý Type A arming: User code Ý Type B arming: User code Ý Global disarming: User code Ý Alarm reset: User code Ý Ý... - Page 24 BENTEL SECURITY s.r.l. Via Florida, 3 63013 GROTTAMMARE (AP) - ITALY Tel.: +39 0735 735200 Fax: +39 0735 634355 e-mail: bentel@bentelsecurity.com http://www.bentelsecurity.com ISTOMNIAUSO-UK 4.0 090702 V4.2...
