How to use the SanDisk ImageMate Dual Reader

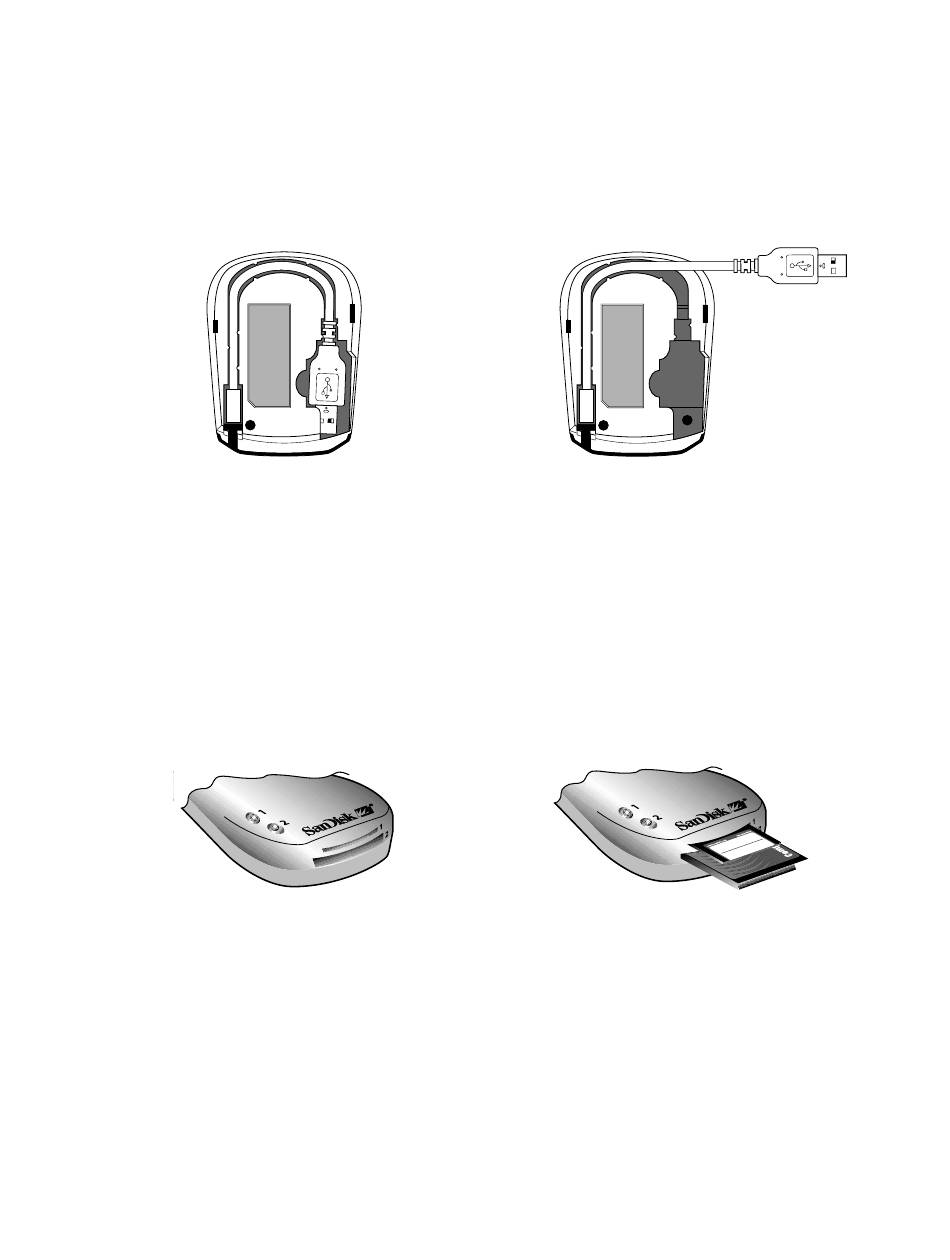

• ImageMate USB Cable Connection. FIGURE 1.1
1) Rotating USB cable
Release the ImageMate USB cable from the bottom of the device.
Plug the USB cable into an available USB port on the computer.
2) 1 meter extension cable (included in package, not shown)
• Inserting the memory card into the ImageMate. FIGURE 1.2
1) SLOT 2 > is always CompactFlash (Top label facing up)
2) SDDR-73 > SLOT 1, Secure Digital/MultiMediaCard (Gold contacts facing down)
3) SDDR-75 > SLOT 1, SmartMedia (Gold plate/contact facing down)
4) SDDR-77 > SLOT 1, Memory Stick (Gold contacts facing down)
