1.4

I/O Interfaces

The ARTM-HD installs into the rear of the ATCA enclosure, opposite an ATCA blade
server designed for compatibility with the AdvancedRTM specification. The
ARTM-HD connects to the blade server's Zone 3 rear connectors through the
midplane. The ARTM-HD carries one serial port, one 10/100/1000 MBASE-T
management port (RJ-45), and two external SAS ports to its faceplate (
FIGURE 1-2
the midplane in a typical ATCA system.

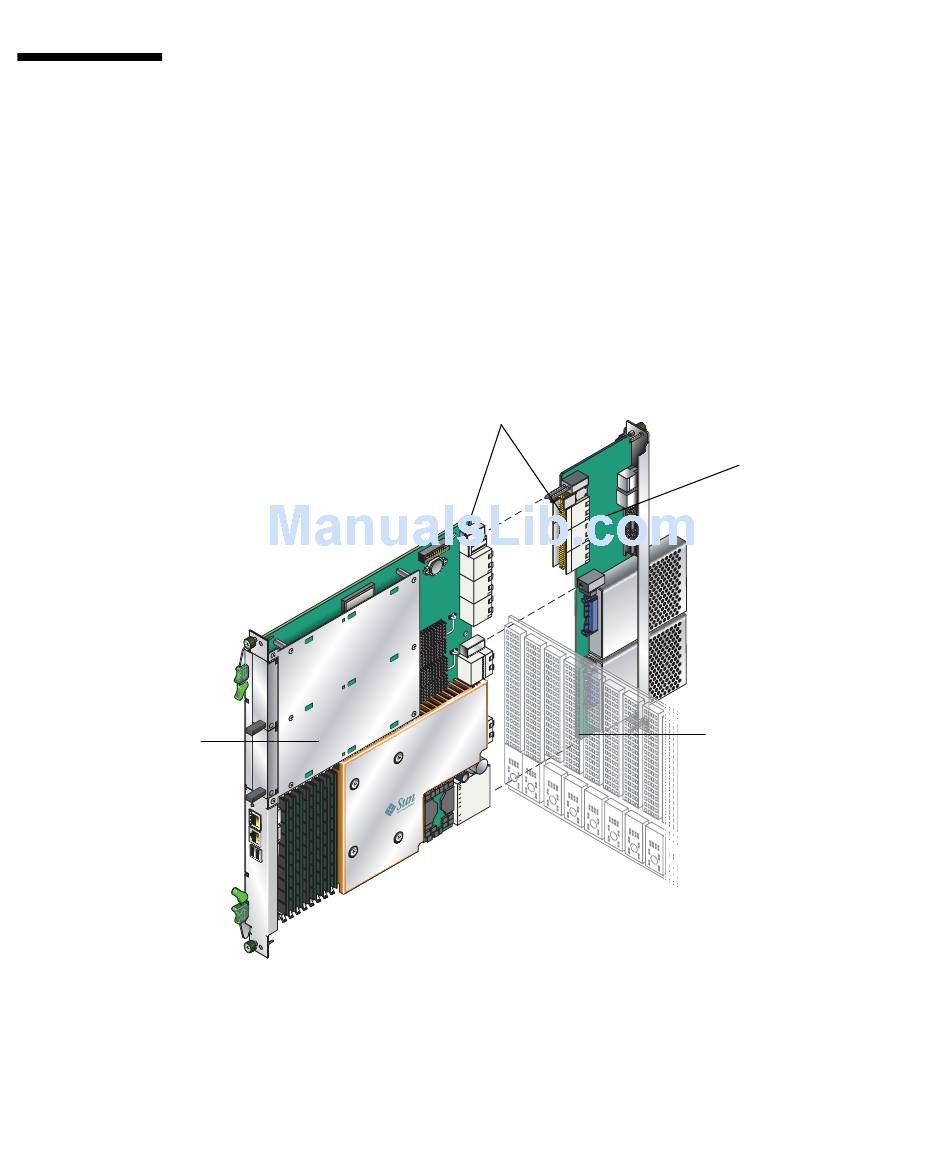

FIGURE 1-2
Netra ATCA
blade server
1-6 Netra CP32x0 SAS Storage Advanced Rear Transition Module HD User's Guide • January 2009
shows the physical relationship between the blade server, ARTM-HD, and
Relationship of the Blade Server, ATCA Midplane, and ARTM-HD
Zone 3 connectors
).
FIGURE 1-1
Netra CP32x0 rear
transition module
Midplane
