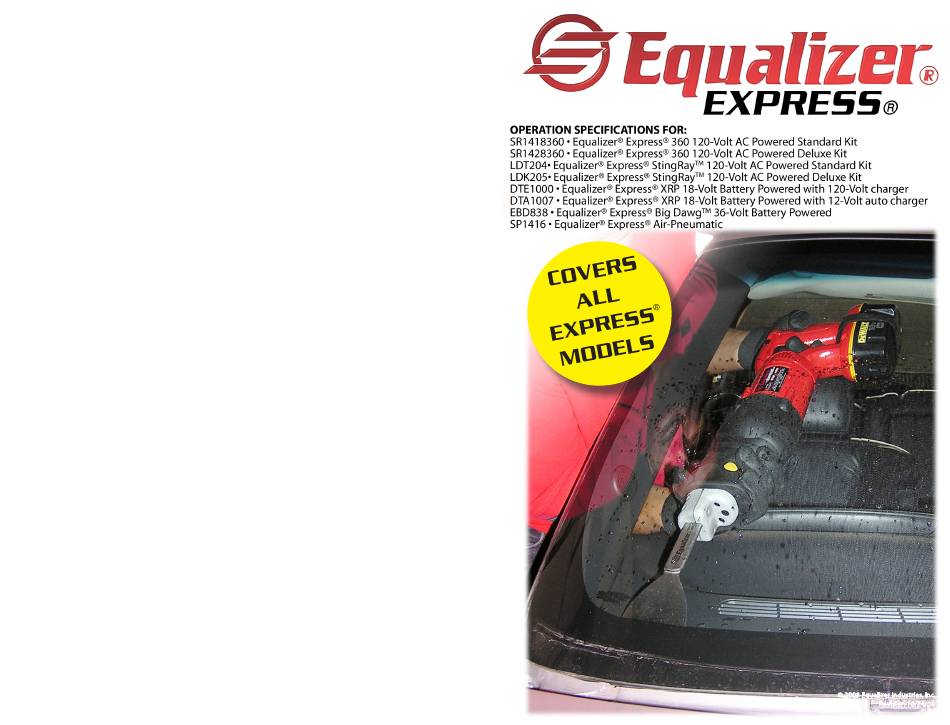

- Page 1 © 2008 Equalizer Industries, Inc. Revision 10/24/08...
- Page 2 All content including photographic or illustrated images and text descriptions that are displayed within this guide are the sole property of Equalizer Industries, Inc. KEEP THIS FOR YOUR RECORDS Any reproduction is prohibited without the express written consent of Equalizer Industries, Inc.
- Page 3 Keep your blades sharp! This is crucial for effective cutting action and tool inside and many encapsulated glasses have a longevity. A dull blade will destroy the drive mechanism in your Equalizer ® very dense encapsulation material that make Express ®...
- Page 4 Damage can also be caused by not using a cutting lubricant such as Equalizer® Cutting Lubricant (Part # ECL784) or water, and by hitting metal clips, rivets, and the pinchweld. Damaged blades can cause excess vibration making your tool harder to control.
- Page 5 The blade shaft is enclosed in a sheath which protects inte- rior car parts. Most of the cutting is accomplished on the end of the blade, therefore the operator utilizes upper torso muscles, making the tool easy to operate and ergonomically friendly. The Equalizer ® Express ®...
- Page 6 Reverse and cut from the top center of the glass toward the other A-pillar. Relax and let the tool do the work. One of the great features of the Equalizer ® Express ® 360 is the ability to rotate the handle so you can get into confined or awkward spaces.
- Page 7 ® Express ® 360 120-Volt tool. 2. Do not activate Equalizer ® tools until they are in the cutting position. Disengage the tool and let it stop before taking it out of the urethane. 3. The blade is sharp and can cut even when the tool is not running.
- Page 8 Tool Description The Equalizer Express StingRay has an ergonomic design for ease of use. The ® ® ™ plunger floats on a series of ball bearings and the blade is driven by a floating pin bearing system. This allows more of the power of the StingRay to be applied directly ™...
- Page 9 A-pillar. Relax and let the tool do the work. Between each removal Blade Sharpening A sharp blade is crucial for effective cutting action and tool longevity. A dull blade will destroy the drive mechanism in your Equalizer Express Stingray™ 120-Volt. ® ®...
-
Page 10: Important Information
The Equalizer ® Express ® 18-Volt cordless tool is a multipurpose auto glass removal tool, designed primarily for inside use on bonded auto glass parts. It may be used outside on A-pillars for windshields of some vehicle models, and on all broken tempered parts. The blade shaft is enclosed in a sheath which protects interior car parts. - Page 11 Loosen screws with from top to bottom. 3/16” hex wrench. After both sides are cut, insert two PUMPER ™ (Equalizer ® LB779) to increase the cutting angle, Sheath stops thereby improving cutting ease. For an even greater cutting angle, slightly deflate the PUMPER ™...
- Page 12 Depending on cutting conditions and operator skill, a fully charged battery should remove about three windshields. 2. Wait 20 minutes then repeat (tool will only run a short time the second time). The batteries are the most sensitive part of the Equalizer ® Express ®...
- Page 13 How to Install 18-Volt How to Install 18-Volt Battery with Anti-Vibration Pads Battery with Anti-Vibration Pads Step 1: Insert Battery as shown Step 2: Lock Right Side in as shown...
- Page 14 ® Express ® XRP 18-Volt Tool. 2. Do not activate Equalizer tools until they are in the cutting position. ® Disengage the tool and let it stop before taking it out of the urethane. 3. The blade is sharp and can cut even when the tool is not running.
- Page 15 The blade shaft is enclosed in a sheath which protects interior car parts. Most of the cutting is accomplished on the end of the blade, therefore the operator utilizes upper torso muscles, making the tool easy to operate and ergonomically friendly. The Equalizer ® Express ®...
- Page 16 Loosen screws with from top to bottom. 3/16” hex wrench. After both sides are cut, insert two PUMPER ™ (Equalizer ® LB779) to increase the cutting angle, Sheath stops thereby improving cutting ease. For an even greater cutting angle, slightly deflate the PUMPER ™...
- Page 17 General Safety Information Important Instructions For Your Equalizer ® Express 36-Volt Battery & Charger ® 1. Always wear safety glasses and safety gloves when using the Equalizer Express XRP 18-Volt Tool. ® ® The DC9000 charger is designed to charge the EBD838 battery in 2.
- Page 18 4. The battery pack should be recharged when it fails to produce sufficient power should be properly discarded or returned to Equalizer if you feel it is still on jobs which were easily done previously. DO NOT continue to use under these under warranty.
- Page 19 How to Install Battery Clip for Equalizer Big Dawg ® ™ Step 1: Remove screws to release handle. How to Install Battery Clip for Equalizer ® Big Dawg ™ Step 2: Place clip on handle.
- Page 20 How to Install Battery Clip for Equalizer ® Big Dawg ™ How to Install Battery Clip for Equalizer Big Dawg ® ™ Step 3: Slide the clip all the way down on the handle. Step 5: Finished Big Dawg with battery clip.
- Page 21 Most of the cutting is accomplished on the end of the blade, therefore the operator utilizes upper torso muscles, making the tool easy to operate and ergo- nomically friendly. The Equalizer ® Express ® Air’s specific blade stroke length and dynamic two-way cutting power slices through the toughest urthane adhesive with ease.
- Page 22 Pumper LB779 ™ Figure 1 Figure 2 Pumper ™ can be folded in Use Equalizer® Cutting Lubricant (ECL784). Use one on each side. half to increase distance of outward pressure. Sheath stops ES1406 UNDERSIDE view of Loosen screws with Remove old sheath.
- Page 23 ® Express ® Air tool. 2. Do not activate Equalizer ® tools until they are in the cutting position. Disengage the tool and let it stop before taking it out of the urethane. 3. The blade is sharp and can cut even when the tool is not running.
- Page 24 EBD838 SR1418360 & SR1428360 Big Dawg Equalizer® Express® 360 LDT204 & LDK205 Equalizer® Express® StingRay SP1416 Equalizer® Express® Air DTE1000 & DTA1007 Equalizer® Express® XRP...
- Page 30 NOTES...
