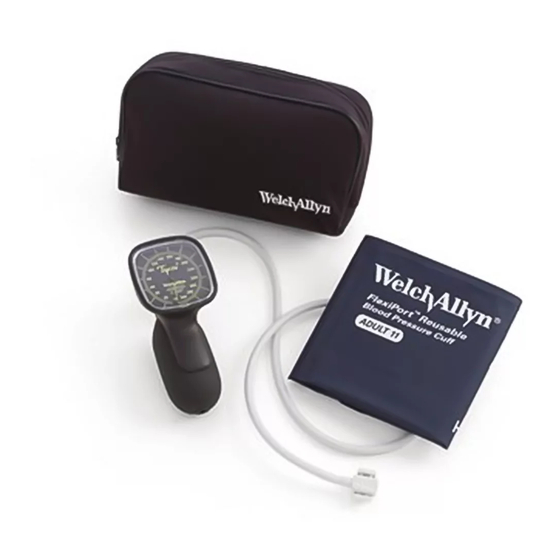

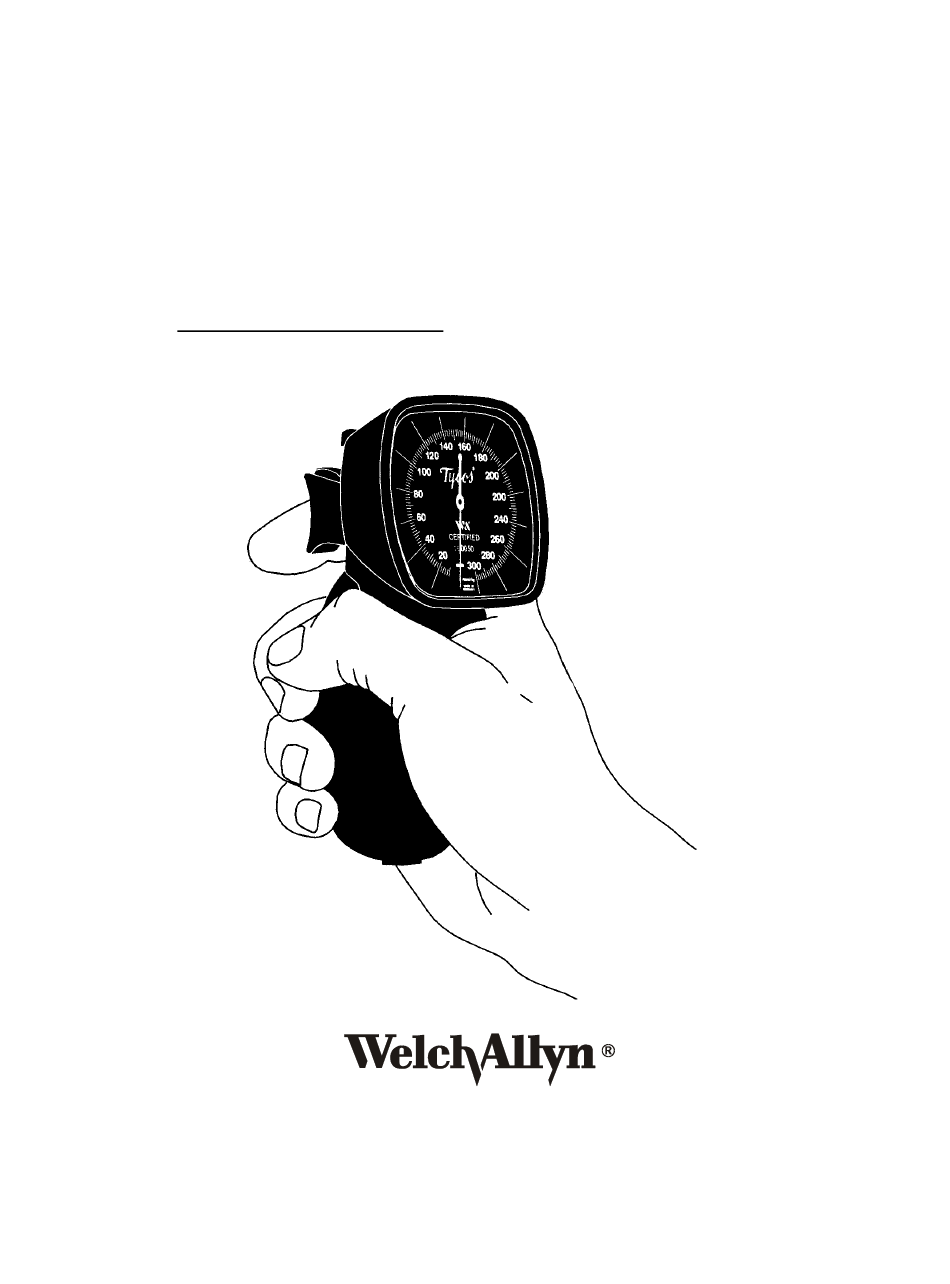

- Page 1 Tycos Hand Aneroid Sphygmomanometer Instructions TR-2 Hand Aneroid...
-
Page 2: Operating Instructions
Operating Instructions CUFF HOSE CONNECTOR AIR RELEASE VALVE ZERO SPHYGMO- TRIGGER RANGE MANOMETER DIAGRAM A SECTION (PUMP) BULB (DUMP) FRONT SIDE 1. Seat the patient and make him/her as relaxed and comfortable as possible with the arm free of clothing. Rest arm on a steady, smooth surface at heart level and slightly flex the elbow. - Page 3 Aneroid Gauge Accuracy This instrument meets the AAMI accuracy standard for Aneroid Sphygmomanome- ters which is ± 3 mmHg. Aneroid Calibration Check - Welch Allyn, Inc., recommends checking the calibration of mechanical sphygmomanometers on an annual basis. Standard check accuracy pressures are 300, 250, 200, 150, 100, 60, and 0 mmHg. Pres- surize gauge above 300 mmHg and bleed gauge down no faster than 10 mmHg per second to the proper points to perform check.
- Page 4 Calibration Should the sphygmomanometer deviate from the ± 3 mmHg accuracy specification, Welch Allyn will recalibrate the sphygmomanometer at no charge for a period of 5 years from the date of purchase. Accessories The Welch Allyn One-Piece Blood Pressure Cuff is covered by a three year warranty against original defects in material, or workmanship.
