Summary of Contents for Sencor SCT 5051BMR

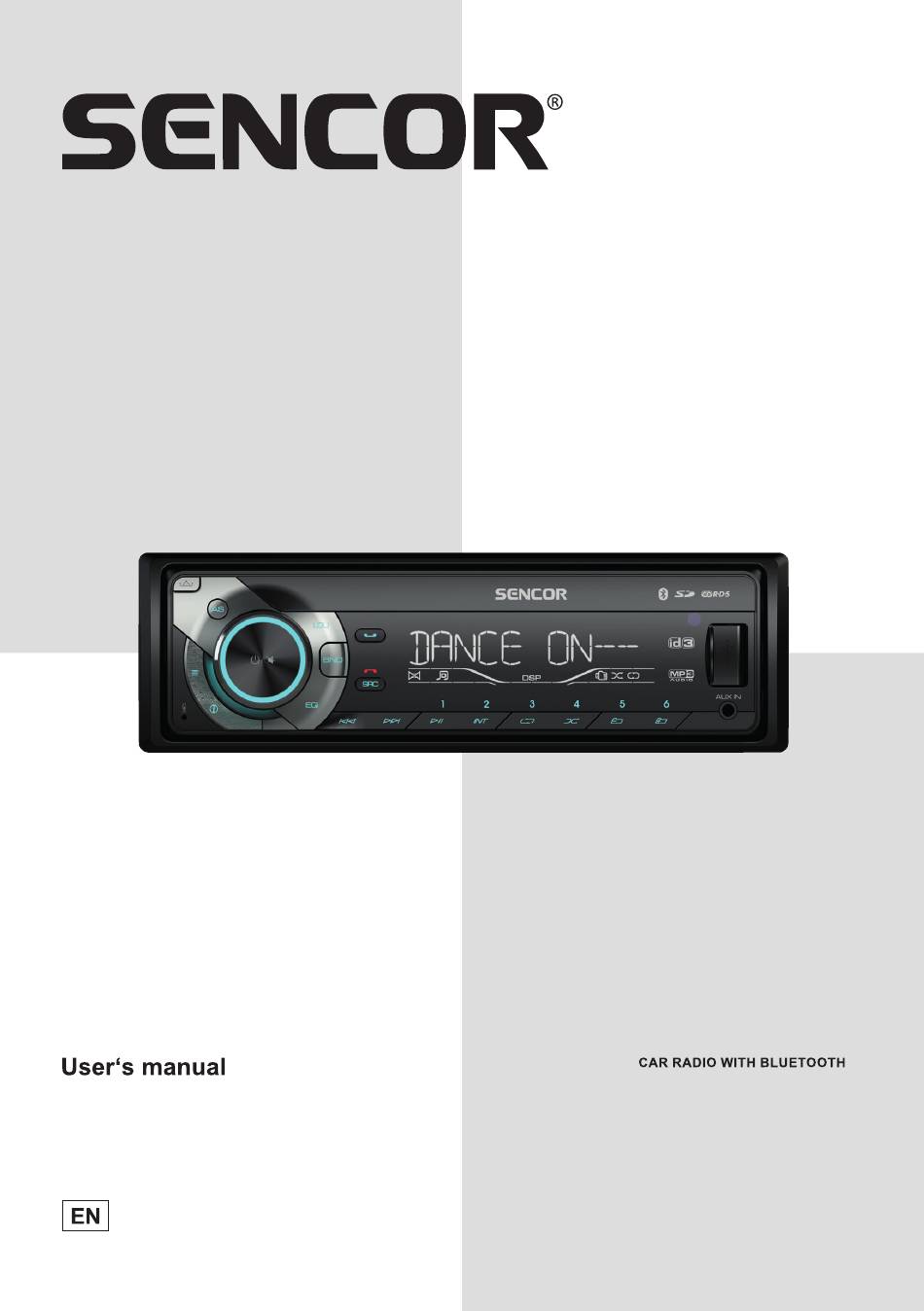

- Page 1 SCT 5051BMR...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Safety..........................1 2. Preparation ........................1 3. Included contents......................2 4. Installation of the device ....................3 5. Installation/Connection ....................4 6. Basic controls ........................6 7. Setting functions ......................7 Listening to the radio ....................... 8 Listening from USB devices..................... -
Page 3: Safety
- The pictures in this user's manual are examples used to clearly explain the way the controls are used. Therefore, the picture may diff er from the actual device. - If you come across any problems during the installation, please contact the Sencor vendor. -
Page 4: Included Contents
How to reset the device: Resetting * If the device is not working correctly, press the reset button. * When the reset button is pressed, the factory settings will be restored. 3. INCLUDED CONTENTS Check the device's package contents: Front panel Main unit (with an Front frame installation frame) -
Page 5: Installation Of The Device
4. INSTALLATION OF THE DEVICE Bend the respective Installation mounts for fi xed frame attachment of the installation frame in Front frame place. Control panel Before attaching, make sure that the frame orientation is correct (wider hooks on the Dashboard lower side) Screw (not included as an accessory) -
Page 6: Installation/Connection
(do not combine the front and rear output). • The installation and connection of this product required skill and experience. For reasons of safety, have this work performed by professionals. If you come across any problems during the installation, please contact a Sencor vendor. EN - 4... - Page 7 Wire connection: ISO connection Rear RCA output (left) (right) Antenna connector (not included) ISO connector connection table: Colour and function Yellow Battery (+) radio memory backup Connect to the control terminal of the power Blue amplifi er or the antenna power supply (max.
-
Page 8: Basic Controls
6. BASIC OPERATION Removing the Volume turn dial control panel Aux-in connector Display window (External input) Power/Mute USB port When you press or hold down the following button/buttons... Main unit General controls Selection of available sources (input AUX, Bluetooth, Tuner, USB) Turn it to increase or decrease the volume. -
Page 9: Setting Functions
7. SETTING FUNCTIONS 1. Press to open the [AUDIO MENU] mode; press and hold down to open the [MENU] mode. 2. Repeatedly press to select a settings item. 3. Turn the volume control dial to select a value or option. [AUDIO MENU] Item Optional settings... -
Page 10: Listening To The Radio
Item Optional settings Press button to open the automatic storage mode – six of the AUTO STORE strongest stations in the selected broadcast band will automatically be (Automatic storage) stored in the channel presets: FM1, FM2, FM3 (l-6), AM1, AM2. LOC ON/OFF (Local To receive more radio stations or only stations with a strong signal, you reception –... -
Page 11: Listening From Usb Devices
transmission and when. The device monitors the received data and reacts to it based on its settings. Important note The RDS function only works in countries or areas that have RDS broadcasting. Not all countries or areas have broadcasting with full RDS functionality. RDS may not work correctly if the signal is weak or in the event that the tuned stations are not broadcasting RDS data. -
Page 12: Listening From External Components
Playback from USB devices: 1. Slide the USB connector cover marked as the right. 2. Connect the USB device to the USB slot. The device will automatically start playback from the USB device. Playback from SD card: 1. Remove the front panel of the car radio. 2. -
Page 13: Using Bluetooth
8. USING BLUETOOTH Using Bluetooth hands-free: This device enables making and picking up telephone calls on telephones supporting Bluetooth. Likewise, you may listen to music from devices supporting Bluetooth. The supported functions also depend on you telephone. Getting Started Before using a Bluetooth device, it must be paired with the device. Pairing is required only once. -
Page 14: Product Information
Forwarding a call: During a call, you can forward the voice from the speaker to mobile telephones. During a call, press and hold down button lll to forward the voice from the speaker to a mobile telephone. A2DP Bluetooth audio streaming: If the connected Bluetooth device supports the advanced audio distribution profi... - Page 15 Changes to the text, design and technical specifi cations may occur without prior notice and we reserve the right to make these changes. Hereby, FAST ČR a.s. declares that the radio equipment type SCT 5051BMR is in compliance with Directive 2014/53/EU.
- Page 16 Cases when the claiming product cannot be indentified according to the presented documents (e.g. the serial number or the warranty seal has been damaged). Authorized service centers Visit www.sencor.eu for detailed information about authorized service centers. EN - 14...
