Summary of Contents for ElectrIQ eiq-49UHDT2SM

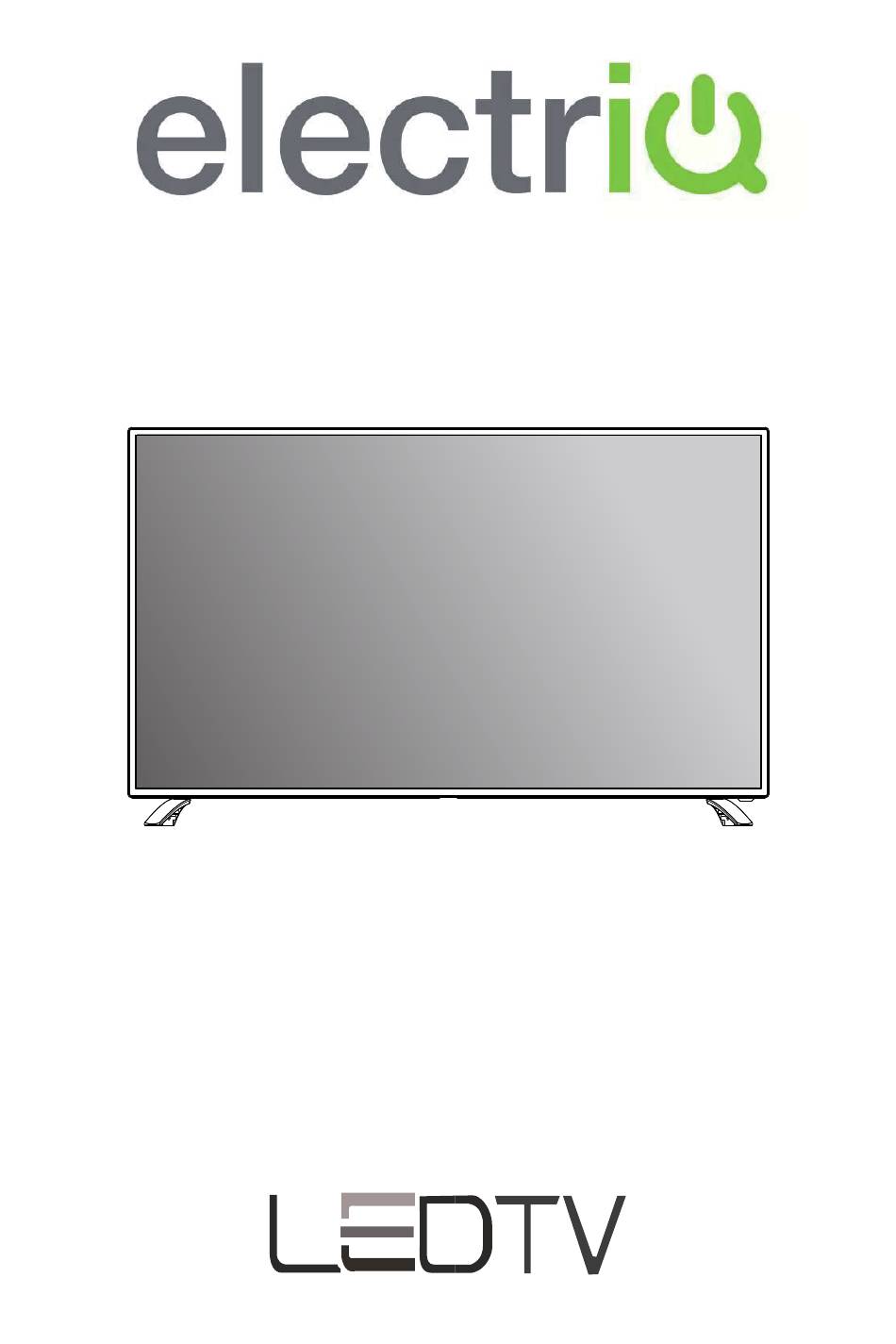

Page 1 49/55/65/75 inch UHD LED TV eiq-49UHDT2SM eiq-55UHDT2SM eiq-65UHDT2SM eiq-75UHDT2SM...
Page 2: Table Of Contents
CONTENTS Safety Information……………………………………………………………… 2 What is included…..… …………………………………………………………. 4 TV Stand Installation/Removal……………………………………………. 5 Getting Started…………………………………………………………………… 7 Connecting to External Devices…………………………………………..11 Remote Control………………………………………………………………….13 Settings………………………………………………………………………………15 Smart TV……………………………… ………………………………………………25 Speciﬁcations……………………………………………………………………..31 Support & Disposal…………………………………………………………….34...
Page 3: Safety Information
SAFETY INFORMATION • Read these instructions – All the safety and operating instructions should be read before this product is operated. • Keep these instructions – The safety and operating instructions should be retained for future reference. • Heed all warnings – All warnings on the appliance and in the operating instructions should be adhered to.
Page 4 • Pull the plug out immediately and seek professional help if the main plug or cable is damaged, liquid has spilt onto the set, if accidentally exposed to water or moisture, if anything accidentally penetrates the ventilation slots or if the set does not work normally.
Page 5: What Is Included
WHAT IS INCLUDED POWER MUTE SOURCE P.MODE S.MODE AUDIO P.SIZE DELETE FAV.CH SLEEP JUMP MENU INFO EXIT MENU BACK MOUSE SEARCH PVR.LIST TIME SHIFT REPEAT DTV/RADIO SMART HOME TEXT SUBTITLE GUIDE TV Set Remote Control (2 xAAA Batteries) 49”/55”/65”Base Stand 75”Base Stand User’s Manual 6Screws...
Page 6: Tv Stand Installation/Removal
TV STAND INSTALLATION/REMOVAL 49 Inch (eiq-49UHDT2SM) 400mm 200mm Four mounting holes (size M6 screw) 4*18BMH 4*18BMH 55 Inch (eiq-55UHDT2SM) 400mm 200mm Four mounting holes (size M6 screw) 4*23 BMH 4*23 BMH...
Page 7 65 Inch (eiq-65UHDT2SM) 400mm 400mm Four mounting holes (size M6 screw) 4*20 BMH 4*20 BMH 75 Inch (eiq-75UHDT2SM) 600mm 400mm Four mounting holes (size M8 screw) 4*25 BMH 4*25 BMH...
Page 8: Getting Started
NOTE: As the TV set is considered heavy, please consult with a professional wall mountin staller to perform the installation. GETTING STARTED BUTTON FUNCTIONS 49 Inch (eiq-49UHDT2SM) 1. POWER Button:To turn ON/OFF the 2. SOURCE Button: To select the input source.
Page 9 SOURCE indicator light will display red,when POWER switching on the unit the indicator light will display green. 75 Inch eiq-49UHDT2SM IR RECEIVER: Receives infrared signals from the remote control. INDICATOR LED: Status indicator POWER: press the button in SOURCE: push forward and hold for 1-2 seconds.
Page 10 INPUT/OUTPUTTERMINALS 49/55 Inch RJ45 USB1/USB2 COAXIAL AUDIO VIDEO/Y HDMI1 HDMI2 0.5A 1. Back USB x2. Provides access to SMART TV. Connect smart remotes,keyboards, gaming accessories or usb ﬂash drive Side USB x 2 can be used for DTV recording, timeshift or as a media player ﬁle. Note: only connect low power USB ﬂash drives or externally powered hard drives to the 3x USB ports as they only provide 0.5 Amps power.
Page 11 INPUT/OUTPUTTERMINALS 65/75 Inch RJ45 USB1/USB2 COAXIAL AUDIO VIDEO/Y Headphone HDMI1 HDMI2 0.5A 1. Back USB x2. Provides access to SMART TV. Connect smart remotes,keyboards, gaming accessories or usb ﬂash drive Side USB x 1 can be used for DTV recording, timeshift or as a media player ﬁle.
Page 12: Connecting To External Devices
CONNECTING TO EXTERNAL DEVICES 49/55 Inch RJ45 USB1/USB2 COAXIAL AUDIO VIDEO/Y HDMI1 HDMI2 0.5A VHF/UHF antenna Composite Component HDMI RF Coaxial cable cable cable cable cable TV company cable receiver/satellite box...
Page 13 CONNECTING TO EXTERNAL DEVICES 65/75 Inch RJ45 USB1/USB2 COAXIAL AUDIO VIDEO/Y Headphone HDMI1 HDMI2 0.5A VHF/UHF antenna Composite Component HDMI RF Coaxial cable cable cable cable cable TV company cable receiver/satellite box...
Page 14 REMOVE CONTROL 1. POWER: Turn on the TV/Standby. POWER MUTE SOURCE 2. MUTE: Mute or restore the sound. 3. SOURCE: Press to change the signal source. P.MODE S.MODE AUDIO P.SIZE 4. S. MODE: Setting audio options. DELETE 5. P. MODE: Output image mode selection. FAV.CH 6.
Page 15 24. REPEAT: Repeat mode. Displays the top, bottom or all of the page. 25. DTV/RADIO: In DTV mode, press DTV/RADIO button to enter DTV or RADIO mode. Freeze a multi-page selection on TELETEXT mode. Stop Playback. 27. REC: In DTV mode, press REC button to start recording, press button stop recording.
Page 17 Select Input Source Press SOURCE button to display the input source list, Press ▼ / ▲ or SOURCE button to select the input source you want to, Press OK button to enter the input source, Press EXIT button to quit. Basic Operations 1.Press the MEMU button on the remote control, the on-screen menu will appear on the screen.
Page 18 Tuning Steup ATV Manual Tuning DTV Manual Tuning...
Page 19: Programme Edit
Programme Edit The three colored key are the shortcut key for programming the channels. First press ▼ / ▲ button to highlight the channel you want to delete or move or skip, then: Press the Red button to delete the channel. Press the Yellow button to skip the select channel.
Page 20: Picture Menu
Picture Menu Press MENU button to display the main menu. After ﬁnishing your adjustment, Press MENU button to return back to the previous menu. Sound Menu After ﬁnishing your adjustment, Press MENU button to return back to the previous menu. NOTE: Balance: This item can adjust the speaker ’s output, it enables you to listen to best at your position.
Page 21 Time Menu Press MENU button to display the main menu. Time Zone Select your time zone. Note: In the case of loss of power, the clock setting will be lost. After ﬁnishing your adjustment, Press MENU button to return back to the previous menu. Lock System Menu Press MENU button to display the main menu.
Page 22: Setup Menu
Setup Menu Press MENU button to display the main menu. After ﬁnishing your adjustment, press MENU button to save and return back to the previous menu. OSD Language Select an OSD menu language can be displayed.Default English is selected as menu language.
Page 23 Subtitle Language Select a subtitle language can be displayed. Aspect Ratio...
Page 24: Media Operation
Blue Screen Press ▼ / ▲ button to select Blue Screen, then press Enter button to select On or Oﬀ. First Time Installation Press ▼ / ▲ button to select First time installation, then press Enter button to enter. Reset Press ▼...
Page 25 Press to play or pause. Press to play the previous song. Press to play the next song. Press to play backward. Press to stop. Press to play faster. Photo Music Press CH+/- to switch operation focus between File List and Player. Movie Text When highlighting the option you select, the ﬁle information will appear on the right.
Page 26: Smart Tv
SMART TV 1.1 Welcome Page When the Android Box is ﬁrst powered up, Welcome Page will be shown. It will help you to conﬁgure the device. If you want to skip this wizard, press “HOME” key If you have ﬁnished this wizard once, it will not auto-open again.
Page 27 Select Wireless network(Wi-Fi) If choose‘Wi-Fi’, select a Wi-Fi Access Point If choose‘Ethernet’ ,the screen will show Ethernet connection status Select Ethernet network(LAN) Conﬁgure Ethernet manually Set up the correct Time Zone If network is not connected, setup the date and time manually...
Page 28 Setup Date/time manually Conﬁguration Adjust screen size, using the arrow buttons on remote control User can setup the Language, Network,Time Zone, Data/Time, and adjust screen size in this part.
Page 29 2.1 Main Launcher Press the arrow buttons◄ / ►to select the sub-screen and press▼into sub-screen. FUNCTION DESCRIPTION Main Launcher tab contains : Time information(You can set time information at settings) ; USB/Ethernet/ Wiﬁ function status(White for working, gray for standby) All App menu can view and select more apps.
Page 30 2.2 Settings FUNCTION DESCRIPTION Wiﬁ-settings Check to turn on Wi-Fi so can connect to Wi-Fi networks Check to receive an alert when an open Wi-Fi networks becomes available Ethernet Turn on/oﬀ the Ethernet Ethernet settings: IP address , Subnet Mask, DNS Server, Default Gateway and etc Advance settings Contains all of the settings Factory reset...
Page 31 Date & Time Automatic date & time (Need network) Set date Set time Select time zone User 24-hour format Select date format : dd/mm/yyyy ;mm/dd/yyyy ; yyyy/mm/dd About device Android version Build number 2.3 Applications Install from USB Flash Drive 1.
Page 32: Speciﬁcations
SPECIFICATIONS eiq-49UHDT2SM PAL DVB-T2/T 3840 x 2160 g i r c i t Response Time 108W -240V – 50/60Hz v i t y t i Composite Video Input Component Video Input HDMI input x 3 RF Antenna Input RJ 45...
Page 33 eiq-65UHDT2SM PAL DVB-T2/T 3840 x 2160 g i r c i t Response Time 220W -240V – 50/60Hz v i t y t i Composite Video Input Component Video Input HDMI input x 3 RF Antenna Input RJ 45 Coaxial Output Headphone Output B x 3 Supported System Files...
Page 34: Remote Control
Multimedia Playback Format Multimedia File Extension Categories Video *.avi/MPEG(*.mpeg,*.dat,*vob) / MPEG-4(*.mp4) / TS(*.ts,*.trp,*tp) / MKV(*.mkv) / VC-1 / RMVB(*.rm,*.rmvb) Music *.mp3/AAC(*.aac,*m4a)/*.wav Photo *.jpg/*.jpeg Text *.txt Remote Control Control Distance 8 meters (Horizontal) PRODUCTDISPOSAL Do not dispose this product as unsorted municipal waste. Collection of such waste must be handled separately as special treatment is necessary.
Page 35: Support & Disposal
Noise or other interference Electronic equipment near the unit may be causing interference. Relocate the unit or move the equipment. electriQ UK SUPPORT Complete online support form on www.electriQ.co.uk/support Service Line: 0871 620 1057 Oﬃce hours: 9AM - 5PM Monday to Friday www.electriQ.co.uk...
