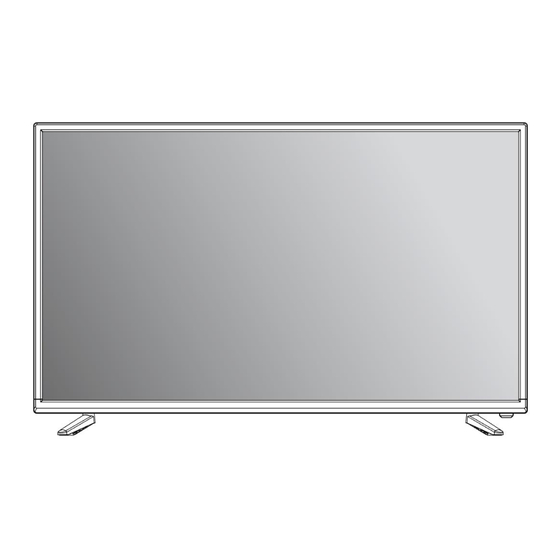

- Page 1 USER MANUAL ULTRA HD SMART LED TV eiQ-43UHDT2SMH-V2...
-
Page 2: Table Of Contents
CONTENTS SAFETY INFORMATION CONNECTION AND PREPARATION OF TV WHAT IS INCLUDED INSTALLATION OF LEGS WALL MOUNTING BUTTONS INPUT / OUTPUT TERMINALS CONNECTING TO EXTERNAL DEVICES REMOTE CONTROL INSTALLATION OF BATTERIES INITIAL SETUP BASIC OPERATION SETTING OF STANDBY MODE SETTING THE INPUT SOURCE TV MENU PICTURE SETUP SOUND SETUP... -
Page 3: Safety Information
SAFETY INFORMATION Read these instructions – All the safety and operating instructions should be read before this product is operated. Keep these instructions – The safety and operating instructions should be retained for future reference. Heed all warnings – All warnings on the appliance and in the operating ... - Page 4 cabinet but ensure there is at least 5cm (2”) clearance all around. Do not tap or shake the TV screen, this may damage internal components. At full volume, prolonged listening may damage the users hearing. Diagrams within the manual are for illustrative purposes only, and as such ...
- Page 5 ATTENTION Place the TV on a firm and 10 cm 30 cm 10 cm flat surface, leaving a space of at least 10cm around the set and 30cm from the top of the set to the ceiling or cabinet. Ensure the TV is positioned close to the wall to avoid it falling when pushed.
-
Page 6: Connection And Preparation Of Tv
CONNECTION AND PREPARATION OF THE TV WHAT IS INCLUDED TV Set Remote Control User Manual (2 x AAA Batteries) 4 Screws 2 Legs INSTALLATION OF LEGS 1 Place the TV with the front facing downwards on a soft cloth pads on a desk. -
Page 7: Wall Mounting
electriQ and its distributors and dealers are not liable or responsible for damage or injury caused by improper installation, improper use or failure to observe these safety instructions. In such cases any guarantee will expire. -
Page 8: Buttons
BUTTONS 1. POWER To turn the TV BUTON ON/OFF 2. SOURCE To select the input BUTTON source. 3. MENU To enter the main BUTTON menu. 4. CH- To select the previous BUTTON: channel 5. CH+ To select the next BUTTON: channel 6. -
Page 9: Input / Output Terminals
INPUT / OUTPUT TERMINALS 1. USB Provides access to SMART TV. Connect smart remotes, keyboards, gaming accessories or USB flash drive. Can be used for DTV recording, time shift or as a media player file. Note: only connect low power USB flash drives or externally powered hard drives to the USB ports as they only provide 0.5 Amps power. -
Page 10: Connecting To External Devices
CONNECTING TO EXTERNAL DEVICES... -
Page 11: Remote Control
1. STANDBY: Turn the TV On/Off 2. MUTE: Mute the sound. REMOTE CONTROL 3. 0-9: Press the buttons to select a channel 4. FAV: Favorite channel list. 5. MOUSE: Turn the remote control mouse On/Off. 0~9 : Continue to press the keys to : Return to previous channel. -
Page 12: Installation Of Batteries
INSTALLATION OF BATTERIES Remove the battery cover from the rear of the remote control. Install two AAA 1.5V batteries. (Ensure the correct polarity of the batteries.) Replace the battery cover. Please take out of the batteries from the remote when it is not going to be used for a long period of time. -
Page 13: Basic Operation
BASIC OPERATION STANDBY MODE Press the STANDBY button to turn on the television. Press the STANDBY button again to return the television to standby mode. The power indicator will turn red. Be sure not to set your TV in standby mode for a long period of time. SELECT THE INPUT SOURCE USING THE REMOTE: Press the SOURCE button to display the input source list. -
Page 14: Tv Menu
TV MENU Press the MENU button to display the main menu. The menu is split into 6 sub menus: Picture Sound Channel Setting Time Lock ◄ and ► buttons to change between the sub menus. Once the required sub Use the menu has been selected, use the ▲... -
Page 15: Sound Setup
SOUND SETUP Select the sound mode required. When set to User, the bass and Treble SOUND MODE can be amended. Press to enter the equaliser to adjust the gain on individual frequency EQ SETTING ranges. BALANCE Adjust the balance of the output between the left and right speakers. Turn the auto volume control On / Off. -
Page 16: Channel Setup
CHANNEL SETUP ANTENNA Select the Antenna type between Air / Cable TYPE Select whether to use LCN to sort the channels. Choose the Automatic search in the submenu, select your country, AUTO TUNING the TV will then search for all channels currently available in your area. -
Page 17: Settings
SETTINGS OSD LANGUAGE Set the OSD language. AUDIO LANGUAGE Set the audio language. AUDIO Set the 2 audio language. LANGUAGE SUBTITLE Turn subtitles On/Off. SUBTITLE Set the 1 language for subtitles. LANGUAGE SUBTITLE Set the 2 language for subtitles. LANGUAGE TELETEXT Sets the language for teletext. -
Page 18: Time
TIME Date / Time Shows the current date and time Sleep time Allows the system sleep time to be set. Menu Time Select how long the menu will be displayed on the screen without input Standby Time Select how long until the TV goes into standby when no input. LOCK Lock System Allows the system lock to be activated and deactivated. -
Page 19: Launcher
LAUNCHER Press the HOME button on the remote to enter the launcher. Press the DOWN button to select the icons at the bottom of the screen, then use the left and right buttons to move between the TV, APP and MEDIA sections of the launcher. Once the required section has been chosen, press the UP button to enter the section Press the EXIT button to exit the launcher. -
Page 20: Media
SETTING Configure Network Settings Network Apps View and remove apps installed on the TV Gives storage information and the option to reset SMART Storage and reset features to factory defaults About System Info Date and Time You can make the adjustment to the date and time; Language You can change the language that is displayed Keyboard... -
Page 21: Technical Specification
TECHNICAL SPECIFICATION Product Model eiQ-43UHDT2SMH-V2 43” Diagonal Screen Size Aspect Ratio 16:9 Power Supply AC 100-240V, 50/60Hz Power Consumption PAL DVB-T2/-T/-C (There is no DVB-C signal in TV System some Countries or Areas.) Audio Output Power (Internal) 8Wx2 Antenna Input... -
Page 22: Supported Signal Modes
SUPPORTED SIGNAL MODES YPbPr MODE Resolution Horizontal Frequency (Khz) Vertical Frequency (Hz) 480i 15.734 59.94 480p(720x480) 31.468 59.94 576i 15.625 50.00 576p(720x576) 31.25 50.00 37.50 50.00 720p(1280x720) 45.00 60.00 28.13 50.00 1080i 33.75 60.00 67.50 60.00 1080P(1920x1080) 56.25 50.00 HDMI MODE Resolution Horizontal Frequency (Khz) Vertical Frequency (Hz) -
Page 23: Simple Troubleshooting
SIMPLE TROUBLESHOOTING If the display fails or the performance changes dramatically, check the display in accordance with the following instructions. Remember to check the peripherals to pinpoint the source of the failure. Symptom Solution Power cannot be turned -Check that both ends of the power cable are plugged into the on. -
Page 24: Manufacturer Support
Please contact the local council for details of your local household waste recycling centres. electriQ UK SUPPORT Complete online support form on www.electriQ.co.uk/support Service Line: 0871 620 1057 Office hours: 9AM - 5PM Monday to Friday Unit J6, Lowfields Business Park,...
