Summary of Contents for ElectrIQ eiq-49UHDT2SM

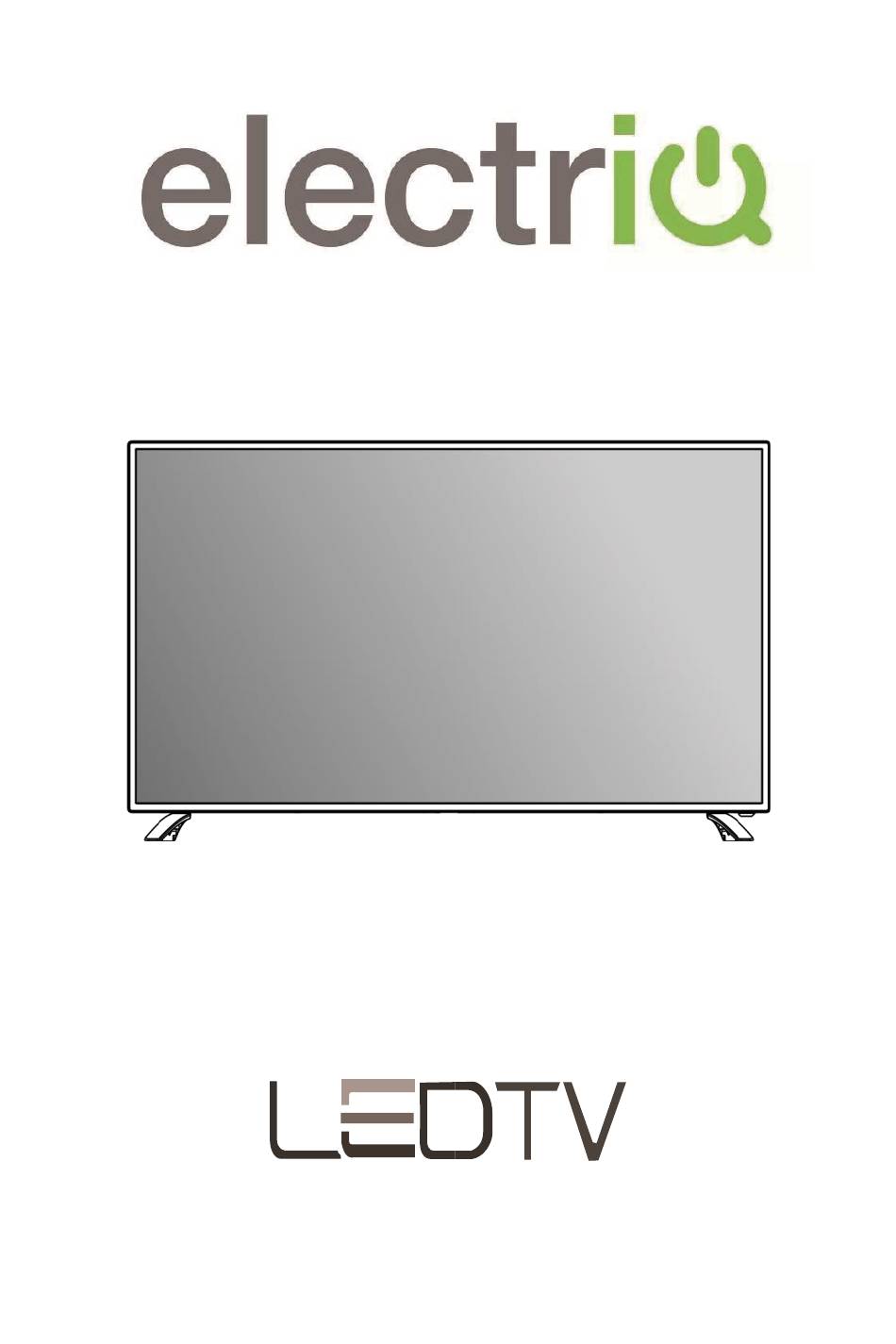

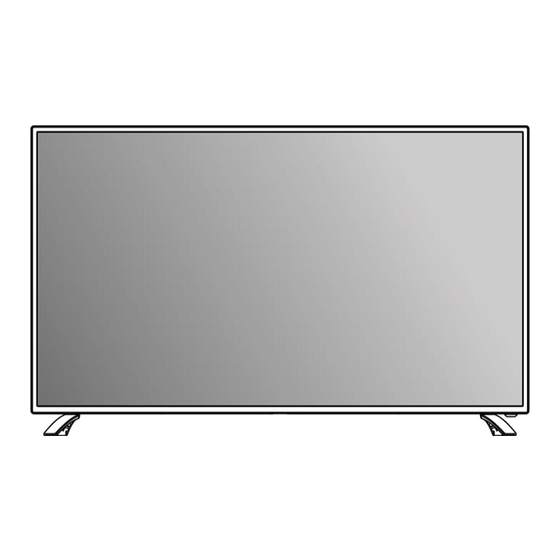

- Page 1 49/50/55/65/75 inch UHD LED TV eiq-49UHDT2SM eiq-50UHDT2SM eiq-55UHDT2SM eiq-65UHDT2SM eiq-75UHDT2SM...
-
Page 2: Table Of Contents
CONTENTS Safety Information What is Included TV Stand Installation / Removal Wall Mounting Getting Started Input / Output Terminals Connecting to External Devices Remote Control Settings Smart TV Specification Support and Disposal... -
Page 3: Safety Information
SAFETY INFORMATION • Read these instructions – All the safety and operating instructions should be read before this product is operated. • Keep these instructions – The safety and operating instructions should be retained for future reference. • Heed all warnings – All warnings on the appliance and in the operating instructions should be adhered to. - Page 4 • Pull the plug out immediately and seek professional help if the mains plug or cable is damaged, liquid has spilt onto the set, if accidentally exposed to water or moisture, if anything accidentally penetrates the ventilation slots or if the set does not work normally.
-
Page 5: What Is Included
WHAT IS INCLUDED TV Set Remote Control (2 x AAA Batteries) 49”/50”/55”/65” Base Stand User Manual 75” Base Stand 6 Bolts... -
Page 6: Tv Stand Installation/Removal
TV STAND INSTALLATION/REMOVAL 49/50 Inch (eiq-49UHDT2SM/eiq-50UHDT2SM) (size M6 Bolt) 3 Bolts 3 Bolts 55 Inch (eiq-55UHDT2SM) (size M6 Bolt) 3 Bolts 3 Bolts... - Page 7 65 Inch (eiq-65UHDT2SM) (size M6 Bolt) 3 Bolts 3 Bolts 75 Inch (eiq-75UHDT2SM) (size M8 Bolt) 3 Bolts 3 Bolts...
-
Page 8: Wall Mounting
Please follow the instructions provided by the wall bracket manufacturer and ensure that all fixing screws supplied are used. Electriq and its distributors and dealers are not liable or responsible for damage or injury caused by improper installation, improper use or failure to... -
Page 9: Getting Started
GETTING STARTED BUTTON FUNCTIONS 49 Inch (eiq-49UHDT2SM / eiq-50UHDT2SM) 1. POWER Button: To turn ON/OFF the 2. SOURCE Button: To select the input source. 3. MENU Button: To enter menu setting page. 4. VOL-: To decrease the volume level. 5. VOL+: To increase the volume level. - Page 10 55/65 Inch (eiq-55/65UHDT2SM) 1. POWER Button: To turn ON/OFF the TV. 2. SOURCE Button: To select the input source. 3. MENU Button: To enter menu setting page. 4. VOL-: To decrease the volume level. 5. VOL+: To increase the volume level. 6.
-
Page 11: Input/Output Terminals
INPUT/OUTPUT TERMINALS 49/55 Inch (eiq-49UHDT2SM / eiq-50UHDT2SM/ eiq-55UHDT2SM) 1. Bottom USB x 2. Provides access to SMART TV. Connect smart remotes, keyboards, gaming accessories or usb flash drive Side USB x 2 can be used for DTV recording, timeshift or as a media player file. - Page 12 INPUT/OUTPUT TERMINALS (eiq-65UHDT2SM / eiq-75UHDT2SM) 1. Bottom USB x 2. Provides access to SMART TV. Connect smart remotes, keyboards, gaming accessories or usb flash drive Side USB x 1 can be used for DTV recording, timeshift or as a media player file. Note: only connect low power USB flash drives or externally powered hard drives to the 3 x USB ports as they only provide 0.5 Amps power.
-
Page 13: Connecting To External Devices
CONNECTING TO EXTERNAL DEVICES 49/50/55 Inch USB FOR STD TV ie PVR USB FOR SMART TV Or Soundbar... - Page 14 CONNECTING TO EXTERNAL DEVICES 65/75 Inch USB FOR STD TV ie PVR USB FOR SMART TV Or Soundbar...
-
Page 15: Remote Control
REMOTE CONTROL POWER: Turn on the TV/Standby. MUTE: Mute or restore the sound. SOURCE: Press to change the signal source. S. MODE: Audio setting options. P. MODE: Output image mode selection. AUDIO: Switch the audio channel when DVD or multimedia playing. I/II: In the TV mode, press this button to select the stereo size. - Page 16 REPEAT: Repeat mode. Displays the top, bottom or all of the page. DTV/RADIO: In DTV mode, press DTV/RADIO button to enter DTV or RADIO mode. Freeze a multi-page selection on TELETEXT mode. Stop Playback. REC: In DTV mode, press REC button to start recording, press button stop recording.
-
Page 17: Settings
Settings 1. Connecting your TV to the power outlet; 2. Press the POWER button on the remote to turn on the TV, and the LED indicator will go green. CAUTION: Always disconnect the TV from the power outlet when the TV will not be used for a long period of time. - Page 18 Select Input Source Press the SOURCE button to display the input source list, Press or the SOURCE button to select the input source you require, Press the OK button to select the input source, Press the EXIT button to quit. Basic Operation 1.
- Page 19 Tuning Setup The Tuning Setup menu allows the Television to be re-tuned, please ensure the country and Tune type are correctly set before pressing OK to start the tuning process. ATV Manual Tuning The ATV Manual Tuning allows analogue channels to be tuned individually.
- Page 20 Programme Edit This allows the order of your channels to be amended. The three coloured buttons are the shortcut key for programming the channels. Press the▼ / ▲ buttons to highlight the channel you want to delete, move or skip. Press the Red button to delete the selected channel.
- Page 21 Picture Menu Press MENU button to display the main menu, and use the ◄ / ► to move to the Picture menu screen. Within this mode you can select between the preset picture modes. If the Personal Picture mode is chosen, this allows the Contrast, Colour and Brightness to be set individually.
- Page 22 Time Menu Press MENU button to display the main menu, and use the ◄ / ► to move to the Time menu screen. This allows the system time and Time Zone to be set, as well as giving options for auto standby. Note: In the case of loss of power, the clock settings will be lost.
- Page 23 Language Select the language the menu will be displayed in. The default is English. Audio Languages Allows the Primary Audio language to be set. The default is English. Subtitle Language Select the language displayed in subtitles. The default is English. Aspect Ratio Allows the Aspect ratio of the screen displayed to be changed.
- Page 24 First Time Installation This allows the user to go through the initial setup again. If this option is greyed out, the Reset option should be chosen. Reset Will return the Television back to its factory state ( Does not affect the Smart Function), and can be used to remove all settings changed by the user.
- Page 25 Press to play or pause. Press to play the previous song. Press to skip to the next item. Press to play backward. Press to stop. Press to play faster. Photo Music Press the CH+/- buttons to switch between the File List and the Player screens. Movie Text When a file is highlighted, the file information will appear on the right.
-
Page 26: Smart Tv
SMART TV 1.1 Welcome Page When you first enter the Smart function, the welcome Page will be shown. It will help you to configure the the smart functions of your new television. skip this wizard, press “HOME” key. Once the setup has been completed, the wizard will not be displayed when next entering the Smart Function... - Page 27 Select Wireless Network (Wi-Fi) If the WIFI option is chosen, a list of detected Access points will be displayed. Select the one which relates to your network and enter the password from your Router. Please note this is case sensitive. Select Ethernet Network (LAN) If an Ethernet cable is connected and the Ethernet Network option is selected, your network should...
- Page 28 Setup the Date and Time Manually Configuration The TV will then show the settings on the screen, press the complete button to confirm. The Screen size can then be adjusted using the arrow buttons on remote control...
- Page 29 Main Launcher Press the arrow buttons◄ / ►to select between the headers ( Favorite, Web, Apps, Settings) the sub-screen and press▼into sub-screen. FUNCTION DESCRIPTION Main Information tab contains : Time information, USB/Ethernet/ Wifi connectivity status (White for working, grey for standby) All Apps are displayed in this sub screen.
- Page 30 Smart Settings Menu FUNCTION DESCRIPTION Wifi-settings Provides options to to turn on the Wi-Fi to connect to wireless networks Can also be set to receive an alert when an open Wi-Fi network becomes available Turn on/off the Ethernet. Ethernet Also gives the options of manually setting: IP address , Subnet Mask, DNS Server, Default Gateway etc Advance settings Contains all of the android settings for the SMART TV.
- Page 31 Date & Time Automatic date & time (Need network) Set date Set time Select time zone User 24-hour format Select date format : dd/mm/yyyy ;mm/dd/yyyy ; yyyy/mm/dd About device Android version Build number Applications – There are a number of ways to add different apps to your smart TV Install from USB Flash Drive 1 .
-
Page 32: Specification
SPECIFICATION eiq-49UHDT2SM TV System PAL DVB-T2/T Maximum 3840 x 2160 Brightness 260 CD/m Static Contrast 1100:1 Response Time Consumption 108W Power Supply AC100-240V – 50/60Hz Connectivity Composite Video Input Component Video Input HDMI input x 3 RF Antenna Input RJ 45... - Page 33 eiq-55UHDT2SM TV System PAL DVB-T2/T Maximum 3840 x 2160 Brightness 280 CD/m Static Contrast 1200:1 Response Time Consumption 140W Power Supply AC100-240V – 50/60Hz Connectivity Composite Video Input Component Video Input HDMI input x 3 RF Antenna Input RJ 45 Coaxial Output Data Interface USB x 4...
- Page 34 eiq-75UHDT2SM TV System PAL DVB-T2/T Maximum 3840 x 2160 Brightness 350 CD/m Static Contrast 1200:1 Response Time Consumption 300W Power Supply AC100-240V – 50/60Hz Connectivity Composite Video Input Component Video Input HDMI input x 3 RF Antenna Input RJ 45 Coaxial Output Headphone Output Data Interface...
-
Page 35: Support And Disposal
PRODUCT DISPOSAL Do not dispose this product as unsorted municipal waste. Collection of such waste must be handled separately as special treatment is necessary. Recycling facilities are now available for all customers at which you can deposit your old electrical products. Customers will be able to take any old electrical equipment to participating civic amenity sites run by their local councils. - Page 36 UK SUPPORT Complete online support form on www.electriQ.co.uk/support Service Line: 0871 620 1057 Office hours: 9AM - 5PM Monday to Friday www.electriQ.co.uk Unit 2, The Nursery Berristow Lane South Normanton Derbyshire, DE55 2FX...
