M O D E L I C B 4 3 0
M O D E L H O M E A L A R M
I C B 4 3 0
Before the kickplate and grille are installed, all
necessary wiring connections in the compres-
sor compartment should be completed.
If a home alarm system is to be installed on
the Wine Storage unit, the connections should
be made using the logic supplied with the
alarm specifications. See illustration 6 below
for the appliance lead locations, and refer to
the following for color codes:
Use the 6 mm spade terminals or wire nuts
provided to make the proper wiring connec-
tions.
28
I N S TA L L AT I O N I N S T R U C T I O N S
C O N N E C T I O N S
Normally open contacts – white with red
stripe wire
Normally closed contacts – white with blue
stripe wire
Common – gray with white stripe wire
IMPORTANT NOTE: If you are not responsible
for alarm system connection, this information
should be supplied to the home security system
contractor.
The alarm circuit in the unit is intended as
a low-voltage, low-current device only. It
should not be used to switch line power.
Any unused terminals should be
completely insulated and all wires should
be secured away from conductive or
moving components.

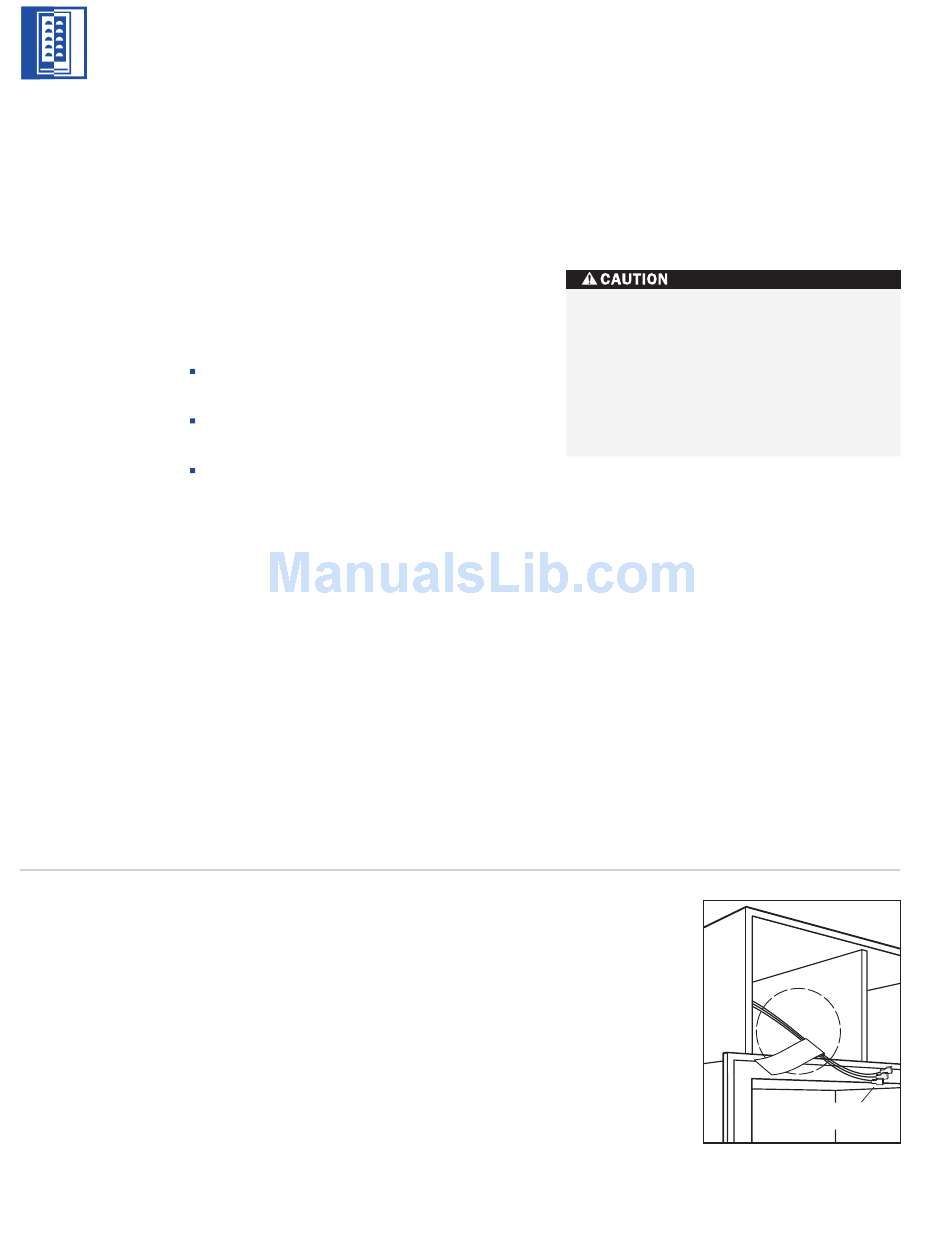

Illus. 6
Home Alarm
Connections
