Summary of Contents for A Grade Finish Canopies AGF Professional 1200

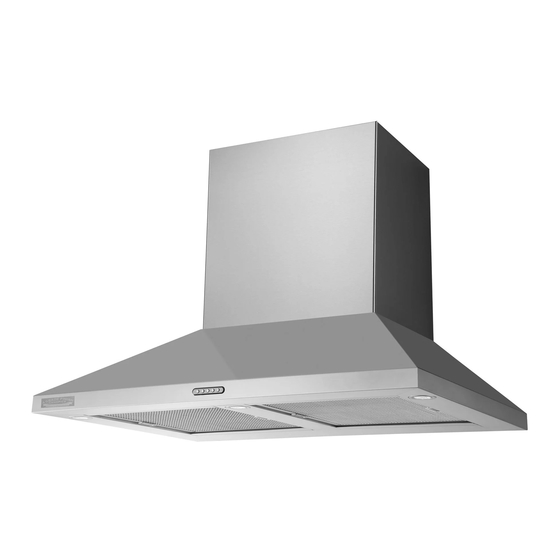

- Page 1 AGF Professional 1200 INSTALLATION INSTRUCTIONS 450mm 850mm 595mm – 1000mm 600mm 300mm 1200mm Tel: (03) 9355 7100 Fax: (03) 9355 7166 Email: sales@agradefinish.com.au Web: www.agradefinish.com.au 9 Norfolk Court, Coburg North Victoria 3058...
-
Page 2: Table Of Contents
7. Technical support ......... 10 8. Warranty ..........10 1. Welcome Congratulations on you purchase of AGF Professional 1200 Rangehood (AGF 1200 PRO-1) Please make sure to read through the installation instructions prior to installing the unit as it contains important information. -
Page 3: Safety
Please read this section prior to operating this unit. If you find the rangehood is damaged in anyway please do not install and contact A Grade Finish Canopies ASAP on (03) 9355 7100. This appliance is not intended for use by persons (including... -
Page 4: Installation
12 gauge 40mm screws are recommended for use. Use a good quality, sharp High Speed Steel clearance drill to make an additional hole in the flat mounting flange. (Refer figure 4) PAGE 3 AGF Professional 1200... -
Page 5: Step
Install the flue support bracket to the beam and screw to the duct. (Refer figure 5 / 6) Step 9: Figure 7 Install the flue cover bracket 150mm down from the ceiling. (Refer figure 7) AGF Professional 1200 PAGE 4... - Page 6 Step 13: With the motor now fixed pass the power lead from fan inside the dektite. (Refer figure 12) Step 14: Once cable has been placed inside dektite finish screwing dekite down and silicone all edges. PAGE 5 AGF Professional 1200...
- Page 7 Screw the bottom piece to the rangehood and also screw to the top piece for extra support. (Refer figure 16) Step 18: Thank you for purchasing an A Grade Figure 15 rangehood. Enjoy! Figure 16 AGF Professional 1200 PAGE 6...
-
Page 8: Operation
1. Slide filter to back of rangehood 2. Pull filter down and slide filter towards the front of the rangehood to release from body 3. To reinsert the filter do steps I and 2 in reverse PAGE 7 AGF Professional 1200... -
Page 9: Maintenance
2. Pull the globe holder and globe out and disconnect the globe from the lamp lead. Do not exceed 35 Watts 3. Once disconnected from the lamp lead, remove the halogen light from its housing. Do not exceed 35 Watts AGF Professional 1200 PAGE 8... -
Page 10: Technical Support
6. Insert back into housing and turn in clockwise direction to lock into place. Do not exceed 35 Watts 7. Technical Support For all technical support please contact: A Grade Finish Canopies on (03) 9355 7100 or via email info@agradefinish.com.au PAGE 9 AGF Professional 1200... -
Page 11: Warranty
AGF 1200 PRO-1 has a standard 24 months warranty from date of purchase. An additional 12 months warranty can be purchased direct from A Grade Finish Canopies for $250.00 Including GST. This document sets out the terms and conditions of the product (d) damage to the Appliance caused by: warranties for A Grade Finish Rangehoods.
