User Interface

5 User Interface
5.1

Operating and display elements

You can adjust and operate the F300K compact flame scanner by using either the user inter-
face (integrated in the F300K or as an external device) or the F300K Remote Software.
You will find a description of the F300K Remote Software in a separate manual (publication
no. DLT7652).
To extend the service life of the display, it only remains switched on within a limited tempera-
ture range. If the temperature of the display rises to over 70 °C, it is deactivated. In this phase
it is not possible to carry out parameterisation or read out information using the display. In or-
der to get information about the reason (C0013) of the deactivated display, it is activated brief-
ly after pressing a key.. If the temperature of the display drops below 70 °C, it is activated
again. Alternatively, the F300K Remote Software or an external user interface FB30 can be
used to communicate with the F300K from a cooler place.
The accessibility and operation of the different displays depend on the current access level.
See section 7.2 Enter Password.

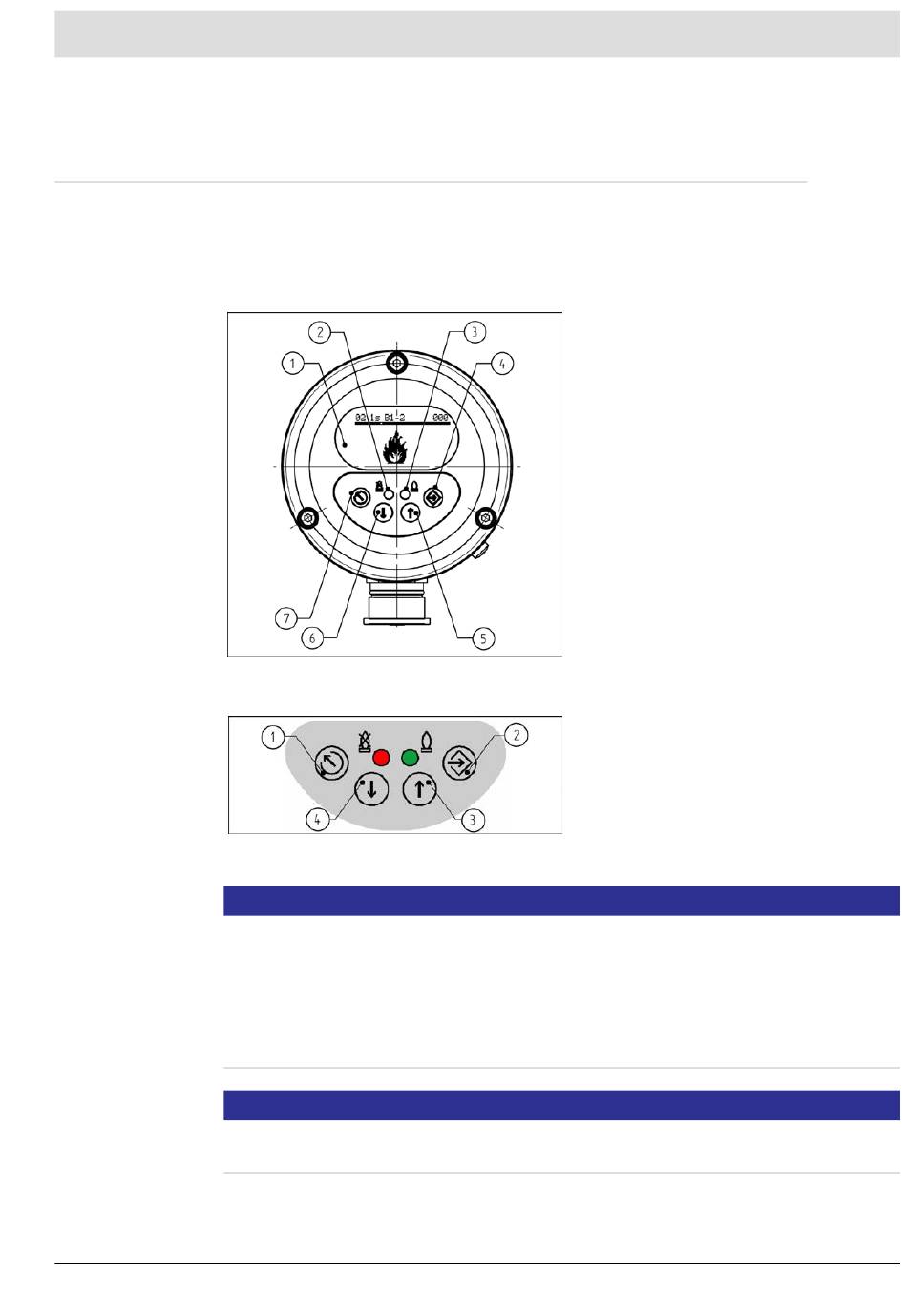

Fig. 5-1 F300K operating and display unit with UI
Fig. 5-2 Keypad
NOTICE
NOTICE
1
2
3
4
5
6
7
1
2
3
4
24
Display
LED shines red: Flame OFF/ready for
operation
LED flashes red: fault
LED shines green: flame ON
LED flashes green: warning
ENTER key
UP key
DOWN key
ESC/BACK key
ESC/BACK key
ENTER key
UP key
DOWN key
