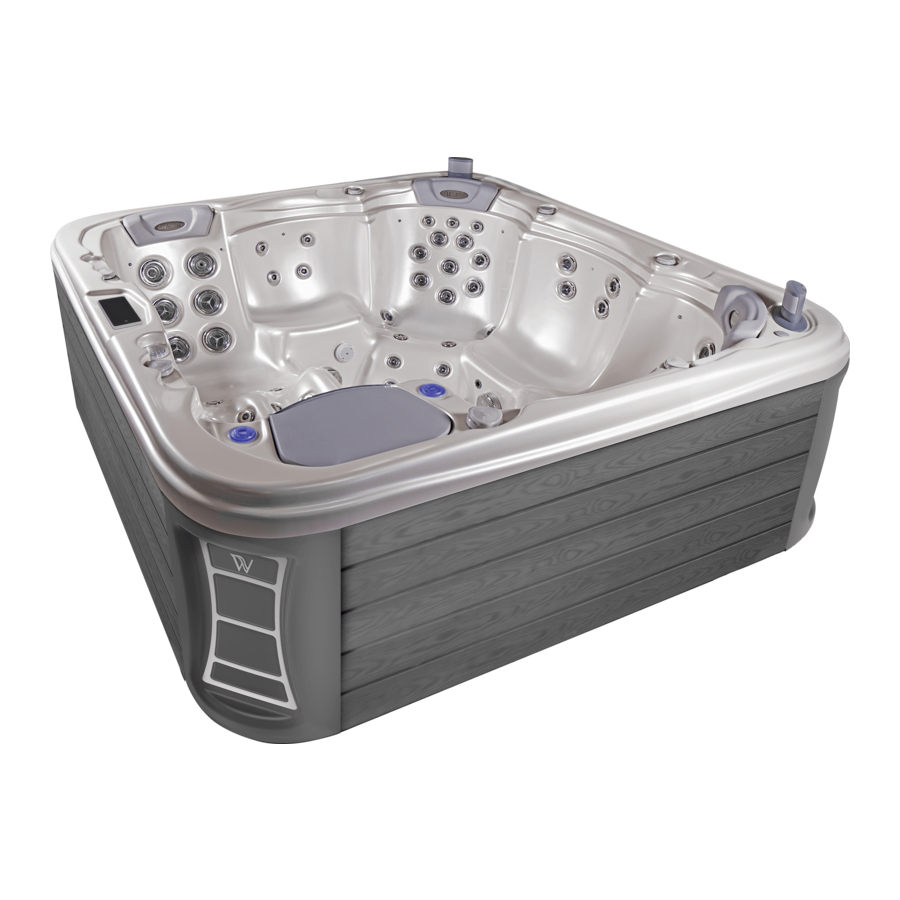

Wellis MONT BLANC User Manual
  1. Manuals
  2. Brands
  3. Wellis Manuals
  4. Hot Tub
  5. MONT BLANC
  6. User manual

Wellis MONT BLANC User Manual

Hide thumbs Also See for MONT BLANC:
Table of Contents

Advertisement

Quick Links

USER MANUAL FOR SPA
/
/
/
/
CONTROL SYSTEMS
KEYPADS
ACCESSORIES

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MONT BLANC and is the answer not in the manual?

Questions and answers

Lubor Priesol
July 5, 2025

ako vypustit vodu z vyrivky

0

Related Manuals for Wellis MONT BLANC

Summary of Contents for Wellis MONT BLANC

  • Page 1 USER MANUAL FOR SPA CONTROL SYSTEMS KEYPADS ACCESSORIES...
  • Page 2 WARNING REDUCE THE RISK OF ELECTROCUTION — Never place an electric appliance within 5 feet of spa. REDUCE THE RISK OF CHILD DROWNING — Supervise children at all times. — Attach spa cover after each use. REDUCE THE RISK OF OVERHEATING —...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Introduction Safety instructions Safety instructions - Canada Important safety instructions Controls Initial installation Major components of the product User interface - Smart Touch Optional accessories Aquasoul Pro My Music in.clear in.clear (in Smart Touch) UV-C / Ozone in.touch 2 Sand filter system Water treatment basics...

  • Page 4: Introduction

    Dive into your spa and enjoy the gently flowing water! The user manual is available at http://www.wellis.com/catalogue. Aeware®, Gecko®, and their respective logos are Registered Trademarks of Gecko Alliance Group. in.yt™, in.ye™, in.yj™, in.touch™, in.stream 2™ , DJS ™, in.k110™, in.k120™, in.k361™, in.k1001™, in.clear™, and their respective logos are Trademarks of Gecko Alliance Group.

  • Page 5: Safety Instructions

    SAFET Y INSTRUC TIONS IMPORTANT 7. DANGER – Risk of Electric Shock. Install at least 5 feet (1.5 m) from all SAFETY metal surfaces. As an alternative, a spa INSTRUCTIONS may be installed within 5 feet of metal surfaces if each metal surface is per- manently connected by a minimum 8 AWG (8.4 mm ) solid copper conductor...
  • Page 6 SAFET Y INSTRUC TIONS SAVE THESE FOR YOUR SAFETY PLEASE AL- WAYS PERFORM THE FOLLOW- INSTRUCTIONS. ING PRECAUTIONS. IF YOU DO NOT FOLLOW THE WARNINGS Audio/video components AND INSTRUCTIONS, ITEMS MAY a) ″ CAUTION – Risk of Electric GET DAMAGED, YOU MAY GET Shock. Do not leave compartment INJURED, OR YOU MAY SUFFER door open″;...
  • Page 7 SAFET Y INSTRUC TIONS AVOIDING THE RISK and with it, the possibility of an electric OF ELECTROCUTION shock. Disconnect the power until the problem has been corrected. DANGER - RISK • 2x120 volt, permanently connected or OF ELECTROCUTION converted models: Initial safety warnings •...
  • Page 8 SAFET Y INSTRUC TIONS IMPORTANT: Failure to wait 30 seconds before resetting the GFCI may cause the • Be sure your spa is connected to the spa’s Power Indicator (on the control panel) power supply correctly - use a licensed to blink.
  • Page 9 SAFET Y INSTRUC TIONS • Water treatment should be carried out heat; failure to recognize the need to exit with caution. Improperly chemically spa or hot tub; unawareness of impending treated water may cause skin irritation. hazard; fetal damage in pregnant women; physical inability to exit the spa or hot • Do not remove any suction sealing. tub; and unconsciousness resulting in the •...
  • Page 10 SAFET Y INSTRUC TIONS AVOIDING THE RISK OF SKIN The user should check the electrical wiring BURNS every 3 months. It is required to perform a check by a professional every 3 years. • Before entering a spa, the user should measure the water temperature since the Mains fuses / circuit breakers may be acti- tolerance of water temperature-regulating...
  • Page 11 SAFET Y INSTRUC TIONS To minimize the risk of electric shock Never add water to the chemicals. Always do not use extension leads to connect the be cautious when adding chemicals to product to the power supply. the spa water to avoid inhaling vapors and possible effects of inhaling undiluted Ensure that the receptacle is properly chemicals and splatters.

  • Page 12: Safety Instructions - Canada

    SAFET Y INSTRUC TIONS - CANADA DO NOT pour any other chemicals into The in.clear unit is applicable for indoor the spa than the recommended sodium spas, but NOT for swimming pools. bromide. DO NOT use any ozone or UV THIS UNIT SHOULD BE SUB- disinfectant.
  • Page 13 SAFET Y INSTRUC TIONS - CANADA AVERTISSEMENT : LES PERSONNES LISER UNE CUVE DE RELAXATION, ATTEINTES DE MALADIES INFEC- MESURER LA TEMPÉRATURE TIEUSES NE DEVRAIENT PAS UTI- DE L'EAU À L' A IDE D'UN THER- LISER UNE CUVE DE RELAXATION MOMÈTRE PRÉCIS WARNING: TO AVOID INJURY, EX- WARNING: DO NOT USE A SPA OR...
  • Page 14 SAFET Y INSTRUC TIONS - CANADA WARNING: RISK OF ACCIDENTAL PROVIDED WITH THIS UNIT FOR DROWNING. EXTREME CAUTION A DESCRIPTION OF THE CAUSES, MUST BE EXERCISED TO PREVENT SYMPTOMS, AND EFFECTS OF HY- UNAUTHORIZED ACCESS. ENSURE PERTHERMIA THAT CHILDREN CANNOT USE THIS AVERTISSEMENT : RISQUE DE PRODUCT UNLESS THEY ARE SU- NOYADE PAR SUITE D'HYPERTHER-...

  • Page 15: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS When using this electrical equipment, D) ALL FIELD-INSTALLED METAL basic safety precautions should always be COMPONENTS SUCH AS RAILS, followed, including the following: LADDERS, DRAINS, OR OTHER SIMILAR HARDWARE WITHIN READ AND 3 M OF THE SPA OR HOT TUB SHALL BE BONDED TO THE FOLLOW ALL EQUIPMENT GROUNDING BUS...

  • Page 16: Controls

    CONTROLS ENRICHMENT: With the enrichment tool addi- tional air is introduced to the jets, which strengthens the effect of the massage. Open to the right, close to the left. The tap has an opened and a closed position. When it's open, it can operate the waterfall nozzle, the one-hole fountain, or the neck massage unit.

  • Page 17: Initial Installation

    INITIAL INSTALLATION SITE PREPARATION In case of sealed design, if the spa was placed between glass structures, prevent the sun rays from reaching the spa direct- When choosing a site for the spa take into account that its ly through the glass as the temperature may get too high. maintenance and repair works must be carried out behind 3.

  • Page 18: Table Of Contents

    Applicable cable: Ampere rating of the supply circuit AWG rating of the supply conductor Copper 90°C (194°F) overcurrent protective device THHN/THWN Mont Blanc (Elbrus 230) Monte Rosa (Kilimanjaro) Monte Bianco (Discovery) London (Malaga 2018) Paris (Elbrus 2018) Berlin (Marbella 2018)

  • Page 19: Major Components Of The Product

    MAJOR COMPONENTS OF THE PRODUC T MONT BLANC (ELBRUS 230)
  • Page 20 MAJOR COMPONENTS OF THE PRODUC T MONTE ROSA (KILIMANJARO)
  • Page 21 MAJOR COMPONENTS OF THE PRODUC T MONTE BIANCO (DISCOVERY)
  • Page 22 MAJOR COMPONENTS OF THE PRODUC T LONDON (MALAGA 2018)
  • Page 23 MAJOR COMPONENTS OF THE PRODUC T PARIS (ELBRUS 2018)
  • Page 24 MAJOR COMPONENTS OF THE PRODUC T BERLIN (MARBELLA)
  • Page 25 MAJOR COMPONENTS OF THE PRODUC T ROME (MANHATTAN 2018)
  • Page 26 MAJOR COMPONENTS OF THE PRODUC T MILANO (PALERMO 2018)

  • Page 27: User Interface - Smart Touch

    USER INTERFACE - SMART TOUCH SMART TOUCH TOUCH SCREEN KEYPAD No buttons, keys and overlays! Mode and function selection wheels, all-on or all-off one touch activation key of last used settings, interactive display icons and on-screen messages are all elements of the Smart Touch user interface designed to let spa users interact intuitively with their spa and its value-added accessories.
  • Page 28 USER INTERFACE - SMART TOUCH SPA MODE SPA MODE START OR STOP ACCESSORIES WATER TEMPERATURE To select the spa mode, slide the left To start or stop an accessory (pump, The temperature shown at the bottom wheel up or down until the spa icon is blower, light), touch the associated of the screen shows the current water highlighted in the middle.
  • Page 29 USER INTERFACE - SMART TOUCH SETTINGS You can use the Settings mode to manage settings of your spa system. Direct to function selection wheel: Mode selection wheel: – water care settings icon – maintenance – date & time – keypad List of –...
  • Page 30 USER INTERFACE - SMART TOUCH MODIFYING WATER CARE SCHEDULES In Economy mode, the set point will be You can modify the programmed Once you have set the schedule, use reduced by 20°F, which means that the schedules by selecting one and adjust- the calendar icon to go back.
  • Page 31 USER INTERFACE - SMART TOUCH MAINTENANCE & ERROR LOG MAINTENANCE ERROR LOG REMINDERS To modify maintenance settings, slide Errors are archived by the system. Drag Smart Touch keypad will provide the right wheel until the maintenance the list Up and Down to move through reminders about maintenance required icon is highlighted in the middle.
  • Page 32 USER INTERFACE - SMART TOUCH KEYPAD SETTING KEYPAD SETTINGS TEMPERATURE UNITS DISPLAY ORIENTATION To modify keypad settings, slide the Use this page to set or change the Use this page to set or change the nor- right wheel until the keypad icon is temperature in F˚...
  • Page 33 USER INTERFACE - SMART TOUCH KEYPAD COLOR (OPTIONAL) If this option is available (depending on the spa configuration), the keypad rim color can be changed. 8 pre-defined colors are available. If the in.mix is installed, the keypad rim color can also be associated to an in.mix zone.
  • Page 34 USER INTERFACE - SMART TOUCH WIFI WI-FI (IN.TOUCH 2) When a in.touch 2 is detected, this IN.TOUCH MODULE NOT CON- network will appear. NECTED If the in.touch module of your spa system is not connected, this message will be displayed. MISCELLANEOUS WARM WEATHER INFO MESSAGES...
  • Page 35 USER INTERFACE - SMART TOUCH ABOUT This section shows information about the in.k1000 software number and the revision numbers of the different components of your system. ELECTRICAL CONFIGURATION Please do not make changes in this To change the low-level configuration, section unless you are a qualified the number of phases and the input electrician.
  • Page 36 USER INTERFACE - SMART TOUCH AUDIO MODE (only available if the system detects a connected Aquasoul Pro audio station) Direct to function selection wheel: – on/off – speakers Mode – source selection wheel: – bluetooth audio mode Mute / last track / play/pause / next track To select the audio mode, slide the left wheel up or down until the audio icon menu is highlighted in the middle.
  • Page 37 USER INTERFACE - SMART TOUCH SPEAKER CALIBRATION AUDIO SOURCE SELECTOR BLUETOOTH PAIRING If you are using a device with Bluetooth TO CALIBRATE YOUR SPEAKERS TO SELECT AN AUDIO SOURCE technology, it must be connected for Slide the right wheel until the speaker Slide the right wheel until the source functions to work.
  • Page 38 USER INTERFACE - SMART TOUCH SANITIZATION MODE (only available if the system detects a connected in.clear water sanitization system) direct to function selection wheel: – on/off – bromicharge mode selection – boost levle wheel: – maintenance in.clear icon statuts and messages To select the sanitization mode, slide the left wheel up or down until the in.clear icon menu is highlighted in the middle.
  • Page 39 USER INTERFACE - SMART TOUCH BROMICHARGE™ LEVEL When performing a test, the BromiCh- To perform a water test, slide the right The green zone in the center area of the arge™ gauge indicates the approximate gauge should be targeted for optimal wheel until the add BromiCharge™...
  • Page 40 USER INTERFACE - SMART TOUCH MAINTENANCE LEVEL Use a test kit to check the bromine level. If you do, retest the bromine level the MODIFY THE MAINTENANCE It should be between 3-5 ppm. If the day after. If the bromine is not in the 3-5 LEVEL bromine level stays within that range for range and is higher than 5 ppm, decrease...
  • Page 41 USER INTERFACE - SMART TOUCH COLOR MODE (only available if the in.mix is detected among the spa accessories) color wheel rainbow icon synchronization/ zone 1 desynchronization icon zone 2 mode selection zone 3 wheel: in.mix icon intensity By default, the in.mix selects Zone 2 when you access the menu. To select the color mode, slide the left wheel up or down until the in.mix icon menu is highlighted in the middle.
  • Page 42 USER INTERFACE - SMART TOUCH TOO MUCH WATER ON DISPLAY WIPE SCREEN This message appears when too much water is detected on the touch screen. Simply wipe away excess water. INSTALLATION ERROR MESSAGES Upon connecting Smart Touch to your spa system you may see one of two error messages. Please follow the instructions in the message or contact your dealer for more information.

  • Page 43: Optional Accessories Aquasoul Pro

    OPTIONAL ACCESSORIES - AQUASOUL PRO AQUASOUL PRO AUDIO STATION FOR SPAS Aquasoul Pro audio system offers you the perfect means to Aquasoul Pro is equipped with state of the art class D audio bring music into your spa. Aquasoul Pro is simple to install amplifiers.
  • Page 44 OPTIONAL ACCESSORIES - AQUASOUL PRO Depending on the chosen configuration, Aquasoul Pro can With a compatible keypad, you will have full control over the support up to 4 speakers, 1 subwoofer, an auxiliary input, a Aquasoul Pro features from inside of your spa. USB connection with 1A charging capability, FM radio receiv- er and Bluetooth streaming.
  • Page 45 OPTIONAL ACCESSORIES - AQUASOUL PRO CONNECTIONS CONNECTING THE SPEAKERS AND SUBWOOFER Connector pins Identification Front Left speaker (+) Front Left speaker (-) Front Right speaker (-) Front Right speaker (+) Rear Left speaker (+) Rear Left speaker (-) Rear Right speaker (-) Rear Right speaker (+) Subwoofer (+) Subwoofer (-)
  • Page 46 OPTIONAL ACCESSORIES - AQUASOUL PRO CONNECTIONS NOTE: In basic configuration (not connected to a keypad or PAIRING WITH A BLUETOOTH ENABLED DEVICE controller), Aquasoul Pro is set in Bluetooth mode. Otherwise, Aquasoul Pro can play music from any device equipped with please refer to your specific keypad operating manual for details Bluetooth wireless technologies, however, you must pair on the Aquasoul Pro functions.

  • Page 47: My Music

    OPTIONAL ACCESSORIES - MY MUSIC MY MUSIC NO EXTERNAL CONTROL UNIT 1. Listening to music via Bluetooth 1.2 Listening to music via Bluetooth device 1.1 Pairing Bluetooth devices 1. The Bluetooth mode is activated as soon as it is paired with a Bluetooth device.

  • Page 48: In.clear

    OPTIONAL ACCESSORIES - IN.CLEAR IN.CLEAR Bromine based water sanitization system for spa On/Off Maintenance START UP PROCEDURE (Instruction video: www.geckoal.com/inclear) 1. Fill the spa with water. Check your bromine level each day with a test kit. Your goal is a residual bromine bank of 3 – 5 ppm. If the bro- 2.
  • Page 49 OPTIONAL ACCESSORIES - IN.CLEAR INTRODUCTION EFFECTS OF BROMINE HOW THE IN.CLEAR WORKS • Bromine destroys waterborne bacteria. When sodium bromide (such as BromiCharge) is added to • Bromine destroys algae in water (e.g. Black, Green, Mus- the water, it separates into sodium ions and bromide ions. As tard).
  • Page 50 OPTIONAL ACCESSORIES - IN.CLEAR BEFORE STARTING (see video: www.geckoal.com/inclear) 1. DRAIN AND CLEAN THE SPA 4. ADD SODIUM BROMIDE (SUCH AS BROMICH- ARGE) It’s important to completely drain and clean the spa to remove all residues accumulated on the surface and inside or Water temperature between 32°...
  • Page 51 OPTIONAL ACCESSORIES - IN.CLEAR IN.CLEAR OPERATING MODES This manual details the functions of the in.clear with the default keypad (in.k200). If your spa pack uses a compatible keypad (ex. in.k800) please see its manual for more specific information. It is important to note that the in.clear system can ONLY MAINTENANCE MODE generate bromine when the water is circulating.

  • Page 52: Program Key

    OPTIONAL ACCESSORIES - IN.CLEAR KEYPAD FUNCTIONS keypad display. Do not turn the BOOST KEY PROGRAM KEY +/- KEYS DIAGNOSTIC MODE in.clear off unless required for Diagnostic mode can be used maintenance, or if advised by a to periodically adjust the Press and hold Use the Up and Down keys The first press of the Boost key...
  • Page 53 OPTIONAL ACCESSORIES - IN.CLEAR START UP PROCEDURE Set the maintenance level DETERMINE THE BOOST LEVEL Determining the proper maintenance level for your spa is Every time you use your spa, activate the boost mode. As a an extremely important step. DO NOT use your spa during rule of thumb, the boost level corresponds to the number of this step as it will slow the process.
  • Page 54 OPTIONAL ACCESSORIES - IN.CLEAR TROUBLESHOOTING LOW SODIUM LOW SODIUM BRO- BROMIDE ERROR MIDE WARNING Low Sodium Bromide Error Low Sodium Bromide If after adding sodium (Err) occurs when the sodium Warning (Lo) indicates the need bromide the Low Sodi- bromide level is too low. The lo to add sodium bromide to the um Bromide Warning LED indicator will blink when...
  • Page 55 OPTIONAL ACCESSORIES - IN.CLEAR HIGH SODIUM BRO- IN.CLEAR IS FLO ERROR (OUT COMMUNICATION MIDE WARNING TURNED OFF OF DIAGNOSTIC ERROR MODE) High Sodium Bromide Warning The OFF message indicates that The Co error indicates that a (Hi) occurs when too much the in.clear is turned off.

  • Page 56: In.clear (In Smart Touch)

    OPTIONAL ACCESSORIES - IN.CLEAR (IN SMART TOUCH) IN.CLEAR OPERATING MODES IF YOU ARE A USING A SMART TOUCH, PLEASE REFER TO THE USER INTERFACE SECTION TO GET THE IN- STRUCTIONS ABOUT THE SANITIZATION MODE. direct to function selection wheel: – on/off –...
  • Page 57 OPTIONAL ACCESSORIES - IN.CLEAR (IN SMART TOUCH) START UP PROCEDURE IF YOU ARE A USING A SMART TOUCH, PLEASE REFER TO THE USER INTERFACE SECTION TO GET THE IN- STRUCTIONS ABOUT THE SANITIZATION MODE. SET THE MAINTENANCE LEVEL DETERMINE THE BOOST LEVEL Determining the proper maintenance level for your spa is Every time you use your spa, activate the boost mode.
  • Page 58 OPTIONAL ACCESSORIES - IN.CLEAR (IN SMART TOUCH) TROUBLESHOOTING ERROR MESSAGES WILL APPEAR ONLY WHEN IN SANITIZATION MODE. BROMICHARGE LEVEL TOO LOW LOW SODIUM BROMIDE WARN- INPUT AC Low Sodium Bromide Error occurs A input AC message displayed on the when the sodium bromide level is too Low Sodium Bromide Warning indi- keypad indicates that there is a prob- low.
  • Page 59 OPTIONAL ACCESSORIES - IN.CLEAR (IN SMART TOUCH) TROUBLESHOOTING NO FLOW CONDITION COMMUNICATION ERROR (OUT OF DIAGNOSTIC MODE) The lost communication error indicates that a linked version of the in.clear With the linked version, this message is being used, but a pack cannot be appears when the in.clear's pressostat detected.

  • Page 60: Frequently Asked Questions

    OPTIONAL ACCESSORIES - IN.CLEAR FREQUENTLY ASKED QUESTIONS Q: WHY IS MY SPA WATER CLOUDY/OILY? Q: WHEN MY IN.CLEAR BROMINE GENERATOR IS OFF DOES THE SODIUM BROMIDE CONTINUE SANI- A: If your spa becomes cloudy or oily due to bather load perform an additional Boost and wait for 24 hours to see if TIZING MY SPA? conditions return to normal.
  • Page 61 OPTIONAL ACCESSORIES - IN.CLEAR CELL CLEANING In.clear includes a self-cleaning feature to prevent scale Phosphoric acid deposits on the graphite electrodes of the in.clear system. or muriatic acid However, deposits may still form due to hard water. If that happens the cell should be cleaned in an acidic solution. All power must be disconnected before any service proce- dure is performed.

  • Page 62: Uv-C / Ozone

    OPTIONAL ACCESSORIES - UV-C / OZONE UV-C WATER TREATMENT 1- Water resistant lid 2- Aluminum nut 3- Lamp casing, wire outlet 4- Germicidal ultraviolet lamp 5- Rubber sealing ring 6- Quartz sleeve 7- Chamber 8- Pawl 9- Transformer WARNING: THE GERMICIDAL ULTRAVIOLET RAYS CHANGING THE LAMP AND SERVICING THE UV ARE HARMFUL TO THE EYES, SKIN.

  • Page 63: In.touch 2

    OPTIONAL ACCESSORIES - IN.TOUCH 2 HOME TRANSMITTER (EN MODULE) INSTALLATION The Home Transmitter unit must be installed inside the Here are some suggestions for a successful installation: house near the router as it needs to be connected to • If possible, install device on the first floor of your it.
  • Page 64 OPTIONAL ACCESSORIES - IN.TOUCH 2 PAIRING THE SPA TRANSMITTER (CO MODULE) AND THE HOME TRANSMITTER (EN MODULE) The pairing process is used when you need to replace one module of the in.touch 2 kit. Otherwise, the in.touch 2 arrives pre-paired from the factory. 1.
  • Page 65 OPTIONAL ACCESSORIES - IN.TOUCH 2 Each in.touch 2 module has a status LED that can be used for troubleshooting purposes. The LED is located on the top of both enclosures. status status Home Transmitter Spa Transmitter Pairing mode Pairing mode Yellow (Blinking) Yellow (Blinking) Router not detected Red...
  • Page 66 OPTIONAL ACCESSORIES - IN.TOUCH 2 DOWNLOAD APPLICATION The in.touch app allows you to control your spa using your home network or an Internet con- nection anywhere in the world. The in.touch 2 app is waiting for you in the App Store for iOS devices and on Google Play for Android —...
  • Page 67 OPTIONAL ACCESSORIES - IN.TOUCH 2 SETUP YOUR WI-FI ON YOUR DEVICE Before using your application, go to the Wi-Fi section of your device’s settings. Make sure you are connected to your home network. This needs to be the same Wi-Fi provided by the router to which you connected your Home Transmitter.
  • Page 68 OPTIONAL ACCESSORIES - IN.TOUCH 2 START THE IN.TOUCH 2 APPLICATION Find the icon for the in.touch 2 application, then tap on it to open it. The first time you use the application a message will ask you: “in.touch 2” Would like to send you notifications. If you choose Allow, the application will send you notifications about the status of your spa.
  • Page 69 OPTIONAL ACCESSORIES - IN.TOUCH 2 LOGIN PAGE Before using your application, you must create an account first and then, you’ll be able to sign in. Your account will give you the opportunity to have access to your spa from any in.touch 2 application. NEW ACCOUNT CREATION When you choose to create a new account, you agree at the same time our Terms of Service and our Privacy Policy.
  • Page 70 OPTIONAL ACCESSORIES - IN.TOUCH 2 CHOOSE A SPA This page displays all the spas detected by your application. To detect your spa, you need to connect your mobile device to the same network to which you connected your Home Transmitter. Once you have done a connection with the spa its name will be saved on this page to allow you to connect to this spa from anywhere.
  • Page 71 OPTIONAL ACCESSORIES - IN.TOUCH 2 SPA STATE This page displays all the active states of your spa. Below is a quick description of each state you may encounter on your spa. Each state is associated to a priority and color that determines the color of the widget on the home page.
  • Page 72 OPTIONAL ACCESSORIES - IN.TOUCH 2 TURN ON/OFF ACCESSORIES According to your spa pack configuration, you can start or stop an accessory by simply touching the associated icon. The icon will become animated when the accessory is on. Simply press on the icon to start or stop the accessory.
  • Page 73 OPTIONAL ACCESSORIES - IN.TOUCH 2 CONTROL YOUR IN.MIX 300 This menu is only available if an in.mix 300 is detected in your spa accessories To turn on or off the in.mix 300, you can use, if you want, the light icon on your home page. To go to your in.mix 300 page, simply swap to the left.
  • Page 74 OPTIONAL ACCESSORIES - IN.TOUCH 2 WATER CARE The Water Care page will help you set up your ideal filtration and heating set- tings. Choose between Away from Home, Beginner, Energy Savings, Super Energy and Weekender, depending on your need. Touch the Water Care name you would like to activate, a green checkmark will appear on the icon, indicating you have selected it.
  • Page 75 OPTIONAL ACCESSORIES - IN.TOUCH 2 REMINDERS Reminders page will help you to make a follow-up of your maintenance. The in.touch 2 will remember you to perform required maintenance tasks on your spa, such as rinse filter or clean filter. Each task has its own reminder duration based on normal use.
  • Page 76 OPTIONAL ACCESSORIES - IN.TOUCH 2 MODIFYING SCHEDULES In this menu it is possible to add, remove or edit schedules of economy or filtration. To have access to this menu, simply touch the tabs: Water Care menu - the little pen at the right of the wanted water care Touch the Economy tab to modify the economy schedules and Filter cycle tab for the filtration schedules.
  • Page 77 OPTIONAL ACCESSORIES - IN.TOUCH 2 SPA SETTINGS In the Settings page you can access the following: in.touch network Temperature units Change spa name Technical info To select an item, tap on the arrow next to it. It will open the selected menu.
  • Page 78 OPTIONAL ACCESSORIES - IN.TOUCH 2 CHANGE CHANNEL The Change channel page allows you to change the chan- nel used by the two in.touch 2 modules. In some cases, this can help you to have a stronger signal. You can have access to this page by touching the fol- lowing tabs: Spa settings (at the bottom right) - in.touch network - channel TEMPERATURE UNITS...
  • Page 79 OPTIONAL ACCESSORIES - IN.TOUCH 2 NAME This section allows you to edit the name of the spa. You can have access to this page by touching the follow- ing tabs: Spa settings (at the bottom right) - Change spa name TECHNICAL INFO This section shows information about the in.touch 2 soft- ware number and the revision numbers of the different...
  • Page 80 OPTIONAL ACCESSORIES - IN.TOUCH 2 SETTINGS In the Settings page you can access the following: Add a spa from local network Account Tutorial *Legal **Patents To select an item, tap on the arrow next to it. It will open the selected menu. *The button Legal will bring you to this web site : https://geckointouch.com/legal **The button Patents will bring you to this web site:...
  • Page 81 OPTIONAL ACCESSORIES - IN.TOUCH 2 ACCOUNT This section gives you access to your account information. You can have access to this page by touching the following tabs: Settings (up right corner) - account TUTORIAL This section gives you a quick over- view of your in.touch 2 application’s functions.
  • Page 82 OPTIONAL ACCESSORIES - IN.TOUCH 2 TECHNICAL SUPPORT INVITATION When you receive an invitation for Technical Support, a red circle will be displayed next to the “setting” logo (top right corner). AUTHORIZING AN INVITATION All the invitations you may receive are under the dealers tab in the “settings”...
  • Page 83 OPTIONAL ACCESSORIES - IN.TOUCH 2 DEALER PAGE Once you’ve had a dealer on your in.touch 2 app, you can, at all times, have access to his information. If you don’t want your dealer to have access to your spa anymore, simply swap to the left the “Allow access to your spa”...
  • Page 84 OPTIONAL ACCESSORIES - IN.TOUCH 2 HOME TRANSMITTER (EN MODULE) LED STATUS This module’s LED can show various status conditions, as indicated below. Rapidly flashing YELLOW color : GREEN color : Reason? The Home Transmitter is in pairing mode when this color The Home Transmitter is connected to a router (an IP is shown (the pairing switch was pressed).
  • Page 85 OPTIONAL ACCESSORIES - IN.TOUCH 2 SPA TRANSMITTER (CO MODULE) LED STATUS This module’s LED can show various status conditions, as shown below. Rapidly flashing YELLOW color : Blinking LED : The Spa Transmitter is in pairing mode when this color is On both modules, if the LED is blinking about once shown.

  • Page 86: Sand Filter System

    OPTIONAL ACCESSORIES - SAND FILTER SYSTEM SAND FILTER SYSTEM FILTRATION While the pump is switched off set the valve to “FILTRATION”. ACCESSORIES OF THE SAND FILTRATION SYSTEM: Switch the pump on. – filter tank While the pump is on occasionally check the pressure gauge –...

  • Page 87: Water Treatment Basics

    WATER TREATMENT BASICS 6. Water analysers: WATER TREATMENT BASICS The chemical equilibrium of the water There are several types of water analysers which are mostly used to measure chemical and disinfectant effect. The spa water will be clean and clear if its chemical compo- Chemical (pH);...

  • Page 88: Maintenance

    MAINTENANCE Operating the spa without a filter cartridge is PROHIBITED FILTER CARTRIDGE REMOVAL AND CLEANING Cleaning mechanical contaminations via continuous water 1. Remove the lid of the filter. circulation and chemical mixture is a basic requirement for 2. Take out the filter cartridge. proper cleaning of the spa water.

  • Page 89: Wiring Diagram - W3000 & W5000

    WIRING DIAGRAM - W3000 & W5000 W3000 & W5000...
  • Page 90 WIRING DIAGRAM - W3000 & W5000 CONNECTIONS CONNECTING HIGH VOLTAGE ACCESSORIES: ALL MODELS Two options are available with Y Series spa packs for connecting high voltage accessories: 0.250” quick-connect terminals, or AMP connectors conform to industry standards. CONNECTING HIGH VOLTAGE ACCESSORIES: NORTH AMERICAN MODEL IN.YE For the connection to the 0.250 inch terminals, the high voltage accessories must be provided with female quick connect termi- nals, straight and non-insulated for all types of connections, including the ground.
  • Page 91 WIRING DIAGRAM - W3000 & W5000 CONNECTIONS HEAT.WAV WATER HEATER CONNECTIONS Live Return Ground in.flo flo Regulation probe All Y Series systems come with a high performance heat.wav The heat.wav heater is factory configured for 240 V / 4 kW, heater.

  • Page 92: Breaker Setting

    BREAKER SET TING POWER UP AND BREAKER SETTING It is important to specify Choose the number of The values displayed by the the current rating of the phases supplying your spa system correspond to 80% (1 to 3). Use the Up or Down GFCI/RCD used to ensure a of the maximum amperage safe and efficient current...
  • Page 93 BREAKER SET TING POWER UP AND BREAKER SETTING IMPORTANT Please read the following before starting the device. Verify that all accessories are linked to the ground lug and connected to the to the control system. A minimum flow of 68 LPM (18 GPM) is required. Make sure that all valves are open in the spa plumbing and that the water flow is sufficient between the main pump and the water heater.

  • Page 94: Frequently Asked Questions

    FREQUENTLY ASKED QUESTIONS Is a floor drain necessary for an indoor spa? QUESTIONS CONCERNING CLEANING, WATER TREATMENT, AND MAINTENANCE Building a floor drain is mandatory! What should I do if the filter of the spa is polluted? TECHNICAL DATE OF THE PRODUCT, USAGE Clean the filter every week or two weeks with a jet of water.
  • Page 95 FREQUENTLY ASKED QUESTIONS When we do not use the spa often, mostly in the win- What is the service life of the UV-C lamp? ter (around 3 times a week), which is the most energy If the filtration cycle is set to the continuous (0-24) setting, efficient setting, taking into account the energy nec- then the service life of the UV-C lamp is 8000-9000 essary for reheating? We only use it a couple of times...
  • Page 96 The products included in the user manual are for illustration purposes only, and may not always match the specifications of the advertised product. Manufacturer reserves the right to modify the products – including the product range – without prior notice since they are valid at the time they are delivered to the printing press.
