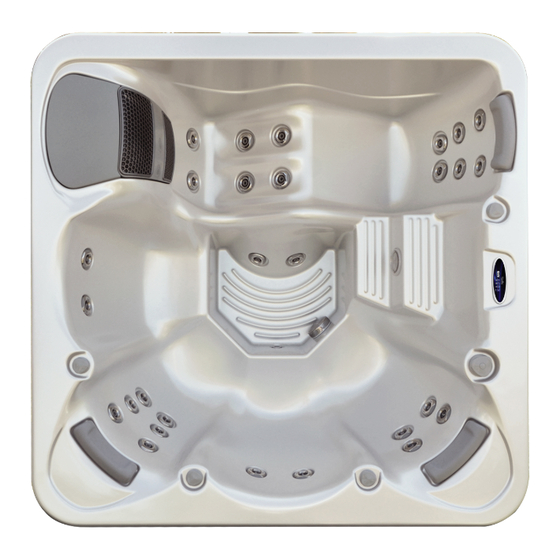

- Page 1 USER MANUAL TRIGLAV SPA SYSTEM - 1x3HP Hydromassage pumps - New GS100/VL260 control system - 28 jets - Chromotherapy lamp with 55 LEDs - UV-C water sanitizer - WPC frame Version: 01.2014 www.wellis.eu...
- Page 2 Standard Specification Dimensions: 2000 x 2000 x 910 mm Shell material: PU reinforced acrylic 6,3mm Sitting places: 4 persons Reclining places: 1 person Water volume: 1100 l Net weight: 280 kg Power requirement: 1 x 32A (230V) optimum 1 x 16A (230V) minimum Total number of jets: Hydromassage pump: 1x 3 HP (230V/50Hz)
- Page 3 5 year on spa shell: Wellis warrants the structure of the Pool Shell against defects in workmanship and material for a period of 5 years, subject to the limitations and conditions listed in this Warranty.
- Page 4 1 year on Wellis Spa Umbrella: The factory installed Wellis Spa Umbrellas are warranted against failure due to defects in materials or workmanship for one year from the original date of delivery.
- Page 5 Wellis Magyarország Kft. shall not be liable for any incidental or consequential damages for breach of any expressed or implied warranty, breach of contract, negligence, strict liability, or any other legal theory related to this product.
- Page 6 It is obligatory to observe all information, details and requirements which are in the product`s installation diagram regarding elelectricity demand and drain installation. These information can be found in the user manual, or able to download from www.wellis.eu. If you didn`t get the document from your dealer, please contact export@wellis.eu.
- Page 7 12 months, for the purpose of assessing Wellis Magyarország Kft. liability, all aspects covered by this Warranty will be treated on a pro-rata basis. Wellis Magyarország Kft. or its agents will not be liable for any incidental or consequential loss or injury. Nor will Wellis Magyarország Kft.be liable for costs associated with but not limited to building alterations or finishes and under no circumstances will be liable for greater expense than the amount paid for the product.
- Page 8 SERVICE-WORK The announcement date of damage: _____________________________ Date of received goods/parts for repair: _____________________________ Date of the return of repaired goods/parts: ____________________________ Date of site service: _____________________________ STAMP Improved error: _____________________________ Mode of repair: _____________________________ Failed component: _____________________________ New deadline for the warranty: __________________________ The announcement date of damage: _____________________________...
- Page 13 3.Clean with high pressure nozzle to remove all debris clinging to the filter. 4.Soak filter in warm water and Wellis Alga-Sokk to remove all body oils and grime. Never use chlorine to clean the filter! If you use textile filter, you can wash it...
- Page 14 The chemical equilibrium of the water The water of the whirlpool will be clean and clear if its chemical components are in equilibrium. 1. pH-values: The first important indicator is the pH value of the water. pH is measured in a scale between 0-14 where 7 is the neutral value.
- Page 15 TROUBLESHOOTING...
- Page 17 MVP260 Control Reference Card Non-Circ Operation Initial Start-up When your spa is first actuated, it will go into Priming mode, indicated by “ .” Please see the M-7 Installation Instruction Manual for complete instructions on Power-up and Pump Priming The Priming mode will last for less than 5 minutes (press "Temp" or "Set"...
-
Page 18: Diagnostic Messages
Diagnostic Messages Message Meaning Action Required No message on display. The control panel will be disabled until power returns. Spa Power has been cut off to the spa. settings will be preserved until next power up. Temperature unknown. After the pump has been running for 2 minutes, the temperature will be displayed. - Page 19 Basic Installation and Configuration Guidelines Use minimum 6AWG copper conductors only. Torque fi eld connections between 21 and 23 in lbs. Readily accessible disconnecting means to be provided at time of installation. Permanently connected power supply. Connect only to a circuit protected by a Class A Ground Fault Circuit Interrupter (GFCI) or Residual Current Device (RCD) mounted at least 5’...
- Page 20 Piping instructions of TRIGLAV spa 30mA safety relay is need to be installed! E: Electric hole ( 500 mm) to terminal facilities through spa cabinet. 3 m cabels are required! In case of sinking just allowed to sinking part which is under the spa`s acrylic-flange. You have to make safe the diversion of inlet water in the deepest point of the inspection pit.
- Page 21 GS100 Tech Sheet GS100 Tech Sheet Balboa Water Group System PN 56300 System Model # MP7-GS100-DCA-3.0K Software Version # 41 EPN # 3825 Base PCBA - PN 56301 PCB VS100C - PN 24084 Rev A Base Panels VL200 (Mini) – PN 55123 VL240 (MVP240) –...
- Page 22 Basic System Features and Functions Basic System Features and Functions Power Requirements • 230VAC, 1~, 16A minimum, 32A optimum, 50Hz • 3 wires (line, neutral, ground) System Outputs Setup 1 (As Manufactured) • 230V Pump 1, 2-Speed • 230V Ozone •...
- Page 23 Basic System Features and Functions Basic System Features and Functions Any time you change a DIP Switch, other than A1, you must reset Persistent Power Up Display Sequence Memory for your new DIP Switch Settings changes to take effect. If you do Upon power up, you should see the following on the display: not reset Persistent Memory, your system may function improperly.
- Page 24 Wiring Configuration and DIP Settings Wiring Configuration and DIP Settings Setup 1 (As Manufactured) • 230V Pump 1, 2-Speed • 3.0kW @ 230VAC Heater • 10V Spa Light • VL260 Main Panel • 230V Ozone (with Pump 1 Low) GS100 PN 56300 CONTROL PANEL TO J1...
- Page 25 DIP Switches and Jumpers Definitions DIP Switches and Jumpers Definitions SSID 100 59 41 Base Model VS100 DIP Switch Key A1 Test Mode (normally OFF) A2 “ON” position: Button layout will be: Pump 1, Light, Temp Down, Temp Up * “OFF”...
- Page 26 Ozone Connections Ozone Connections Ozone Connector Voltage: The VS100 circuit board is factory configured to deliver a preset voltage of 120V to the on-board ozone connector (J29). Balboa Ozone Generator: The board is set up to operate a 120V ozone generator; the connector on the ozone generator is likely to be configured correctly, but should be compared to the illustration below.
- Page 27 Duplex Panel Configurations Duplex Panel Configurations Heat DIP switch A3 must be OFF Jets Jets Light Cool Warm VL403 (Lite Digital) Heat PN 54664 with Overlay PN 11884 • Connects to Main Panel terminal J1 Jets Jets Light Cool Warm VL401 (Lite Digital) Lite Digital) PN 54665 with Overlay PN 11885...
