E220 Series
Cellular Router
Quick Start Guide
Part Number PMD-00019
Revision A October 2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E220 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Lantronix E220 Series

Summary of Contents for Lantronix E220 Series

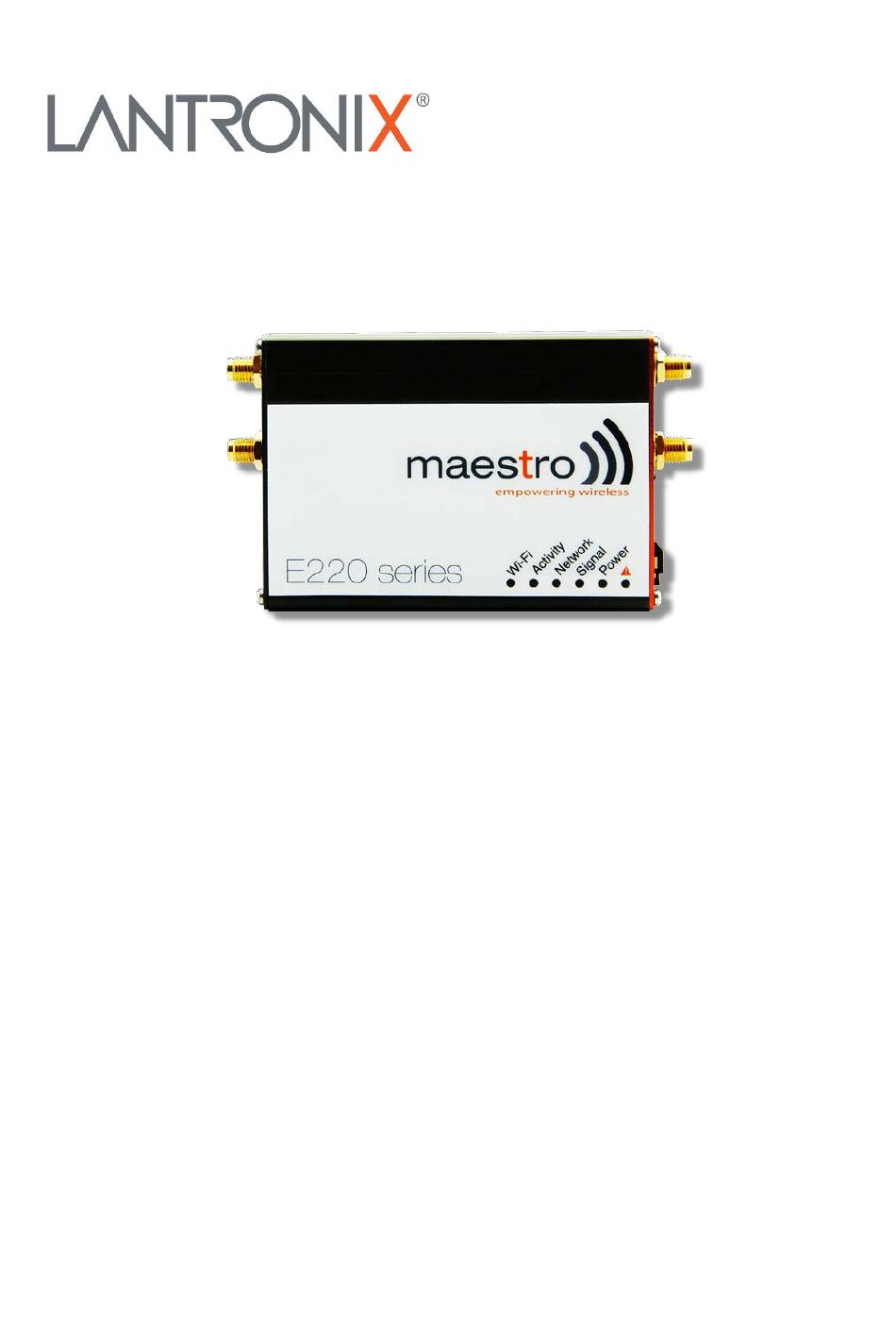

  • Page 1 E220 Series Cellular Router Quick Start Guide Part Number PMD-00019 Revision A October 2019...
  • Page 2 Intellectual Property © 2019 Lantronix, Inc. All rights reserved. No part of the contents of this publication may be transmitted or reproduced in any form or by any means without the written permission of Lantronix. Lantronix is a registered trademark of Lantronix, Inc. in the United States and other countries.
  • Page 3 Software Foundation (FSF), or the Python Software Foundation (PSF) License Agreement for Python 2.7.3 (Python License). Lantronix grants you no right to receive source code to the Open Source software; however, in some cases, rights and access to source code for certain Open Source software may be available directly from Lantronix’...

  • Page 4: Table Of Contents

    Lantronix Router Overview ............... 8 3.1. LAN Panel Details ....................... 8 3.2. WAN Panel Details ......................10 Connecting Lantronix Router ..............13 4.1. To Connect the Lantronix Router ................13 Software Configuration ................16 5.1. To Configure Router Software ..................16 Conformity ...................... 19 6.1.

  • Page 5: E220 Series Models

    NTT Docomo 1/19/21 None LTE cat. 4 E228 Korea, Thailand, Brazil, etc. 1/3/5/7 None LTE cat. 4 [1] 7.2Mbps downlink; 5.76Mbps uplink; [2] 43.2Mbps downlink; 5.76Mbps uplink E220 Series: High-speed 3G or LTE router Figure 1: E220 Series Quick Start Guide...

  • Page 6: Setup

    Setup 2. Setup 2.1. Prerequisite 2.1.1. Before installing your E220 Series router, verify you have the following: • Router Hardware with: o Active sim card o Ethernet cable o Wi-Fi and cellular antennas • Computer equipped with: o Windows, Mac or Linux operating system.

  • Page 7: Available Accessories

    Ultra-wide-band 698-960 / 1575.42 / 1710-2700MHz L-shaped antenna, ACC-A22 hinged, SMA (M) Miscellaneous ACC-DIN Metal DIN Rail clip ACC-CA29 RJ45(M) to RJ45(M)-cable length=1000mm For a full list of E220 router accessories, refer to the E220 product page, Order Now tab: https://www.lantronix.com/products/e220-series-router/#tab-order-now E220 Series Quick Start Guide...

  • Page 8: Lantronix Router Overview

    Green - DC Power Supply: 2-pin Micro-fit 3.0 connector. Black (left) negative red (right) positive. • Blue - Ethernet port (LAN): Ethernet cable connects to LAN • Red - RS-485 & Digital input/output ports (see figure 3 next page): E220 Series Quick Start Guide...
  • Page 9 Lantronix Router Overview Lantronix Router LAN Panel I/O connector Figure 3: • Red - Top slots are release pins for bottom ports. • Blue - RS-485 o Full-duplex: B: Rx –  A: Rx +  G: Common Ground ...

  • Page 10: Wan Panel Details

    • Green – Mini SIM slot (2FF) • Orange – GPS / Diversity SMA Antenna Connector: Female (GPS only on LTE version) • Yellow - Cellular SMA Antenna Connector: Female E220 Series Quick Start Guide...
  • Page 11 Lantronix Router Overview 3.2.1. Front Panel Details Front Panel Figure 5: The top panel of Lantronix’s E220 Series features 6 LEDs on the front to indicate critical system information. LED States and Description Table 3: Name Color and State Description...
  • Page 12 Lantronix Router Overview Name Color and State Description Red Flashing Software fault (crash, issues) Hardware fault (high temperature, problem with module or Alert Red ON SIM card) E220 Series Quick Start Guide...

  • Page 13: Connecting Lantronix Router

    4. Connecting Lantronix Router 4.1. To Connect the Lantronix Router 4.1.1. Insert the SIM card in the router as shown below. Inserting the SIM card in the Lantronix router Figure 6: 4.1.2. Connect the antenna to the main connector of the E220.
  • Page 14 Connecting Lantronix Router Connecting the Wi-Fi & cellular antenna on Lantronix router: Figure 7: 4.1.4. If the Lantronix Router package includes dual antenna’; connect the Diversity Antenna to the Diversity Connector. NOTE: Dual antenna provides RF diversification, which allows for improved signal...
  • Page 15 The power LED will light when power is applied. Connecting the AC power connector Figure 9: 4.1.7. An alternate option is to power the Lantronix Router over Ethernet port as the WAN port supports PoE (Power over Ethernet). NOTE: Please refer to the section Power over Ethernet on Appendix 23 for connections example.

  • Page 16: Software Configuration

    Software Configuration 5. Software Configuration 5.1. To Configure Router Software 5.1.1. On the computer, open a Web browser and then enter the Lantronix routers LAN IP address. A login dialog window displays. NOTE: Username and Password are case sensitive. Login Dialog Box...
  • Page 17 Software Configuration 1.1.1.5 Active DHCP with starting IP address: 192.168.1.100 with poll off 100 clients. 1.1.1.6 WAN as automatic IP, with Cellular backup. E220 Series Quick Start Guide...
  • Page 18 The default IPv4 Address is 192.168.1.1 Enter the IPv4 Subnet Mask of LAN interface. IPv4-Netmask The default Netmask is 255.255.255.0 IPv4-Gateway Enter the Gateway IPv4 of the Gateway. Protocol Select the WAN protocol from the available options: E220 Series Quick Start Guide...

  • Page 19: Conformity

    Enter the login name. Password Enter the password. Wi-Fi By default, Wi-Fi interface is enabled every time the Lantronix Router Enable reboots. Click and disable the Wi-Fi interface if you do not want to use them. Service Set Identifier (SSID) is a sequence of characters, which uniquely names a wireless local area network (WLAN).

  • Page 20: Fcc Rf Exposure Statement

    (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en This Class B digital apparatus complies with Canadian ICES-003. E220 Series Quick Start Guide...

  • Page 21: Ised Rf Exposure Information

    Afin d'éviter la possibilité de dépasser les limites d'exposition aux fréquences radio de la ISED CNR-102, la proximité humaine à l'antenne ne doit pas être inférieure à 20 cm (8 pouces) pendant le fonctionnement normal. E220 Series Quick Start Guide...

  • Page 22: Appendix

    Appendix 7. Appendix 7.1. Pin Power Cable Schematic Figure 12: E220 Series Quick Start Guide...

  • Page 23: Power Over Ethernet

    Appendix 7.2. Power over Ethernet Figure 13: E220 Series Quick Start Guide...

  • Page 24: Rs485 Wiring Diagram

    Appendix 7.3. RS485 wiring diagram Half Duplex (Left) RS485 Full Duplex (Right) Figure 14: E220 Series Quick Start Guide...

  • Page 25: Certified Antenna

    Dipole, Peak Gain < 3.8 dBi @ 2.4 GHz ~ 2.5 GHz Selection of antenna type: • Using the same dipole antenna type as certified module & Modem for FCC as above or external antenna with length > 20 cm. E220 Series Quick Start Guide...
