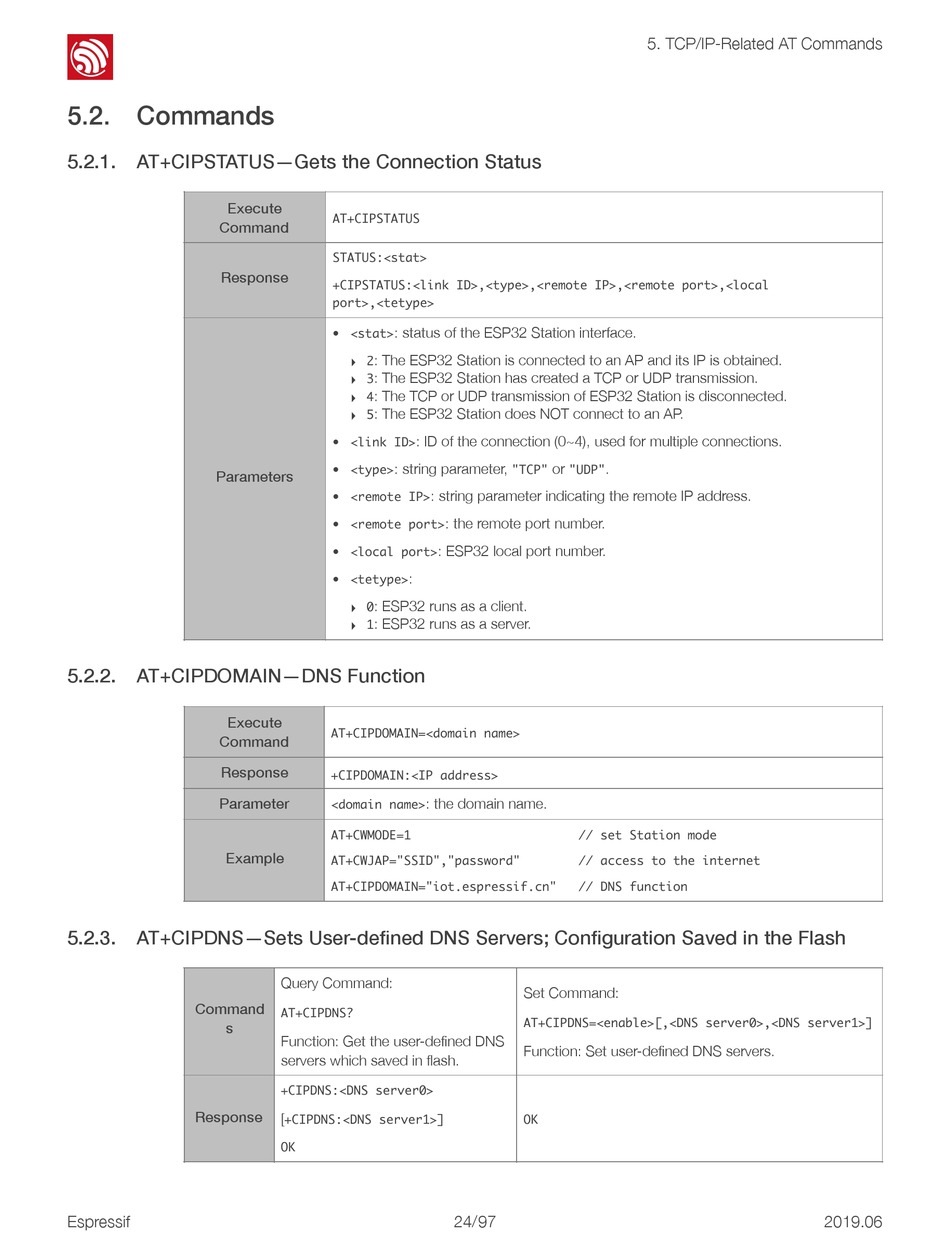

5.2. Commands

5.2.1. AT+CIPSTATUS—Gets the Connection Status
Execute
Command
Response
Parameters
5.2.2. AT+CIPDOMAIN—DNS Function
Execute
Command
Response
Parameter
Example
5.2.3. AT+CIPDNS—Sets User-defined DNS Servers; Configuration Saved in the Flash
Command
s
Response
Espressif
AT+CIPSTATUS
STATUS:<stat>
+CIPSTATUS:<link ID>,<type>,<remote IP>,<remote port>,<local
port>,<tetype>
<stat>: status of the ESP32 Station interface.
•
‣ 2: The ESP32 Station is connected to an AP and its IP is obtained.
‣ 3: The ESP32 Station has created a TCP or UDP transmission.
‣ 4: The TCP or UDP transmission of ESP32 Station is disconnected.
‣ 5: The ESP32 Station does NOT connect to an AP.
<link ID>: ID of the connection (0~4), used for multiple connections.
•
<type>: string parameter, "TCP" or "UDP".
•
<remote IP>: string parameter indicating the remote IP address.
•
<remote port>: the remote port number.
•
<local port>: ESP32 local port number.
•
• <tetype>:
‣ 0: ESP32 runs as a client.
‣ 1: ESP32 runs as a server.
AT+CIPDOMAIN=<domain name>
+CIPDOMAIN:<IP address>
<domain name>: the domain name.
AT+CWMODE=1 // set Station mode
AT+CWJAP="SSID","password" // access to the internet
AT+CIPDOMAIN="iot.espressif.cn" // DNS function
Query Command:
AT+CIPDNS?
Function: Get the user-defined DNS
servers which saved in flash.
+CIPDNS:<DNS server0>
[+CIPDNS:<DNS server1>]
OK
24 97 !
5. TCP/IP-Related AT Commands
Set Command:
AT+CIPDNS=<enable>[,<DNS server0>,<DNS server1>]
Function: Set user-defined DNS servers.
OK
/! 2019.06
