No. Port Name
MIC IN
6
MIC OUT
7 HDMI port
8 USB port
9 Network port
10 Power input port
11

2.2.2 NVR54-16P-I/4416-16P-I/4432-I Series



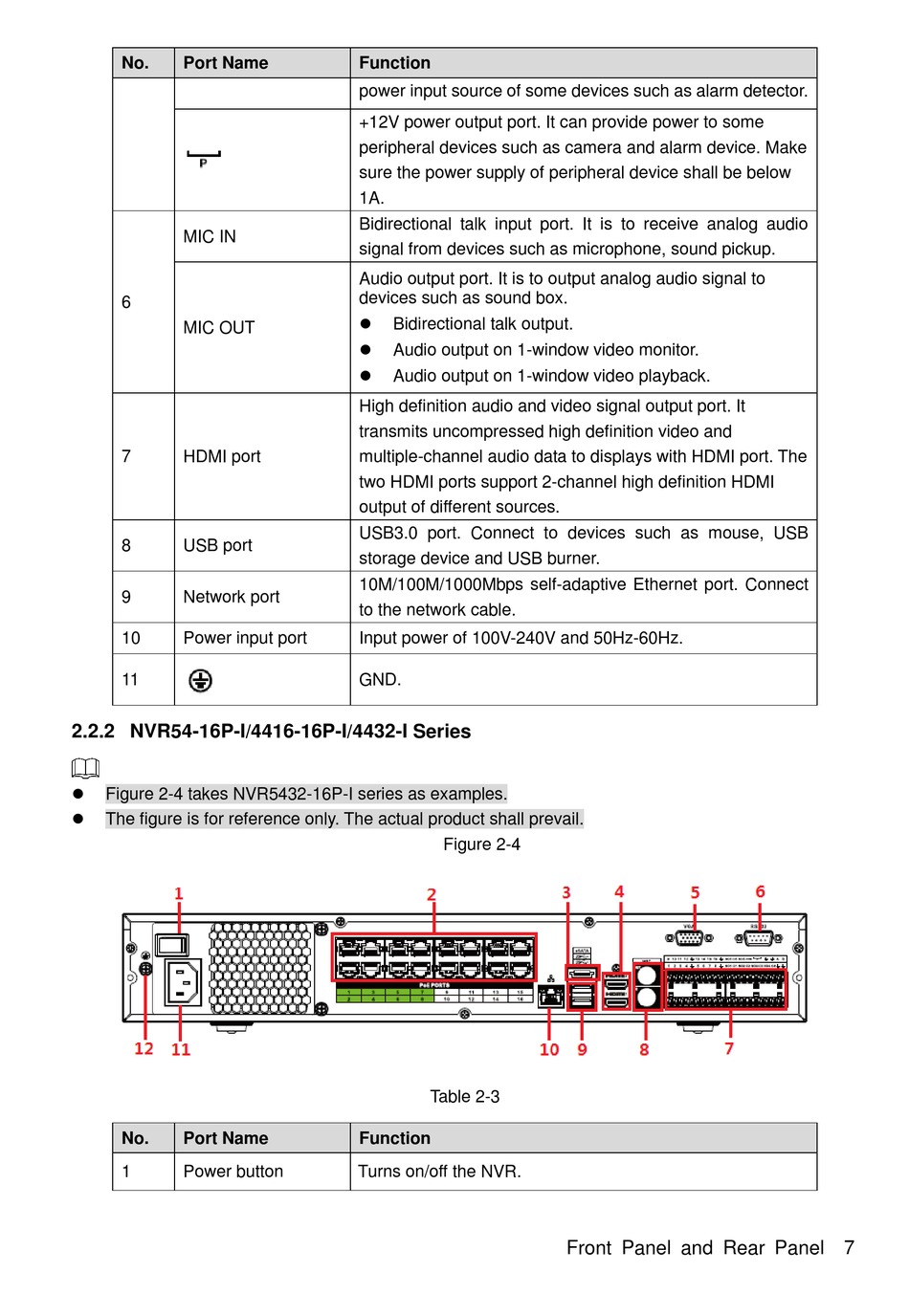

Figure 2-4 takes NVR5432-16P-I series as examples.

The figure is for reference only. The actual product shall prevail.
No. Port Name
1 Power button
Function
power input source of some devices such as alarm detector.
+12V power output port. It can provide power to some
peripheral devices such as camera and alarm device. Make
sure the power supply of peripheral device shall be below
1A.
Bidirectional talk input port. It is to receive analog audio
signal from devices such as microphone, sound pickup.
Audio output port. It is to output analog audio signal to
devices such as sound box.

Bidirectional talk output.

Audio output on 1-window video monitor.

Audio output on 1-window video playback.
High definition audio and video signal output port. It
transmits uncompressed high definition video and
multiple-channel audio data to displays with HDMI port. The
two HDMI ports support 2-channel high definition HDMI
output of different sources.
USB3.0 port. Connect to devices such as mouse, USB
storage device and USB burner.
10M/100M/1000Mbps self-adaptive Ethernet port. Connect
to the network cable.
Input power of 100V-240V and 50Hz-60Hz.
GND.
Figure 2-4
Table 2-3
Function
Turns on/off the NVR.
Front Panel and Rear Panel 7
