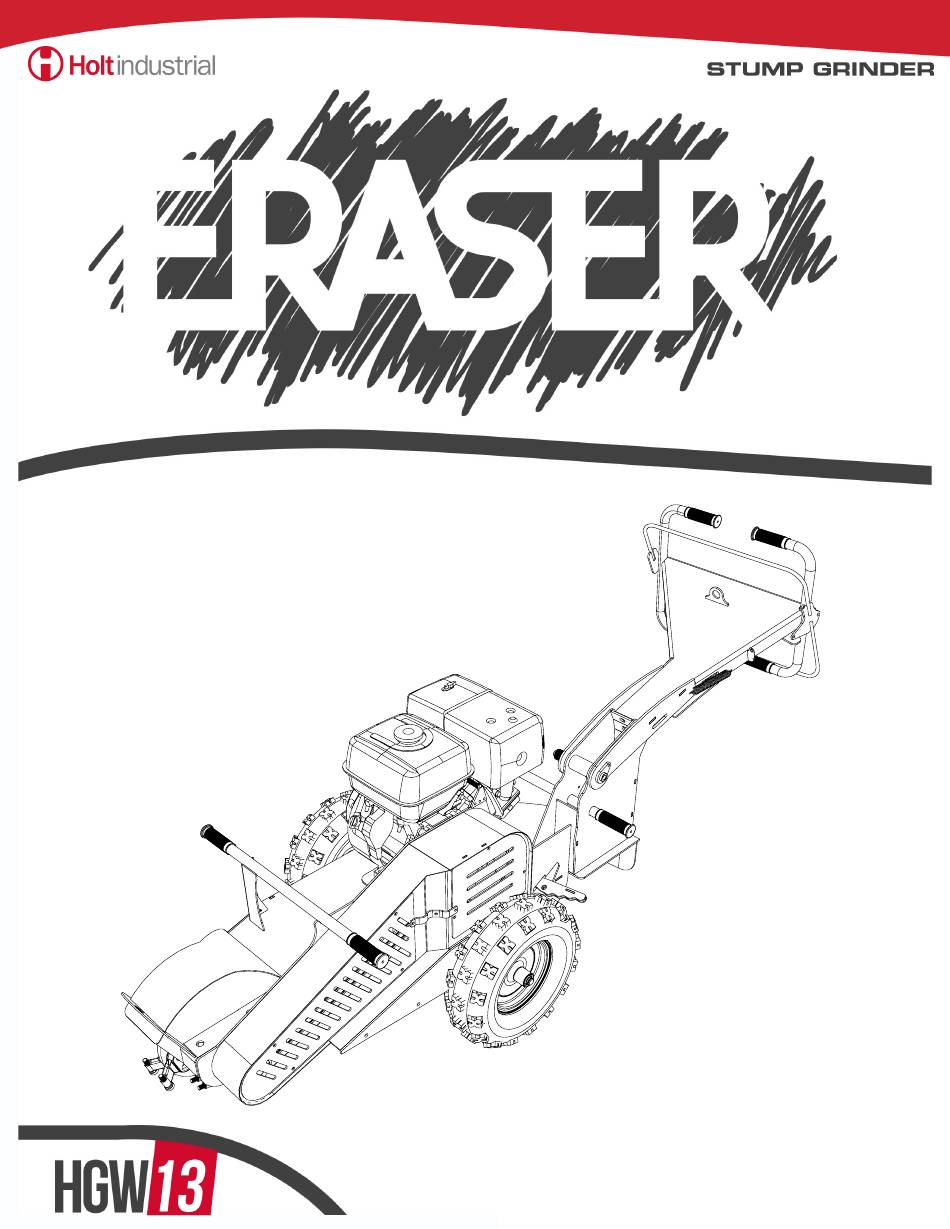

- Page 1 OPERATORS MANUAL DECEMBER 2018...
-
Page 2: Table Of Contents
... . Check Belt ... . Troubleshooting ... . HOLT HGW13 Stump Grinder Operator’s Manual... -
Page 3: Introduction
If you do not understand any part of this manual or you are Informative Labels are generally pictorial, have a white unsure about any aspect of this machine, contact Holt Industrial. Information provided in this manual was current as of the issue background and can vary to the number of panels. -
Page 4: Warranty
There are no warranties, expressed or implied other than those specified herein. For the nearest Authorized Service Center, call the manufacturer. HOLT HGW13 Stump Grinder Operator’s Manual... -
Page 5: Predelivery
3. PREDELIVERY This predelivery procedure must be performed and signed off by a qualified Holt Industrial representative and Holt Industrial _________________________________________________ trained owner, maintenance supervisor or operator at the time Holt Industrial Representative Signature of delivery and before going into service. -
Page 6: Components
A. Rotor B. Debris Guard C. Engine D. Safety Bar E. Operator Station Handle F. Wheel Lock G. Belt Guard H. Lift Handles Wheel Lock Lever J. Handle Height Lock K. Engine Stop Button HOLT HGW13 Stump Grinder Operator’s Manual... -
Page 7: Safety
NOTICE WARNING NOTICE - Indicates a situation that could Safely operate equipment. result in damage to the equipment or other property. Allow only properly trained and qualified personnel to operate this equipment. HOLT HGW13 Stump Grinder Operator’s Manual... -
Page 8: Replace Safety Signs
Keep rotor low and move at slow speeds on rough or uneven manual is not to replace any regulations or laws. terrain. Additional information may be found at: www.asae.org or www.osha.gov. If you do not understand any part of this manual, contact your dealer. HOLT HGW13 Stump Grinder Operator’s Manual... -
Page 9: Prevent Rollover
− Use caution when operating on slopes and do not operate on excessively steep slopes. Always use Holt Industrial replacement parts. 5.2.6 Avoid Power Lines And WARNING Underground Utilities Moving parts can crush and cut. -
Page 10: Hazards From Modifying Equipment
If any of these labels are missing or cannot be read, contact your dealer for replacement labels. HOLT HGW13 Stump Grinder Operator’s Manual... - Page 11 Decal A: D003069 Decal B: MTB-052 HOLT HGW13 Stump Grinder Operator’s Manual...
- Page 12 Decal C: MTB-176 Never allow riders; especially children on carrier or cutter. cutting HOLT HGW13 Stump Grinder Operator’s Manual...
- Page 13 Decal D: MTB-177 Decal F: MTB-178 Decal E: MTB-065 Decal G: MTB-185 Located Under Belt Guard MTB-065 HOLT HGW13 Stump Grinder Operator’s Manual...
-
Page 14: Sign Off Form
5.6 Sign Off Form Holt Industrial follows the general safety standards specified by the American Society of Agricultural and Biological Engineers (ASABE) and the Occupational Safety and Health Administration (OSHA). Anyone who will be using and/or maintaining the stump grinder must read and clearly understand ALL safety, operational and maintenance information presented in this manual. -
Page 15: Operation
Observing these people are in the vicinity. Debris can be precautions will extend the life of the carbide teeth and reduce thrown several feet from cutting area. operating expenses. Keep all shields in place. HOLT HGW13 Stump Grinder Operator’s Manual... -
Page 16: Grinding A Stump
6. Position rotor close to, but not touching stump. 7. Pull wheel lock lever (B) to lock left wheel. Lever is shown in the locked position. This will allow you to pivot stump grinder while grinding stump. HOLT HGW13 Stump Grinder Operator’s Manual... -
Page 17: Storage
16. Make multiple passes over the front edge of the stump, taking 3-6 inches on each pass. 17. Reposition stump grinder as needed until the entire stump has been removed to below ground level. HOLT HGW13 Stump Grinder Operator’s Manual... -
Page 18: Routine Maintenance
Engine must be running at operating speed (3600 rpm) when grinding a stump. WARNING Prevent serious injury or death. Wear proper protective equipment appropriate for the job. 7.2 Inspections Inspect the unit for worn or damaged parts. Repair or replace parts as needed. HOLT HGW13 Stump Grinder Operator’s Manual... -
Page 19: Clutch Inspection
This is normally due to grinding a stump at less that operating speed. Verify engine throttle is properly adjusted so engine runs at operating speed (3600 rpm) when safety bar is tight against handle. HOLT HGW13 Stump Grinder Operator’s Manual... -
Page 20: Rotate Cutting Teeth
5. Remove tooth from tooth holder. 6. Remove mounting hardware on tooth holders. Install new tooth holder and tighten mounting hardware. 7. Install tooth into new tooth holder. 8. Tighten tooth locknut to 65 lb/ft (88 Nm) of torque. HOLT HGW13 Stump Grinder Operator’s Manual... -
Page 21: Lubrication
7.8 Lubrication - Every 30 Hours 1. Lubricate rotor bearings (A). 3. Lubricate axles (C). 2. Lubricate pivot pin (B). HOLT HGW13 Stump Grinder Operator’s Manual... -
Page 22: Check Belt
Belt deflection (B) should be 0.5 in. (13 mm) at 3.0 lbs of force for a used belt or 4.25 lbs of force for a new belt. HOLT HGW13 Stump Grinder Operator’s Manual... -
Page 23: Troubleshooting
Drive belt loose. Tighten drive belt. Excessive vibration. Debris lodged in rotor. Lock out power and clear debris from rotor. Smoke emitting from engine exhaust Dirty or clogged engine air filter. Change engine air filter. pipe. HOLT HGW13 Stump Grinder Operator’s Manual... - Page 24 Holt Industrial 4575 Powell Rd., Wallenstein, Ontario Canada N0B 2S0 Phone - 844.444.4658 holtindustrial.com HOLT HGW13 Stump Grinder Operator’s Manual...
