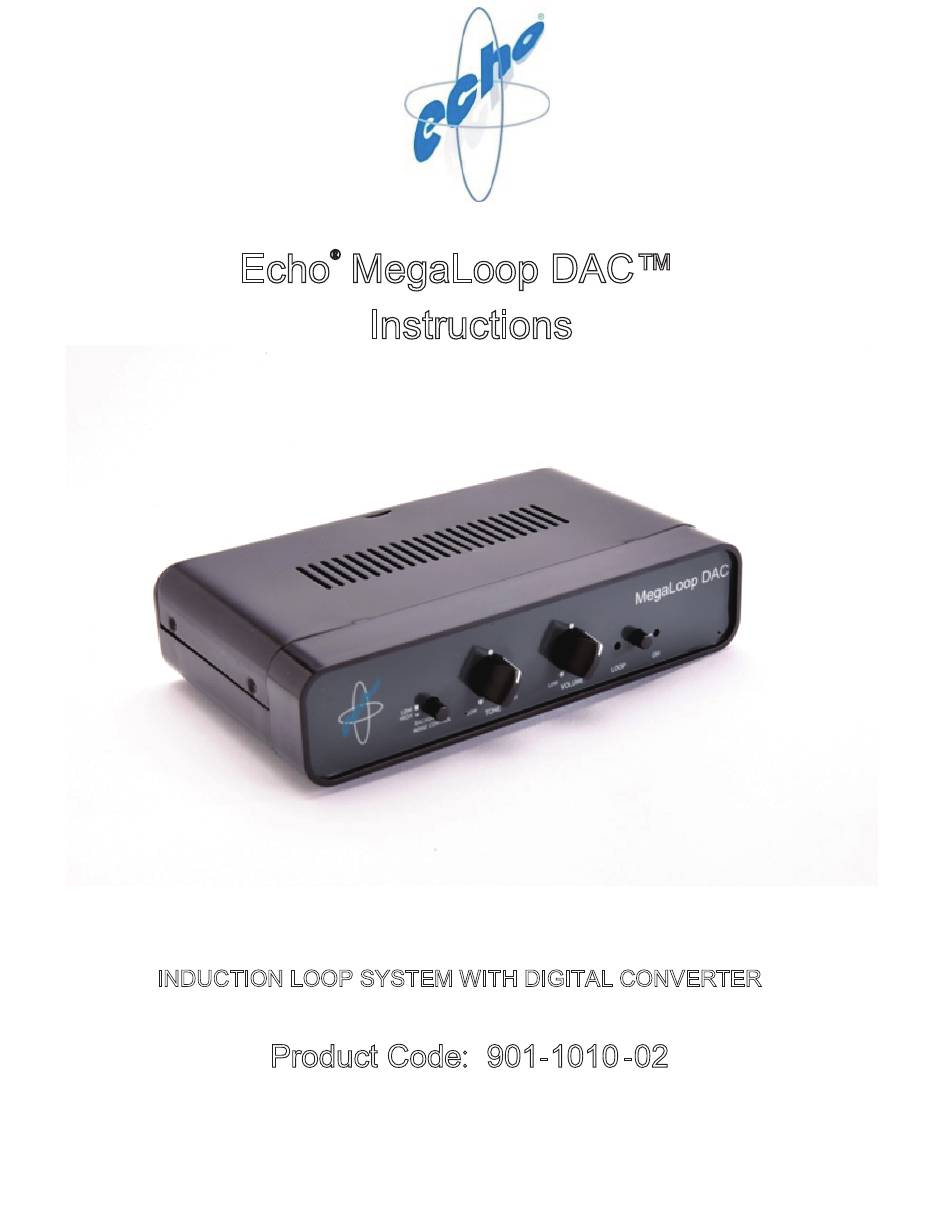

- Page 1 Echo MegaLoop DAC™ ® Instructions INDUCTION LOOP SYSTEM WITH DIGITAL CONVERTER Product Code: 901-1010 -02...
- Page 2 Installation Instructions Continued Installation Instructions Continued Connection Advice Analogue Connection Advice Digital/ Optical Audio Output 10 Important Information 11 Replacement Parts/ Technical Specification 12 Conformity ® Echo MegaLoop DAC Induction loop amplifier system with built in digital to analogue converter.
- Page 3 2. Using this product inappropriately could adversely affect your hearing. Please follow the step-by-step instructions carefully! 3. To cle an the MegaLoop DAC™ and its accessories, use only a soft cloth and an inorganic cleaner. 4. Only use the Hearing Products approved mains adapter. Do not use any other type of mains adapter.
- Page 4 Contents Picture: A. MegaLoop DAC Amplifier with Stand B. Mains Power Adapter C. Loop wire D. Clips E. Microphone F. SCART Plug G. Phono Phono Lead H. Toslink Cable...
-
Page 5: Installation Instructions
TV digital output socket to the MegaLoop DAC™ digital socket (4) (Fig. 2). *NOTE if no sound signal is going into the MegaLoop DAC™ the no signal LED (5) (Fig. 2) will be illuminated. When connecting to a TV that has analogue audio output... - Page 6 E into one of the microphone sockets on the MegaLoop™ DAC into one of the microphone sockets on the MegaLoop DAC (7&8) (Fig 2), then fix the microphone to the speaker of the TV (Fig 4) for an explanation.
- Page 7 Figure 3 Figure 4...
- Page 8 TV on and insert the 3.5mm jack plug into the headphone socket, if the sound is not cut from the speakers then connectfrom this and into the line in on the MegaLoop DAC™. You willthen have to adjust the headphone volume level on the TV, this...
- Page 9 Advice for connecting to a TV with Digital Optical Audio Output The Toslink cable should be connected to the digital audio output as shown above.
-
Page 10: Additional Information
ADDITIONAL INFORMATION: The MegaLoop DAC™ microphone is very sensitive, and too much volume out of the TV speaker can distort the sound in your hearing aid, when in the "T" position. The TV speaker's volume should be set at a level comfortable for a person with average hearing. -
Page 11: Replacement Parts
Replacement Parts: Code Item 1007 MegaLoop DAC Amplifier Only 1008 MegaLoop DAC Stand Loop wire – 38m Cable clips (pack of 50) 306/B Phono leads 201/B Scart plug 202/M Microphone on lead Toslink cable 570-1010-01 12V DC2A with UK plug... - Page 12 Hearing Products International Ltd. reserve sole right to alter prices, design and/or technical specifications or colours without prior notice. E & O.E. 06/12/16. 940-1012-01 MegaLoop DAC™ Instructions. Version 2.© Copyright Hearing Products International limited 2016. UK: Waste electrical products and batteries should not be disposed of with household waste.
