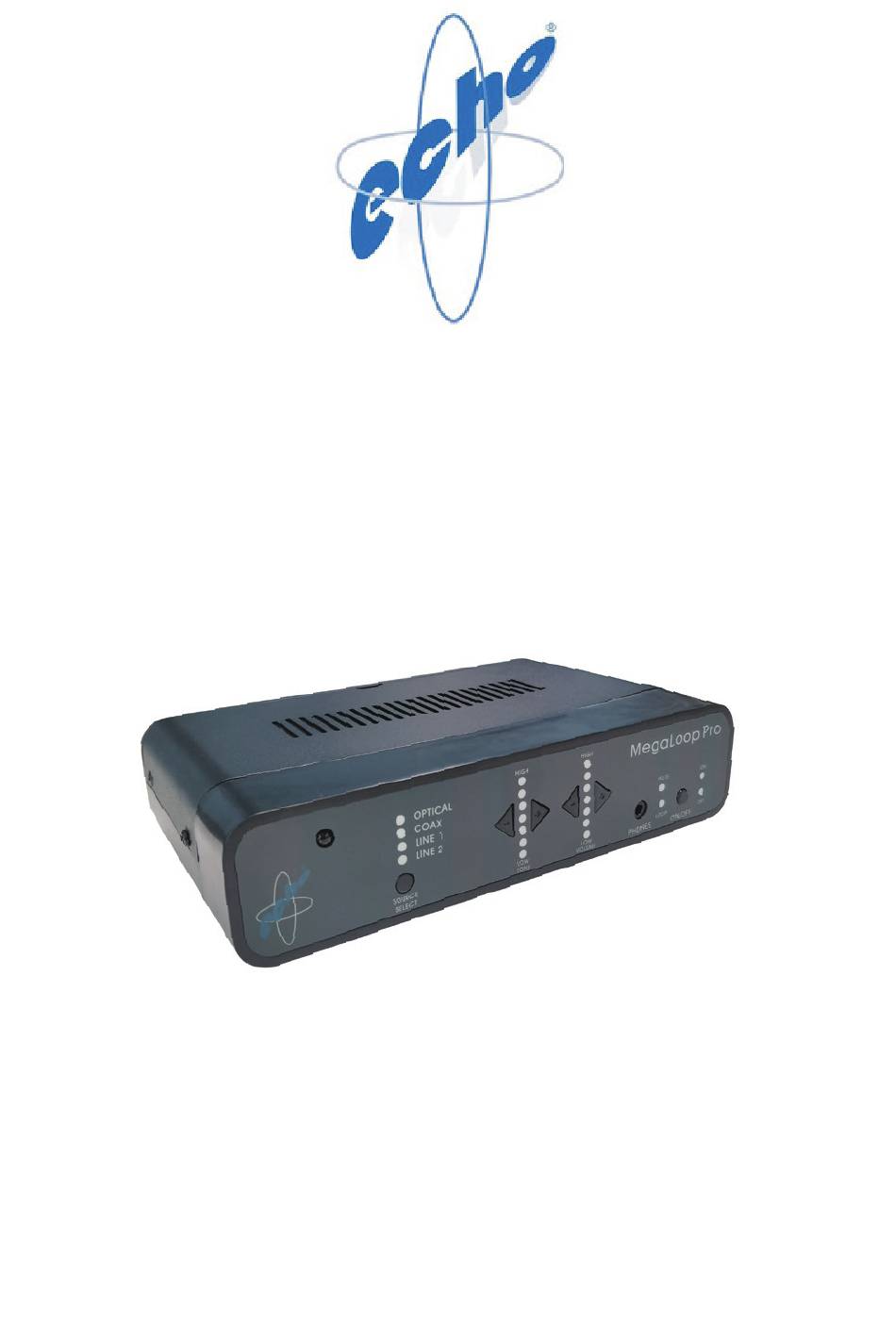

- Page 1 Echo® MegaLoop Pro™ Product Code: 901-1010-02 User Manual Hearing Products International Limited.
-
Page 2: Table Of Contents
13 Replacement Parts 14 Technical Specifications 15 Conformity Introduction The Echo® MegaLoop Pro Induction loop amplifier provides a practical solution for listening to TV or Audio equipment via the ‘T’ setting or hearing loop on your hearing aid. The induction loop system takes sound from your TV or other sound source and amplifies this sound signal around a wire fitted in a continuous loop around the edges of the room. - Page 3 2. Using this product inappropriately could adversely affect your hearing. Please follow the step-by-step instructions carefully! 3. To clean the MegaLoop Pro™ and its accessories, use only a soft cloth and an inorganic cleaner. 4. Only use the Hearing Products approved mains adapter. Do not use any other type of mains adapter.
-
Page 4: Contents Picture

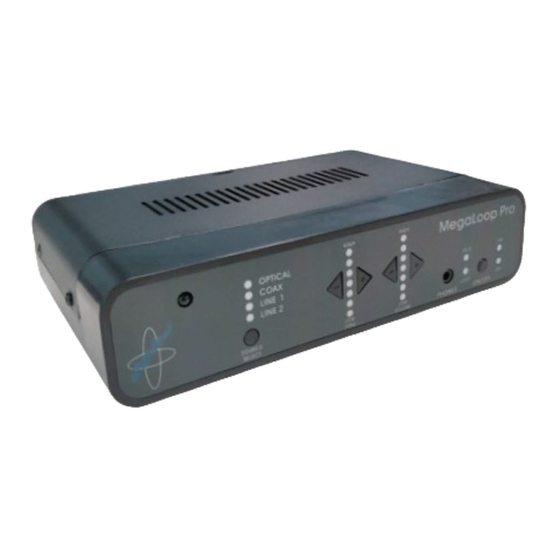

Contents Picture A. MegaLoop Pro Amplifier with Stand F. SCART Plug B. Mains Power Adapter G. Phono Phono Lead C. Loop Wire H. TOSlink Cable D. Clips I. Remote Control E. Microphone J. AAA Drycell (2) - Page 5 1. Digital audio and line input indicators 6. Mute Indicator 2. Audio Input Source Select 7. Loop Indicator 3. Tone Control 8. Power ON/ OFF 4. Volume Control 9. ON/OFF Indicator 5. Headphone Socket Pat.Nr. GB2469106 Proprietor: Hearing Products International Limited 15 16 17 18 19 20 11.
- Page 6 Set Up: 1. Position the amplifier (A) in a convenient and well-ventilated area that is easily accessible and near to the TV or other audio source. 2. Starting from the amplifier, run the loop cable (C) round the room. It may be fixed to a skirting board, picture rail or tucked under the carpet (use clips provided D).
-
Page 7: Connection
Connection: Direct Audio connections will provide the clearest quality sound without background noise affecting the clarity. 5. When connecting to a TV which has digital optical audio output, use the TOSlink cable (H) to connect from the TV digital output socket to the amplifiers optical socket (14). Using the source select (2) choose the setting for the digital audio connection in use. -
Page 8: Connection
NOTE: You may need to change the settings on your TV Digital output to PCM so that the digital audio out signal matches the loop amplifier. 7. When connecting to a TV that has analogue audio output sockets connect the red/ white phono audio connectors (G) to the output sockets on the TV and connect the other end to the line socket on the amplifier (16 or 17). -
Page 9: Power
10. Use the source select (2) on the front of the amplifier to select the correct audio connection in use. A red LED (1) will indicate which source has been selected until the power is disconnected at the mains socket. When the power is reconnected the default audio input is Optical. -
Page 10: Volume Control
•Set the TV or other audio equipment on to a normal listening level for other members of the household. •Select the sound source required from the source select buttons. •Set the volume control to minimum/ tone to normal (mid position). •Switch your hearing aid on to the ‘T’... -
Page 11: Gain Control
Tone Control Adjust to suit your own hearing loss. As the tone control (3) is moved the LED will travel up indicating the higher frequencies and travel down indicating the lower frequencies. Also adjustable by remote control. Gain Control The factory setting for gain control knob (13) is mid position. This position is pre-set for most TV Scart and audio output signals. -
Page 12: Remote
Sound Source Use the sound source (2) to select the connection made to the amplifier. When a channel is selected a red LED will light (1). Press the button again and the light will go out showing the channel is off. The default sound source is Optical. -
Page 13: Replacement Parts
Replacement Parts: Code Item 1009 MegaLoop Pro Amplifier & Remote 1010 MegaLoop Pro Base Stand Loop wire – 38m Cable clips (pack of 50) 306/B Phono leads 201/B Scart plug 202/M Microphone on lead Toslink cable 570-1013-01 12V DC3A with UK plug... -
Page 14: Technical Specifications
Technical Specifications: Power Supply 12v DC. 3.0 amp positive centre Output Output Current > 4amp peak current into 0.4ohms Frequency Response 100Hz to 5.0khz Tone Control Effect +/-3db range @200Hz and 5KHz Microphone 2 microphone inputs 3.5mm mono/ electret condenser Line Input 2 line-level input, 3.5mm stereo connector with gain control... -
Page 15: Conformity
Echo® is a trademark of Hearing Products International Limited. Hearing Products International Limited declares that the Echo® MegaLoop Pro™ complies with all relevant EU direc- tives. The full EU declaration of conformance for the Echo® MegaLoop Pro™ is available from Hearing Products International Ltd.
