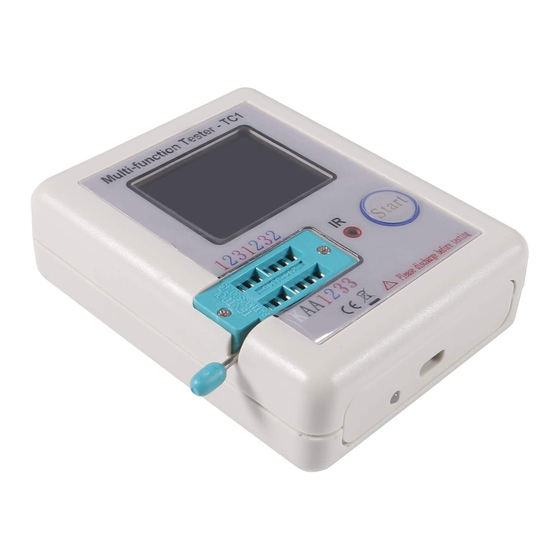

Multi-function Tester (TC-V2.12k)
1 Overview
1.1
Introduction

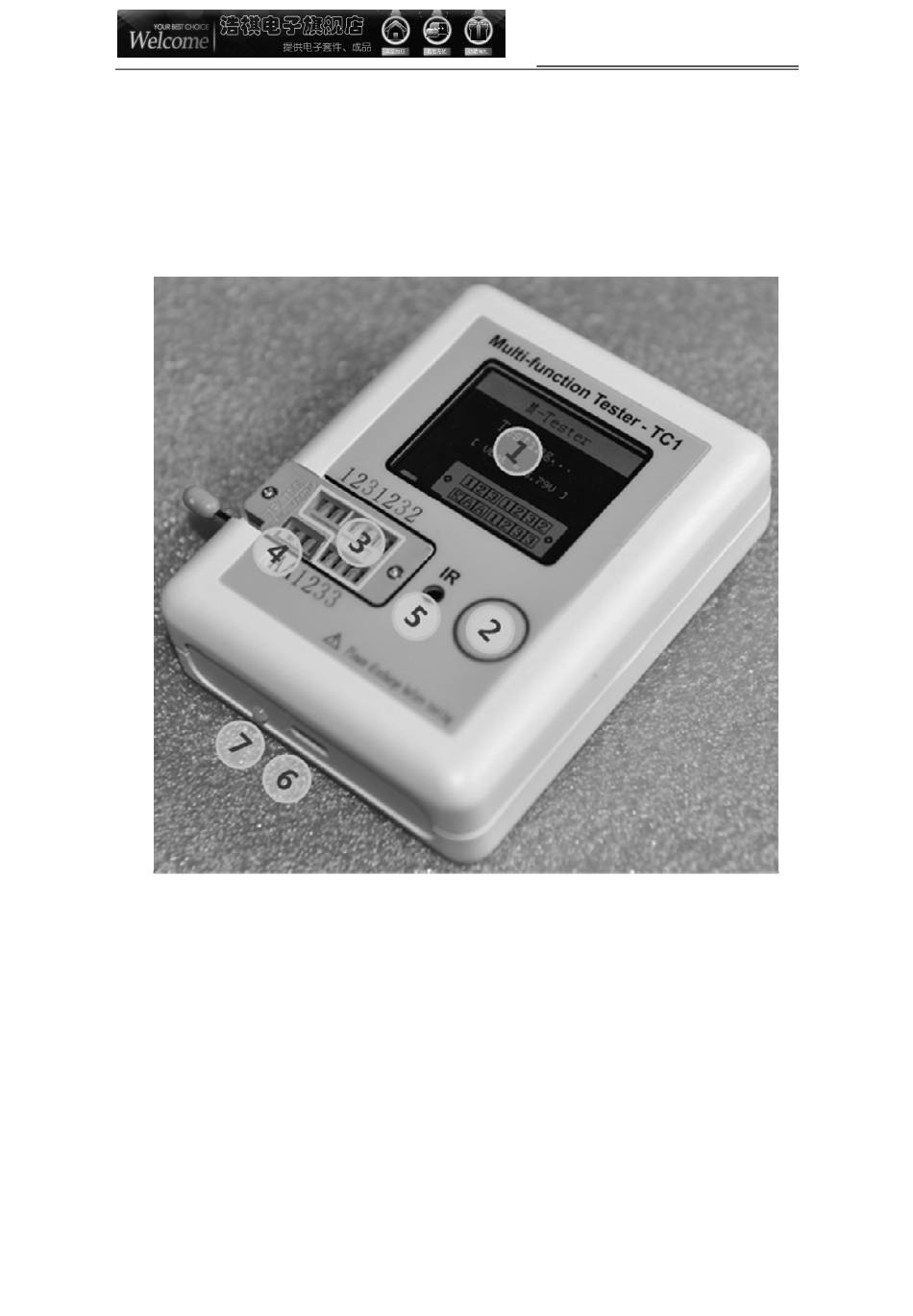

① - 160x128 TFT display
② - Multi function key
③ - Transistor test area
④ - Zener Diode test area
⑤ - IR receiver window
⑥ - Micro USB Charging Interface
⑦ - Charge indicator LED
2017-4-62015-8-8
版权所有，侵权必究 All rights reserved 第 14 页,共 25 页 Page 14 , Total25
多功能测试仪（TC-V2.12k）
Multi-function Tester (TC-V2.12k)
Advertisement
Summary of Contents for Circuit Specialists TC-V2.12k
- Page 1 多功能测试仪（TC-V2.12k） Multi-function Tester (TC-V2.12k) Multi-function Tester (TC-V2.12k) 1 Overview Introduction ① - 160x128 TFT display ② - Multi function key ③ - Transistor test area ④ - Zener Diode test area ⑤ - IR receiver window ⑥ - Micro USB Charging Interface ⑦...
- Page 2 多功能测试仪（TC-V2.12k） Multi-function Tester (TC-V2.12k) Features TC-V2.12k is a TFT graphic display Multifunction Tester. Transistor Tester Automatic detection of NPN and PNP bipolar transistors, N-channel and P-channel MOSFETs, JFETs, diodes (including double diodes), N- and P-IGBTs, resistors (including potentiometers), inductors, capacitors, thyristors, triacs and battery (0.1-4.5V)
- Page 3 多功能测试仪（TC-V2.12k） Multi-function Tester (TC-V2.12k) 2 Operating Instructions Key operational definitions Multi-function key has two actions: Short press: Press the key and not less than 10 ms, release key within 1.5 seconds Long press: Press the key more than 1.5 seconds...
- Page 4 多功能测试仪（TC-V2.12k） Multi-function Tester (TC-V2.12k) Battery BJT(Bipolar Junction Transistor) Diode 版权所有，侵权必究 All rights reserved 第 17 页,共 25 页 Page 17 , Total25 2017-4-62015-8-8...
- Page 5 多功能测试仪（TC-V2.12k） Multi-function Tester (TC-V2.12k) 2 Diodes MOSFET 版权所有，侵权必究 All rights reserved 第 18 页,共 25 页 Page 18 , Total25 2017-4-62015-8-8...
- Page 6 多功能测试仪（TC-V2.12k） Multi-function Tester (TC-V2.12k) Thyristor Triac Capacitor Resistor 版权所有，侵权必究 All rights reserved 第 19 页,共 25 页 Page 19 , Total25 2017-4-62015-8-8...
- Page 7 多功能测试仪（TC-V2.12k） Multi-function Tester (TC-V2.12k) Inductor Selftest Short all three Probes, short press the multifunction key, the tester will be automatically calibrates itself. In addition to the calibration process when prompted disconnect external wiring short(Isolate the probes), without the need for other operations.
- Page 8 多功能测试仪（TC-V2.12k） Multi-function Tester (TC-V2.12k) Selftest End Warning: Do not carry out other operations in the calibration process, so as not to affect the calibration accuracy! Detect Zener diode In the power off state or the detection is completed, put the Zener diode into the Zener diode test area of test seat, and press the locking handle, short press the multifunction key, the tester automatically measure, graphical display of measurement results when testing is complete.
-
Page 9: Power Off
多功能测试仪（TC-V2.12k） Multi-function Tester (TC-V2.12k) IR decoder After the component detection is completed, the infrared remote control at the tester "IR" test hole, press the remote control key, the tester will be display the user code & data code and the corresponding infrared waveform after the successful decoding. -
Page 10: Charging The Battery
多功能测试仪（TC-V2.12k） Multi-function Tester (TC-V2.12k) Warning: Adjust the automatic shutdown time required to open the housing, and use an electric soldering iron solder the jumpers. Attention：Please do ESD protection! Manual shutdown Long press the multifunction key to force a shutdown in any state, while the measuring element is included. -
Page 11: Performance Parameters
多功能测试仪（TC-V2.12k） Multi-function Tester (TC-V2.12k) 3 Performance Parameters Multifunction Tester can automatically identify elements and automatic detection of pin layout, and automatic switching range. The main performance parameters are as follows: Component Range Parameter Description hFE(DC Current Gain), Ube(Base-Emitter Voltage), Ic(Collector Current), Iceo(Collector... -
Page 12: Packing List
多功能测试仪（TC-V2.12k） Multi-function Tester (TC-V2.12k) Note④: ESR, Vloss displayed only when effective Note⑤: Measurement of inductors with resistance below 2100Ω 4 FAQ Question Cause Solution Built-in Li-ion Battery Charging the Li-ion Battery, charging methods Cannot power on is dead see section 2.9...
