- Page 1 FRANEK General manual and warranty card...

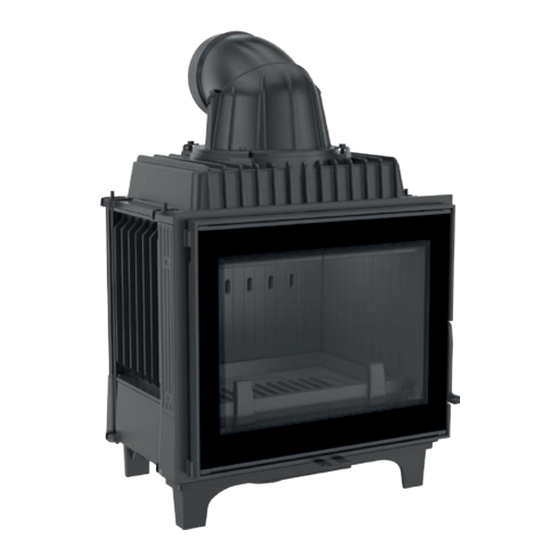

- Page 2 Series of cast iron air inserts: FRANEK 10, Franek 12, Franek 14 FRANEK 10 Dimensions FRANEK 10...
- Page 3 FRANEK 12 Dimensions FRANEK 12...
- Page 4 FRANEK 14 Dimensions FRANEK 14...
- Page 5 The dimensions of the combustion chamber Franek 10, 12, 14:...
-
Page 6: General Information
Thank you for the confidence shown to us by purchasing the fireplace insert manufactured by Kratki.pl. Before fitting and using the insert, please read these instructions. General information NOTE: To avoid the risk of fire, the device must be installed in accordance with the current stan- dards and the technical regulations referred to in the manual. - Page 7 An example of connecting an Lucy insert with a chimney Mortar Rosette Cleaner diameter of the flue connection Non-combustible material Flue duct Cool combustion air inlet Kontrolę przewodu kominowego należy zlecić mistrzowi kominiarskiemu, a ewentualne przeróbki mogą być wykonane przez uprawnioną firmę, tak by zostały spełnione wymogi zawartew PN- -89/b-10425.
- Page 8 Requirements and Tests. ” 2. Intended use The fireplace inserts manufactured by Kratki.pl use solid fuels with manual feeding fuel and lockable doors. They are designed for trimming or locating into a niche. Hardwood to be burnt includes: hornbeam, oak, beech, acacia, elm, maple, birch, with humidity <20% (lignite briquettes and wood...
- Page 9 800 cm base thermal protection A TTENTION !!! Selection of grilles Wkład Franek 10, 12, 14. Intake and outlet grilles: Intake and outlet grilles: In the lower part of the trim of a fireplace insert, provided an air hole (s) to supply air required for heating through the trim - air intake (lower grilles).
- Page 10 Only grilles without blinds are allowed in the fireplace hood. DET AILS FOR FRANEK 10 - 10 kW Effective area of grilles, inlet / outlet: The recommended effective area of inlet and outlet grilles for cast iron air inserts up to 10 kW is: air inlet (lower venting grilles) >...
- Page 11 Insert structure / FRANEK cross-section movable, two-piece iron flue gas exhaust with adjustable setting of 360° the body and the front of the insert made of steel densely spaced radiators - thanks to them, the firepla- ce transfers more heat to the environment deflector - extends the exhaust route, combustion is more environment-friendly standard inserts are fitted with a single decora-...
- Page 12 4. Mounting and installation of a fireplace insert Installing a fireplace insert should be performed by a person with licenses for performing this type of assembly work. It is a condition of safe use of the fireplace insert. The installer should confirm the correct execution of the assembly by signing the stamped warranty card.
- Page 13 The DGP installation requires: • ducts, pipes, passages, reducers, distribution boxes, filters, all made of galvanized steel;• kratki kominkowe lub anemostaty jako zakończenie przewodów dystrybucyjnych; • fireplace grilles or diffusers as the end of distribution ducts;...
- Page 14 5. Commissioning and operation of a fireplace insert 5.1. General comments; Fireplace inserts are designed for burning wood with a moisture content of 20% and lignite briqu- ettes. The use of coal, coke, coal derivatives, plastics, garbage, rags and other flammable substances is prohibited.
-
Page 15: Operation Principle
Operation principle. Diagram of air and adjustment - FRANEK Combustion air is supplied only from the outside. The standard insert has a built-in air intake from the outside - intake connector diameter of fi 125 mm. The separation of air to the combustion chamber takes place in the space (air chamber) below the lower insert plate. - Page 16 Air circulation / adjustment Triple aeration enables combustion of gases and particles in fuel gases. It improves the insert efficien- cy, saves wood, making combustion in the insert clean and economical. Adjusting aeration of the combustion chamber is independent of all three systems. Due to that the user has a better control over combustion.
- Page 17 Operational safety During operation and use of the fireplace insert, stick to the rules that assure the basic security conditions: • Refer to the owner’s manual of the fireplace insert to strictly observe its provisions; • The insert must be installed and ignited by an installer having appropriate qualifications, experience in operating fireplace inserts;...
- Page 18 a) Smoke return with the fireplace door open: - too sudden opening of the door (open the door slowly); - - if an air vent has been installed as a draught regulator - open the air vent every time you open the insert door;...
- Page 19 Act of 27 July 2002 on special conditions of consumer sales. In order to constantly improve the quality of its products, Kratki.pl reserves the right to modify the devices without prior notice.
-
Page 20: Support Services
SELLER Seller’s seal and signature; Name: Address: Tel/fax: Date of sale: INSERT BUYER The fireplace insert should be installed in accordance with Date and legible signature of the Buyer; the rules and regulations valid in the country, the manual provisions by the installer having required qualifications. I hereby declare that having read the operating manual and the guarantee conditions in case of failure to observe the provisions included there the producer bears no liability for... - Page 21 REGISTER OF SMOKE DUCT INSPECTIONS Inspection during the insert installation Date, signature and seal of the chimney sweeper Date, signature and seal of the chimney sweeper Date, signature and seal of the chimney sweeper Date, signature and seal of the chimney sweeper Date, signature and seal of the chimney sweeper Date, signature and seal of the chimney sweeper Date, signature and seal of the chimney sweeper...
