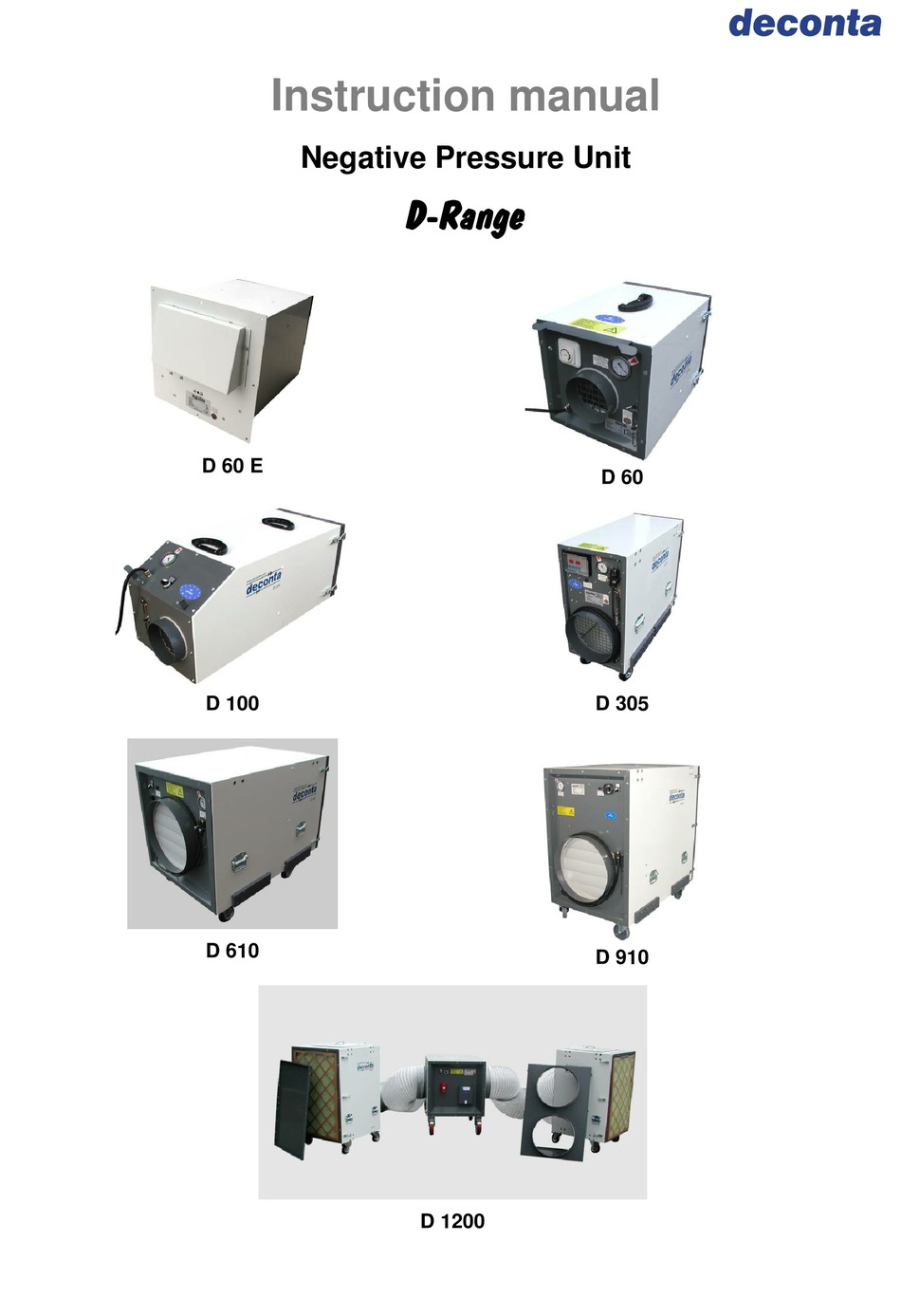

  • Page 1 Instruction manual Negative Pressure Unit D-Range D 60 E D 60 D 100 D 305 D 610 D 910 D 1200...
  • Page 2: Table Of Contents

    Instruction manual Negative Pressure Unit D-range Table of contents on page Basic safety advices Transport and storage Delivery Transport Storage Volume of delivery at purchase and rent Volume of delivery Return of delivery after ending of the rental time Technical description Intended use Unit description Control ON / OFF...
  • Page 3: Basic Safety Advices

    In the event of non-observance, deconta assumes no liability.
  • Page 4: Transport And Storage

    2 Transport and storage 2.1 Delivery The negative pressure unit is delivered from deconta works Isselburg on a pallet. In order to protect the device against climatic influences it is wrapped with a plastic film. Transport damages have to be documented at once during the handing over of the carrier or another supplier.
  • Page 5: Volume Of Delivery At Purchase And Rent

    Instruction manual Negative Pressure Unit D-range 3 Volume of delivery at sale or rent 3.1 Volume of delivery The volume of delivery of a negative pressure unit unless no other agreements have been made, consists of:  Negative pressure unit ...
  • Page 6: Technical Description

    Instruction manual Negative Pressure Unit D-range 4 Technical description 4.1 Use according to appropriateness The negative pressure unit of the D-Series serves for the filtration of asbestos contaminated air, in temperature rage up +45 °C, with external exhaust for the air. During asbestos sanitation works within closed rooms, you must avoid that asbestos fibres leave the sanitation area and in this way endanger humans and the environment.
  • Page 7: Control On / Off

    Instruction manual Negative Pressure Unit D-range You can obtain the control of the negative pressure unit optionally in following models: D 60 E:  ON / OFF  manual, continuously variable control SE D 100  ON /OFF  manual, continuously variable control SE ...
  • Page 8: Control Se

    Instruction manual Negative Pressure Unit D-range 4.4 Control SE For the power regulation the negative pressure unit is delivered in series with a manual continuously variable control. 4.5 Control SRE For the power regulation the negative pressure unit is delivered in series with an electronic control, in order to measure and to regulate the negative pressure.
  • Page 9: Filter Description/ Classification

    Instruction manual Negative Pressure Unit D-range 4.6 Description of the filter / classification Integrated in the unit is a 3-step filtering combination (D 60 and D 60 E only 2-steps). In particular: Pre- and intermediate filter Pre-filter Intermediate filter Filter class according to DIN 24185 / EN G3 / EU3 G4 / EU4 Cardboard frame,...
  • Page 10 Instruction manual Negative Pressure Unit D-range Hepa filter, suspended matter filter (S) Frame Plastic Filter medium Micro fiber glass paper Sealing mass Polyurethane Seals Polyurethane Filter surface  D 60 E 2 m²  D 60 2 m²  D 100 7 m²...
  • Page 11: Instructions Regarding Filter Change

    Instruction manual Negative Pressure Unit D-range 4.7 Information regarding the change of filter The frequency of the change of filter depends on the degree of pollution of the filter. If the sealing up of the filter increases (contamination of the filter), the air capacity decreases. For the control of the filter during the operation, the device is equipped with a manometer (for D 60 E a signal light).
  • Page 12: Stacking Of Several Units

    Instruction manual Negative Pressure Unit D-range 4.8 Piling of several devices The negative pressure units of the D-range can be pilled (except D 60 E) in order to obtain a floor space as small as possible. D 60 and D 100 are pilled thanks to an anti-skidding centering facility. D 305, D 610, D910 and D 1200 are connected thanks to a tight and solid screwed pilling system Pilling system...
  • Page 13: Technical Data

    Instruction manual Negative Pressure Unit D-range 5 Technical data 5.1 Fan characteristic curve D 60 E and D 60 100 200 300 400 500 600 700 800 900 1000 1100 1200 Volume flow V m³/h => Technical data: Voltage: 230 V Frequency: 50 Hz Speed:...
  • Page 14: Fan Characteristic Curve D 100

    Instruction manual Negative Pressure Unit D-range 5.2 Fan charasteristic curve D 100 130 200 300 400 500 600 700 800 900 1000 1100 Volume flow V m³/h => Technical data: Voltage: 230 V Frequency: 50 Hz Speed: 2850 U/min Air discharge: 1200 m³/h free exhausting max.
  • Page 15: Fan Characteristic Curve D 305

    Instruction manual Negative Pressure Unit D-range 5.3 Fan characteristic curve D 305 1300 1250 1200 1150 1100 1050 1000 1000 1500 2000 2200 Volume flow V m³/h => Technical data: Voltage: 230 V Frequency: 50 Hz Speed: 2850 U/min Air discharge: 2400 m³/h free exhaust max.
  • Page 16: Fan Characteristic Curve D 610

    Instruction manual Negative Pressure Unit D-range 5.4 Fan characteristic curve D 610 1800 1700 1600 1500 1400 1300 1200 1100 1000 1000 2000 3000 4000 5000 7000 Volume flow in m³/h => Technical data: Voltage: 230 V Frequency: 50 Hz Speed: 2800 U/min Air discharge:...
  • Page 17: Fan Characteristic Curve D 910

    Instruction manual Negative Pressure Unit D-range 5.5 Fan characteristic curve D 910 2000 1900 1800 1700 1600 1500 1400 1300 1200 1100 1000 700 1000 2000 3000 4000 5000 6000 7000 8000 Volume flow in m³/h => Technical data: Voltage: 230 V Frequency: 50 Hz...
  • Page 18: Fan Characteristic Curve D 1200

    Instruction manual Negative Pressure Unit D-range 5.6 Fan characteristic curve D 1200 3000 2500 2000 1500 1000 1000 2000 3000 4000 5000 6000 7000 8000 9000 10000 11000 12000 13000 14000 Volume flow in m³/h => Technical data: Voltage: 400 V Frequency: 50 Hz Speed:...
  • Page 19: Performance Data

    Instruction manual Negative Pressure Unit D-range 5.7 Power data D 60 E D 60 D100 D305 D 610 D 910 D 1200 Air power free 1200 2400 6000 7500 15000 blowing in m³/h Air power with filter 2000 4500 6000 12000 in m³/h Power connection...
  • Page 20: Power Loss In Hose Lines

    Instruction manual Negative Pressure Unit D-range 5.9 Power loss in hose lines Following factors have adverse influence:  Hose lines too long  Bends and bows in the hose lines  Cross-section narrowing of the hose lines. 5.10 Resistance diagram for hose lines ...
  • Page 21: Assembly Instructions

    The negative pressure unit is delivered ex-works and ready for immediate operation. If there are visible damages, do not operate the device. Please contact the deconta GmbH at once. 6.1 Assembly instructions with the example of D 610 (the procedure for D 60, D 100, D 305 and D 910 is identical)
  • Page 22: Assembly Instructions With The Example Of D 1200

    Instruction manual Negative Pressure Unit D-range 6.2 Assembly with the example of D 1200 Exit flange Transport lid 2 Transport lid 2 Transport lid 1 Exit flange  Place the filter unit at approximately 100 mm in sanitation area and fix it ...
  • Page 23 Instruction manual Negative Pressure Unit D-range Clean area Sanitation area Exhaust hose Attention: Connect the filter housings according to the draft with the ventilation unit and let rise up about 100mm in the sanitation area Page 23...
  • Page 24: Assembly Of The Optional Annex Housing (Sna+P) With The Example Of D 610

    Instruction manual Negative Pressure Unit D-range 6.3 Assembly of the optional attachment housing (SNAP) following the example of D 610 Optionally for a second hepa filter (Double filtration), additional activated carbon filter or pocket filter  Dismount the prefilter and unscrew the security corners (if existing) Safety corners ...
  • Page 25: Initial Operation

    Instruction manual Negative Pressure Unit D-range 7 Initial operation 7.1 Control ON / OFF The negative pressure unit D 610 is delivered in series with an ON / OFF switch.  Connect with the current  Switch the ON / OFF switch 7.1.1 Negative pressurisation ...
  • Page 26: Control Sre

    Instruction manual Negative Pressure Unit D-range 7.3 Control SRE For the power regulation the negative pressure unit is delivered in series with an electronic control, in order to measure and to regulate the negative pressure. The negative pressure is measured between the dirty area and at a reference point to be determined.
  • Page 27 Instruction manual Negative Pressure Unit D-range Starting position:  Connect to the current  Chose a measuring point in the dirty area and connect the PE-tube 8 x 1 to the negative pressure connection  Chose the measuring point in the clean area (adjoining room) and connect the PE- tube 8 x 1 to the connection atmosphere Connection Atmosphere...
  • Page 28: Maintenance

    Instruction manual Negative Pressure Unit D-range Manual - operation In manual operation the power of the ventilator is given with the keys - and + in maximum 7 steps. The display 2 represents this value in % In the display 1 you can see which negative pressure is created with the adjusted power. Important: Im „Manual“...
  • Page 29: Filter Change

    Instruction manual Negative Pressure Unit D-range 8.3 Change of filter Attention:  Contaminated filters have to be changed under all corresponding safety measures  Filter change only with a machine switched off  Use approved filters only  Do not use bonding agents on the machine Remove the hepa-filter: ...
  • Page 30: Possible Failures And Their Repairs

    Device does not Have power source examined and repaired Current source not correct work by an expert. Device does not Parts of the negative Have the device repaired by deconta work pressure unit defective or an accredited workshop. Page 30...
  • Page 31: Circuit Diagrams

    Instruction manual Negative Pressure Unit D-range 10 Circuit diagrams 10.1 Circuit diagram D 60 E Page 31...
  • Page 32: Circuit Diagram D 60 Se

    Instruction manual Negative Pressure Unit D-range 10.2 Circuit diagram D 60 SE Page 32...
  • Page 33: Circuit Diagram D 100 Ein / Aus

    Instruction manual Negative Pressure Unit D-range 10.3 Circuit diagram D 100 ON / OFF Page 33...
  • Page 34: Circuit Diagram D 100 Se

    Instruction manual Negative Pressure Unit D-range 10.4 Circuit diagram D 100 SE Page 34...
  • Page 35: Circuit Diagram D 100 Sre

    Instruction manual Negative Pressure Unit D-range 10.5 Circuit diagram D 100 SRE Page 35...
  • Page 36: Circuit Diagram D 305 Ein / Aus

    Instruction manual Negative Pressure Unit D-range 10.6 Circuit diagram D 305 ON / OFF Page 36...
  • Page 37: Circuit Diagram D 305 Se

    Instruction manual Negative Pressure Unit D-range 10.7 Circuit diagram D 305 SE Page 37...
  • Page 38: Circuit Diagram D305 Sre

    Instruction manual Negative Pressure Unit D-range 10.8 Circuit diagram D 305 SRE Page 38...
  • Page 39: Circuit Diagram D 610 Ein / Aus

    Instruction manual Negative Pressure Unit D-range 10.9 Circuit diagram D 610 ON / OFF Page 39...
  • Page 40: Circuit Diagram D 610 Se

    Instruction manual Negative Pressure Unit D-range 10.10 Circuit diagram D 610 SE Page 40...
  • Page 41: Circuit Diagram D 610 Sre

    Instruction manual Negative Pressure Unit D-range 10.11 Circuit diagram D 610 SRE Page 41...
  • Page 42: Circuit Diagram D 910 Se

    Instruction manual Negative Pressure Unit D-range 10.12 Circuit diagram D 910 SE Page 42...
  • Page 43: Circuit Diagram D 910 Sre

    Instruction manual Negative Pressure Unit D-range 10.13 Circuit diagram D 910 SRE Page 43...
  • Page 44: Circuit Diagram D 1200 Se

    Instruction manual Negative Pressure Unit D-range 10.14 Circuit diagram D 1200 SE Page 44...
  • Page 45: Circuit Diagram D 1200 Sre

    Instruction manual Negative Pressure Unit D-range 10.15 Circuit diagram D 1200 SRE Page 45...
  • Page 46: Sound Level Measuring

    Instruction manual Negative Pressure Unit D-range 11 Sound level measuring Status: Engine power 100%, outside Value in dB (A) Device D 60 E D 60 D 100 D 305 D 610 D 910 D 1200 The setting of a silencer reduces the sound level in due consideration of a loss of power. Page 46...
  • Page 47: Declaration Of Conformity

    W. Weßling Isselburg, 25.03.2015 The copyright of this instruction manual remains with deconta. This manual is intended for assembly, operation and maintenance personnel. It contains instructions and drafts of technical nature which may neither be distributed nor used in any unauthorised way for competitive purposes or passed on to others.
