Summary of Contents for Lehle PARALLEL SW II

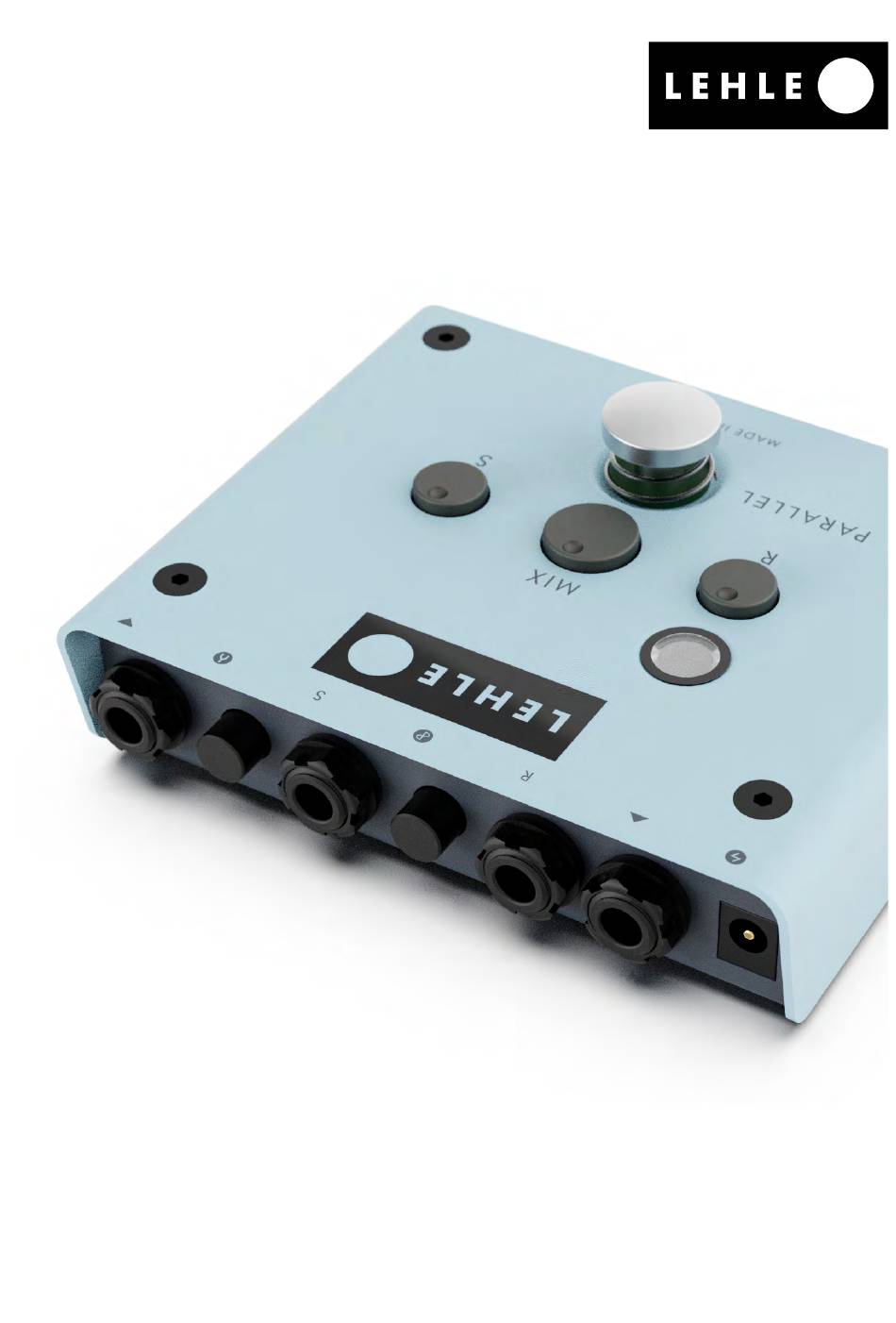

- Page 1 OPERATING INSTRUCTIONS LEHLE PARALLEL SW II...
- Page 2 LEHLE PARALLEL SW II has been made and tested in Germany. Your LEHLE PARALLEL SW II is of ex- tremely robust design and construction, to make sure that you get absolutely years and years of enjoyment from it. If...
-
Page 3: Table Of Contents
Introduction Technical data General description Selecting the foot switch mode Typical uses of the LEHLE PARALLEL SW II as parallel effects looper parallel effects looper in the loop of an amplifier mixer for two input signals mixer for two pickups of an instrument Signal flow diagram LEHLE GmbH ·... -
Page 4: Introduction
100,000 Hz. The easy-action mushroom-shaped but- ton characteristic of LEHLE products is With the new LEHLE PARALLEL SW II it is mounted in the cover, so that your foot now possible to combine mono and ste- pressure is transmitted indirectly, via a reo signals. - Page 5 Placing no limitations on your creativity! The LEHLE PARALLEL SW II has three op- We take care of your signal so that you erating modes, making the switch work can take care of the music.
-
Page 6: Technical Data
0.003 % (0 dBu, 1 kHz) Frequency range 20 Hz – 100 kHz Impedance input 2 MΩ Impedance return 2 MΩ Impedance send 220 Ω Impedance output 220 Ω Max gain +/-15 dB LEHLE GmbH · Germany · www.lehle.com · support@lehle.com... -
Page 7: General Description
The LEHLE PARALLEL SW II has a high- If you want to use your LEHLE PARALLEL impedance input and can therefore ac- SW II to inject an external effect into the... - Page 8 (TRS). mixing the original signal with the return If the LEHLE PARALLEL SW II is activated signal - this sound is usually felt to be too the input signal will be sent in mono to “thin”...
- Page 9 Connect the output socket to the Return input of your amplifier if you want to use If the LEHLE PARALLEL SW II is being used the LEHLE PARALLEL SW II to inject an to mix two pickups from one instrument, external effect into your amplifier’s serial...
- Page 10 12. TRUE-BYPASS SWITCH applies that the return (5) is active. Here you can switch. 9. SEND CONTROLLER The LEHLE PARALLEL SW II switches all You can set the level of the Send signal audio signals controlled by a microcon- here.
- Page 11 If required, mount the LEHLE PARALLEL SW II to a pedalboard using the mount- ing kit. The LEHLE PARALLEL SW II can be mount- ed to a plate such as a pedalboard using the two holes in the bottom of the pedal.
-
Page 12: Selecting The Foot Switch Mode
After 2x flashes you‘re in the Momentary Mode and after 3x it‘s the Mixed Mode. ••• Mixed Mode: 6. The LEHLE PARALLEL SW II turns off A mix between latching and momentary. and reboots. A short press lets the foot switch act as latching, a longer press is momentary. - Page 13 TYPICAL USES LEHLE PARALLEL SW II AS PARALLEL EFFECTS LOOPER DEVICE CONNECTION Input Instrument Send Input effect(s) Return Output effect(s) M I X Output Amplifier PA R A L L E L M A D E I N G E R M A N Y...
- Page 14 No sound losses in Bypass mode: The LEHLE-Switch (12), working with a micro- 1. Connect your instrument to the Input socket (1) of the LEHLE PARALLEL SW II. controller and an intelligent True-Bypass- 2. Connect your amplifier to the Output...
- Page 15 LEHLE PARALLEL SW II AS PARALLEL EFFECTS LOOPER IN THE LOOP OF AN AMPLIFIER DEVICE CONNECTION Send Return Input Amplifier send Send Input effect(s) Return Output effect(s) M I X Output Amplifier return PA R A L L E L...
- Page 16 4. Connect the output of your effects unit Check the overall sound for any phase to the Return socket (5) of the LEHLE PAR- cancellations and, if necessary, press the ALLEL SW II. phase reverse switch (4) on the LEHLE 5.
- Page 17 LEHLE PARALLEL SW II AS MIXER FOR TWO INPUT SIGNALS DEVICE CONNECTION Input Signal source 1 Return Signal source 2 Output Signal input M I X PA R A L L E L M A D E I N G E R M A N Y...
- Page 18 (4) on the LEHLE PARALLEL SW II. M I X PA R A L L E L M A D E I N G E R M A N Y LEHLE GmbH · Germany · www.lehle.com · support@lehle.com...
- Page 19 LEHLE PARALLEL SW II AS MIXER FOR TWO PICKUPS OF AN INSTRUMENT DEVICE CONNECTION Input Pickup 1 Return Pickup 2 Output Amplifier M I X PA R A L L E L M A D E I N G E R M A N Y Many instruments have two different 2.
-
Page 20: Signal Flow Diagram
TRUE-BYPASS SWITCH ( ) INPUT ( ) OUTPUT ( ) MO ST ( ) SEND ( ) RETURN ( ) PHASE ( ) SEND RETURN CONTROLLER ( ) CONTROLLER ( ) CONTROLLER ( ) LEHLE GmbH · Germany · www.lehle.com · support@lehle.com... - Page 21 LEHLE GmbH · Grenzstrasse 153 · 46562 Voerde · Germany www.lehle.com · support@lehle.com LEHLE PARALLEL SW II OPERATING INSTRUCTIONS EN V1.0 · 2019-08-01 Copyright 2019 by LEHLE LEHLE GmbH · Germany · www.lehle.com · support@lehle.com...
