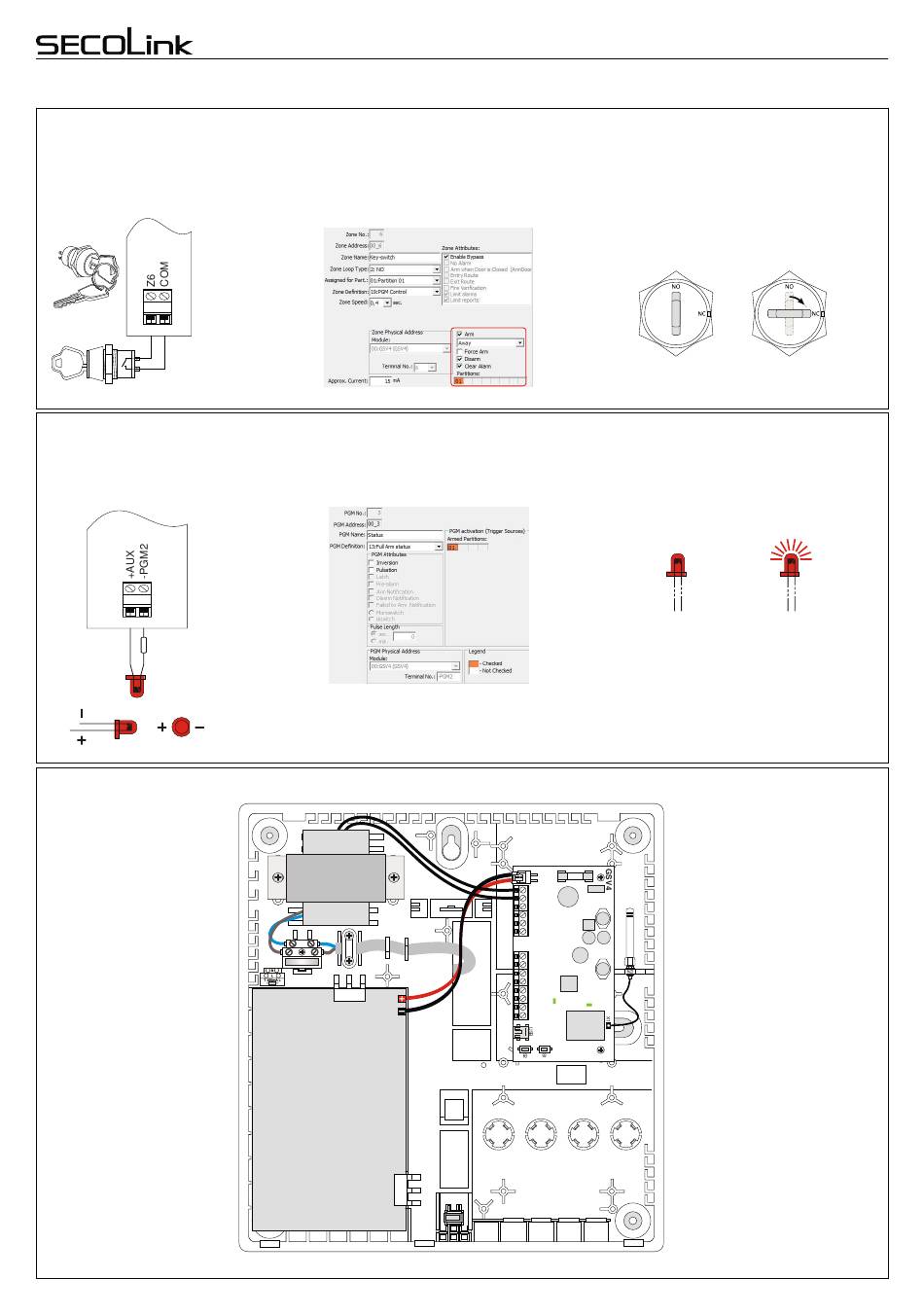

SECOLink GSV4 Wiring Manual page 4

Intruder alarm system
GSV4 zone definition is PGM control, which can be used to connect a key-switch. It is possible to program this zone to arm the system when the zone is violated and
to disarm and clear the alarm when the zone is restored.
Images below show an example of how to connect and program the key-switch zone. The zone input is programmed to arm the system in Away mode when the zone
is violated (NC) and to disarm the system when the zone is restored (NO). If there is an alarm in the system,it will be cleared when disarming.
Wiring:
GSV4
Z6 COM
GSV4 PGM definition is Full arm status, which can be used to indicate the system status (armed/disarmed). In this example, LED is used to show the status. The
system turns LED on when it is armed and turns it off when the system is disarmed.
Wiring:
GSV4
+AUX -PGM2
1kΩ
Page 4
Additional information (continued)
Key-switch zone wiring
Zone settings:
Wiring of LED and system status indication
PGM settings:
Typical system installation example
12V battery
7Ah/20HR
Operation:
Normally open
contact
(NO)
System is disarmed
Operation:
Turned Off
System is disarmed
BAT
AC
20V
+BELL
COM
-PGM1
-PGM2
+AUX
COM
Z1
Z2
Z3
Z4
Z5
Z6
GSV4
Wiring manual
Normally closed
contact
(NC)
System is armed in
Away mode
Turned On
System is armed
Rev.08/09/16_KF
